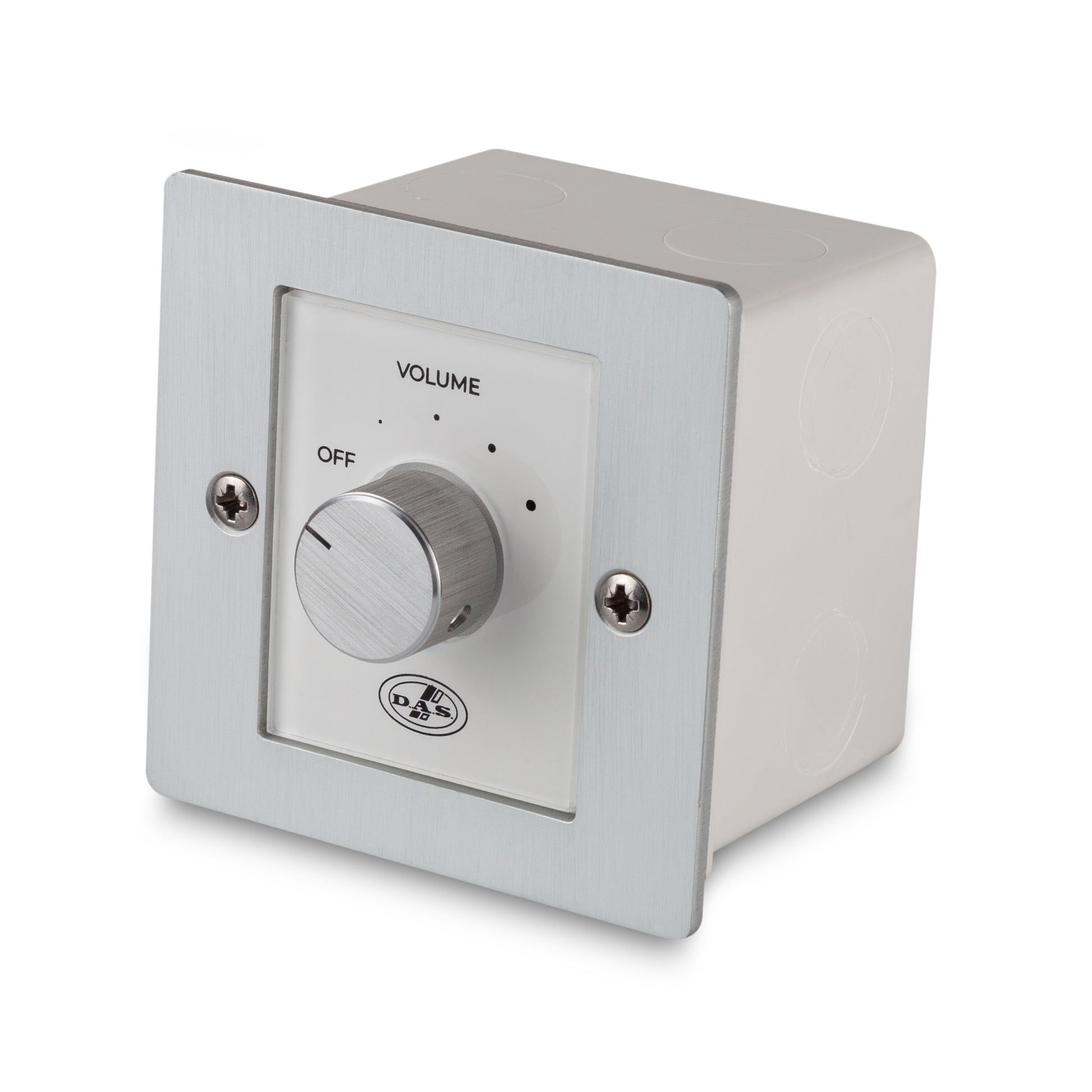

DAS Audio INTEGRAL-VC1 100V Wall Panel Volume Control

DAS Audio INTEGRAL-VC1 100V Wall Panel Volume Control

SoundPro Item: 130383 | Part Number: INTEGRAL-VC1

$178.60
$188.00 $178.60
Your Price Sold out
MSRP: $188.00 | MAP: $178.60

Usually ships in 5-7 business days

  • Constant-Voltage Volume Control For 100V And 70V Distributed Audio Lines
  • Stepped Rotary Selector Delivers Repeatable Zone Level Settings
  • 24V Priority Input Overrides Local Volume For Emergency Paging
  • Internal Relay Restores Full Output During Evacuation Announcements
  • Amplified Signal Bypasses Panel For Simplified Rack Wiring
  • Wall Panel Format Suits Clean Fixed-Install Presentation
Log in or register for YOUR best price

The DAS Audio INTEGRAL-VC1 is built for integrators specifying distributed audio across retail floors, hospitality venues, offices, and public buildings running 100V or 70V constant-voltage lines. Mounted in a standard wall panel format, it lets facility staff set listening levels per zone without touching the amplifier rack, keeping control simple for end users while the amplified signal stays isolated from the panel itself.

A rotatable selector delivers stepped attenuation across a defined range, giving repeatable, predictable settings rather than the drift of a variable pot. The distinguishing feature for life-safety installs is the dedicated priority input and internal relay: when a 24V trigger arrives, the control overrides local settings and restores full output, ensuring evacuation and emergency announcements are always heard at maximum level. That makes it a practical choice over passive attenuators that offer no override path, and it fits neatly into voice-alarm and background music systems where compliance and reliability matter.

Downloads

View full details

Specifications

Dimensions
Height
86 mm (3.4")
Width
86 mm (3.4")
Depth
52 mm (2.0")
Weight
Net Weight
0.5 kg (0.2 lb)
Electrical
Power Handling
120 W
Priority Trigger Voltage
24V
Audio
Frequency Response
20 Hz - 20 kHz
Attenuation
6dB Per Step
Attenuation Steps
5
Line Voltage
100V/70V
