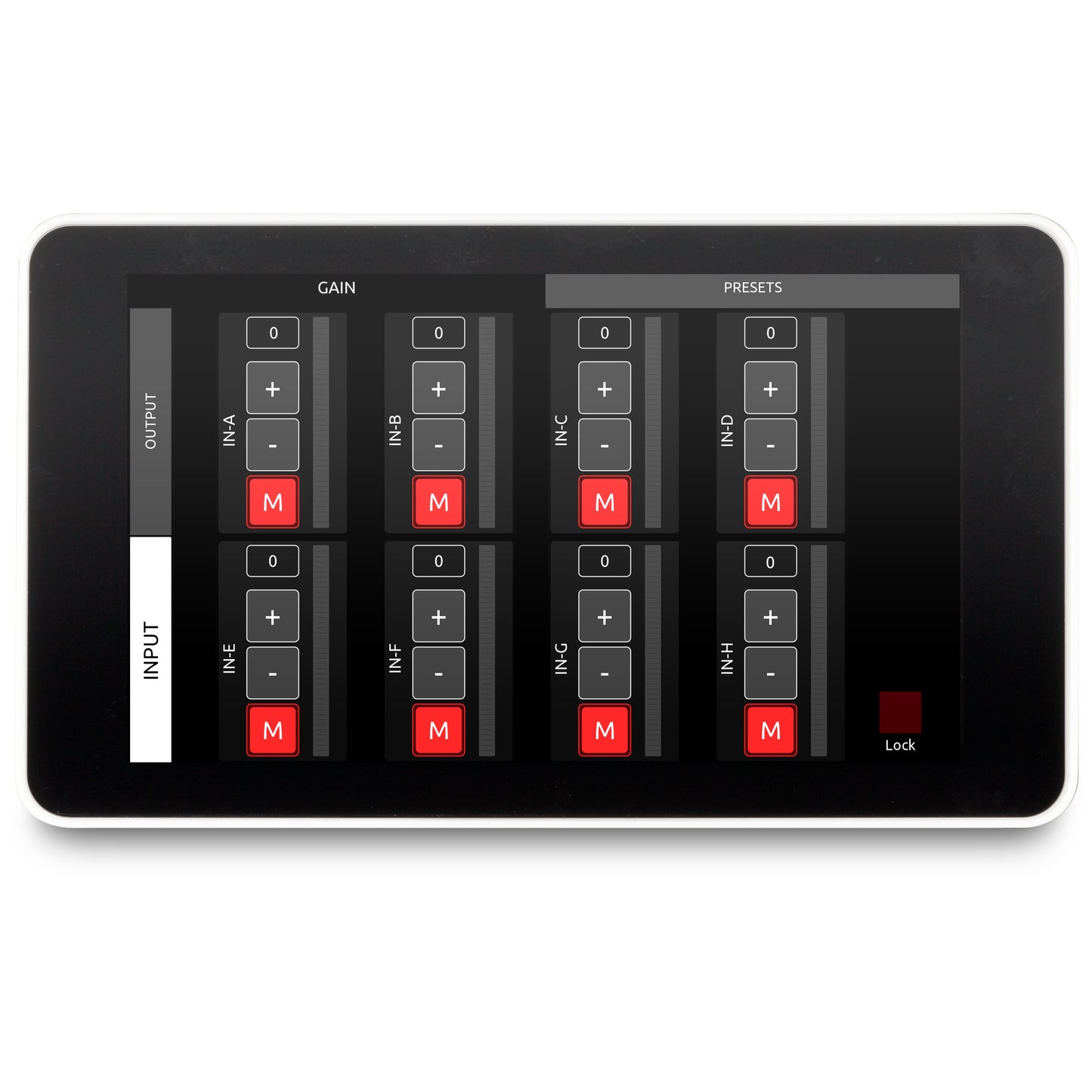

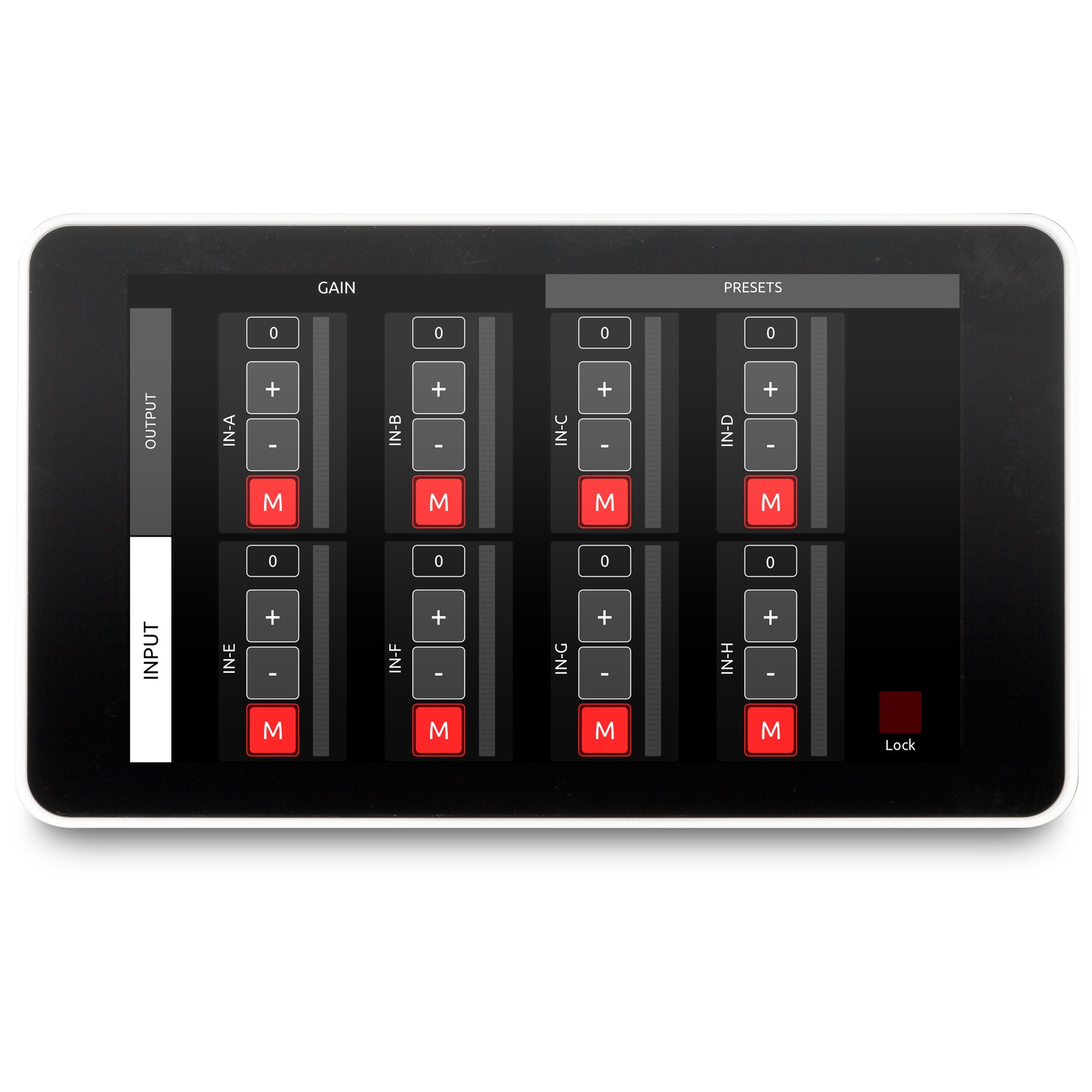

DAS Audio INTEGRAL-WP3 7" PoE Wall-Mount Touch Screen Controller

DAS Audio INTEGRAL-WP3 7" PoE Wall-Mount Touch Screen Controller

SoundPro Item: 130381 | Part Number: INTEGRAL-WP3

$1,286.30
$1,354.00 $1,286.30
Your Price Sold out
MSRP: $1,354.00 | MAP: $1,286.30

Usually ships in 5-7 business days

  • 7" Wall-Mount Touch Screen Delivers Operator Control Without A Dedicated Laptop
  • PoE Operation Supplies Power And Network Over A Single Cable Run
  • OSC Communication Manages INTEGRAL-M88 And MA-Series Amplifier Processors
  • Quick Access To Preset Recall, Channel Muting, And Gain Adjustment
  • Capacitive Touch Interface With Live Meter Monitoring For At-A-Glance Status
Log in or register for YOUR best price

The DAS Audio INTEGRAL-WP3 is a wall-mount control surface built for integrators deploying INTEGRAL-M88, MA1004, and MA1604 amplifiers in fixed installations. It gives front-of-house staff, venue operators, and facility managers direct touch access to processor functions without opening a computer or connecting to the amplifier network manually, making it well suited for conference centers, houses of worship, retail, and multipurpose rooms where a dedicated engineer is not always present.

Communicating over OSC, the panel exposes input and output channels, preset recall, level metering, channel muting, and input/output gain adjustment from one screen. Because it draws power and data over a single PoE run, installation is simplified to one cable pull to a nearby switch, reducing labor and eliminating a local power supply at the wall location. For projects standardized on INTEGRAL amplification, it delivers a purpose-matched user interface that generic third-party controllers cannot replicate.

Downloads

View full details

Specifications

Dimensions
Height x Width x Depth
115 x 197 x 59 mm (4.5 x 7.8 x 2.3 in)
Viewable Screen
155 x 86 mm (6.1 x 3.4 in)
Weight
Net Weight
0.5 kg (1.1 lb)
Electrical
Power
IEEE PoE 802.3af via LAN port
Performance
Resolution
800 x 480 px
Touch Technology
Capacitive Touch Screen
