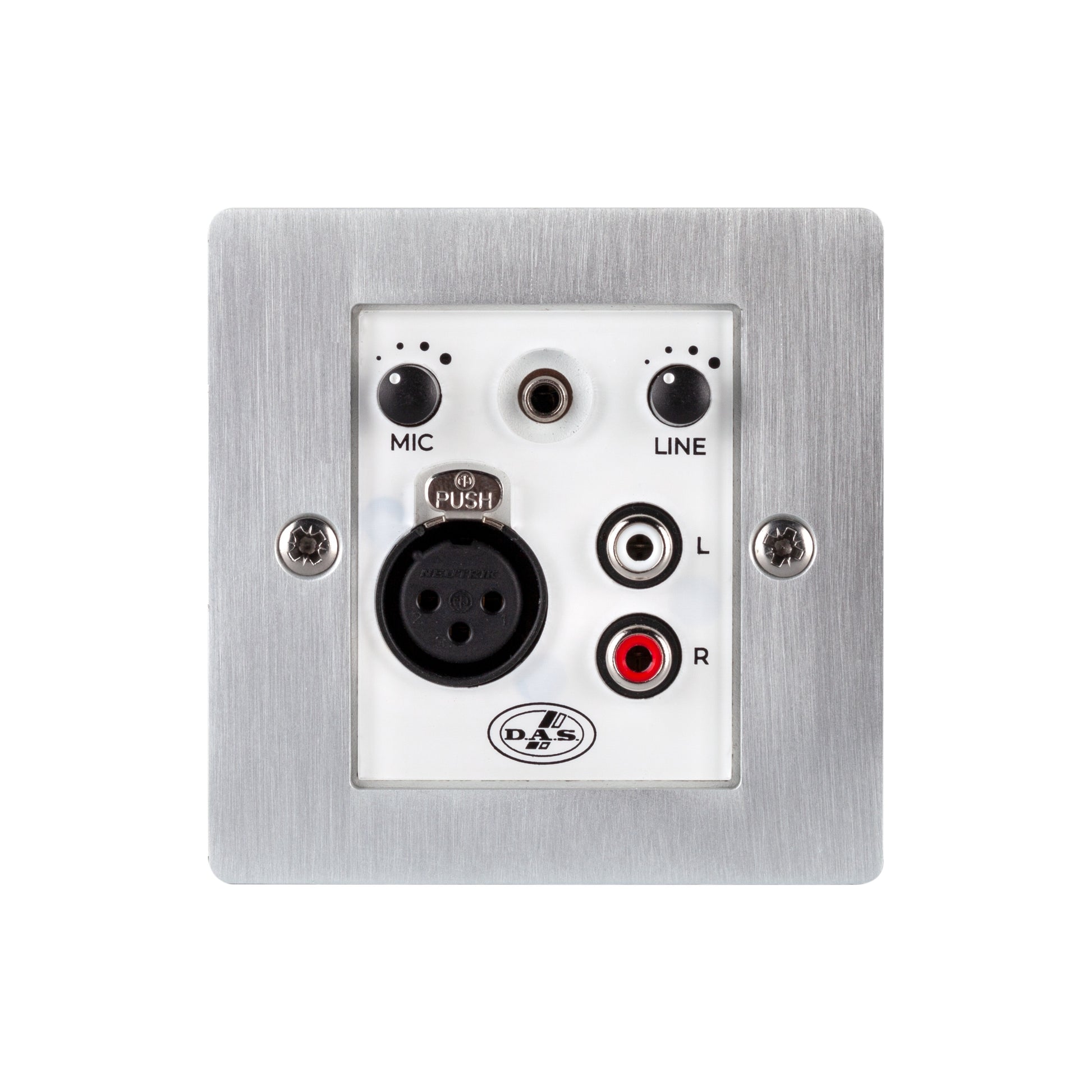

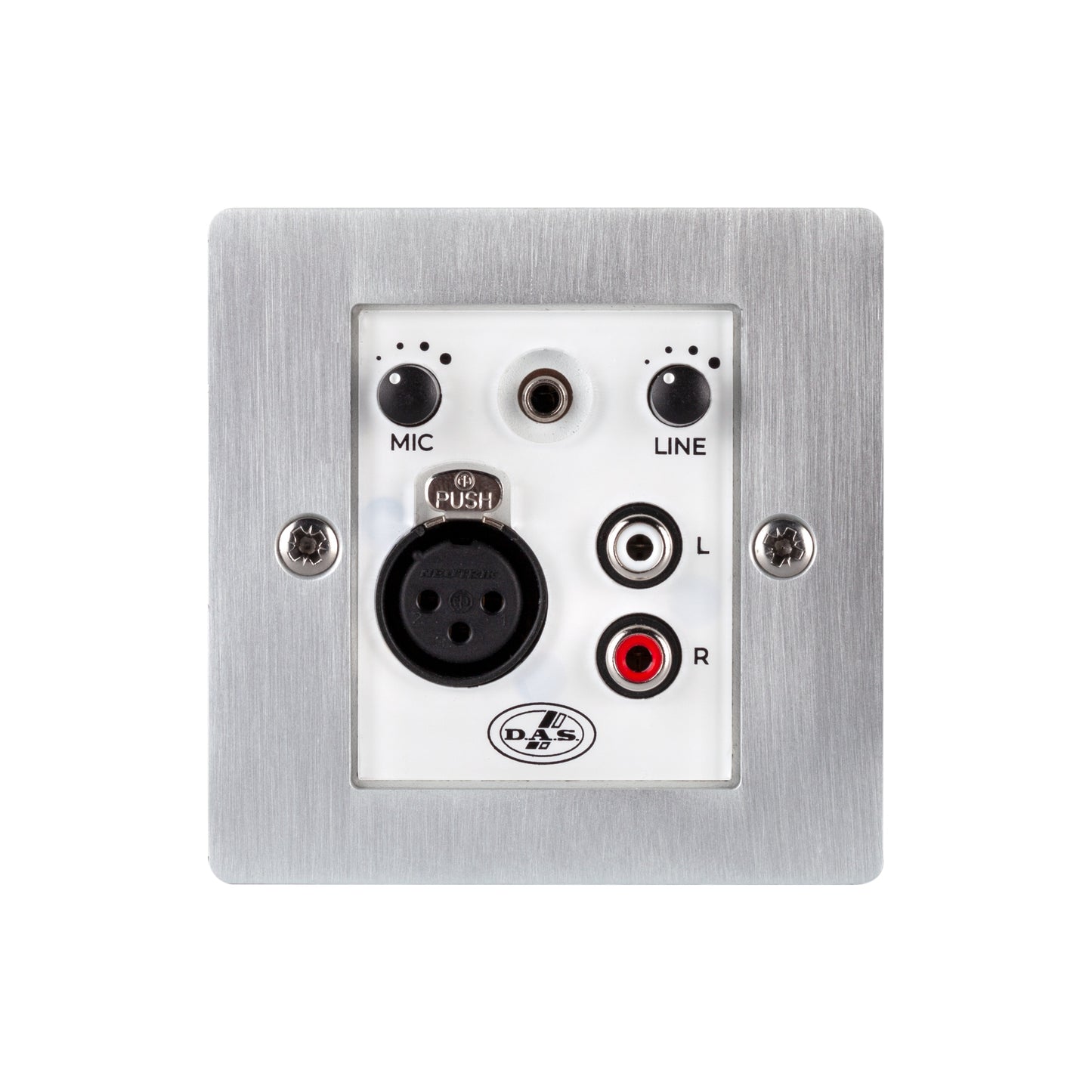

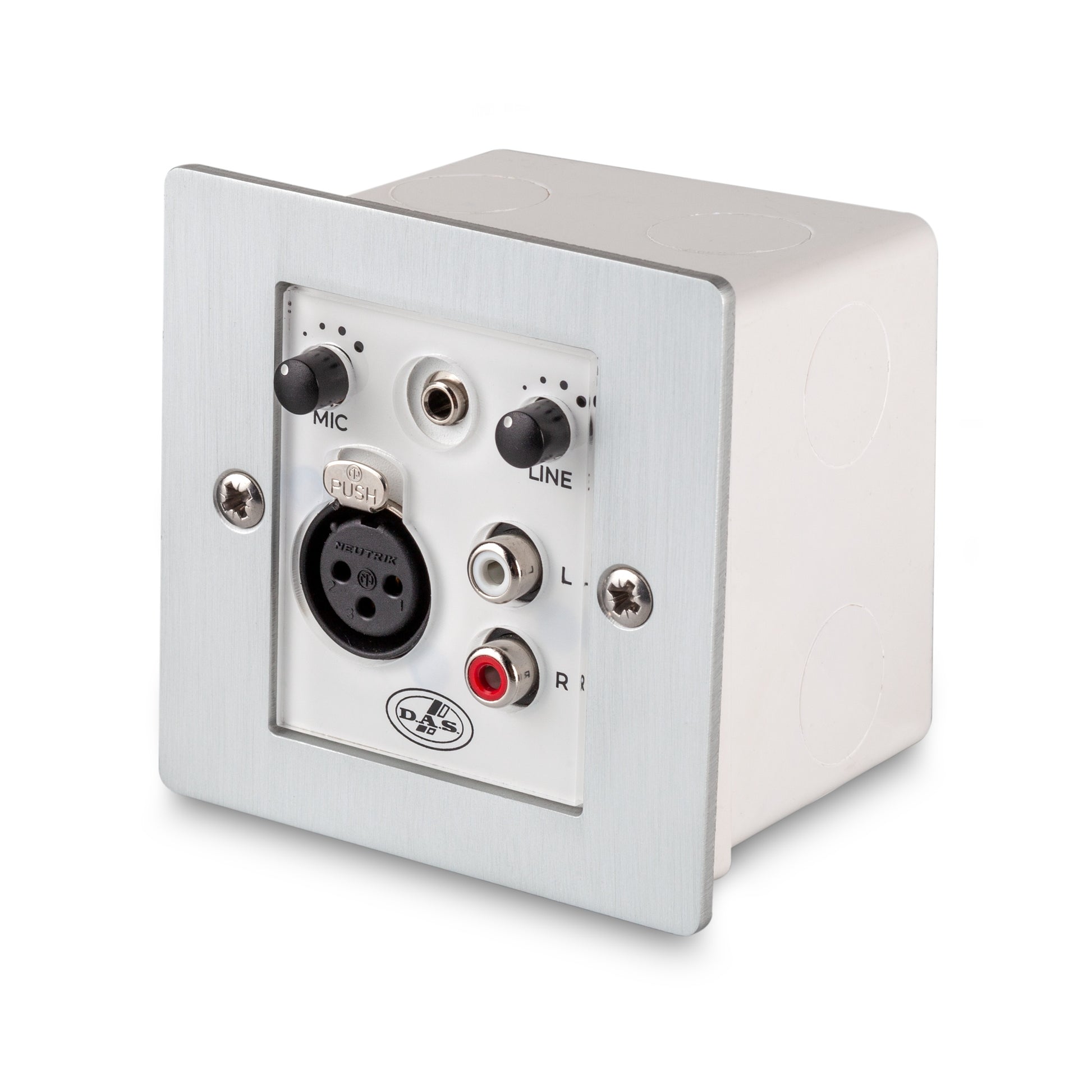

DAS Audio INTEGRAL-WPM1 2-Channel Wall-Panel Audio Mixer

DAS Audio INTEGRAL-WPM1 2-Channel Wall-Panel Audio Mixer

SoundPro Item: 130382 | Part Number: INTEGRAL-WPM1

$169.10
$178.00 $169.10
Your Price Sold out
MSRP: $178.00 | MAP: $169.10

Usually ships in 5-7 business days

  • Balanced XLR Microphone Input Accepts Dynamic And Condenser Sources
  • Unbalanced Stereo Line Input Via Dual RCA Or Mini-Jack Connection
  • Independent Level Control Per Channel For Precise Local Balancing
  • Selectable Phantom Power Enabled Through Internal Jumper Setting
  • Talk-Over Priority Automatically Ducks Music During Announcements
  • Balanced Mono Output Feeds Matrix And Zoned Amplifiers Directly
Log in or register for YOUR best price

The DAS Audio INTEGRAL-WPM1 is built for integrators specifying distributed audio in restaurants, retail spaces, houses of worship, and conference rooms where a compact local source control is needed at the point of use. Its wall-panel format mounts discreetly and hands operators simple per-channel level adjustment without exposing the rest of the system.

One balanced XLR microphone input pairs with an unbalanced stereo line input, letting staff run announcements over background music. Selectable phantom power supports condenser microphones, while the talk-over function automatically ducks the line signal when someone speaks, so paging always cuts through cleanly.

Because the summed signal exits as a balanced mono output, the INTEGRAL-WPM1 drops directly into matrix amplifiers and zoned amplifier chains without additional interfacing. Internal jumpers for phantom and priority keep the panel free of clutter and reduce tampering in public installs, making it a dependable choice over consumer-grade wall inputs.

Downloads

View full details

Specifications

Dimensions
Dimensions (H x W x D)
86 x 86 x 52 mm (3.4" x 3.4" x 2.0")
Weight
Net Weight
0.3 kg (0.1 lbs)
Electrical
Phantom Voltage
12 Vdc
External Power Supply
12-24 Vdc
Power Consumption
25 mA
Audio
Input Sensitivity / Impedance
Line: -10 dBV / 10 kohms MIC: -40 or -20 dBV / >1 kohm
Output Level / Minimum Load
0 dBV / 600 ohm (max. +17 dBV)
Frequency Response
Line: 20 Hz - 20 kHz / MIC: 120 Hz - 20 kHz
Total Harmonic Distortion
Line: < 0.005 % / MIC: < 0.01 %
Signal to Noise Ratio
Line: >105 dB / MIC: >90 dB
Talk-Over
-30 dB / 2s
