DAS Audio OVI-12 Coaxial Loudspeaker | Without Transformer | None | Black

DAS Audio OVI-12 Coaxial Loudspeaker | Without Transformer | None | Black

SoundPro Item: 14414 | Part Number: OVI-12

Regular price $836.95
Regular price $881.00 Sale price $836.95
Your Price Sold out
MSRP: $881.00 | MAP: $836.95

Usually ships in 5-7 business days

  • True Two-Way Coaxial Design Delivers Aligned Full-Range Sound From A Single Axis

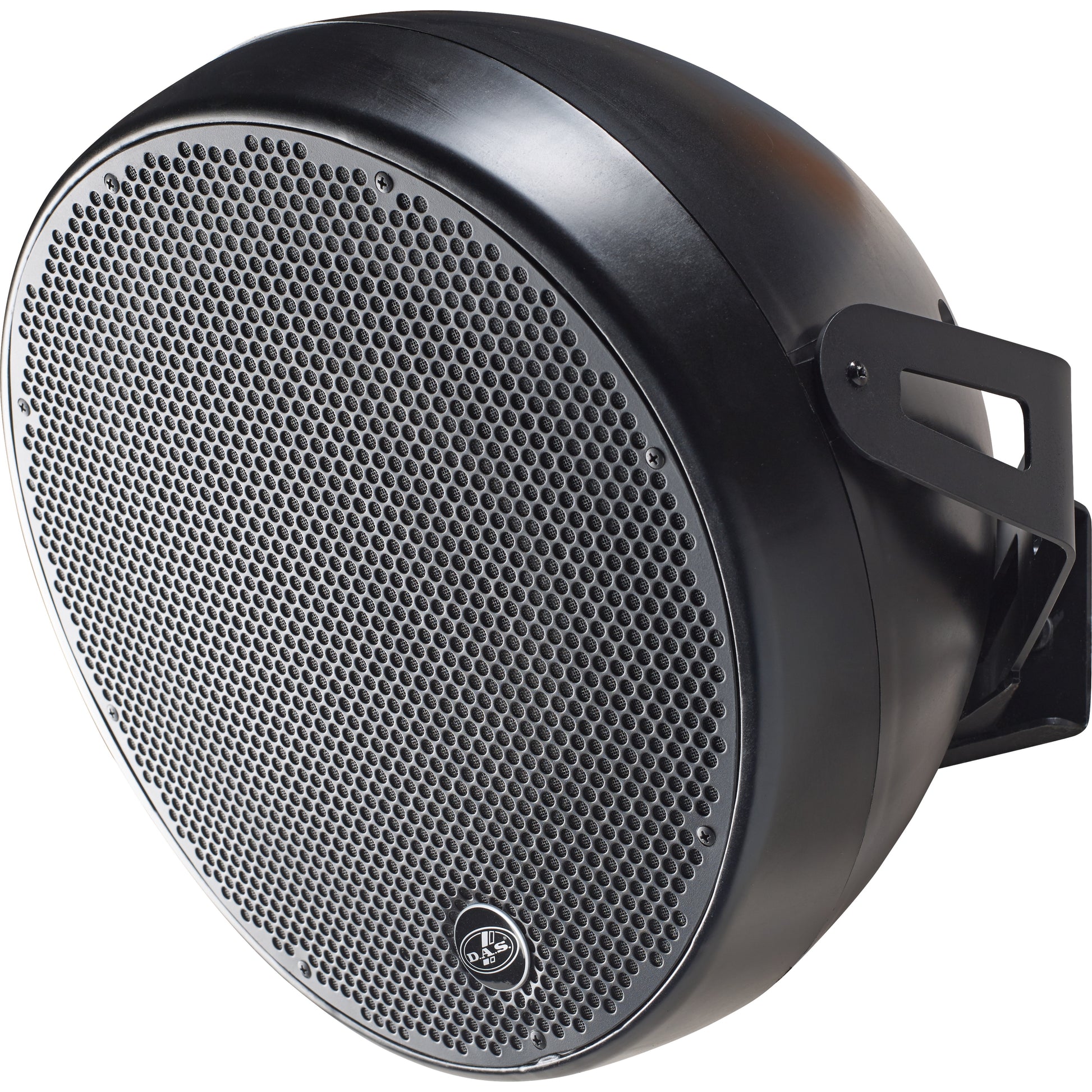

  • Versatile Mounting Adapts To Wall, Ceiling, Or Suspended Pendant Installations
  • Round Polypropylene Enclosure Resists Wear In Demanding Fixed-Install Environments
  • Symmetrical Coverage Pattern Simplifies System Layout And Reduces Unit Count
  • Passive Operation Pairs With Standard Amplification For Flexible System Design

The DAS Audio OVI-12 is built for integrators and install specialists who need consistent, intelligible sound in spaces where a conventional cabinet won't fit. Its round polypropylene enclosure adapts to wall surfaces, ceiling structures, and open pendant suspension, making it a strong fit for restaurants, atriums, houses of worship, retail environments, and multipurpose venues that demand even coverage from a single point source.

A true two-way coaxial design keeps low and high frequencies aligned from a single acoustic axis, so listeners hear the same tonal balance regardless of where they stand under the speaker. The symmetrical dispersion pattern simplifies system layout and reduces the number of units needed to cover a given footprint, while the weather-resilient molded housing holds up in demanding fixed-install locations. For projects that prioritize clean aesthetics alongside professional output, the OVI-12 gives designers a discreet mounting profile without sacrificing headroom or fidelity.

Downloads

View full details

Specifications

Performance
Frequency Range (-10 dB)
63 Hz – 20 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
90º
Nominal Impedance
8 ohms
RMS Power Handling
300 W
Peak Power Handling
1200 W
On-axis Sensitivity 1W/1 m
96 dB SPL
Maximum Peak SPL at 1 m
130 dB
Recommended Amplifier
INTEGRAL-A1002 INTEGRAL-A1004

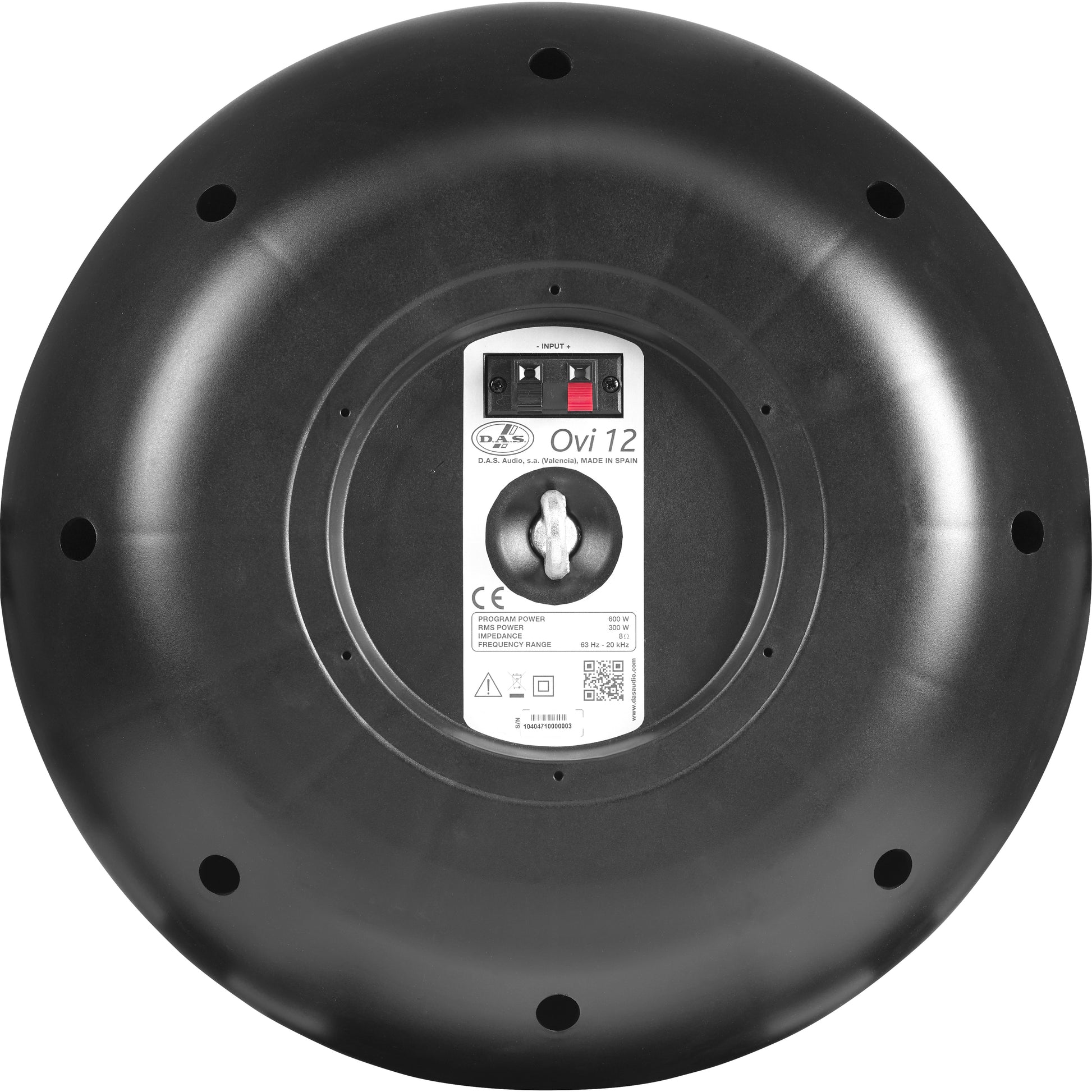

Connectivity
Audio Input Connector
Spring Terminals
Audio Output Connector
Spring Terminals
Components
LF Driver
12MX
HF Driver
M-34
Construction
Enclosure Construction
Polypropylene
Enclosure Geometry
Round
Color
Black
Dimensions
Enclosure Dimensions (H x W x D)
19.7" x 19.9" x 11.4"
Carton Dimensions (H x W x D)
13.4" x 22.2" x 22.2"
Weight
Net Weight
23.2 lbs
Shipping Weight
27.6 lbs
