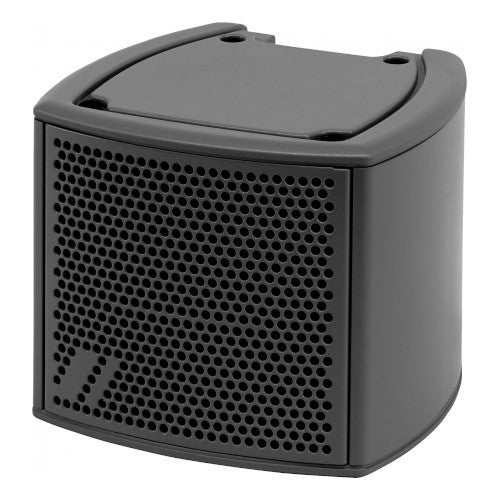

DAS Audio Q-3-T 3-Inch 20W Passive Surface Mount Speaker | Color: Black
DAS Audio Q-3-T 3-Inch 20W Passive Surface Mount Speaker | Color: Black
SoundPro Item: 87588 | Part Number: Q-3-T
Usually ships in 5-7 business days
- Passive system
- Extruded aluminum enclosure
- 1 x 3”, 3P full-range speaker
- Dispersion H x V: 120º x 120º
- SPL peak: 106 dB

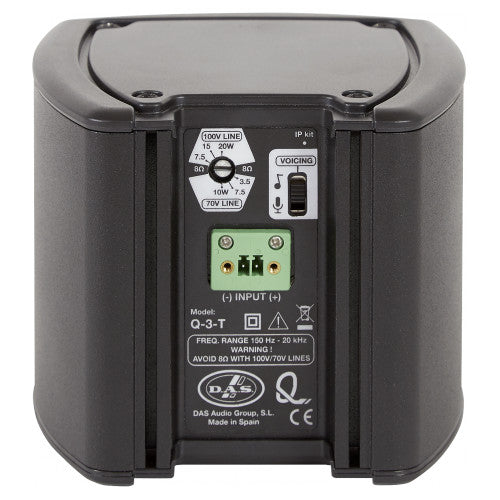

- Multi-tap 100/70V transformer included
- Low/high-impedance operation
- Available in all RAL colors
The Q-3-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment. The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
- Performance
- Frequency Range (-10 dB): 150 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 120º
- Vertical Coverage: 120º
- Nominal Impedance: 8 ohms
- Transformer Taps 70V: 3.5W – 7.5W – 10W
- Transformer Taps 100V: 7.5W – 15W – 20W
- RMS Power Handling: 20W
- Peak Power Handling: 80W
- On-axis Sensitivity 1W/1 m: 87 dB SPL
- Maximum Peak SPL at 1 m: 106 dB SPL
- Recommended Amplifier
- INTEGRAL-A402
- INTEGRAL-A404
- INTEGRAL-A1002
- INTEGRAL-A1004
- INTEGRAL-A1602
- INTEGRAL-A1604
- INTEGRAL-MA1004
- INTEGRAL-MA1604
- Recommended Processor
- INTEGRAL-M88
- INTEGRAL-MA1604
- INTEGRAL-MA1004
- Audio Input Connector 4-way Phoenix 2.54 mm
- Enclosure
- Enclosure Construction: Aluminum
- Color: Black
- IP Rating: IP66
- Depth: 125 mm (4,9 in)
- Dimensions (HxWxD): 4.1x4.9x4.9” (105x125x125mm)
- Net Weight: 3.5 lbs (1.6kg)
- MF Driver 3P
