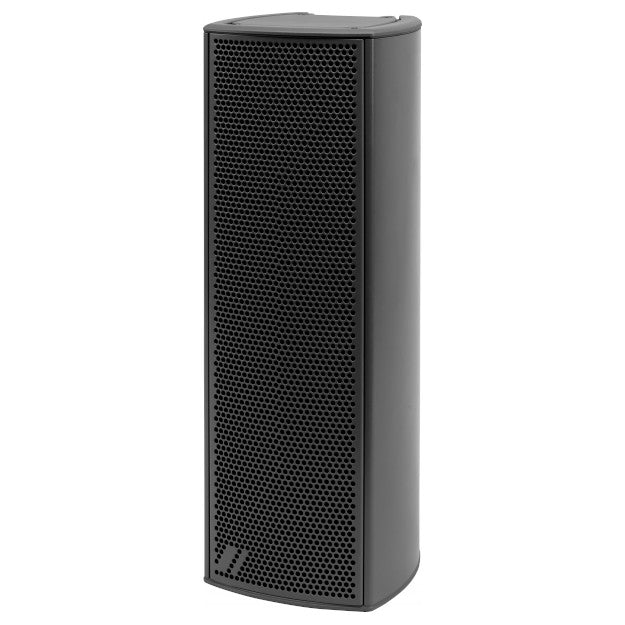

DAS Audio Q-43-T 4x3-Inch 80W Passive Surface Mount Speaker | Color: Black
DAS Audio Q-43-T 4x3-Inch 80W Passive Surface Mount Speaker | Color: Black
SoundPro Item: 87590 | Part Number: Q-43-T
Usually ships in 5-7 business days
- Passive system
- Extruded aluminum enclosure
- 4 x 3”, 3P16 full-range speaker
- Dispersion H x V: 120º x 30º/45º
- SPL peak: 118 dB
- Multi-tap 100/70V transformer included
- Low/high impedance operation
- Available in all RAL colors
The DAS Audio Q-43-T 4x3-Inch 80W Passive Surface Mount Speaker is designed for small- and mid-sized venues. The vertical dispersion selection by means of the system-integrated filter (30º/45º) makes it possible to control the system’s dispersion lobe in the vertical plane and thus reduce the reverb, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction. The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.
- Performance
- Frequency Range (-10 dB) 150 Hz – 20 kHz
- Horizontal Coverage (-6 dB) 120º
- Vertical Coverage Switchable: 45º – 30º
- Nominal Impedance 4 ohms
- Transformer Taps 70V 7.5W – 15W – 25W
- Transformer Taps 100V 15W – 30W – 50W
- RMS Power Handling 80W
- Peak Power Handling 320 W
- On-axis Sensitivity 1W/1 m 93 dB SPL
- Maximum Peak SPL at 1 m 118 dB SPL
- Recommended Amplifier
- INTEGRAL-A402
- INTEGRAL-A404
- INTEGRAL-A1002
- INTEGRAL-A1004
- INTEGRAL-A1602
- INTEGRAL-A1604
- INTEGRAL-MA1004
- INTEGRAL-MA1604
- Recommended Processor
- INTEGRAL-M88
- INTEGRAL-MA1604
- INTEGRAL-MA1004

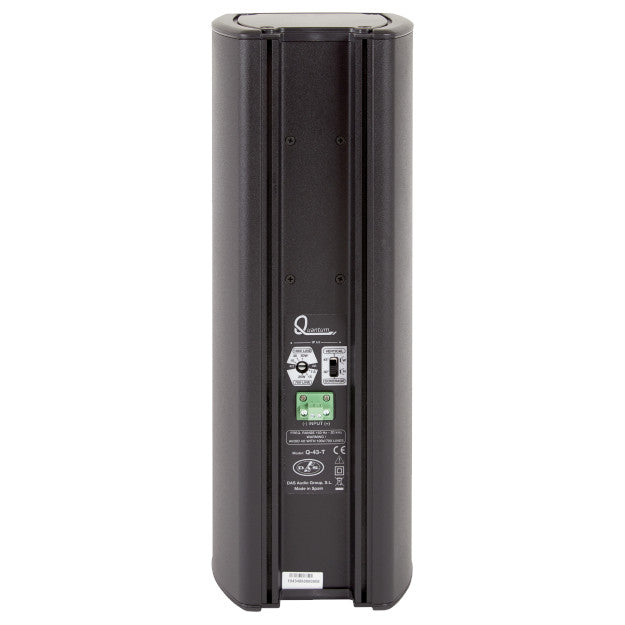

- Audio Input Connector 4-way Phoenix 2.54 mm
- Enclosure
- Enclosure Construction: Aluminum
- Color: Black
- IP Rating: IP66
- Depth: 125 mm (4,9 in)
- Dimensions (HxWxD): 14x4.9x4.9” (355x125x125mm)
- Net Weight: 11.7 lbs (5.3 kg)
- MF Driver 3P16
