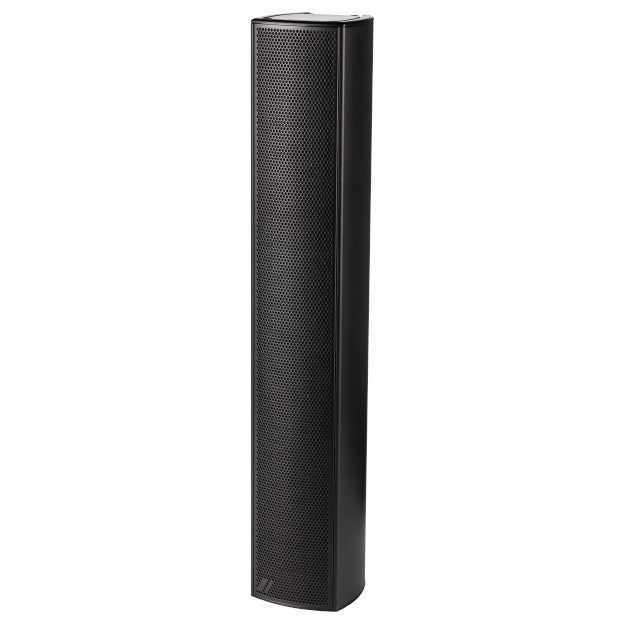

DAS Audio Q-83-T 8x3-Inch 160W Passive Surface Mount Speaker | Color: Black

DAS Audio Q-83-T 8x3-Inch 160W Passive Surface Mount Speaker | Color: Black

SoundPro Item: 130353 | Part Number: Q-83-T

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Passive system
  • Extruded aluminum enclosure
  • 8 x 3”, 3PN16 full-range speaker
  • Dispersion H x V: 120º x 20º
  • SPL peak: 123 dB
  • Multi-tap 100/70V transformer included
  • Low/high impedance operation

This system is designed for small- and mid-sized venues. The narrow vertical dispersion (20º) prevents exiting reverberation field, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction. The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.

View full details

Specifications

Dimensions
Depth
130 mm (5.1 in)
Dimensions (HxWxD)
27x4.9x5.1” (685x125x130mm)
Weight
Net Weight
17.2 lbs (7.8 kg)
Audio
On-axis Sensitivity 1W/1 M
95 dB SPL
Maximum Peak SPL at 1 M
123 dB SPL
Audio Input Connector
Ceramic Barrier Strip Terminals
Construction
Enclosure Construction
Aluminum
Color
Black
Environmental
IP Rating
IP66
General
Frequency Range (-10 dB)
150 Hz – 20 kHz
Horizontal Coverage (-6 dB)
120º
Vertical Coverage
20º
Nominal Impedance
8 ohms
Transformer Taps 70V
12.5W – 25W – 50W
Transformer Taps 100V
25W – 50W – 100W
RMS Power Handling
160W
Peak Power Handling
640W
Performance
Recommended Amplifier INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604, Recommended Processor INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004
MF Driver
3PN16
