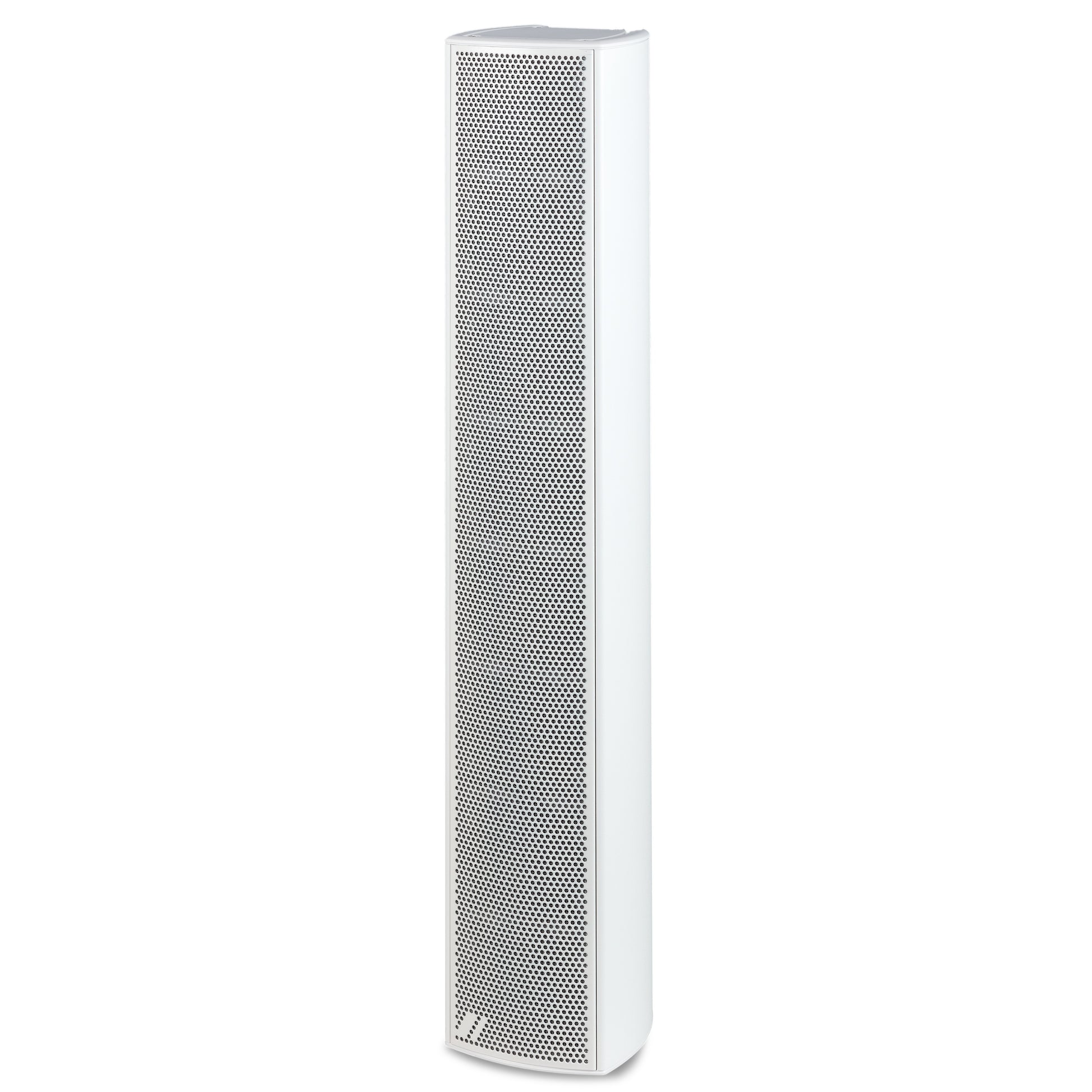

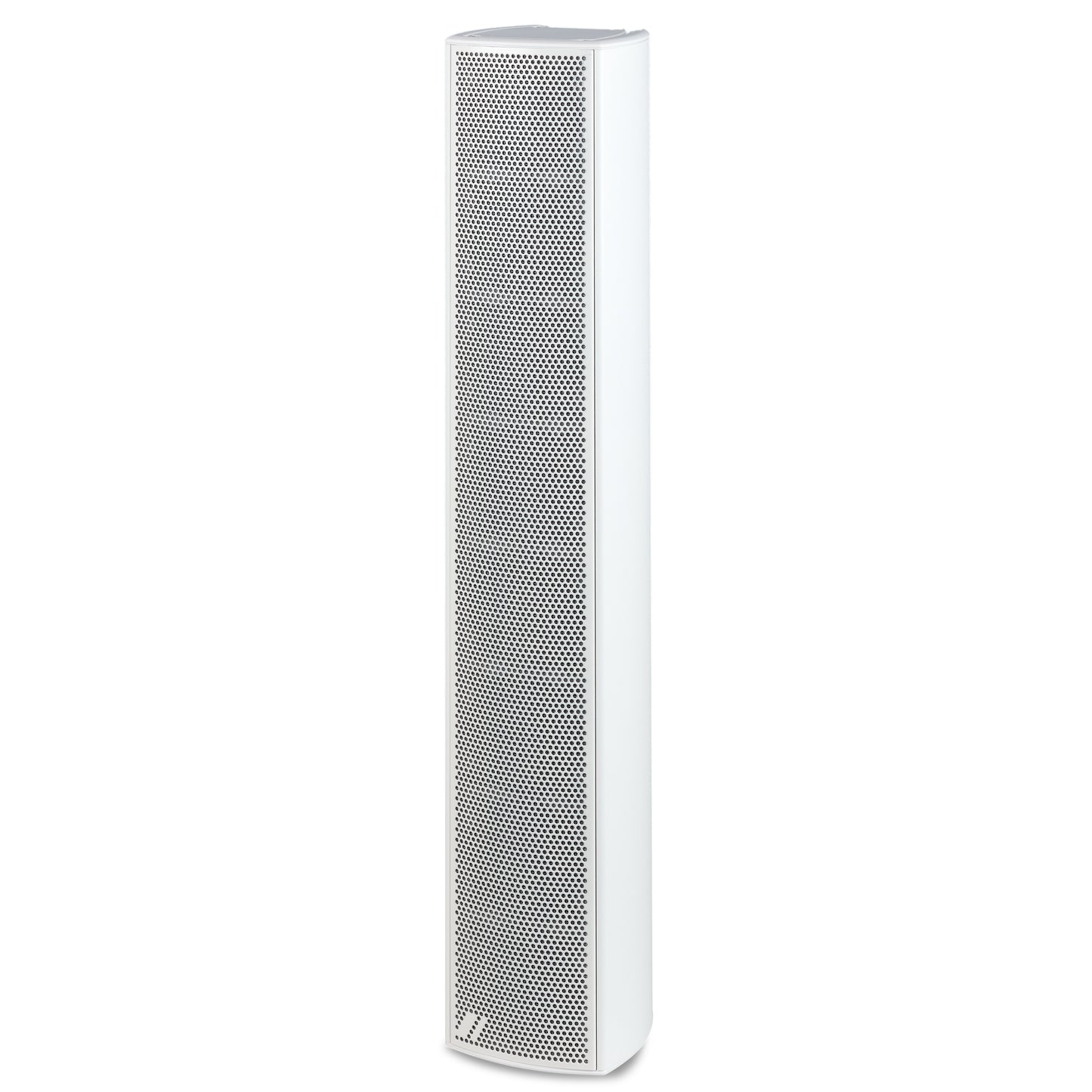

DAS Audio Q-83-TW Aluminum Column Passive Speaker

DAS Audio Q-83-TW Aluminum Column Passive Speaker

SoundPro Item: 143622 | Part Number: Q-83-TW

$1,535.20
$1,616.00 $1,535.20
Your Price Sold out
MSRP: $1,616.00 | MAP: $1,535.20

Usually ships in 5-7 business days

  • Adjustable Vertical Dispersion Filter Reduces Reverberation And Improves Speech Clarity
  • Integrated 70V And 100V Transformer Taps Simplify Distributed And Multi-Zone Installs
  • Aluminum Column Enclosure Delivers Durable Long-Term Reliability In Fixed Systems
  • IP66-Rated Kit Protects Against Dust And Water In Demanding Environments
  • Ceramic Barrier Strip Terminals Provide Secure Audio Connections For Permanent Wiring
  • Discreet White Finish Blends Into Architectural Interiors
Log in or register for YOUR best price

The DAS Audio Q-83-TW targets integrators specifying fixed audio for houses of worship, museums, conference rooms, and other reverberant spaces where intelligibility matters more than raw output. Eight compact transducers in a slim aluminum column produce controlled coverage that keeps energy on listeners and off reflective surfaces, a critical advantage over point-source boxes in acoustically difficult rooms.

An integrated filter lets installers set vertical dispersion between 30 and 45 degrees, tailoring the pattern to room geometry without external processing. Onboard 70V and 100V transformer taps make it straightforward to distribute audio across long cable runs or multiple zones, so a single amplifier can drive many columns efficiently. Ceramic barrier terminal connections and an IP66 kit support permanent installations in demanding environments.

Compared with wider-format speakers, this column's discreet white profile blends into architectural interiors while still handling both voice and background music. Paired with DAS INTEGRAL amplifiers and processors, it forms a scalable distributed system for contractors who need consistent coverage from a low-visibility enclosure.

Downloads

View full details

Specifications

Certifications
IP Rating
IP66
Dimensions
Enclosure Dimensions (H x W x D)
685 x 125 x 130 mm 27.0 x 4.9 x 5.1 in
Weight
Net Weight
7.8 kg (17.2 lb)
Audio
Frequency Range (-10 dB)
150 Hz – 20 kHz
Horizontal Coverage (-6 dB)
120º
Vertical Coverage
20º
Nominal Impedance
8 ohms
RMS Power Handling
160 W
Peak Power Handling
640 W
Transformer Taps 70 V
12.5 W – 25 W – 50 W
Transformer Taps 100 V
25 W – 50 W – 100 W
On-axis Sensitivity 1W/1 m
95 dB SPL
Maximum Peak SPL at 1 m
123 dB SPL
Connectivity
Audio Input Connector
Ceramic Barrier Strip Terminals
Construction
Enclosure Construction
Aluminum
Color
White
MF Driver
3PN16
Compatibility
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004
