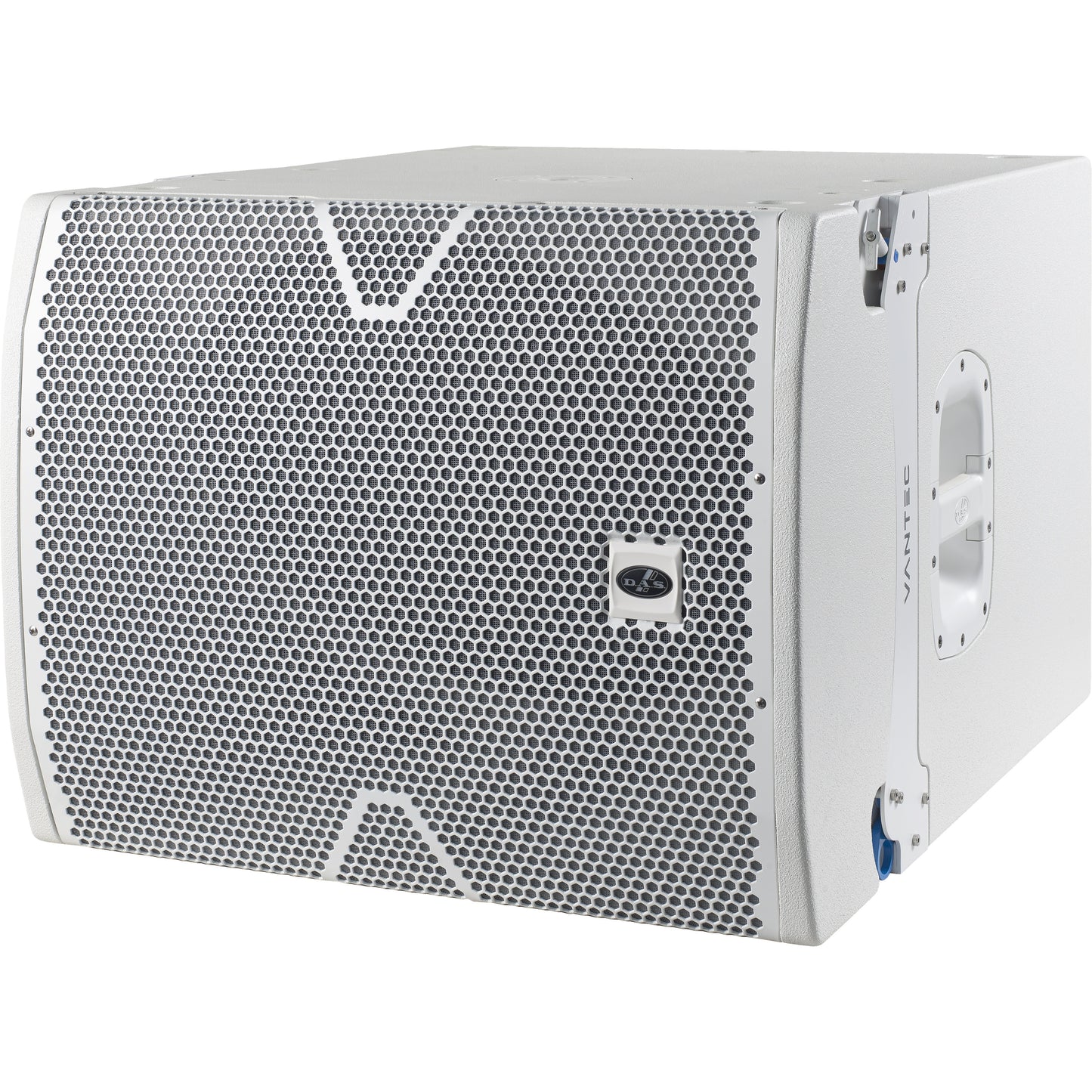

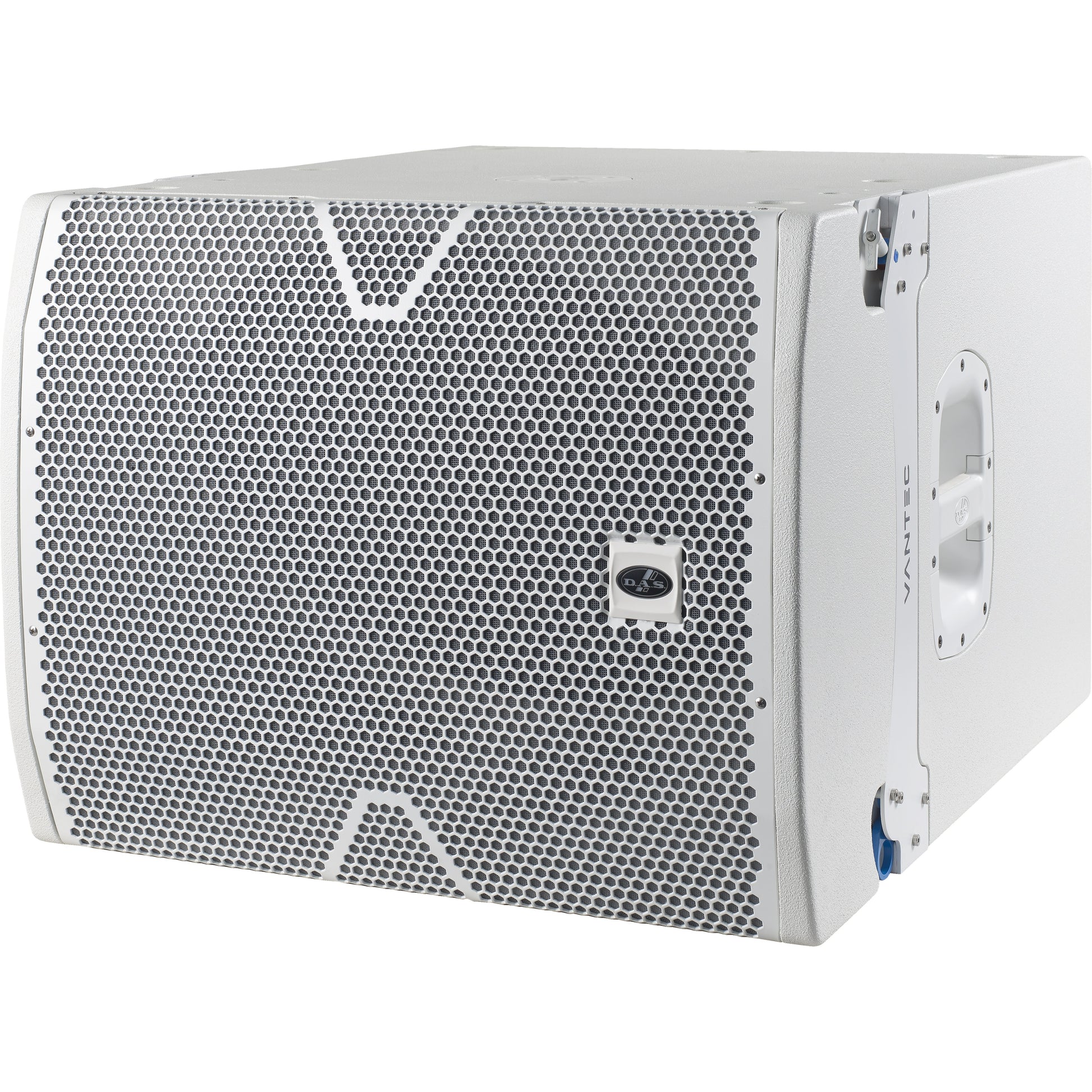

DAS Audio VANTEC-118A-W 18" Powered Line Array Subwoofer

DAS Audio VANTEC-118A-W 18" Powered Line Array Subwoofer

SoundPro Item: 115317 | Part Number: VANTEC-118A-W

$3,111.99
$4,356.00 $3,111.99
Your Price Sold out
MSRP: $4,356.00 | MAP: $3,111.99

Usually ships in 5-7 business days

  • Self-Powered Bass System Eliminates External Amplifier Racks From The Rig
  • Array-Compatible Rigging Flies Or Ground Stacks With VANTEC-20A-W Cabinets
  • Long-Excursion Bass-Reflex Design Extends Low-Frequency Headroom
  • PowerCON AC Loop-Thru Simplifies Multi-Cabinet Power Distribution
  • Balanced XLR Input And Loop-Thru Streamline Array Signal Chaining
  • ISO-Flex Painted Birch Plywood Enclosure Withstands Touring Wear
Log in or register for YOUR best price

The DAS Audio VANTEC-118A-W is a front-loaded active bass system engineered to pair with the VANTEC-20A-W curved source line array, giving touring and install engineers a low-frequency foundation that mounts directly within the same array family. Its rigging system shares points with the VANTEC-20A-W, so integrators can fly the subwoofers overhead or configure ground stacks without adapting hardware between formats.

Built for production companies running rental inventory and fixed installs alike, the self-powered design removes external amplifier racks from the signal chain and simplifies deployment on regional tours, houses of worship, and performing arts venues. Balanced XLR inputs with loop-thru connectors and powerCON AC linking let crews daisy-chain multiple cabinets across an array, reducing cable runs and setup time on the truck-to-stage turnaround.

Compared with passive subwoofers that demand matched amplification and processing, this active enclosure delivers a known, tuned performance envelope out of the box, making system design predictable when scaling array counts for larger rooms.

Downloads

View full details

Specifications

Performance
Frequency Range (-10 dB)
35 Hz – 125 Hz
Maximum Peak SPL at 1 m
134 dB
Dispersion
Omnidirectional
Electrical
Nominal Amplifier Power (continuous)
1000 W
Nominal Amplifier Power (peak)
2000 W
Input Type
Balanced
Input Impedance
20 kohms
Input Sensitivity
3 V (+12 dBu)
Current Draw 230 V / 115 V
2.2 A/4.4 A

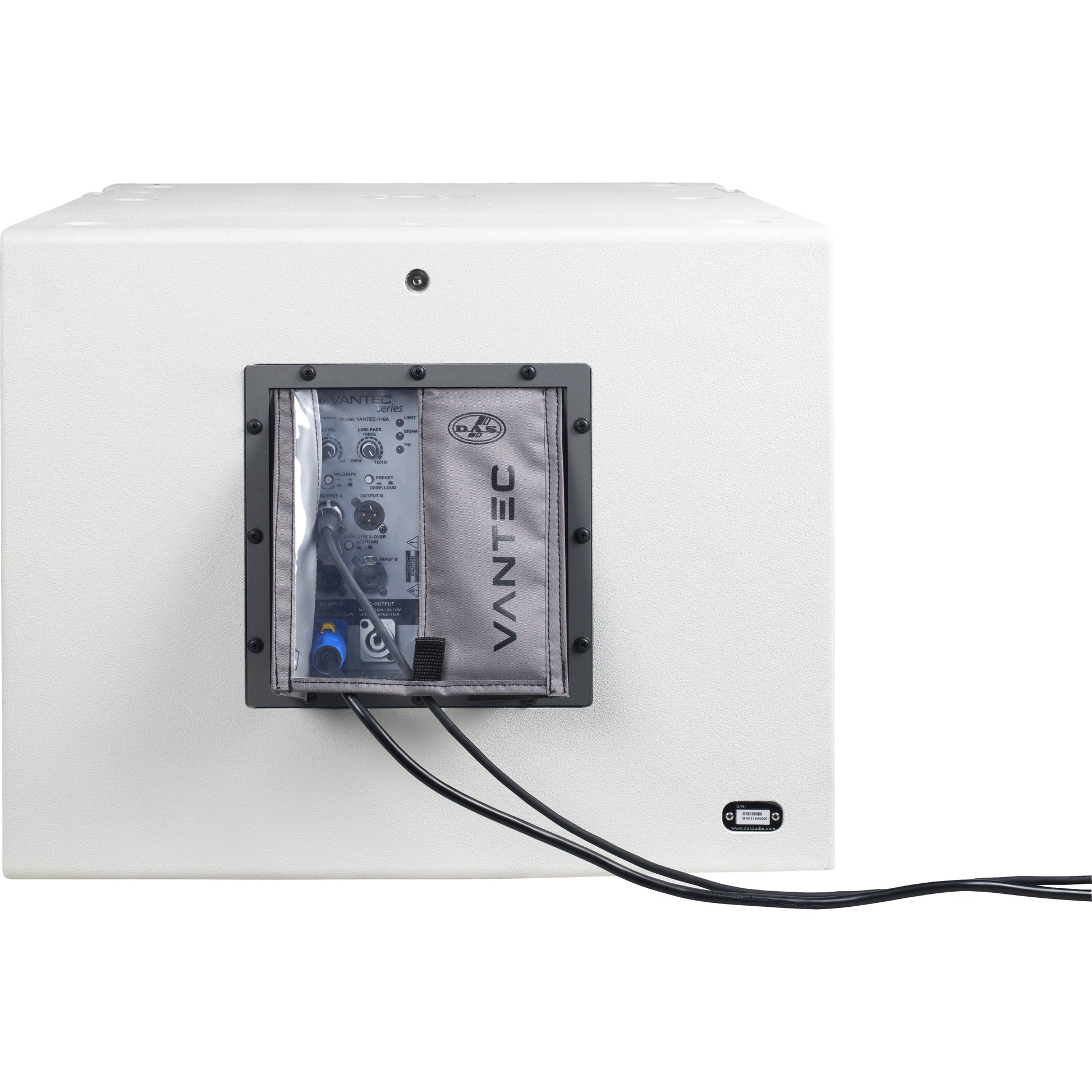

Connectivity
Audio Signal Input Connector
2 x Female XLR
Audio Signal Loop Thru Connector
2 x Male XLR
AC Input Connector
powerCon NAC3FCA
AC Output Connector
powerCON NAC3FCB
Audio
LF Driver
18FW
Dimensions
Enclosure Dimensions (H x W x D)
19.3" x 24.2" x 30.9"
Carton Dimensions (H x W x D)
28.7" x 26.0" x 34.7"
Weight
Net Weight
99.4 lbs
Shipping Weight
105.6 lbs
Construction
Enclosure Construction
Birch Plywood
Enclosure Geometry
Rectangular
Rigging
M10 Rigging Points
Finish
ISO-flex Paint
Color
White
