DAS Audio VANTEC-12A 12-Inch Powered Speaker
DAS Audio VANTEC-12A 12-Inch Powered Speaker
SoundPro Item: 86169 | Part Number: VANTEC-12A
Usually ships in 5-7 business days
- Compact multi-purpose system with monitor position
- Ultra lightweight Class D amplifier with SMPS
- User definable 24-bit DSP with LCD screen
- Presets: Live, Dance, Vocals, Bass Boost, Vocals, Mode
- Stackable 3-band EQ
- High-Definition wireless streaming of music in stereo
- Pole mount socket with dual angles 0º/10º
- Rigging points

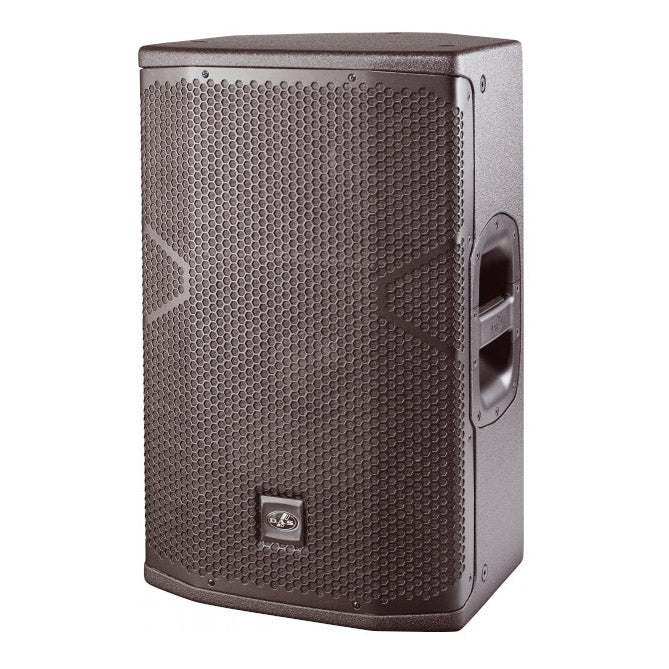

The Vantec 12A is a powered portable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.
The 1500W peak power the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.
Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec series also allows users to wirelessly stream music from any mobile device.
- Frequency range (-10dB)60Hz - 20kHz
- Coverage (HxV)90° x 50°
- Max SPL (at 1m)135dB
- Nominal amplifier power
- Continuous: 750W
- Peak: 1500W
- Input typebalanced
- Input impedance20k ohms
- Input sensitivity3V (+12dBu)
- Audio signal input connector2x female XLR
- AUX input1x 3.5mm mini jack
- Audio signal loop thru connector1x male XLR
- ControlDASlink™, DAScontrol™
- Current draw
- 115V: 1.2 A/2.4 A
- 230V: a:1:{i:0;s:5:”1.2 A”;}
- Components
- LF driver: 12F4
- HF driver: M-28
- Horn/waveguide: BC-95
- Constructionbirch plywood, black ISO-flex painted
- RiggingM10 rigging points
- Dimensions (HxWxD)24.4" x 15" x 15"
- Weight47.4 pounds (21.5 kg)
