DAS Audio VANTEC-20A-W 12" Powered Line Array Module

DAS Audio VANTEC-20A-W 12" Powered Line Array Module

SoundPro Item: 115316 | Part Number: VANTEC-20A-W

$3,111.99
$4,356.00 $3,111.99
Your Price Sold out
MSRP: $4,356.00 | MAP: $3,111.99

Usually ships in 5-7 business days

  • Self-Powered Two-Way Full-Range Design Eliminates External Amplifier And DSP Racks
  • Curved Source Geometry Enables Beamforming And Vertical Coverage Steering
  • DASlink And DAScontrol Provide Networked Setup And Per-Module Processing
  • LCD Interface With Wireless Control Speeds Onsite Configuration
  • Captive Rigging System Simplifies Flown Array Deployment
  • ISO-Flex Painted Birch Enclosure Withstands Repeated Touring Cycles

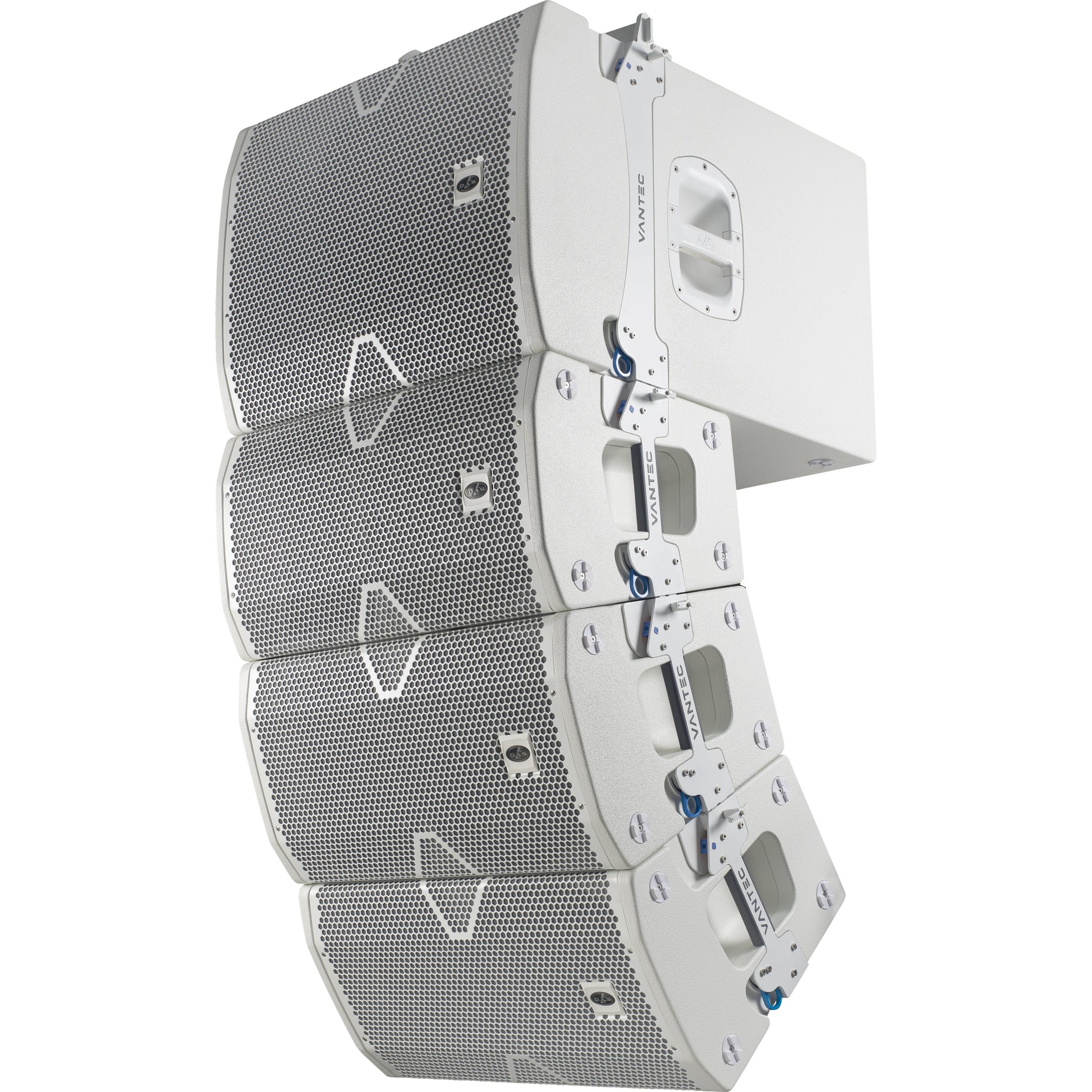

  • Stack, Fly, Or Pole-Mount For Corporate AV And Permanent Install
Log in or register for YOUR best price

The VANTEC-20A-W is built for sound hire companies and integrators who need one line array module that adapts across wildly different jobs. Its curved-source geometry lets crews fly a compact array, ground-stack over a companion subwoofer, or drop a single box on a pole for smaller rooms, so a single inventory item covers corporate A/V, mid-size live production, and permanent installation contracts.

What separates it from passive arrays in the same class is onboard amplification paired with DASlink and DAScontrol, giving each module independent processing for beamforming and vertical coverage steering. That means predictable pattern control over audiences and reduced reflections off ceilings and rear walls without external DSP racks. The captive rigging system speeds flown deployments, while the trapezoidal birch enclosure keeps splay angles consistent from show to show.

For rental fleets weighing self-powered versus amp-and-processor systems, the integrated electronics cut truck space, setup labor, and cabling, making the VANTEC-20A-W a strong fit for crews standardizing on a scalable, network-controllable rig.

Downloads

View full details

Specifications

Performance
Frequency Range (-10 dB)
63 Hz – 20 kHz
Maximum Peak SPL at 1 m
135 dB
Dispersion
90º x 15º
Audio
Configuration
2-Way Full-Range
LF Driver
12F4C
HF Driver
M-60
Horn/Waveguide
BC-915
Electrical
Nominal Amplifier Power (continuous)
750 W
Nominal Amplifier Power (peak)
1500 W
Input Impedance
20 kohms
Input Sensitivity
Line: 3 V (+12 dBu)
Current Draw 230 V / 115 V
1.5 A/3.0 A
Connectivity
Audio Signal Input Connector
2 x Female XLR
Audio Signal Loop Thru Connector
1 x Male XLR
Control
DASlink DAScontrol
AC Input Connector
powerCon NAC3FCA
AC Output Connector
powerCON NAC3FCB
Construction
Enclosure Construction
Birch Plywood
Enclosure Geometry
Trapezoidal
Rigging
Captive Rigging System
Finish
ISO-flex Paint
Color
White
Dimensions
Enclosure Dimensions (H x W x D)
13.2" x 24.6" x 17.3"
Carton Dimensions (H x W x D)
19.3" x 28.7" x 19.3"
Weight
Net Weight
62.8 lbs
Shipping
Shipping Weight
63.8 lbs
