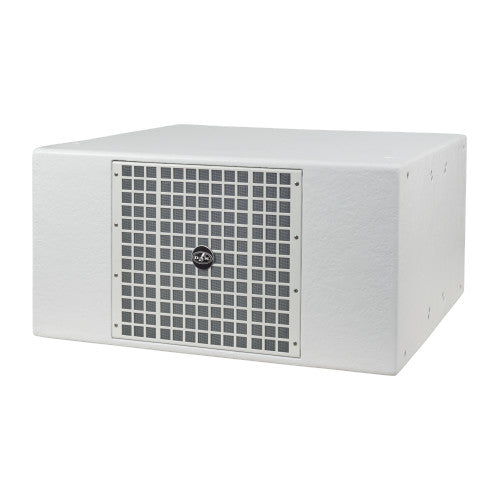

DAS Audio WR-322S-DX 800W 2x12-Inch Passive Arrayable Band-Pass Subwoofer | Color: White
DAS Audio WR-322S-DX 800W 2x12-Inch Passive Arrayable Band-Pass Subwoofer | Color: White
SoundPro Item: 115320 | Part Number: WR-322S-DXW
Usually ships in 5-7 business days
- Weather resistant subwoofer system
- Fiberglass exterior finish
- 1600 Wprogram power handling
- 2 x 12P low frequency loudspeakers, 3″ VCD
- For use in biamplified systems
- Rigging compatible with the WR-320-DXW
The WR-322S-DX is a compact twin 12″ subwoofer designed to provide low frequency reinforcement for the WR-320S-DX installation line array. The bass-reflex system configuration incorporates two DAS 12P loudspeakers with 3″ voice coils for ample power handling. The Birch plywood enclosure is equipped with rigging points and finished in the durable fiber glass protective coating. The WR-322S-DX is compatible with the WR-320-DX and allows units to be flown from the subwoofers with a simple joining plate to form flown arrays.
- Performance
- Frequency Range (-10 dB): 37 Hz – 300 Hz
- Nominal Impedance: 4 ohms
- RMS Power Handling: 800 W
- Peak Power Handling: 3200 W
- On-axis Sensitivity 1W/1 m: 99 dB SPL
- Maximum Peak SPL at 1 m: 134 dB
- Recommended Amplifier: PA-2700
- Recommended Processor: DSP-226
- Connectors
- Audio Input Connector: Covered Barrier Strip Terminals
- Audio Output Connector: Covered Barrier Strip Terminals
- Enclosure
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Rectangular
- Rigging: M10 Rigging Points
- Finish: Fiberglass
- Color: Black
- IP Rating: IP54
- Depth: 27.2” (690mm)
- Dimensions (HxWxD): 14.4x27.6x27.2” (365x700x690mm)
- Net Weight: 106.9 lbs (48.5kg)
- LF Driver 12P
- Shipping
- Carton Dimensions (HxWxD): 18.5x31.5x29.1” (470x800x740mm)
- Shipping Weight: 115.7 lbs (52.5kg)
