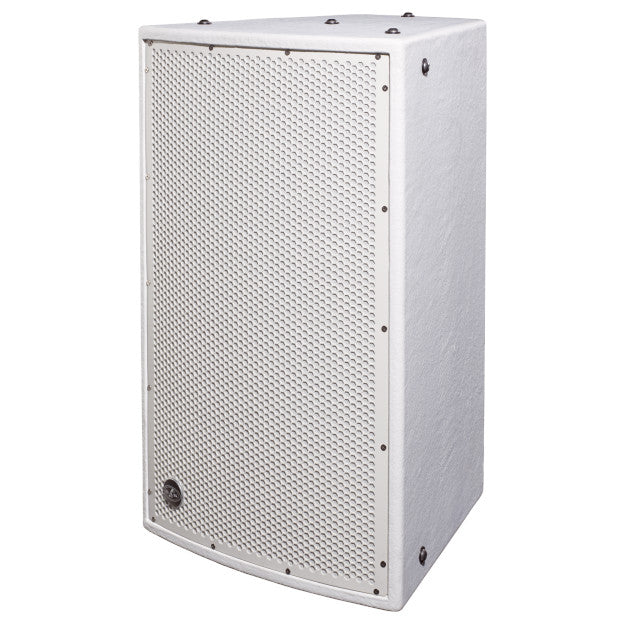

• DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker

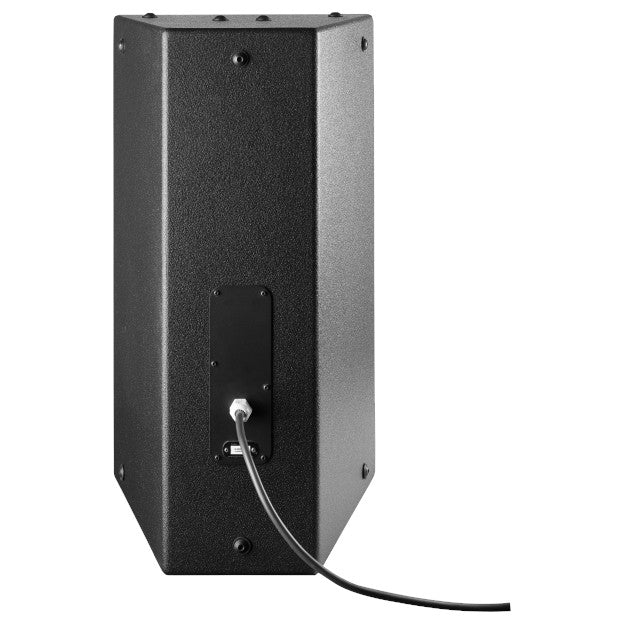

  • DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker back
  • DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker white
1 3

DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker | Color: White

DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker | Color: White

SoundPro Item: 133905 | Part Number: WR-6412-DXW

$2,939.30
$3,094.00 $2,939.30
Your Price Sold out
MSRP: $3,094.00 | MAP: $2,939.30

Usually ships in 5-7 business days

  • EN54-24 certified for use in voice alarm systems
  • 2-way system for outdoor installation
  • DX finish (Fiberglass) for direct exposure
  • IP54 ingress protection rating
  • 1 x 12AV loudspeaker
  • M-75 compression driver with 3″ diaphragm
  • Rotatable 60º x 40º horn design
  • Stainless steel fixing points
Log in or register for YOUR best price

The WR-6412-DX employs a 12AV woofer for low frequency reproduction. A M-75 compression driver with 3″ titanium diaphragm attached to a 60º x 40º rotatable horn provides exceptional high frequency reproduction. The rugged birch plywood cabinet construction is available in black, white or military grey depending on the finish.

The WR-6412-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.

View full details

Specifications

Dimensions
Depth
15.6” (395mm)
Dimensions (HxWxD)
27.8x15.6x15.6” (705x395x395mm)
Carton Dimensions (HxWxD)
30.4x18x18.6” (776x458x472mm)
Weight
Net Weight
69.5 lbs (31.5kg)
Shipping Weight
75 lbs (34kg)
Audio
On-axis Sensitivity 1W/1 M
98 dB SPL
Maximum Peak SPL at 1 M
130 dB
Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals
Construction
Enclosure Construction
Birch Plywood
Finish
Fiberglass
Color
Black
Environmental
IP Rating
IP54
General
Frequency Range (-10 dB)
60 Hz – 20 kHz
Horizontal Coverage (-6 dB)
60º
Vertical Coverage
40º
Nominal Impedance
8 ohms
RMS Power Handling
400 W
Peak Power Handling
1600 W
Performance
Recommended Amplifier INTEGRAL-A402INTEGRAL-A404INTEGRAL-A1002INTEGRAL-A1004INTEGRAL-A1602INTEGRAL-A1604INTEGRAL-MA1004INTEGRAL-MA1604, Recommended Processor INTEGRAL-M88INTEGRAL-MA1604INTEGRAL-MA1004
Enclosure Geometry
Trapezoidal
Rigging
M10 Rigging Points
LF Driver
12P
Horn/Waveguide
BC-64AL
Drivers
HF Driver
M-75
