DAS Audio WR-8826 Passive Two-Way Outdoor Speaker | No Transformer | Black

DAS Audio WR-8826 Passive Two-Way Outdoor Speaker | No Transformer | Black

SoundPro Item: 115321 | Part Number: WR-8826-DX

Regular price $1,925.65
Regular price $2,027.00 Sale price $1,925.65
Your Price Sold out
MSRP: $2,027.00 | MAP: $1,925.65

Usually ships in 5-7 business days

  • Reinforced Fiberglass Exterior Rated For Direct Exposure To The Elements
  • Stainless Steel Hardware Resists Corrosion In Coastal And Wet Environments
  • Three-Layer Textile Grille Blocks Dust And Moisture Without Muffling Output
  • Fully Sealed Enclosure Prevents Water Ingress To Protect Internal Components

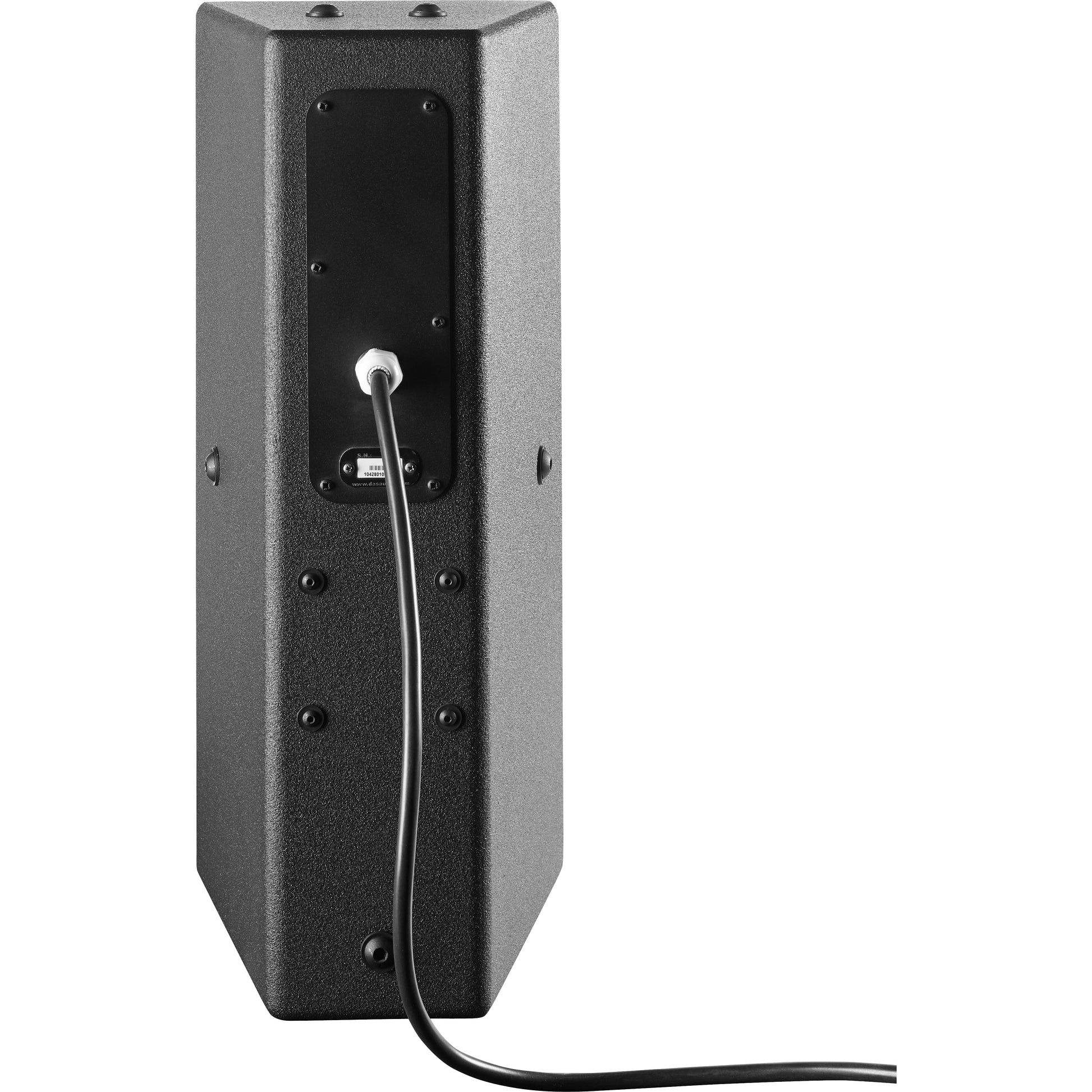

  • Sealed Barrier Strip Terminals Protect Wiring Against Liquids And Dust

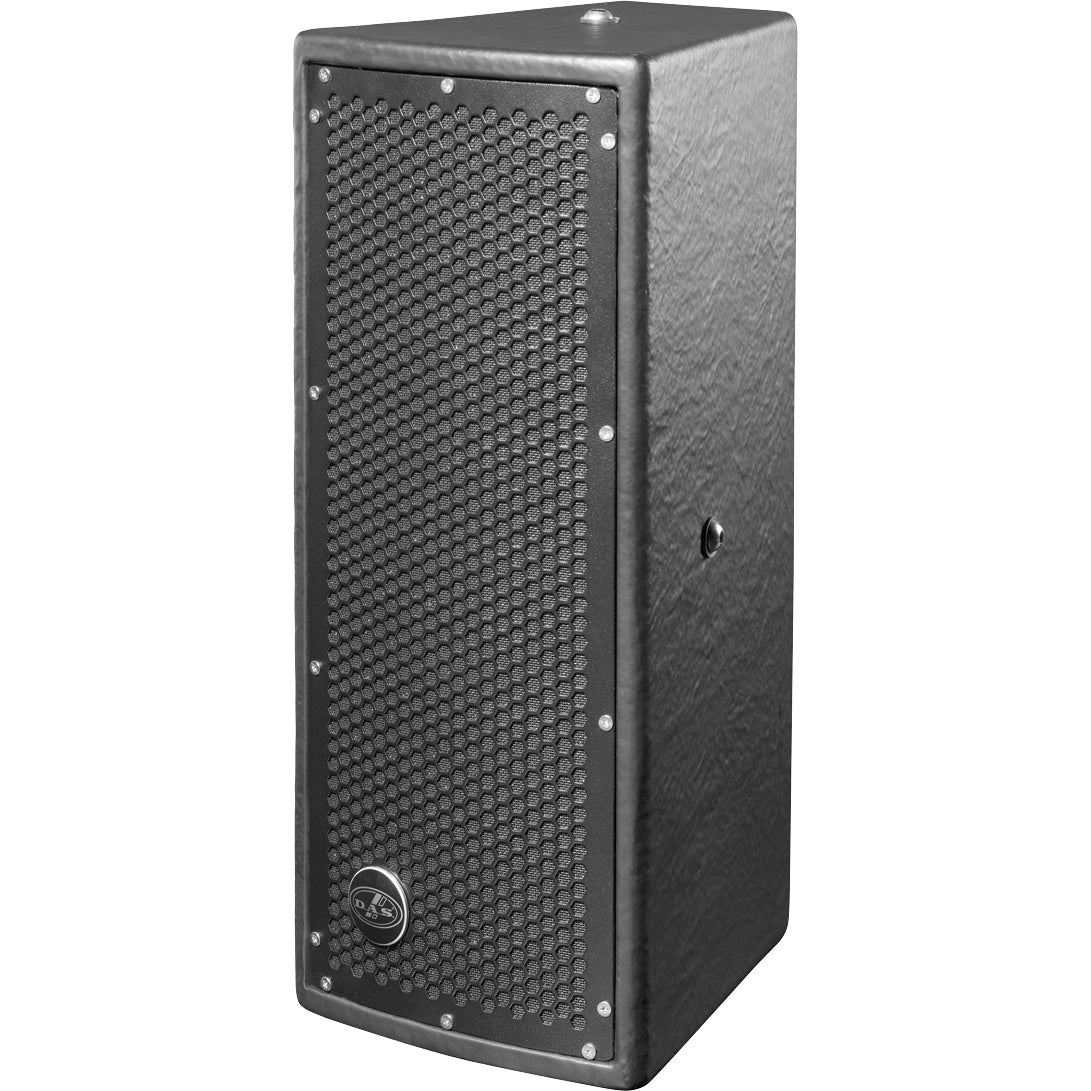

  • Compact Trapezoidal Birch Cabinet Reduces Vibration And Distortion
  • M10 Rigging Points Enable Flexible Mounting For Permanent Installs

The DAS Audio WR-8826 is built for integrators handling permanent outdoor installations where equipment faces constant environmental stress. It suits stadium concourses, waterfronts, theme parks, resort grounds, transit platforms and municipal spaces that demand consistent intelligibility under sun, rain and salt air. The compact trapezoidal enclosure and 80-degree symmetrical coverage make it straightforward to array or distribute across open areas while keeping visual footprint low.

What sets this system apart from typical weather-resistant boxes is its layered defense against the elements: an IP56-rated sealed cabinet, stainless steel hardware for corrosion resistance and a textile grille barrier that shields drivers without dulling response. The dual 6-inch low-frequency section paired with a 1-inch annular compression driver gives it the headroom and clarity needed for music playback and paging alike. M10 rigging points simplify mounting on brackets or structures in the field.

This is the DX configuration engineered for locations with no overhead protection, reinforced with a fiberglass exterior for direct exposure duty where covered variants fall short.

Downloads

View full details

Specifications

Certifications
IP Rating
IP56
Dimensions
Enclosure Dimensions (H x W x D)
21.7" x 9.1" x 10.6"
Carton Dimensions (H x W x D)
23.9" x 10.8" x 13.6"
Weight
Net Weight
24.5 lbs
Shipping Weight
33.0 lbs
Audio
Frequency Range (-10 dB)
70 Hz – 22 kHz
Horizontal Coverage (-6 dB)
80º
Vertical Coverage
80º
Nominal Impedance
16 ohms
RMS Power Handling
200 W
Peak Power Handling
800 W
On-axis Sensitivity 1W/1 m
93 dB SPL
Maximum Peak SPL at 1 m
122 dB
Performance
Recommended Amplifier
INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor
INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004
LF Driver
6B
HF Driver
M-1
Horn/Waveguide
BC-88
Connectivity
Audio Input Connector
Covered Barrier Strip Terminals
Audio Output Connector
Covered Barrier Strip Terminals
Construction
Enclosure Construction
Birch Plywood
Enclosure Geometry
Trapezoidal
Rigging
M10 Rigging Points
Finish
Fiberglass
Color
Black
