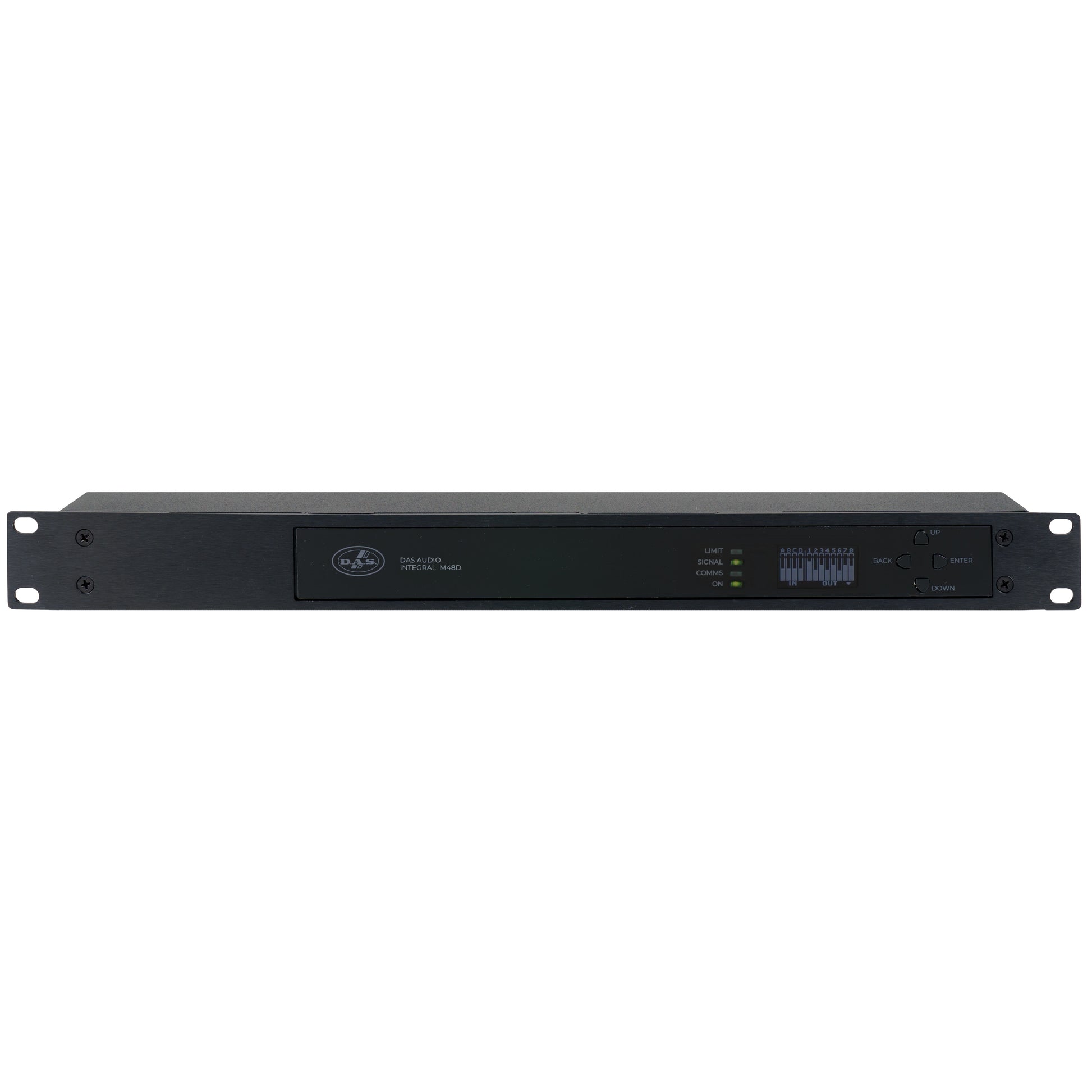

DAS Audio INTEGRAL-M48D 4x8 DSP Speaker Processor

DAS Audio INTEGRAL-M48D 4x8 DSP Speaker Processor

SoundPro Item: 205137 | Part Number: INTEGRAL-M48D

$1,999.99
$2,800.00 $1,999.99
Your Price Sold out
MSRP: $2,800.00 | MAP: $1,999.99

Usually ships in 5-7 business days

  • 4x8 DSP Architecture For Flexible System Routing
  • AES3 And Analog Inputs For Source Integration
  • ALMA Remote Control For Fast System Management
  • 100+ Global Presets For Repeatable Deployment
  • 200+ Output Presets For Efficient Tuning
  • 1U Rack Format Saves Space In AV Racks
  • GPIO Support For External Control Integration
Log in or register for YOUR best price

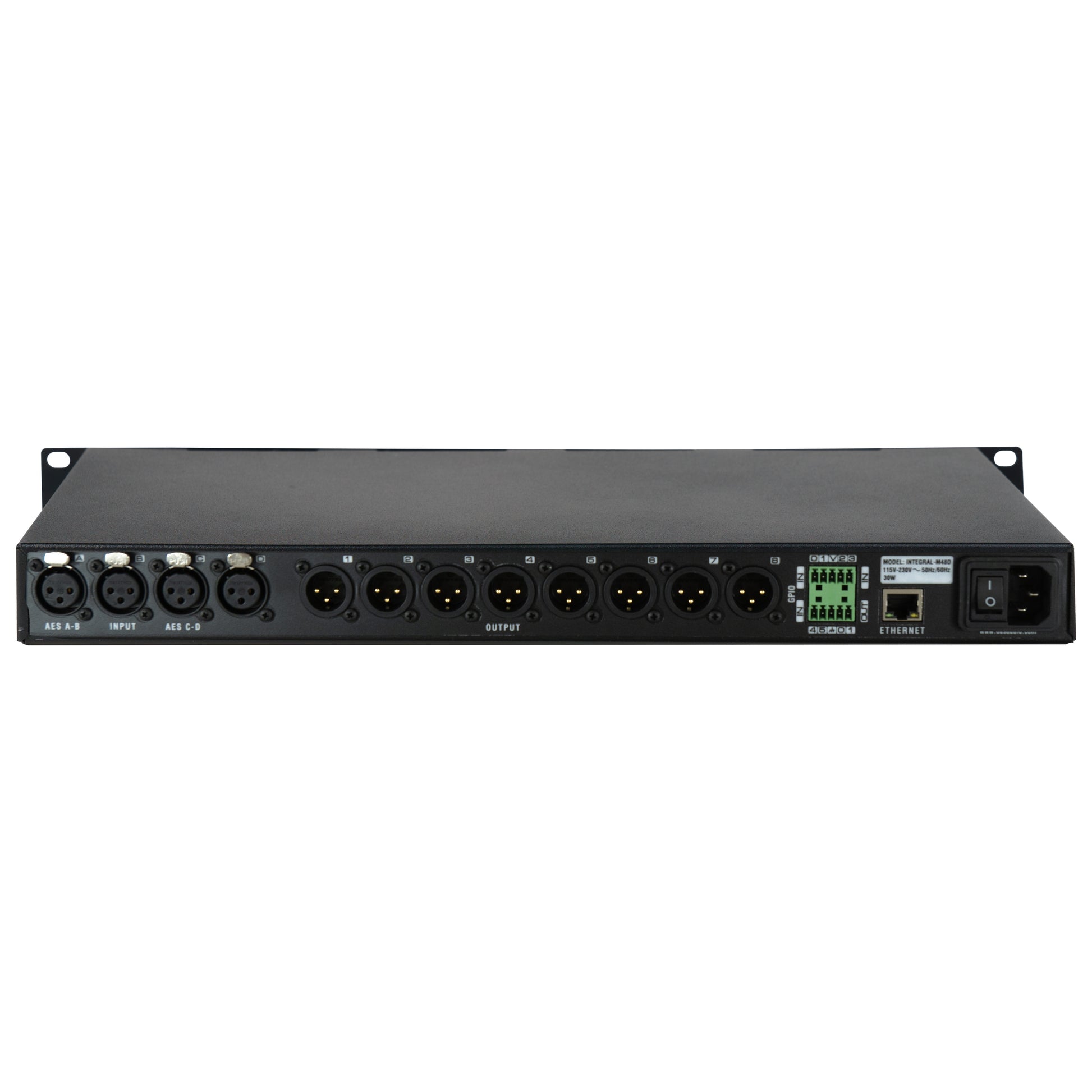

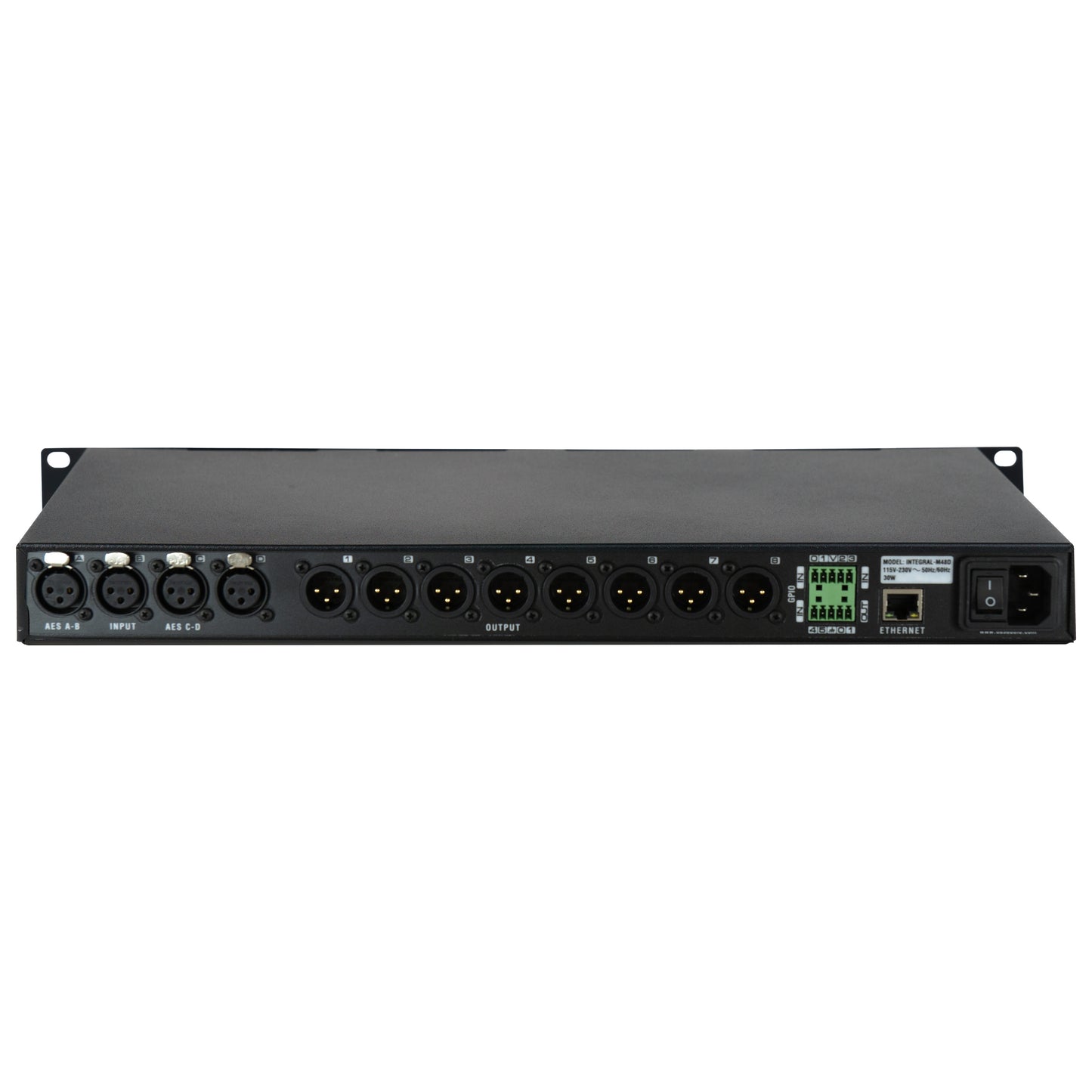

The DAS Audio INTEGRAL-M48D is a 1U digital signal processor built for system management in professional audio applications where compact size, flexible routing, and remote access matter. Its 4-input, 8-output architecture supports analog sources as well as AES3 digital audio, making it suitable for loudspeaker processing in portable rigs, venue systems, and fixed installations. Balanced XLR outputs and front-panel access through a 1.54" OLED display allow straightforward setup and day-to-day operation.

For networked workflows, the unit can be monitored and controlled using ALMA software or ALMAweb over IP, with additional support for OSC-based external control. Internal memory accommodates more than 100 global presets and more than 200 output channel presets, helping users manage recurring room, system, and deployment profiles efficiently. Dedicated FIR presets for DAS Audio sound systems further streamline optimization within compatible deployments.

The processing matrix is designed for system tuning and loudspeaker management, with tools for routing, gain, delay, equalization, and limiter adjustment. GPIO connectivity adds another option for external control integration, making the INTEGRAL-M48D a practical choice for engineers and integrators who need dependable DSP control in both live and installed environments.

View full details

Specifications

Electronics And Audio
Frequency Response
20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level
+22 dBu
Max. Output Level
+22 dBu
Controls
Power On/Off, Navigation Buttons
Sampling Rate
48 kHz
Display
OLED 1.54″
Cooling
Side-Right-to-Left
LED Indicators
On, Comms, Signal, Limit
Power
AC Input Connector
IEC 15A
Power Supply
Universal Mains Switch Mode
Operating Range
90 – 250 VAC
DSP
Analog Input Channels
4
Analog Output Channels
8
AD Converters
24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters
24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision
32 Bit, 64 Bits Double Precission
Latency
1 ms
Delay
50ms per input / 135ms per output
Equalizer
Bell, Lo/Hi-Shelving, Hos
Crossover
Linkwitz-Riley, Butterworth, Bessel
High and Low Pass Filters
Up to 48 dB/oct
Limiters
RMS, Peak
Dimensions-Weight
Dimensions ( H x W x D )
44 x 483 x 210 mm 1,7 x 19,0 x 8,2 in
Net Weight
2,6 kg ( 5,7 lb )
Shipping
Carton Dimensions ( H x W x D )
130 x 530 x 315 mm 5,2 x 20,8 x 12,4 in
Shipping Weight
3,5 kg ( 7,7 lb )
