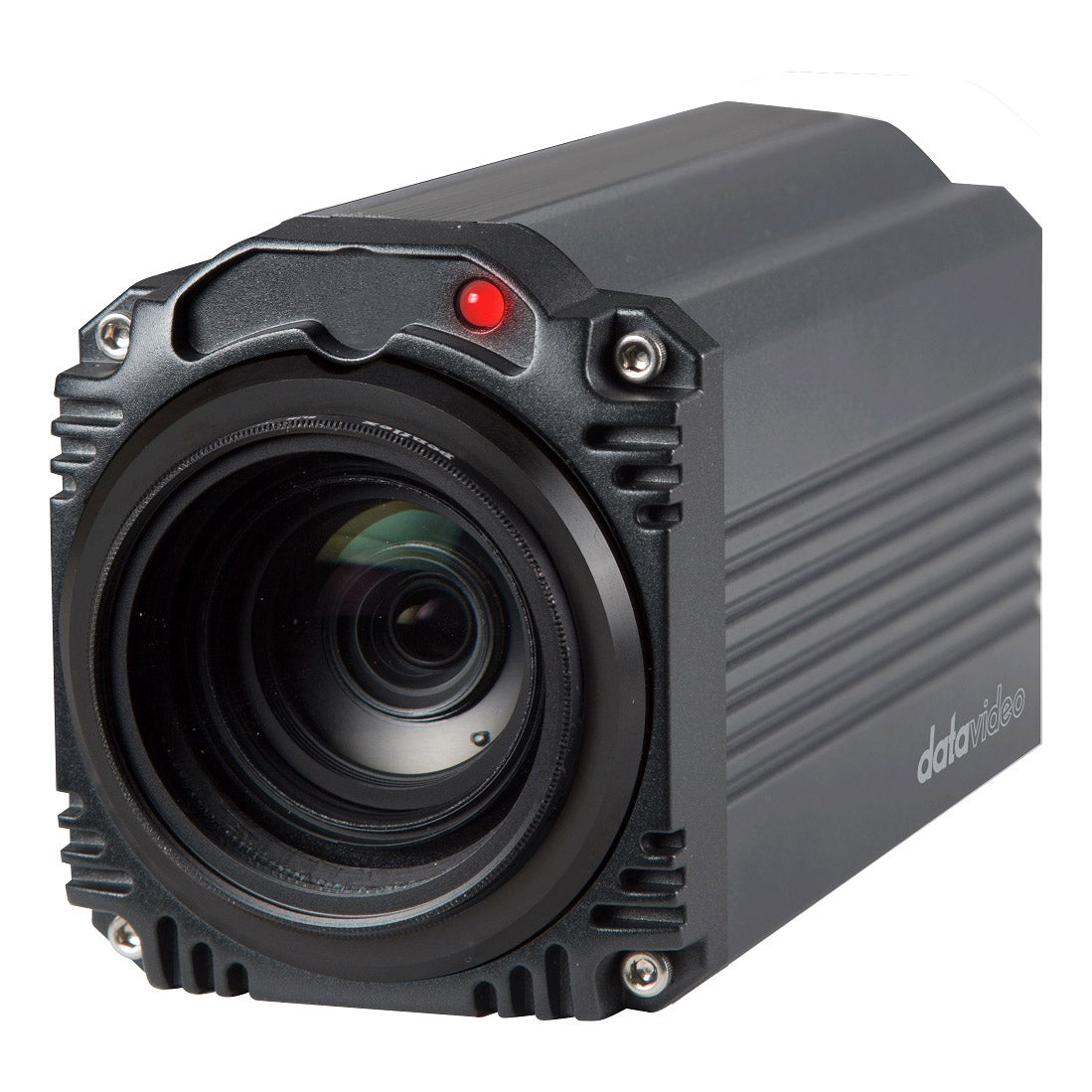

Datavideo BC-50 IP Block Camera

Datavideo BC-50 IP Block Camera

SoundPro Item: 51123 | Part Number: BC-50

$1,035.00
$1,035.00 $1,035.00
Your Price Sold out
MSRP: $1,035.00 | MAP: $1,035.00

Usually ships in 5-7 business days

  • Stunning Full HD resolution
  • 20x optical zoom, 16x digital zoom
  • H.264/H.265/Motion-JPEG compression and IP streaming
  • Controllable by VISCA/Pelco-C/Pelco-D
  • Metal housing
  • Tally light
Log in or register for YOUR best price

The BC-50 is a IP Block Camera from Datavideo. It's 20x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots. This block camera can deliver compressed video signal H.264/H.265/MJPEG, and also RTMP streaming to Facebook and YouTube through a RJ-45 connection. The BC-50 supports VISCA/Pelco-D/Pelco-P enabling the camera to be controlled via RS-485.

View full details
  • Model NumberBC-50
  • Video format/Resolution
    • 1080p 60/50/30/25
    • 1080i 60/50
    • 720p 60/50
  • Image Sensor1/2.7" progressive scan CMOS sensor
  • Effective Pixels (approx.)2.07 Mega pixels
  • S/N Ratio55 dB
  • Min. Illumination0.05 Lux @ (F1.8, AGC ON)
  • Electronic Shutter1/30 ~ 1/10000 sec
  • Zoom Ratio20x Optical zoom, 16x Digital zoom
  • Gamma ControlOff / Normal
  • Iris ControlAuto / Manual
  • Digital Noise Reductions2D & 3D
  • On-Screen Display (OSD)English, Simplified Chinese, Traditional Chinese
  • White BalanceAuto, Manual, One Push, 3000K, 4000K, 5000K, 6500K_1, 6500K_2, 6500K_3
  • AGC / Gain Control
    • Auto / Manual (0 to 28 step)
    • Max. Gain Limit (6 to 28 step)
  • Mirror / Flip ImageYes
  • Focus ModeAuto / Manual
  • Panning / Tilting Range----
  • Panning / Tilting Speed----
  • Preset----
  • Focal Length
    • f=4.3 mm (WIDE) to 88.5 mm (TELE)
    • F1.6 to F4.7
  • Field of View (Horizontal, Wide)Approx. 63.7° (WIDE END) / 2.3° (TELE END)
  • Image CompensationDay & Night function
  • Video Output3G/HD-SDI x1
  • Audio Input3.5mm Jack (Stream Output Only)
  • Tally LEDDual color (Red, Green)
  • Lens FilterM52.0 x 0.75 Thread with UV Protection
  • Control ProtocolVISCA, Pelco-D, Pelco-C
  • Remote Control InterfaceRS-485: Transmit up to 1000m
  • Video Compression FormatH.265, H.264, MJEPG
  • Audio Compression FormatAAC
  • Audio Bitrate----
  • HD IP Interface----
  • Streaming ProtocolsTCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
  • First Stream Supported Resolution----
  • Second Stream Supported Resolution----
  • Video Bitrate----
  • Video Bitrate Mode----
  • Encoding Frame rate----
  • POEIEEE 802.3 af
  • F/W UpdateEthernet
  • IR Control----
  • Camera Control Unit----
  • Tripod Mount1/4-20 UNC
  • ColorDark blue
  • Dimension (LxWxH)71x162x83mm
  • Weight0.7 kg
  • Operating Temp. Range0~40°C
  • PowerDC 12V 6W
