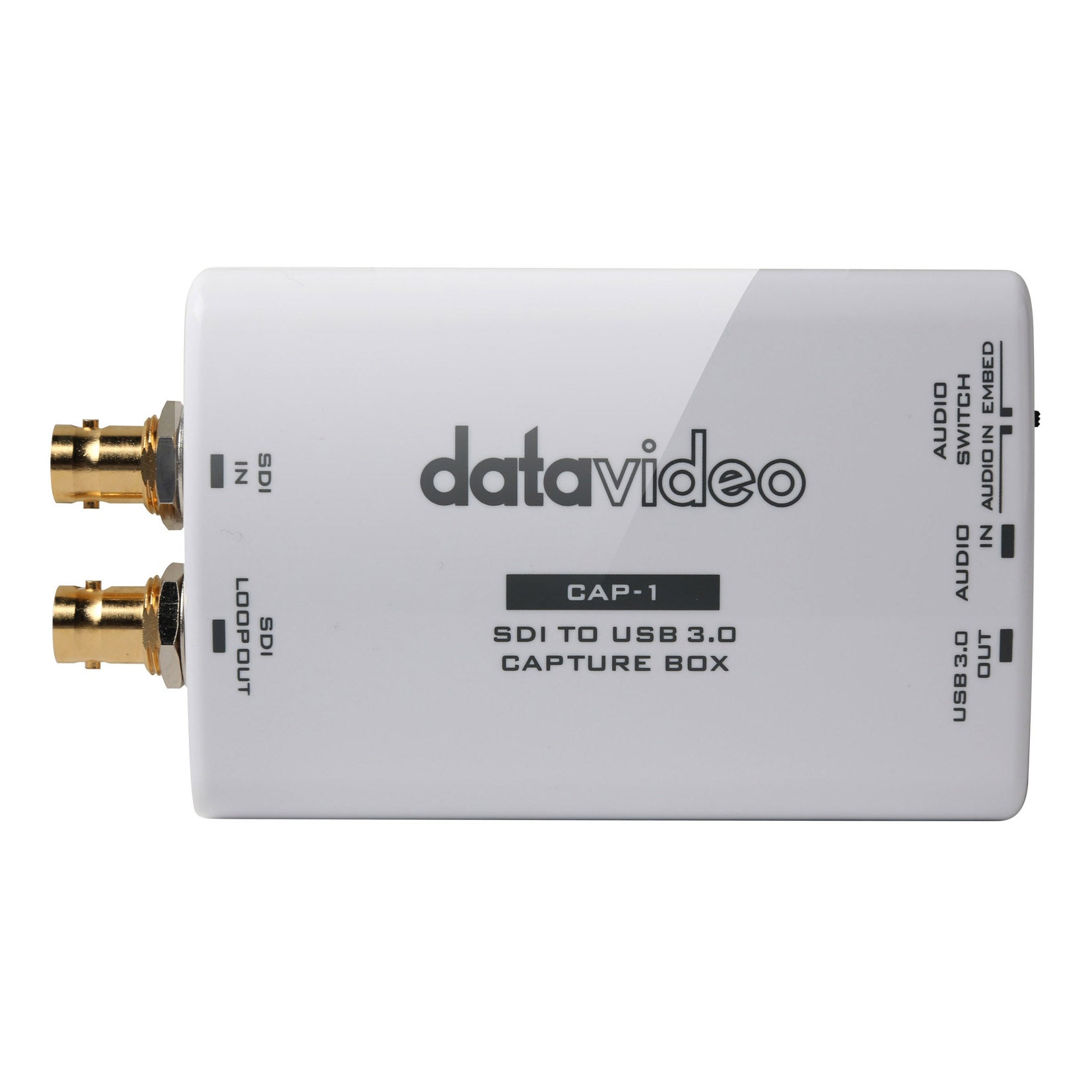

Datavideo CAP-1 SDI to USB 3.0 Capture Box
Datavideo CAP-1 SDI to USB 3.0 Capture Box
SoundPro Item: 58677 | Part Number: CAP-1
Usually ships in 5-7 business days
- SDI-USB capturing device supports up to 1080p50/60
- Stereo line in external audio, can be switched as SDI embedded audio or external line-in audio
- Takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect AV signal directly to computer
- Power source from USB connection
- Plug and play
- Works with Windows, Linux, and Mac OS X
- Stereo line in external audio
Datavideo’s CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing. The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.
No external power is needed. Power source from USB connection. Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform.
- Input1x HD/3G-SDI
- Output1x USB 3.0 (Micro B), 1x SDI loopthrough
- Input video bandwidth150MHz (pixel clock rate)
- Output video bandwidthup to 350Mbps (USB)
- Supported input/output video formats
- 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
- 1920 x 1080i 60/59.94/50 (de-interlaced out)
- 1280 x 720p 60/59.94/50
- Audio inputSDI embedded audio and 3.5 mm stereo in
- Audio format2-channel, 16-bit PCM
- Recording video formatYUY2 (USB3.0), MJPG (USB2.0/3.0)
- Power supplyvia USB
- Power consumption3W
- Software compatibility
- Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
- Linux: VLC, OBS
- Mac OS X: OBS, Quicktime player, VLC, Facetime
- Supported OSWindows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
- Minimum system requirement
- Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64) *driver is required for Windows 7 OS
- OS X (10.10 or above)
- Linux Ubuntu 14.04
- PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
- Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher
- Dimensions (LxDxH)4.76" x 2.68" x 0.91"
