• Datavideo DAC-45 4K Up / Down Cross Converter
1 1

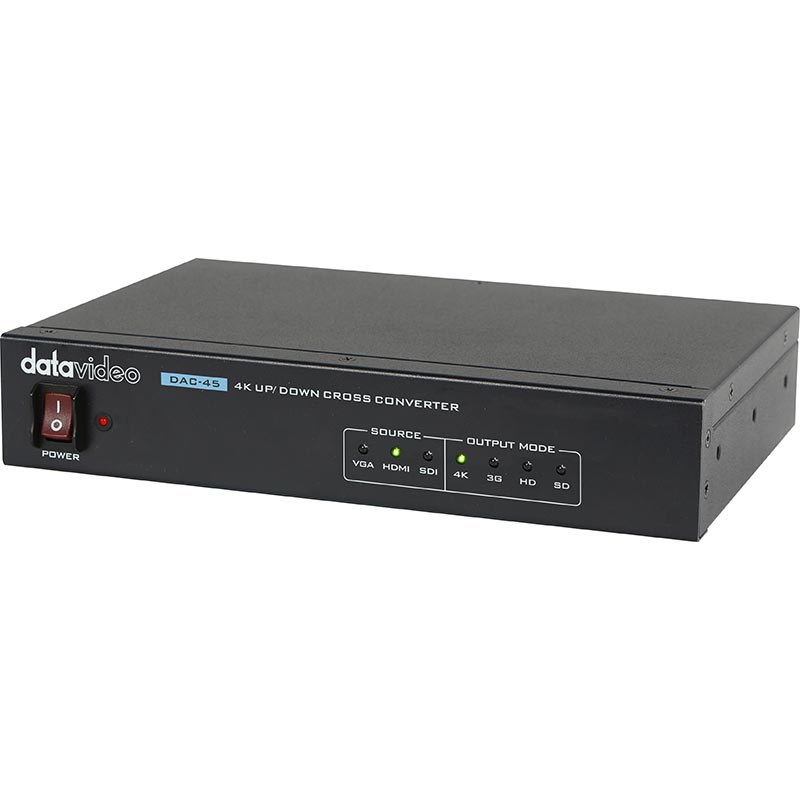

Datavideo DAC-45 4K Up/Down Cross Converter

Datavideo DAC-45 4K Up/Down Cross Converter

SoundPro Item: 50193 | Part Number: DAC-45

$1,099.00
$1,099.00 $1,099.00
Your Price Sold out
MSRP: $1,099.00 | MAP: $1,099.00

Usually ships in 5-7 business days

  • 4K up conversion
  • Wide range conversion for great compatibility
  • External audio embedding
  • Supports 3G-SDI Level A/B
  • Reference input (Black Burst and Tri-Level Sync.)
  • Built-in De-interlacer and Interlacer (I/P conversion)
  • Adjustment of HDMI color space
Log in or register for YOUR best price

With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness. Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion. RCA inputs allow audio to be embedded to the output of the video signal. With the 3G-SDI system, it supports both 3G-SDI Level A/B input. Supports Black Burst and Tri-Level Sync for all inputs. Supports I/P conversion to avoid the dense misaligned horizontal lines on the video. The DAC CENTER software allows adjustment of HDMI color space.

View full details

Specifications

Dimensions
Dimension (LxWxH)
220x143x42 mm
Audio
Audio Inputs
2x RCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded
Audio Outputs
SDI embedded audio up to 8CH, 48KHz, PCM audio, HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection
----
Audio Gain
----
Connectivity
Video Inputs
1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
Video Outputs
1x SDI, 1x HDMI
Supported Video Input Formats
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i
SDI Cable Drive
Yes
Shipping
Weight
1 kg
Identifiers
Model Number
DAC-45
General
Conversion
VGA/HDMI/SDI to 4K HDMI/3G-SDI, Multi-format Up/Down/Cross
Loop Through
----
Equalizer
Yes
Reclock
Yes
Updates and Configuration
Mini USB x 1
Operating Temp. Range
0~40°C
Power
Power
DC 12V, 9.4W
