Datavideo EZ Stream C

Datavideo EZ Stream C

SoundPro Item: 51144 | Part Number: EZ STREAMING PACKAGE C

$10,399.00
$10,399.00 $10,399.00
Your Price Sold out
MSRP: $10,399.00 | MAP: $10,399.00

Usually ships in 5-7 business days

  • Video streaming bundle for broadcast
  • Bring a new level of simplicity to production workflows

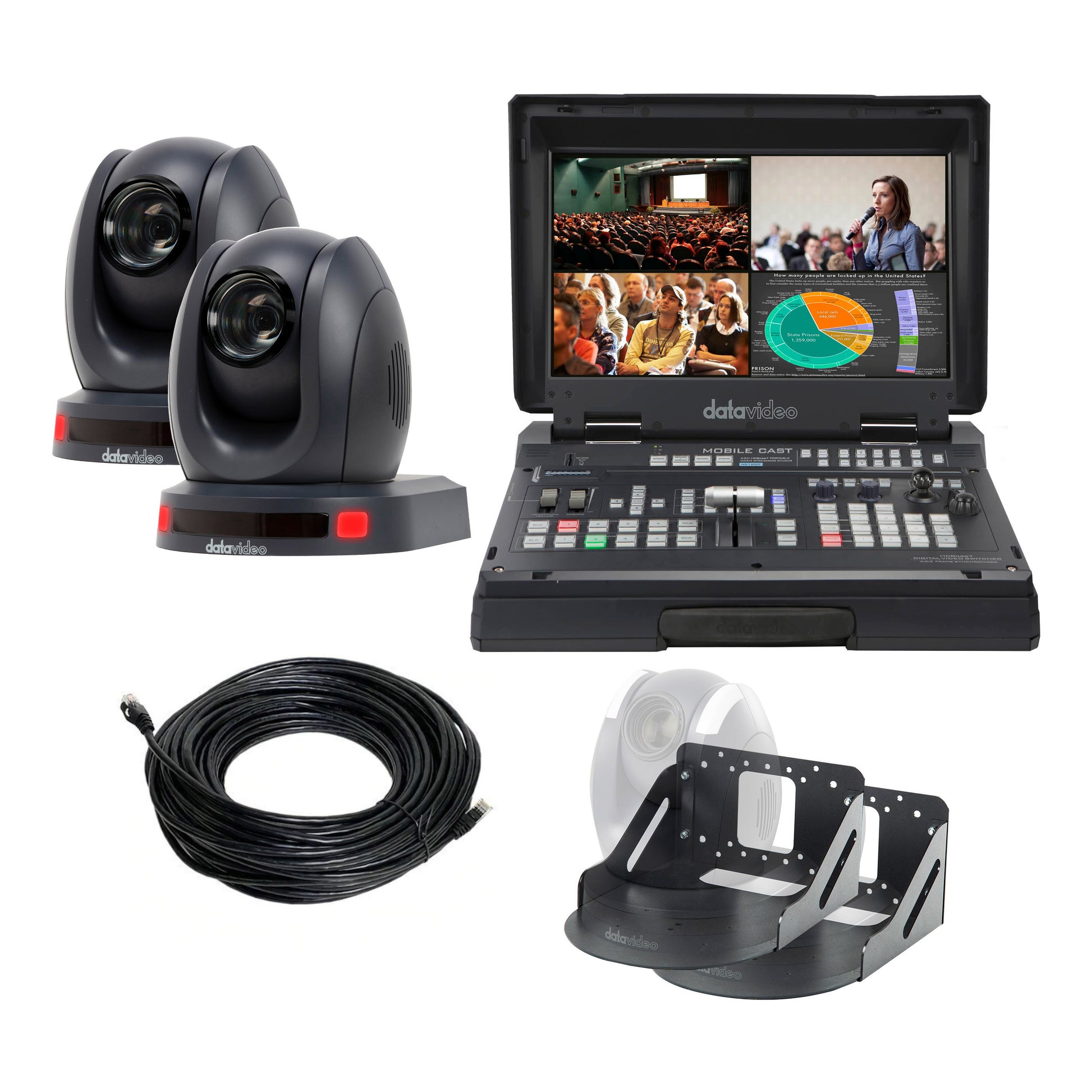

  • Includes one, HS-1600T Mark II portable video streaming studio, two PTC-140T HD PTZ Cameras with HDBaseT, two wall mounts, and one 100 ft cable
Log in or register for YOUR best price

Datavideo's EZ Stream Kit is an easy to use solution for your broadcast needs. This video streaming bundle includes the HS-1600T, two PTC-140T, two WM-1 and a 100 foot CAT6 Cable.

The HS-1600T brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable design and HDBaseT Technology. With its built-in H.264 web streaming encoder, you can stream to virtually any CDN such as YouTube and Facebook in no time. Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets). The HS-1600T comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network or website of your choice.

The PTC-140T is a HD PTZ Camera that features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, and 60fps. Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 ("network cable"). By applying with the Receiver Box, the transmission distance can go up to 100 meters. The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. This camera supports advanced digital noise reduction. Even in less-than-perfect lighting conditions, it is able to shoot clear and smooth images. With built-in streaming encoder, the PTC-140T can encode up to 2 simultaneous streams to any cloud service.

View full details

Specifications

Dimensions
Dimension (LxWxH)
455x355x134mm
Dimensions
416x200x126mm
Weight
Maximum Load Weight Limit
--
Audio
Analog Audio Output
1x Stereo headphone
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
----
Built-in Audio Mixer
Yes, 4 channels
AGC / Gain Control
Auto / Manual
Audio Input
3.5mm Line in
Audio Compression Format
AAC/MP3/G.711A Audio compression
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
Optics
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Iris Control
Auto / Manual
Focus Mode
Auto / Manual
Connectivity
Input Routable / Crosspoint
----
Down-converted Output
Yes
Construction
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Tripod Mount
1/4-20 UNC
Color
Black/White
Controls
Built-in Monitor Display
17.3” HD TFT LED backlit, 1920x1080 pix
On-Screen Display (OSD)
English, Simplified Chinese
Control Protocol
VISCA, Pelco-D, Pelco-P, DVIP
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
Shipping
Weight
17.2 lbs (7.8 kg), Reinforce Plastic Case
General
Video Standard
HD & SD
HS-1600T MARK II
Video Format 1080p 50/59.94/60Hz1080i 50/59.94/60Hz720p 50/59.94/60Hz576i/p 50Hz480i/p 59.94Hz, Video Input 3 x HDBaseT1 x HDMI, Video Output 3x HDMI PGM1x HDBaseT PGM1x STREAM (RJ-45), Analog Audio Input 2x Balanced XLR1x Stereo RCA (L/R)De-embedded Digital Audio, Streaming H.264 / AVC, Main/ High ProfileConfigurable Bit-rate up to 10Mbps, Streaming Audio Encode AAC-LCConfigurable bit rate range from 32Kbps to 384KbpsSample rate: 48KHz, 16bit, Streaming Protocol TS over TCP/UDP (unicast & multicast)RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)RTMP/RTMPS (Publish)HLSSRT
Computer Graphic Interface
1 via HDMI
A+V Switching
----
USK
1x USK support Lumakey
DSK
----
Picture in Picture
1
Logo Insertion
----
Title Creator
----
Built-in Intercom & Tally
----
Streaming Control
Web browser UI for configuration and control Socket commands
Recording File System
FAT, exFAT, NTFS
Recording File Format
MP4
Streaming & Recording Setting Control
Web UI for system configuration and control
Special Features
Built-in camera controller
Operating Temp. Range
0~40°C
PTC-140T
Video format/Resolution 1080p 60/59.94/50/30/29.97/251080i 60/59.94/50720p 60/59.94/50, Focal Length f=5.2 (wide) to 98 (tele) mmF1.6 to F3.5, Video Output HDBaseT (PoE) x1RJ-45 x1, Remote Control Interface RS-232Lan (RJ-45)HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Gamma Control
Off / Normal
Digital Noise Reductions
Yes
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
Mirror / Flip Image
Yes
Panning / Tilting Range Pan
340°Tilt: +90° to -30°
Panning / Tilting Speed Pan
0.1~60°/secTilt: 0.1~30°/sec
Preset
255 Position
Field of View (Horizontal, Wide)
Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation
Backlight Compensation
Tally LED
Dual color (Red, Green)
Video Compression Format
H.264, H.265, Dual stream output
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
First Stream Supported Resolution
----
Second Stream Supported Resolution
----
Video Bitrate
----
Video Bitrate Mode
----
Encoding Frame Rate
----
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
Optional Accessories
WM-1/ WM-10/ WM-11
Power
Power
DC 48V, 4.16A
POE
----
