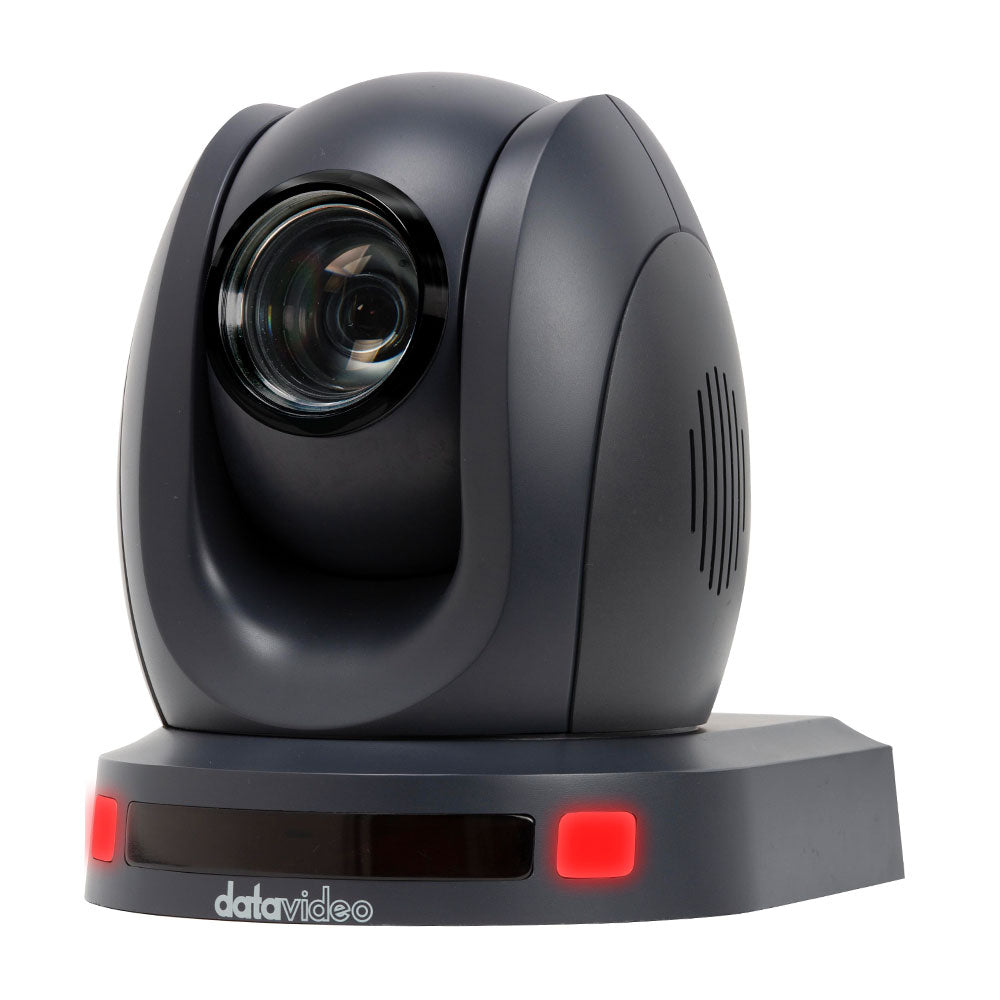

Datavideo PTC-140T HDBaseT PTZ Camera | Color: Dark Gray

Datavideo PTC-140T HDBaseT PTZ Camera | Color: Dark Gray

SoundPro Item: 50248 | Part Number: PTC-140T

$1,499.00
$1,499.00 $1,499.00
Your Price Sold out
MSRP: $1,499.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • Stunning Full HD resolution
  • 20x optical zoom, 10x digital zoom
  • Single cable transmission by HDBaseT technology
  • Advanced 2D/3D noise reduction function
  • H.264/H.265 video compression for streaming
Log in or register for YOUR best price

The PTC-140T is a HD PTZ Camera that features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, and 60fps. Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 ("network cable"). By applying with the Receiver Box, the transmission distance can go up to 100 meters. The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. This camera supports advanced digital noise reduction. Even in less-than-perfect lighting conditions, it is able to shoot clear and smooth images. With built-in streaming encoder, the PTC-140T can encode up to 2 simultaneous streams to any cloud service.

View full details

Specifications

Dimensions
Focal Length
f=5.2 (wide) to 98 (tele) mm, F1.6 to F3.5
Dimension (LxWxH)
156 x 184 x 186 mm
Audio
AGC / Gain Control
Auto / Manual
Audio Input
3.5mm Line in
Audio Compression Format
AAC/MP3/G.711A Audio compression
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
Optics
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Iris Control
Auto / Manual
Focus Mode
Auto / Manual
Connectivity
Video Output
HDBaseT (PoE) x1, RJ-45 x1
Construction
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Tripod Mount
1/4-20 UNC
Color
Black/White
Controls
On-Screen Display (OSD)
English, Simplified Chinese
Control Protocol
VISCA, Pelco-D, Pelco-P, DVIP
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
Shipping
Weight
1.6 kg
Identifiers
Model Number
PTC-140T
General
Video format/Resolution
1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Gamma Control
Off / Normal
Digital Noise Reductions
Yes
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
Mirror / Flip Image
Yes
Panning / Tilting Range
Pan: 340° , Tilt: +90° to -30°
Preset
255 Position
Field of View (Horizontal, Wide)
Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation
Backlight Compensation
Tally LED
Dual color (Red, Green)
Remote Control Interface
RS-232, Lan (RJ-45)
HDBaseT(RJ-45)/Serial Control on Receiver Box
Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
First Stream Supported Resolution
----
Second Stream Supported Resolution
----
Video Bitrate
----
Encoding Frame Rate
----
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
Optional Accessories
WM-1/ WM-10/ WM-11
Operating Temp. Range
0~40°C
Movement
Pan
0.1~60°/sec
Tilt
0.1~30°/sec
Power
POE
----
Power
DC 12V 12W
