Datavideo PTC-140T HDBaseT PTZ Camera | Color: White
Datavideo PTC-140T HDBaseT PTZ Camera | Color: White
SoundPro Item: 50251 | Part Number: PTC-140TW
Usually ships in 5-7 business days
- Stunning Full HD resolution
- 20x optical zoom, 10x digital zoom
- Single cable transmission by HDBaseT technology
- Advanced 2D/3D noise reduction function
- H.264/H.265 video compression for streaming

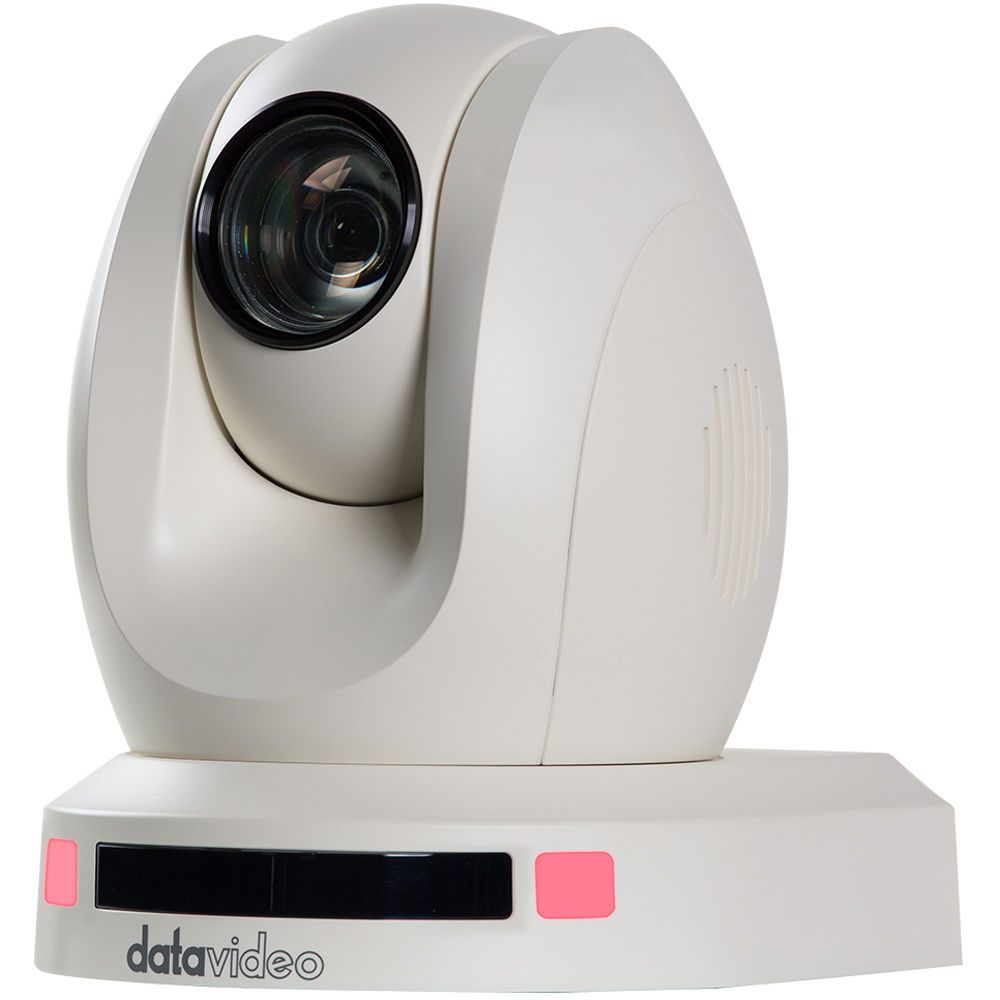

The PTC-140T is a HD PTZ Camera that features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, and 60fps. Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 ("network cable"). By applying with the Receiver Box, the transmission distance can go up to 100 meters. The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. This camera supports advanced digital noise reduction. Even in less-than-perfect lighting conditions, it is able to shoot clear and smooth images. With built-in streaming encoder, the PTC-140T can encode up to 2 simultaneous streams to any cloud service.
- Model NumberPTC-140T
- Video format/Resolution
- 1080p 60/59.94/50/30/29.97/25
- 1080i 60/59.94/50
- 720p 60/59.94/50
- Image Sensor1/2.8 inch high quality HD CMOS sensor
- Effective Pixels (approx.)2.07 Mega pixels
- S/N Ratio>55dB
- Min. Illumination0.5Lux (F1.8, AGC ON)
- Electronic ShutterAuto / Manual
- Zoom Ratio20x Optical Zoom, 10x Digital Zoom
- Gamma ControlOff / Normal
- Iris ControlAuto / Manual
- Digital Noise ReductionsYes
- On-Screen Display (OSD)English, Simplified Chinese
- White BalanceAuto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
- AGC / Gain ControlAuto / Manual
- Mirror / Flip ImageYes
- Focus ModeAuto / Manual
- Panning / Tilting RangePan: 340° , Tilt: +90° to -30°
- Panning / Tilting Speed
- Pan: 0.1~60°/sec
- Tilt: 0.1~30°/sec
- Preset255 Position
- Focal Length
- f=5.2 (wide) to 98 (tele) mm
- F1.6 to F3.5
- Field of View (Horizontal, Wide)Approx. 54.7° (WIDE END) / 3.3° (TELE END)
- Image CompensationBacklight Compensation
- Video Output
- HDBaseT (PoE) x1
- RJ-45 x1
- Audio Input3.5mm Line in
- Tally LEDDual color (Red, Green)
- Lens FilterM52.0 x 0.75 Thread with UV Protection
- Control ProtocolVISCA, Pelco-D, Pelco-P, DVIP
- Remote Control Interface
- RS-232
- Lan (RJ-45)
- HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
- Video Compression FormatH.264, H.265, Dual stream output
- Audio Compression FormatAAC/MP3/G.711A Audio compression
- Audio Bitrate96Kbps, 128Kbps, 256Kbps
- HD IP Interface100M IP port(100BASE-TX); Support DVIP
- Streaming ProtocolsTCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
- First Stream Supported Resolution----
- Second Stream Supported Resolution----
- Video Bitrate----
- Video Bitrate Mode
- Encoding Frame rate----
- POE----
- F/W UpdateEthernet
- IR ControlYes
- Camera Control UnitHS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
- Tripod Mount1/4-20 UNC
- Optional AccessoriesWM-1/ WM-10/ WM-11
- ColorBlack/White
- Dimension (LxWxH)156 x 184 x 186 mm
- Weight1.6 kg
- Operating Temp. Range0~40°C
- PowerDC 12V 12W
