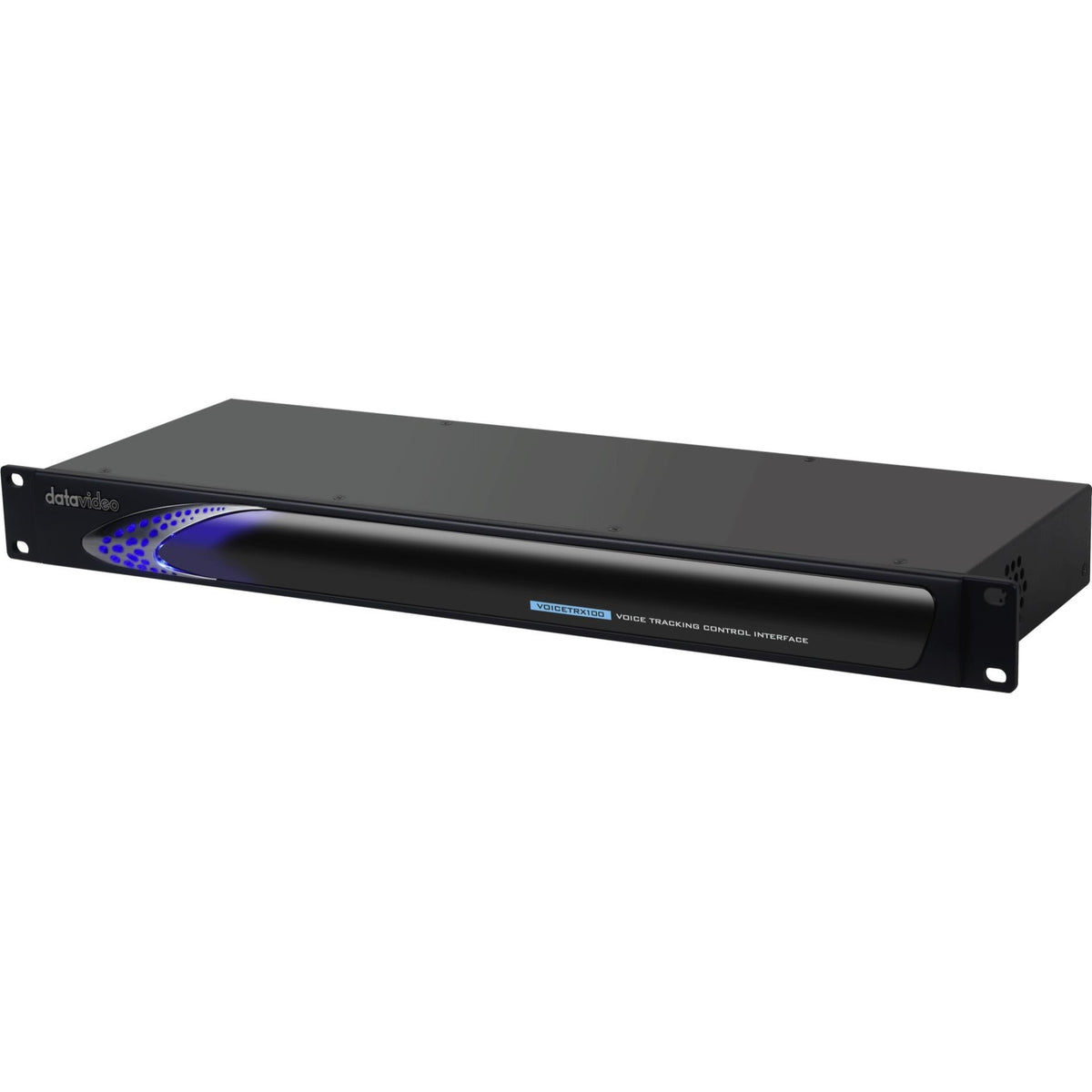

DataVideo VoiceTRX100 Voice Tracking PTZ Camera Control Interface

DataVideo VoiceTRX100 Voice Tracking PTZ Camera Control Interface

SoundPro Item: 209315 | Part Number: VoiceTRX100

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Voice-Activated PTZ Switching Delivers Operator-Free Multi-Camera Production
  • Seamless Camera Cut Logic Avoids Visible Movement For Natural Viewing
  • Built-In Character Generator Displays Speaker Names During Meetings And Recordings
  • Simple And Advanced Configuration Modes Support Installations Of Varying Complexity
  • Enhanced Window Layouts Enable Simultaneous Speaker And Presentation Display
  • Broad Microphone Compatibility Integrates With Existing Conference Audio Infrastructure
  • PoE+ Support Simplifies Installation By Eliminating Separate Power Runs

The DataVideo VoiceTRX100 is designed for AV integrators and production teams deploying automated multi-camera workflows in meeting rooms, council chambers, town halls, and educational facilities. By detecting the active speaker and triggering PTZ camera movement and switcher cuts automatically, it removes the need for a dedicated camera operator while maintaining broadcast-quality production values. The result is a consistent, professional viewer experience without the staffing overhead traditional live production requires.

The unit supports a broad range of DataVideo conference switchers and PTZ cameras, giving integrators flexibility across project scales and budgets. Configuration is handled through a web browser UI with simple and advanced logic modes, so both straightforward installs and complex multi-room environments are addressed. Enhanced window layouts including side-by-side view and picture-in-picture allow simultaneous display of a speaker and a presentation, while the built-in character generator overlays speaker names for remote meeting recordings and live streams.

Compatibility with a wide array of professional conference microphone systems from Audio-Technica, Shure, Sennheiser, and Bosch, along with numerous USB audio mixers and interfaces, means the VoiceTRX100 integrates into existing infrastructure rather than forcing a full system replacement. PoE+ support simplifies installation by reducing dedicated power runs, and automatic firmware updates keep the device current without manual intervention.

View full details

Specifications

Connectivity
Network Port
1x RJ-45 Female (10/100/1000M Ethernet)
IP Addressing
DHCP/Static IP
PoE Standard
IEEE 802.3at (PoE+)
Video Outputs
2x HDMI 2.0
Control Interface
Web Browser UI, DVIP Commands
Control Protocol
DVIP
Power
Input
AC 100-240V Switching Adaptor
Output
DC 12V / 1A
Performance
Max Video Output Resolution
Up to 3840x2160p 60
Firmware Update
Automatic
Compatibility
Supported Video Switchers
iCast 10NDI series, KMU-100+, SE-650, SE-1200MU, SE-2600 series, SE-3200 series, SE-4000 series
Supported Conference Microphones
Ai Speech MC-10A, Audio-Technica ATND1061, Audio-Technica ATUC-IR, Audio-Technica ATUC-50, Bosch DICENTIS Wireless, Bosch CCS-1000D, Relacart ACM-335, Relacart ACM-582, Sennheiser TCCM, Sennheiser TCC2, Sennheiser TCCM Plus, Shure MXW Microflex, Shure MXA-910, Shure MXA-920, Shure MXA-925
Supported USB Audio Mixers/Interfaces
Allen and Heath CQ12T, Allen and Heath CQ18T, Zoom LiveTrak L6, Zoom LiveTrak L6 Max, Zoom LiveTrak L8, Zoom LiveTrak L12, RodeCaster Pro II, SoundCraft UI24R, M-Audio Duo, M-Audio Air 192|14, Tascam US-16X08, Tascam Mixcast 4, Behringer UMC404HD, Yamaha MGX12, Yamaha MGX16, Yamaha TF1 / TF3 / TF5, Yamaha DM3 / DM3S, Yamaha DM7 / DM7C
Identifiers
Model Number
VoiceTRX100
