Specifications

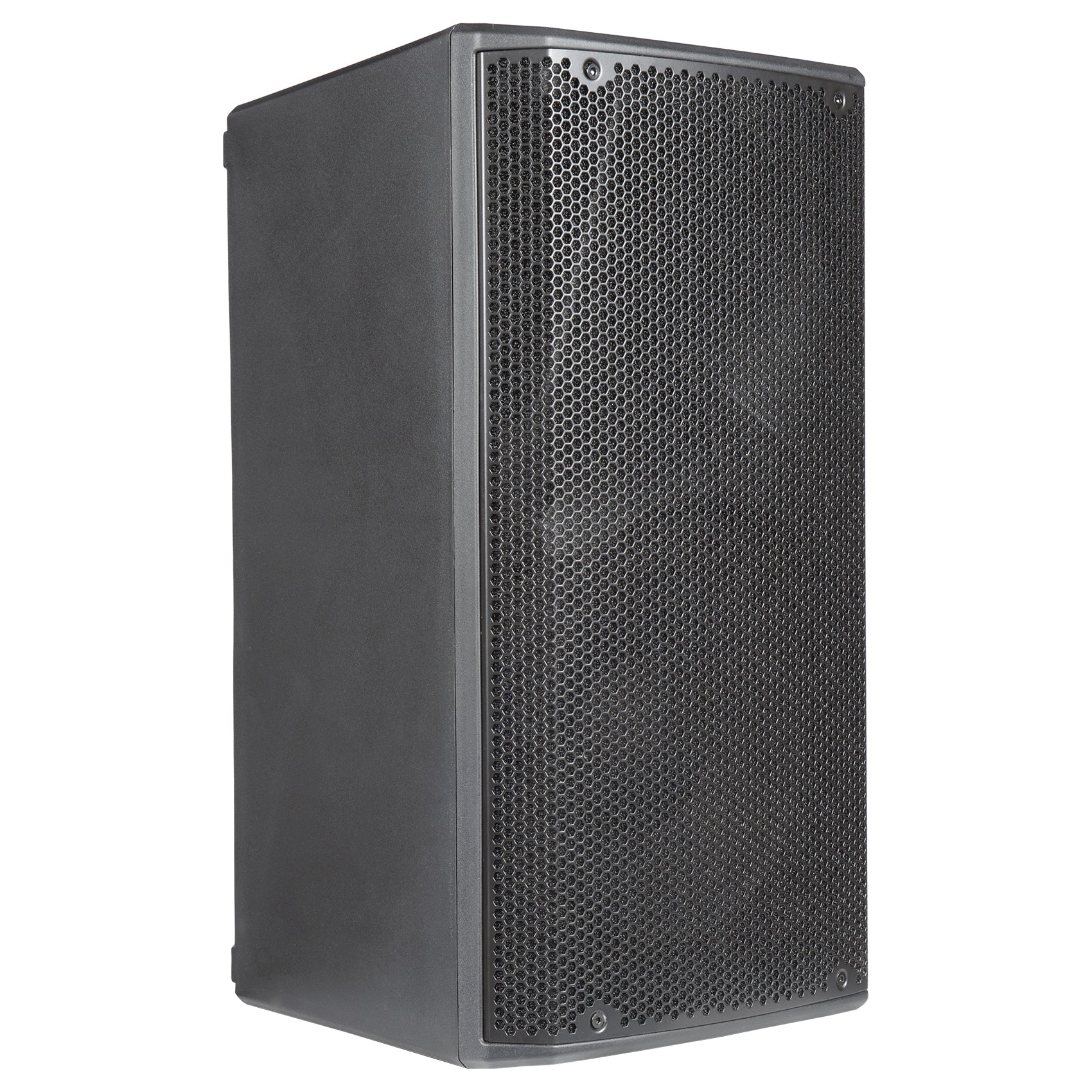

- Speaker type2-way active speaker
- Frequency response67-19,600Hz (-3dB), 52-20,000Hz (-10dB)
- Max SPL129dB
- HF1" exit, 1.4 v.c.
- Type HFcompression driver
- Horizontal directivity100° (85° up / 120° down)
- Vertical directivity85° (+25°/-60°)
- Hornasymmetrical horn
- LF12", 2" v.c.
- RMS power600W
- Peak power1200W
- ControllerDSP 56 bit
- AD/DA converter24 bit/48kHz
- System presetsrotary encoder (8 presets)
- Limiterpeak, RMS, thermal
- Advanced DSP functionslinear phase FIR filters
- Signal input1x combo (XLR/jack 6.3mm) mic/line; 1x combo (XLR/jack 6.3mm) mic/inst
- Signal output1x XLR male (CH1 link/mix out) selectable
- Dimensions (WxHxD)13.78" x 25.28" x 13.74"
- Weight31.53 pounds (14.3 kg)
