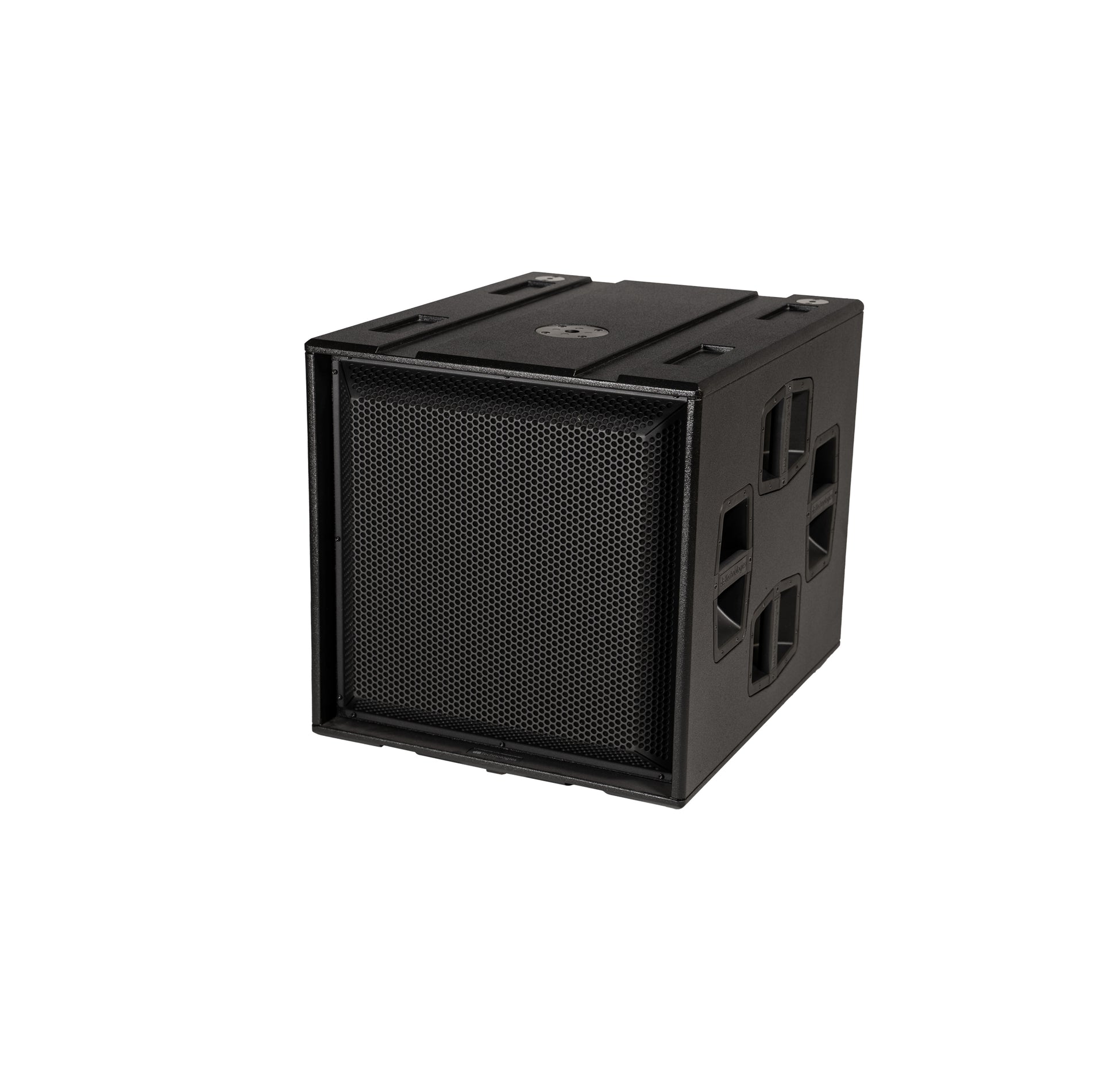

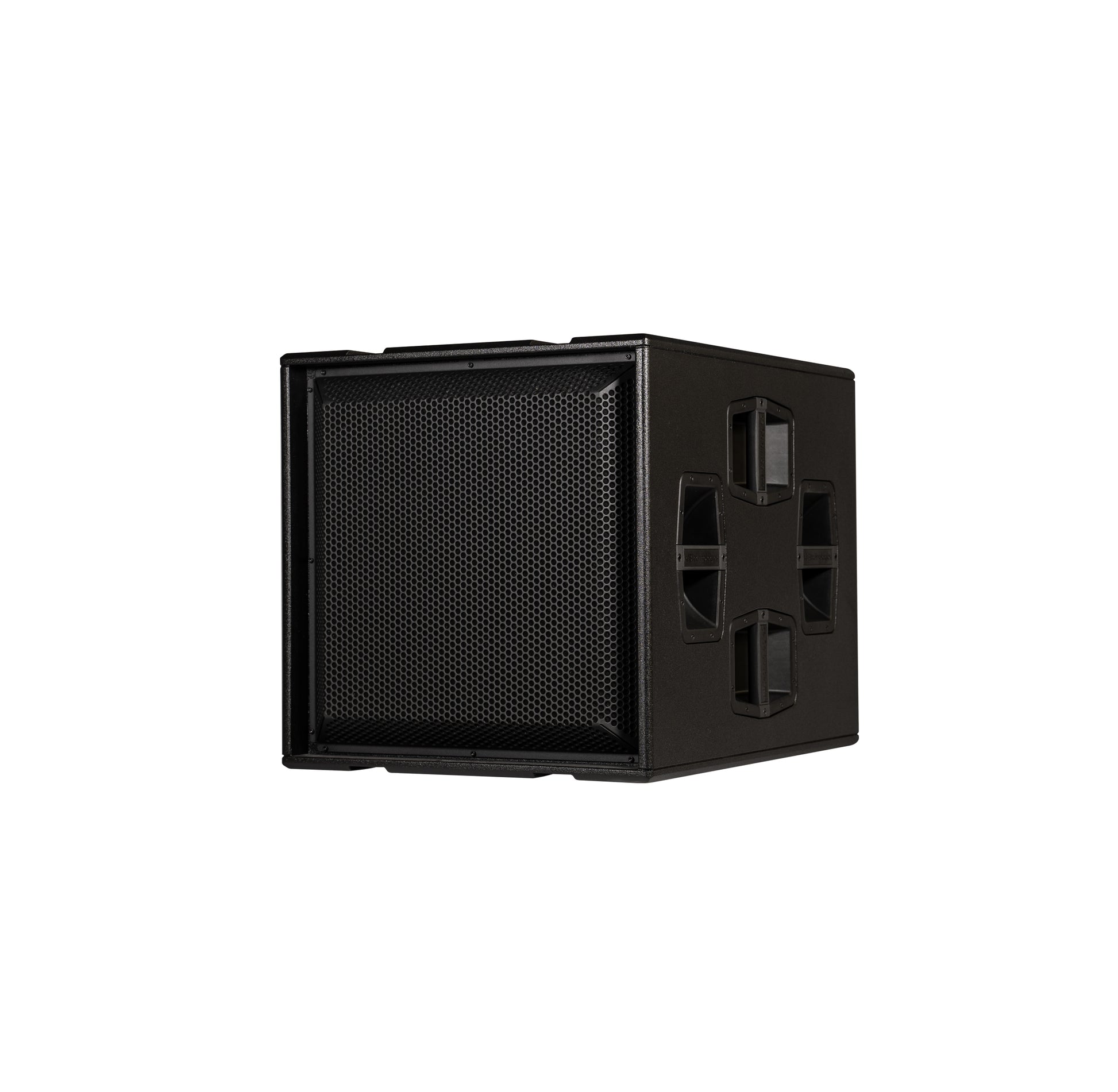

dBTechnologies INGENIA IGS1 Active Bass-Reflex Subwoofer

dBTechnologies INGENIA IGS1 Active Bass-Reflex Subwoofer

SoundPro Item: 202384 | Part Number: 1030104080

Regular price $4,799.00
Regular price $5,599.00 Sale price $4,799.00
Your Price Sold out
MSRP: $5,599.00 | MAP: $4,799.00

In stock and ready to ship

  • 1600W RMS AMPLIFIER
  • 136 dB MAX SPL
  • USABLE BANDWIDTH [- 6 dB]: 39Hz to Xover
  • LF: 1 x 18”, 4” v.c. - NEODYMIUM
  • WEIGHT: 45.6 Kg (100 lbs)

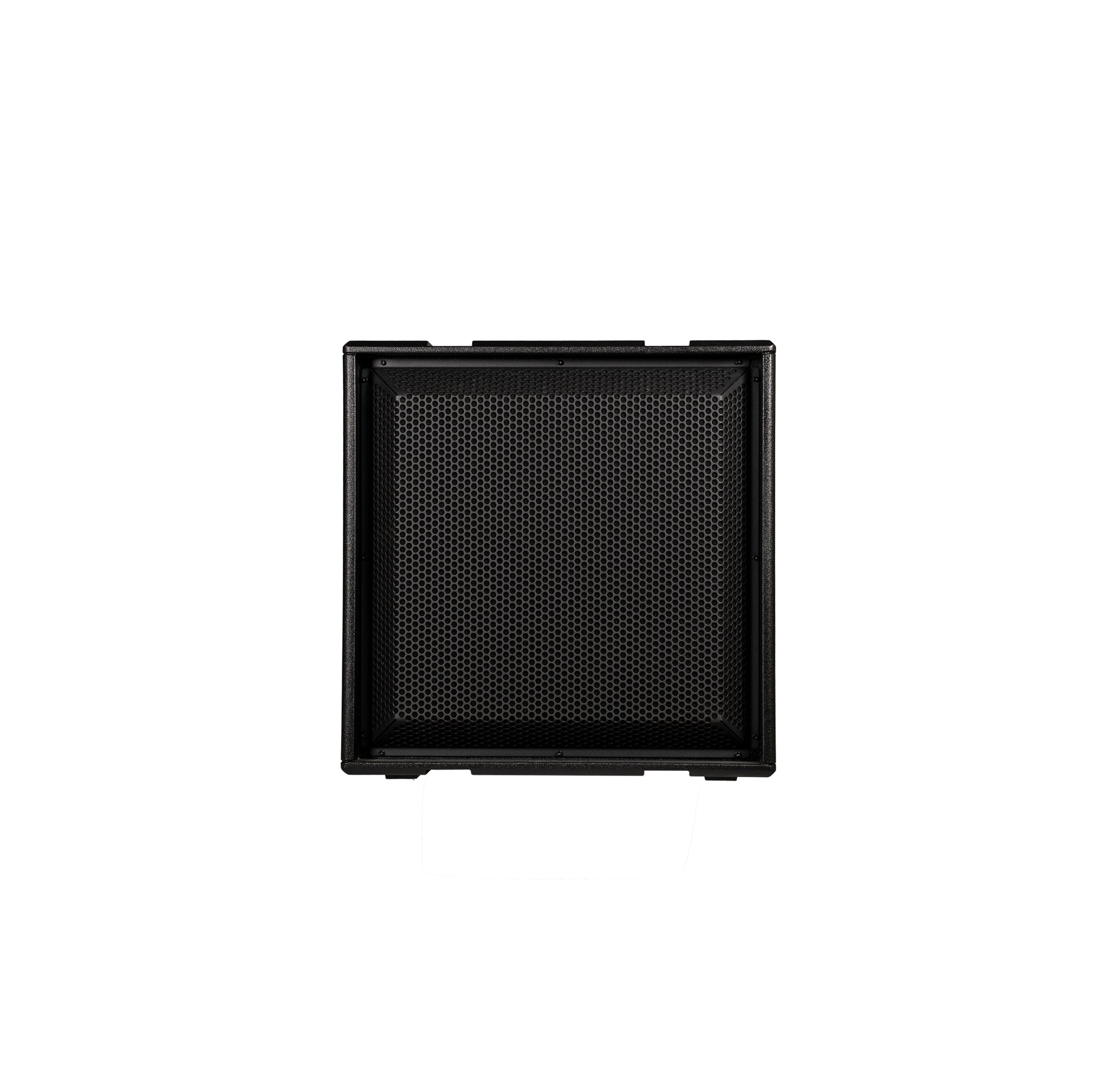

IGS1 features a single 18" woofer placed in a solid bass-reflex cabinet. The 1600 W RMS Class D amplifier ensures maximum reliability and impressive sound pressure.

The system is enabled via RDNet to complete real-time monitoring and control using Aurora Net software (available for Windows and Mac), which supports advanced configurations between IGS1 and IGS2 systems and perfect matching with dBTechnologies full-range systems.

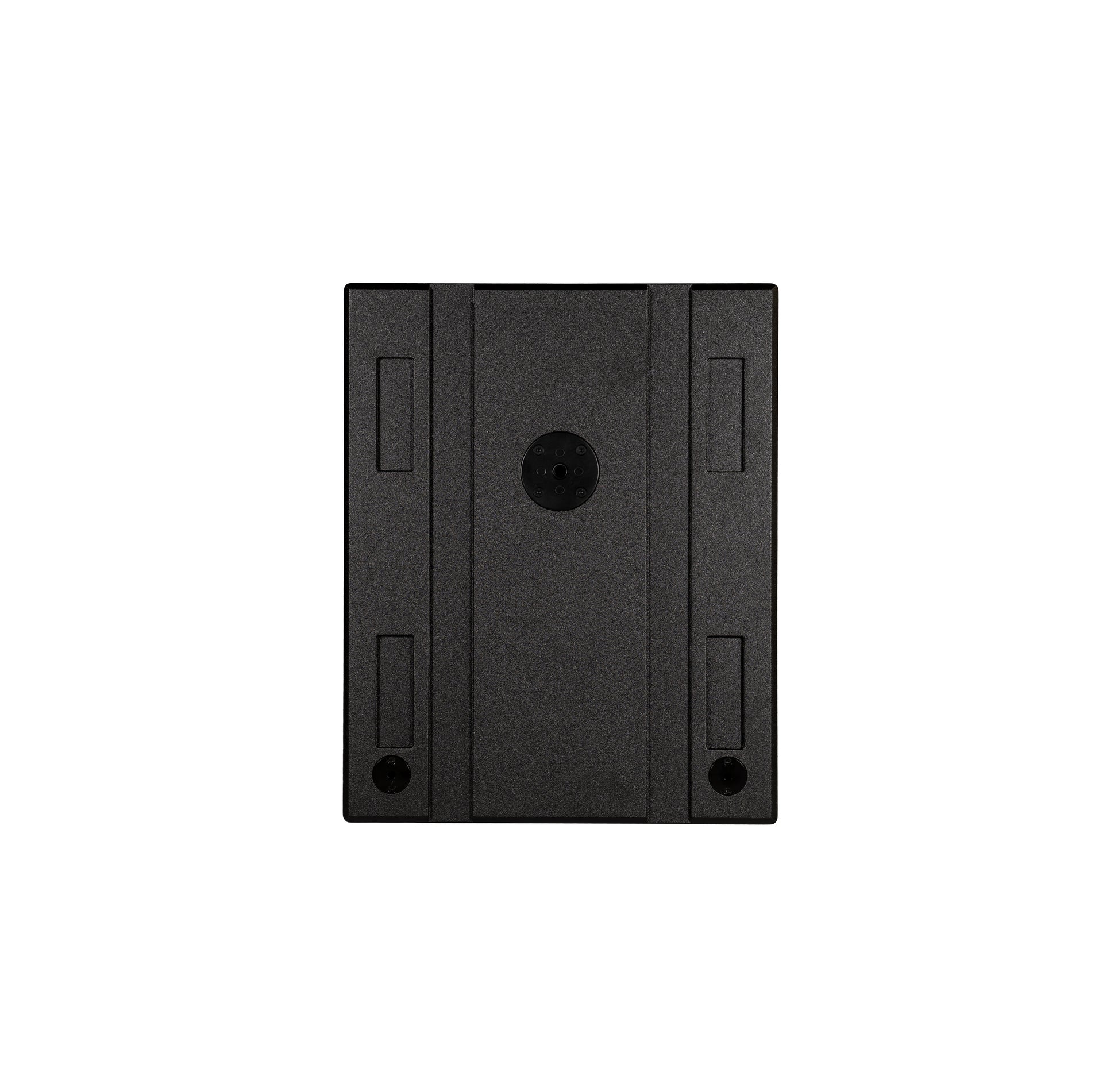

The mechanical design allows perfect scalability between this line's subwoofer models, while the M20 threaded for standard pole makes matching with the top easy and immediate; moreover, two pick points allow using fly-bars dedicated to other dBTechnologies systems.

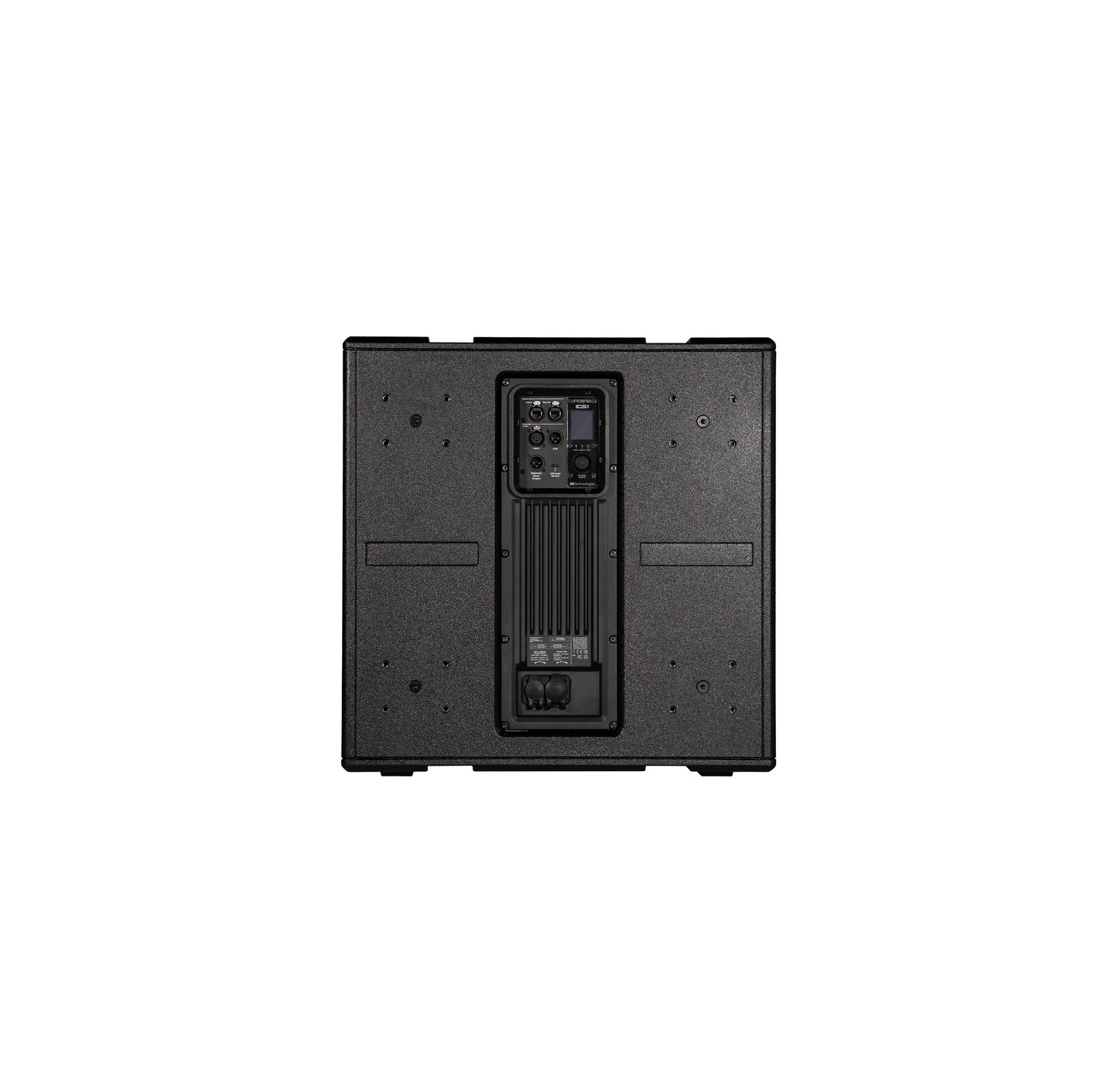

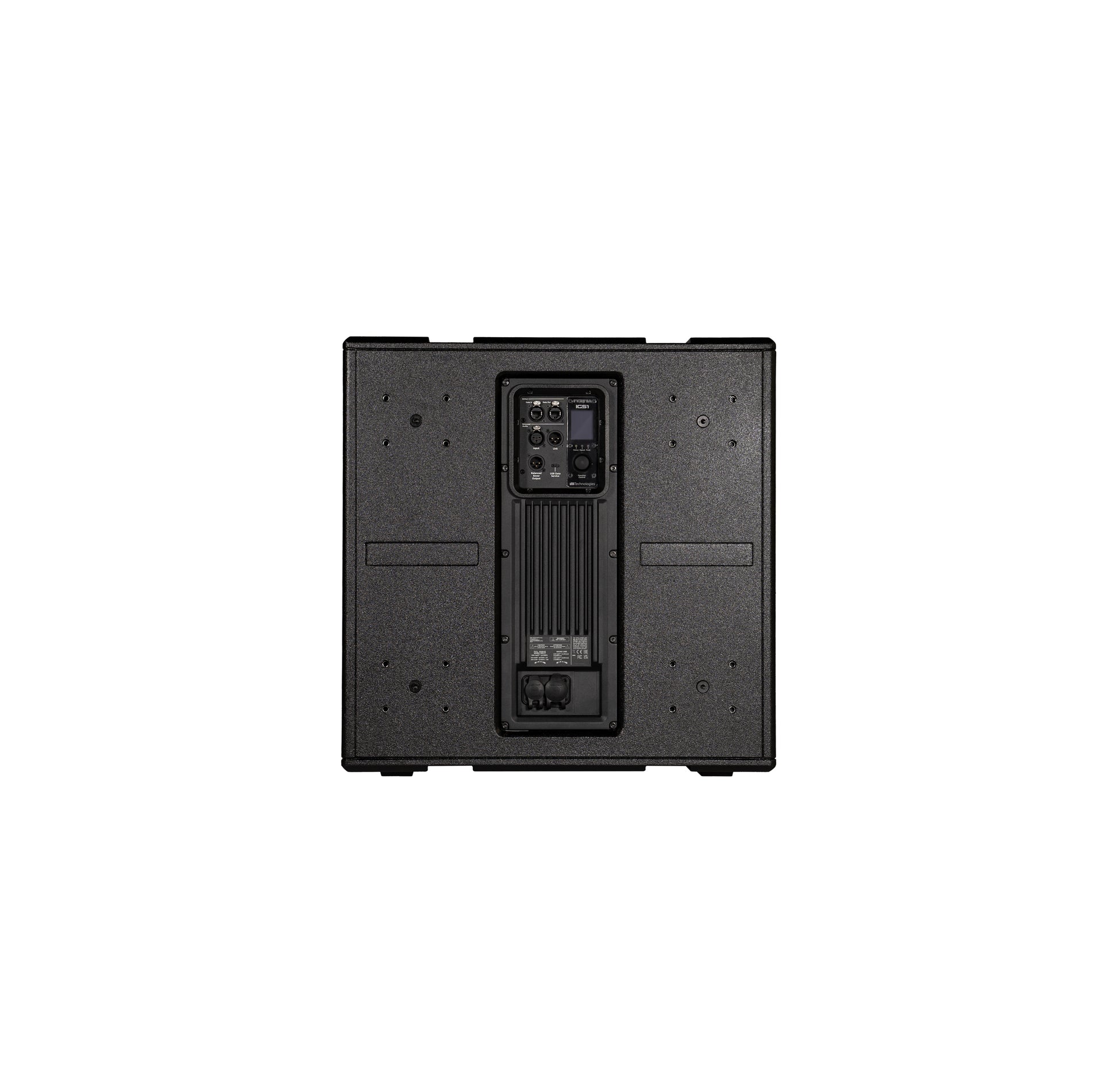

This sturdy cabinet also features four built-in handles and a back panel for easy wheeled transport. A polyurea finish complements the standard features, ensuring durability and endurance.

View full details

Specifications

Speaker Type
Active Subwoofer
Frequency Response (-10dB)
36 Hz to Xover
Max SPL (1 m)
136 dB
LF Driver
18"
LF Voice Coil
4"
Amplifier Class
Class D with PFC
RMS Power
1600 W
Controller
32-bit processing
AD/DA Converter
24-bit; 96 kHz
Limiter
Peak; Thermal; RMS
Crossover Frequency
60-65-70-75-80-90-100-110-120-400 [Hz]
Controls
FunctionControl (rotary)
Signal Input/Output
1× XLR In/Out; 1× PowerCon True In/Out; 2× Ethercon In/Out
Housing
Plywood cabinet with Polyurea finish
Handles
4× side
Pole Mount
1× M20 (top)
Rigging Points
2× pick points (top) for DRK 10/20 rigging frames
Width
578 mm (22.76 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.35 in)
Weight
45.6 kg (100 lbs)
