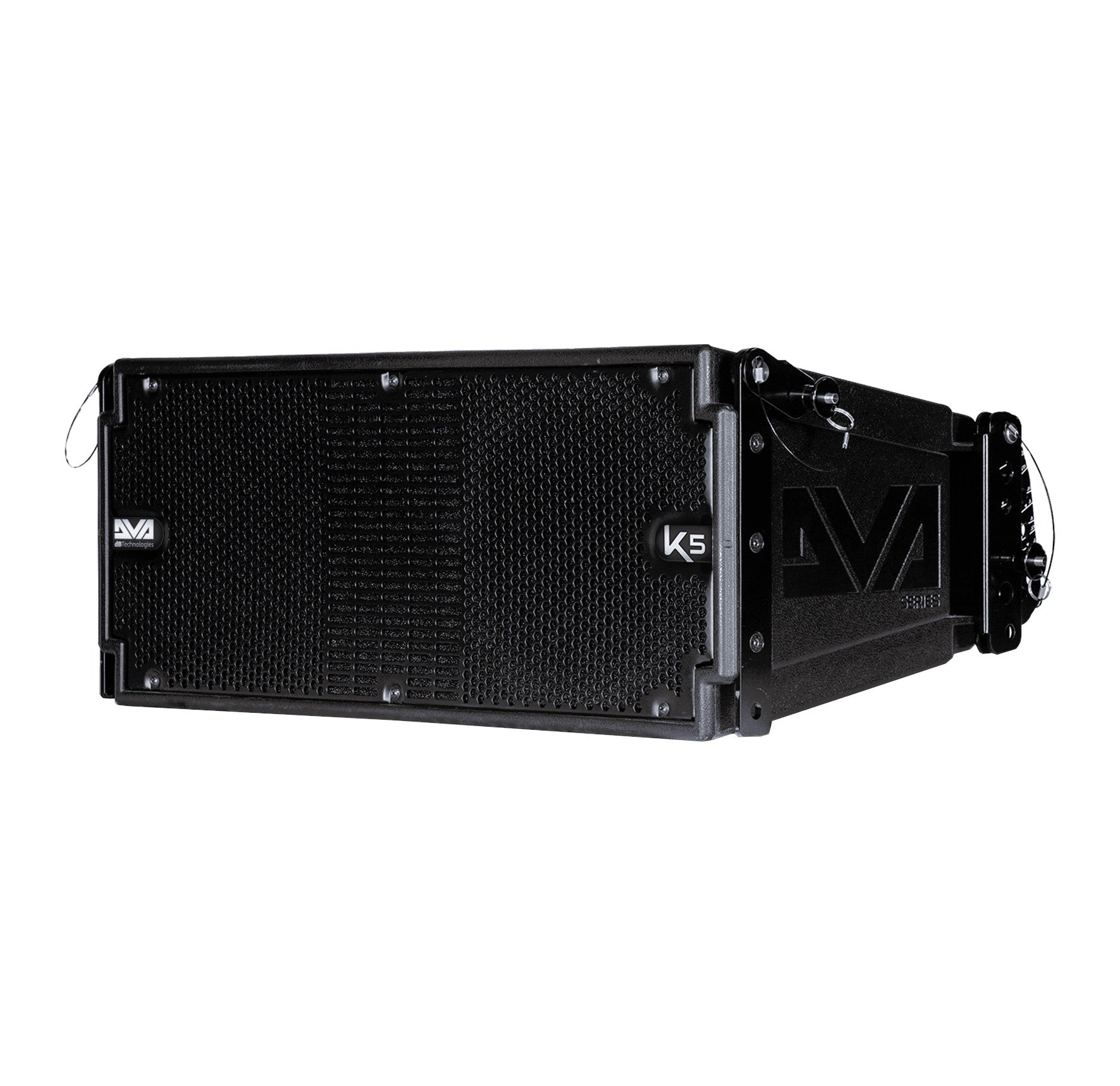

• dBTechnologies DVA K5 8-Inch Powered Line Array Speaker

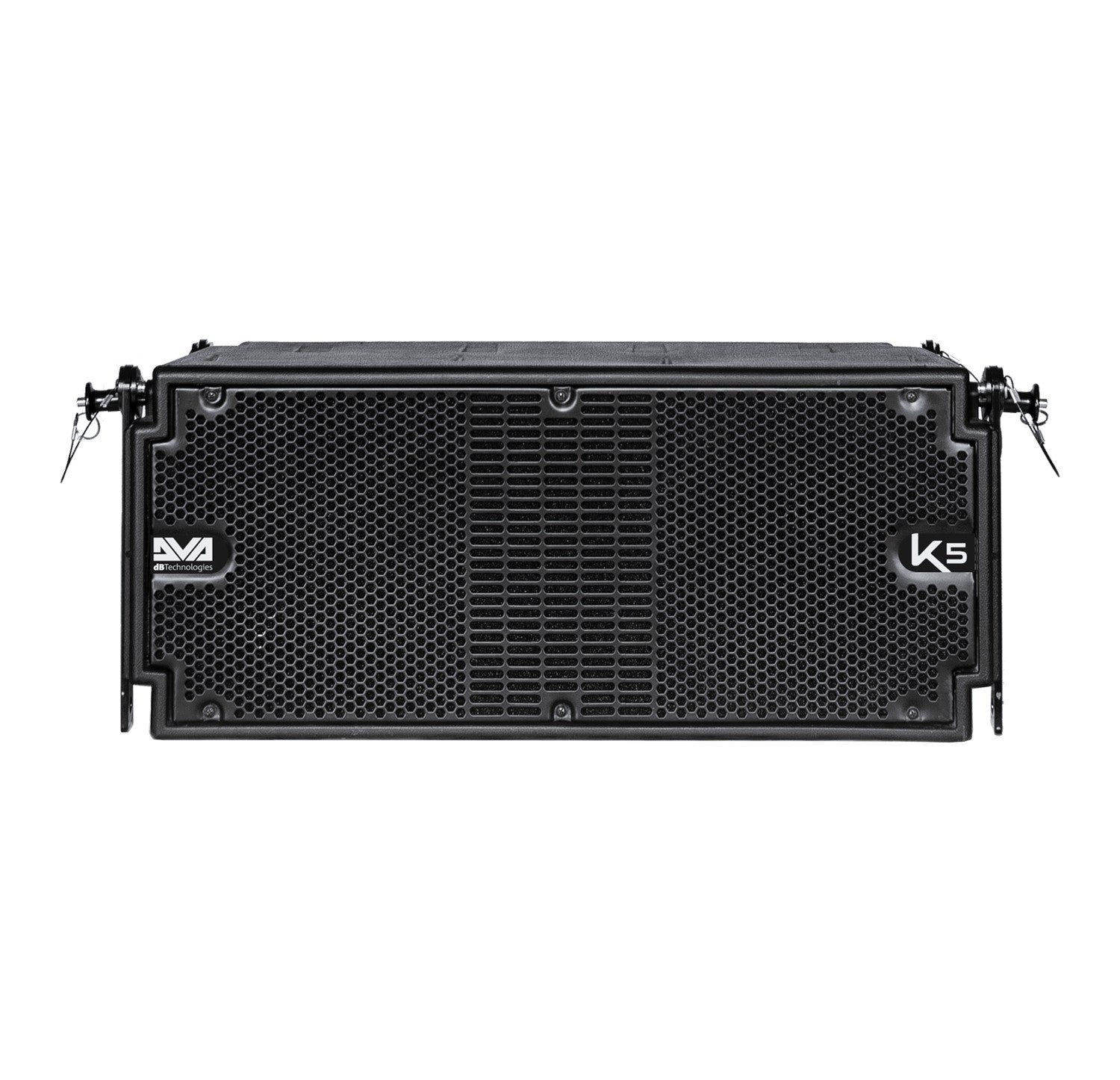

  • dB Technologies DVA K5 Line Array Speaker front

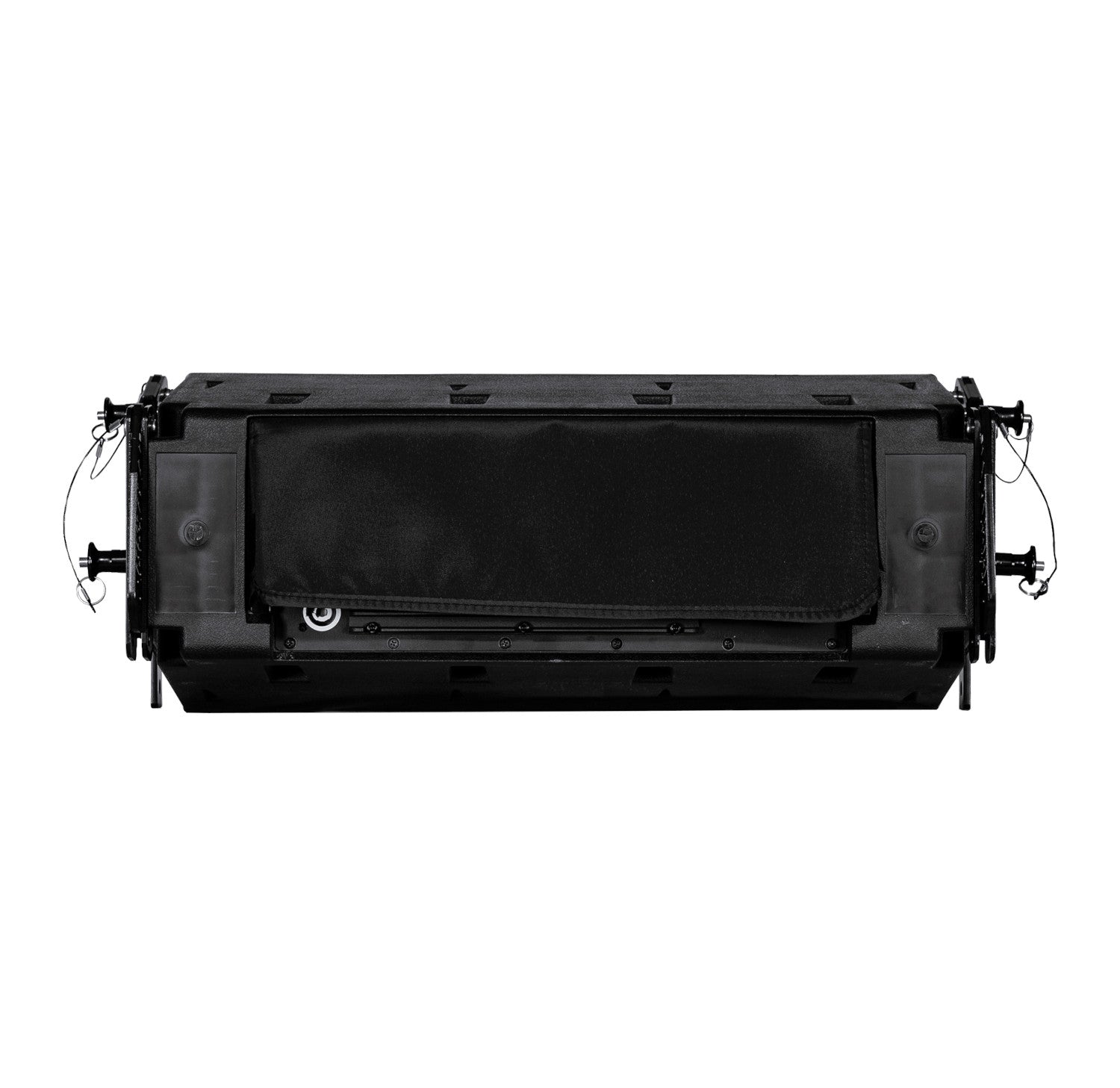

  • dB Technologies DVA K5 Line Array Speaker back (covered)
1 3

dBTechnologies DVA K5 8-Inch Powered Line Array Speaker

dBTechnologies DVA K5 8-Inch Powered Line Array Speaker

SoundPro Item: 76325 | Part Number: DVA K5

$1,799.00
$3,328.00 $1,799.00
Your Price Sold out
MSRP: $3,328.00 | MAP: $1,799.00

Usually ships in 5-7 business days

  • Advanced DSP with FIR filters processing
  • Fully compatible with DVA T flying and groundstacking accessories
  • On board double rotary tuning system
  • Powerful and quiet amplification with Digipro G3 Class D amplifier
  • Hgih-quality transducers
  • Sound design optimized for line-array use, full-range frequency response for professional use
  • Equipped as standard with pins and built-in brackets, pre-drilled and graduated, for easy, accurate and ready setup and takedown
  • Quick and accurate DSP configuration through 2 rotary encoders, optimizing coupling and high frequency compensation
Log in or register for YOUR best price

dB Technologies' DVA K5 8-Inch Powered Line Array Speaker has set new standards in the sound reinforcement industry since its market launch in 2006. Equipped with top-notch features and engineered for maximum versatility, DVA series brought the benefits of line array technology to a much wider range of users. Now dB Technologies upgrades the best of technology that determined the success of the whole series in the new 3 way active line array module DVA K5.

Featuring a Class D 500 W RMS Digipro® G3 digital amplifier, DVA K5 is capable to reach up to 129 dB SPL and aims to inherit the success of the earliest model of the series DVA T4, thanks to technological upgrades partially derived from the most recent model of the series DVA T8. The new DVA line array module comprises 2 1,4" drivers, a 6" neodymium midrange and a 8" neodymium woofer.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
22.83" x 9.44" x 12.87"
Audio
Speaker Type
3-way active line array module
Frequency Response
70-19,000Hz (+/-3dB)
Connectivity
Signal Input
1x XLR balanced
Signal Output
1x XLR balanced
Power Socket
1x PowerCon in, 1x PowerCon out
Construction
Housing
polypropylene PP metal reinforced
Shipping
Weight
31.3 pounds (14.2 kg)
General
HF
2x1", 1.4" vc
MF
1x6.5" neodymium, 2" vc
LF
1x8" neodymium, 2.5" vc
Directivity (HxV)
100°x15°
Amplifier
Digipro® G3 Class D
RMS Power
500W
Peak Power
1000W
Cooling
convection
Power Supply
500W SMPS with Auto Range PSU
Controller
DSP 56 bit
AD/DA Converter
24bit / 48kHz
Limiter
dual active multiband RMS, peak, thermal
Crossover Frequency MF-HF
1800Hz
Slope MF-HF
24dB/Octave
Crossover Frequencies LF-MF
340Hz
Slope LF-MF
24dB/Octave
Controls
1x input sensitivity rotary switch, 1x DSP rotary encoder (LF correction), 1x DSP rotary encoder (MF-HF correction)
Rigging Points
integrated rigging hardware
