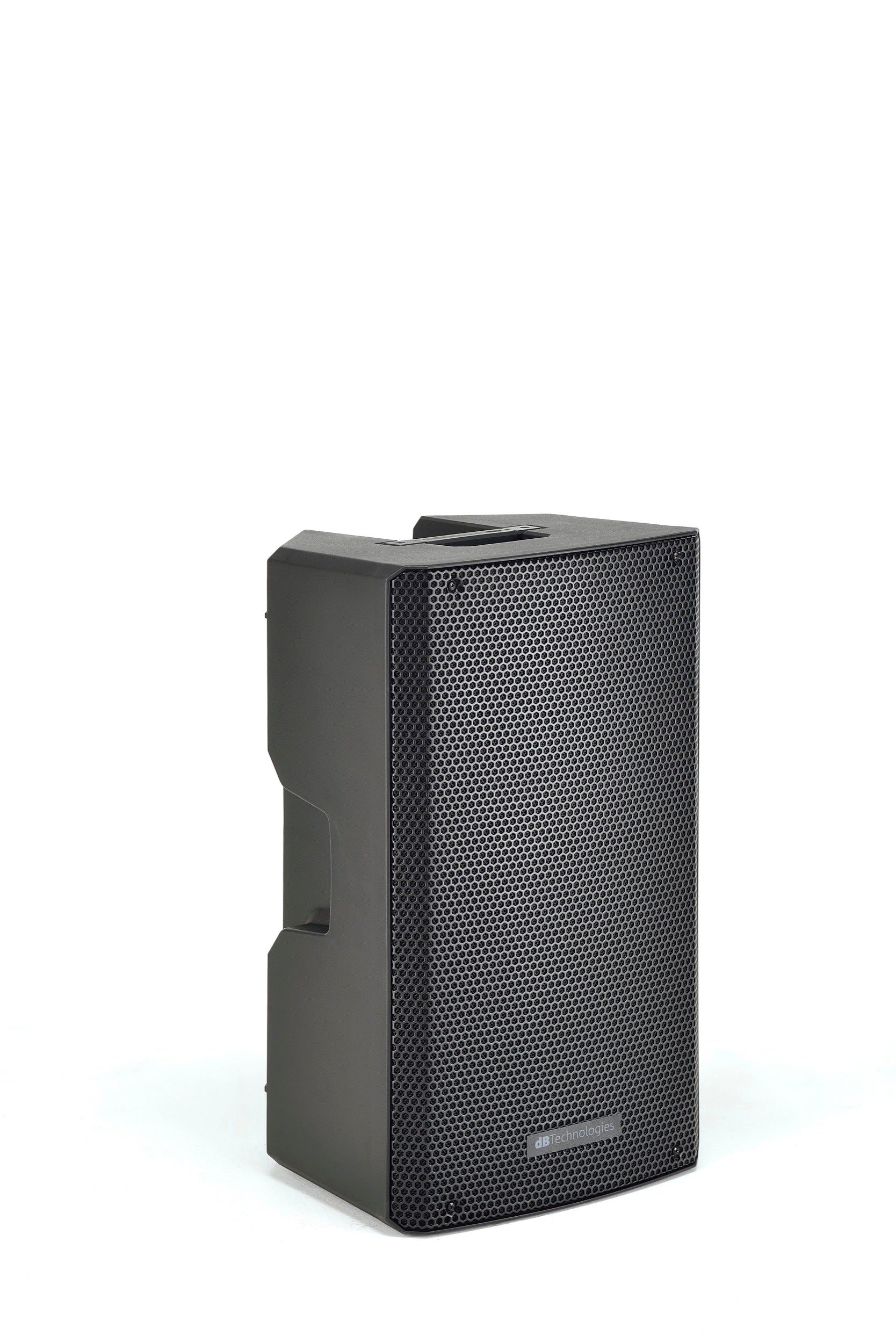

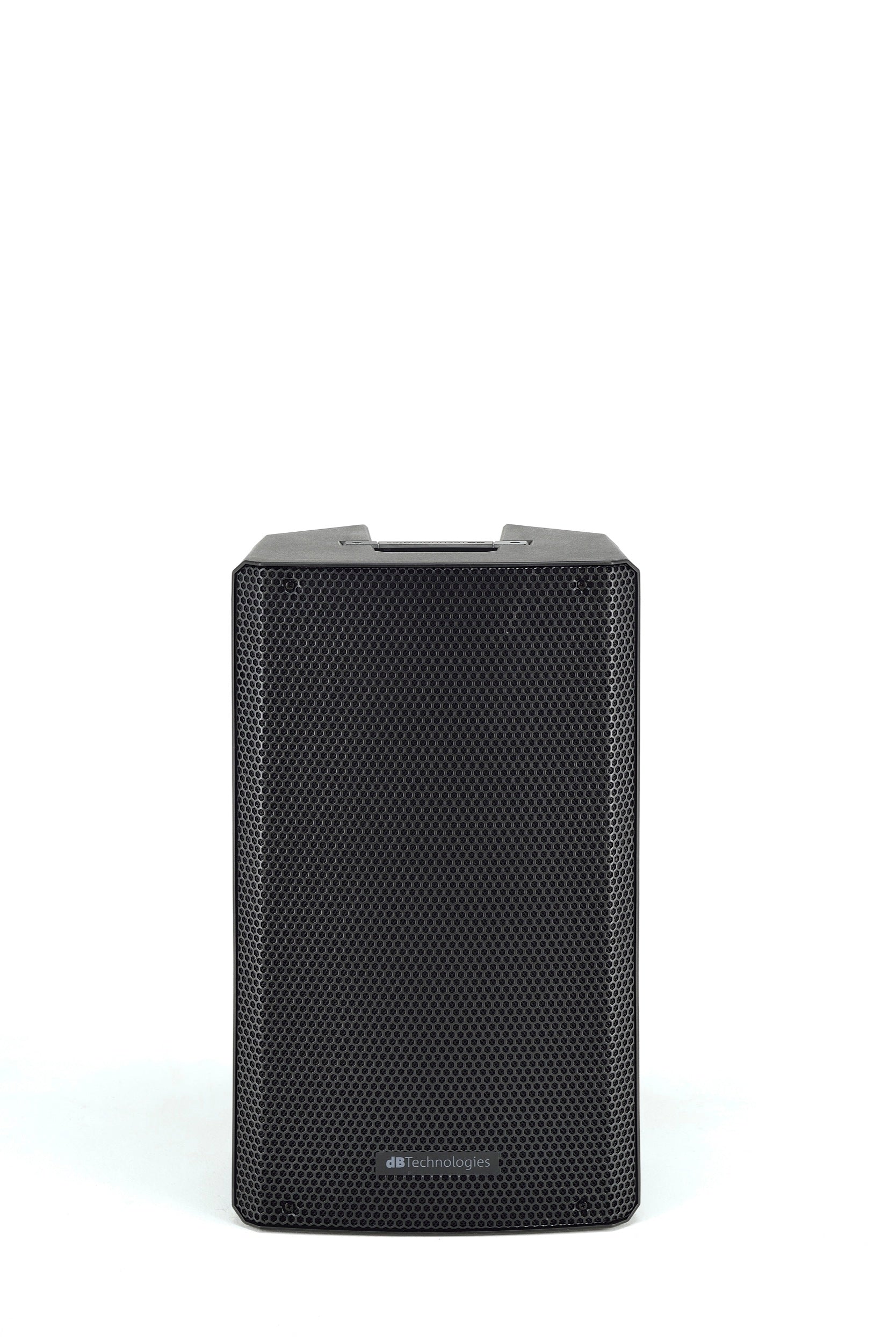

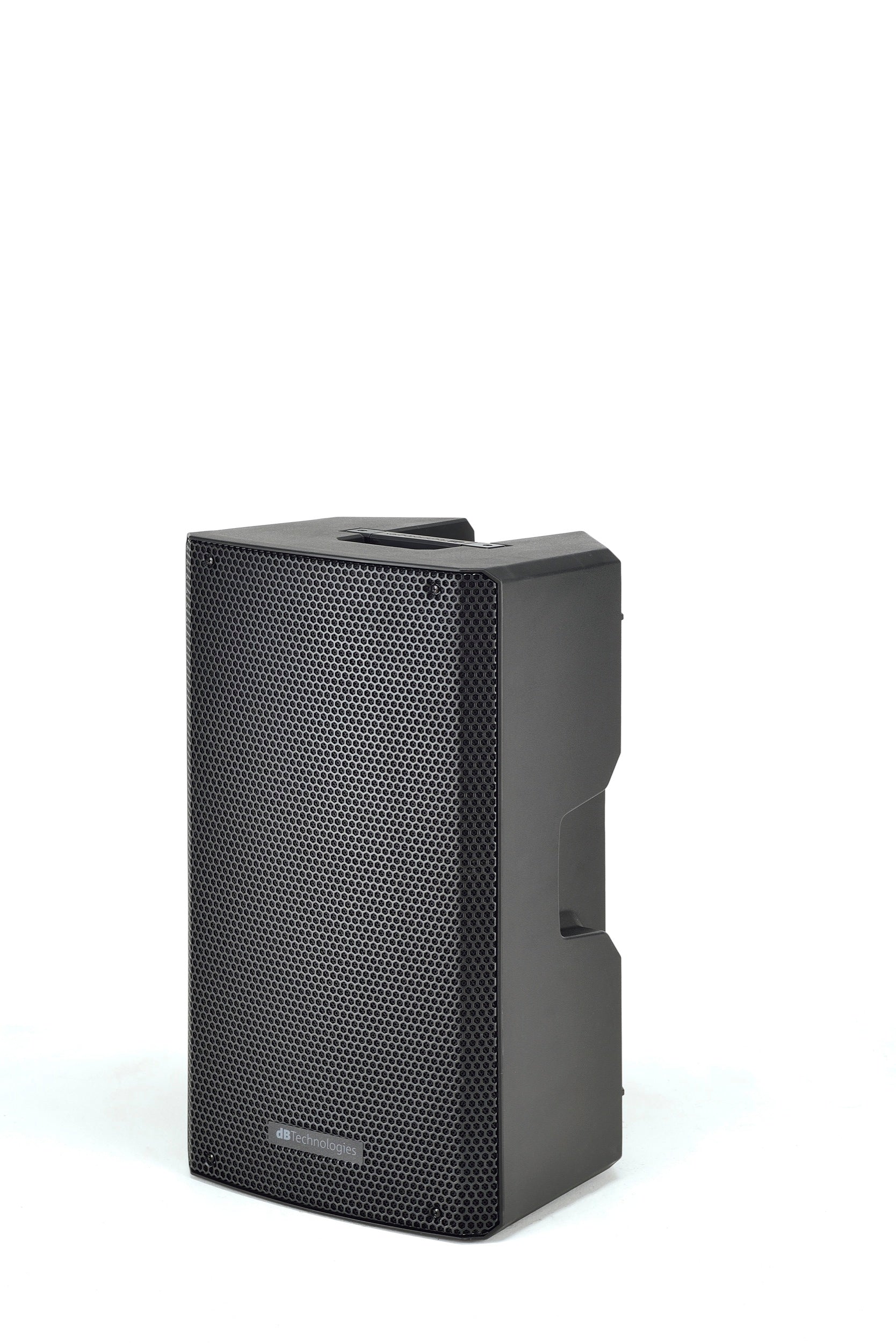

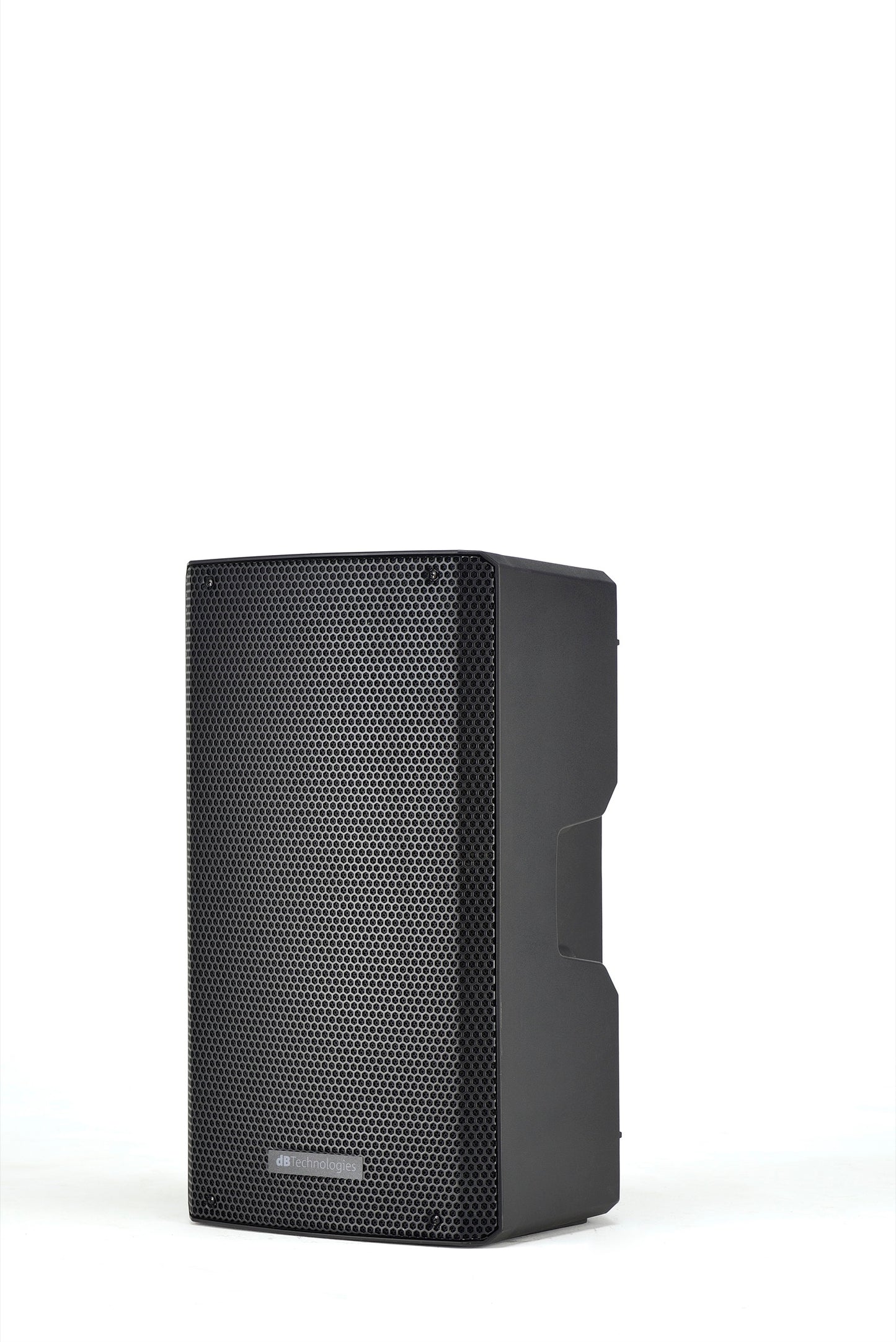

dbTechnologies KL 12 Active Speaker

dbTechnologies KL 12 Active Speaker

SoundPro Item: 116324 | Part Number: KL 12

$661.00
$772.00 $661.00
Your Price Sold out
MSRP: $772.00 | MAP: $661.00

Usually ships in 5-7 business days

  • Speaker Type: 2-Way Active Speaker
  • 800W Peak Amplifier
  • Max SPL 127 dB
  • Frequency Response [-10dB]: 52 - 18.000 Hz
  • HF: 1X 1", 1.35" V.C.
  • LF: 1X 12", 2.5" V.C.
  • Weight: 16.5 Kg (36.37 lbs)
Log in or register for YOUR best price

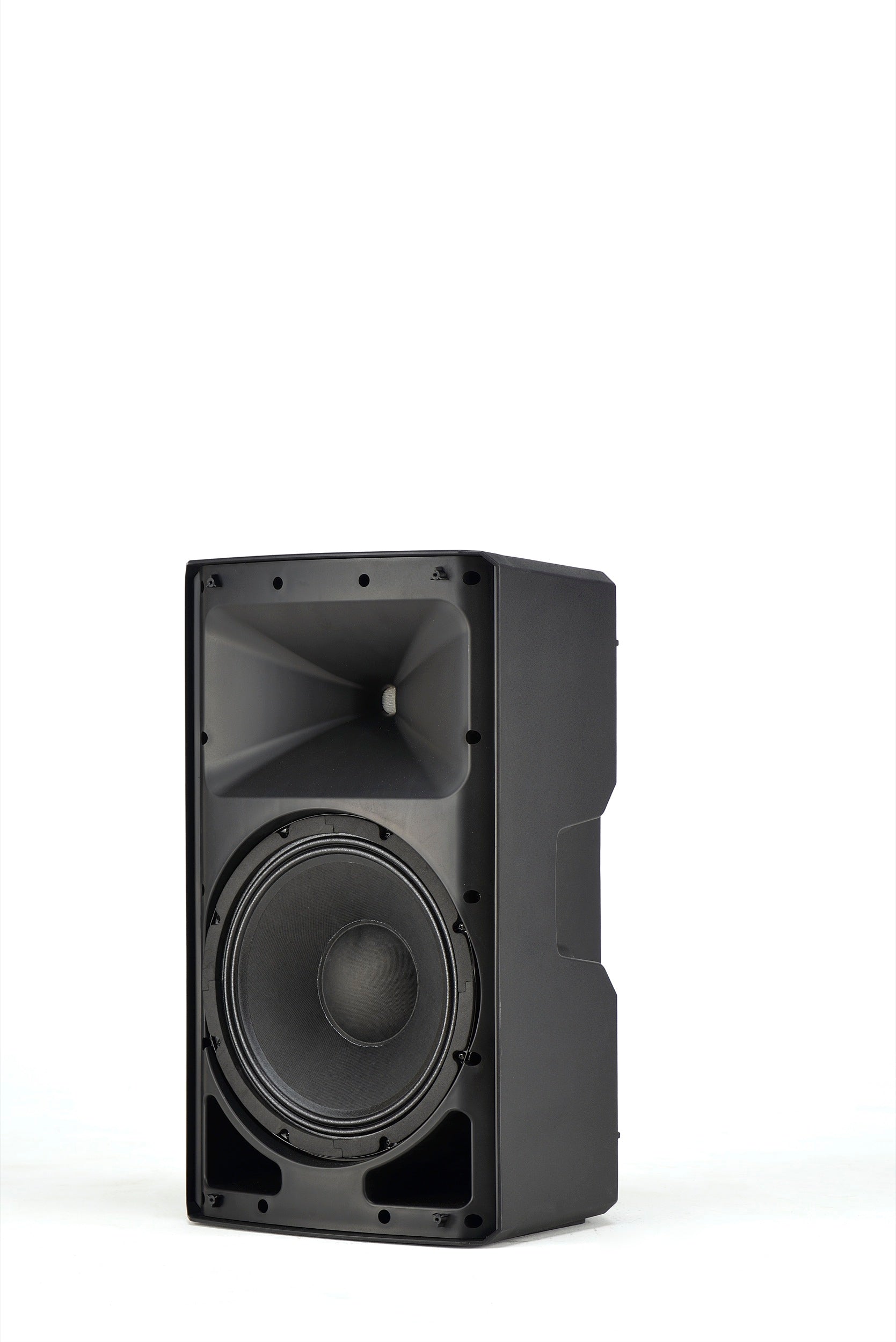

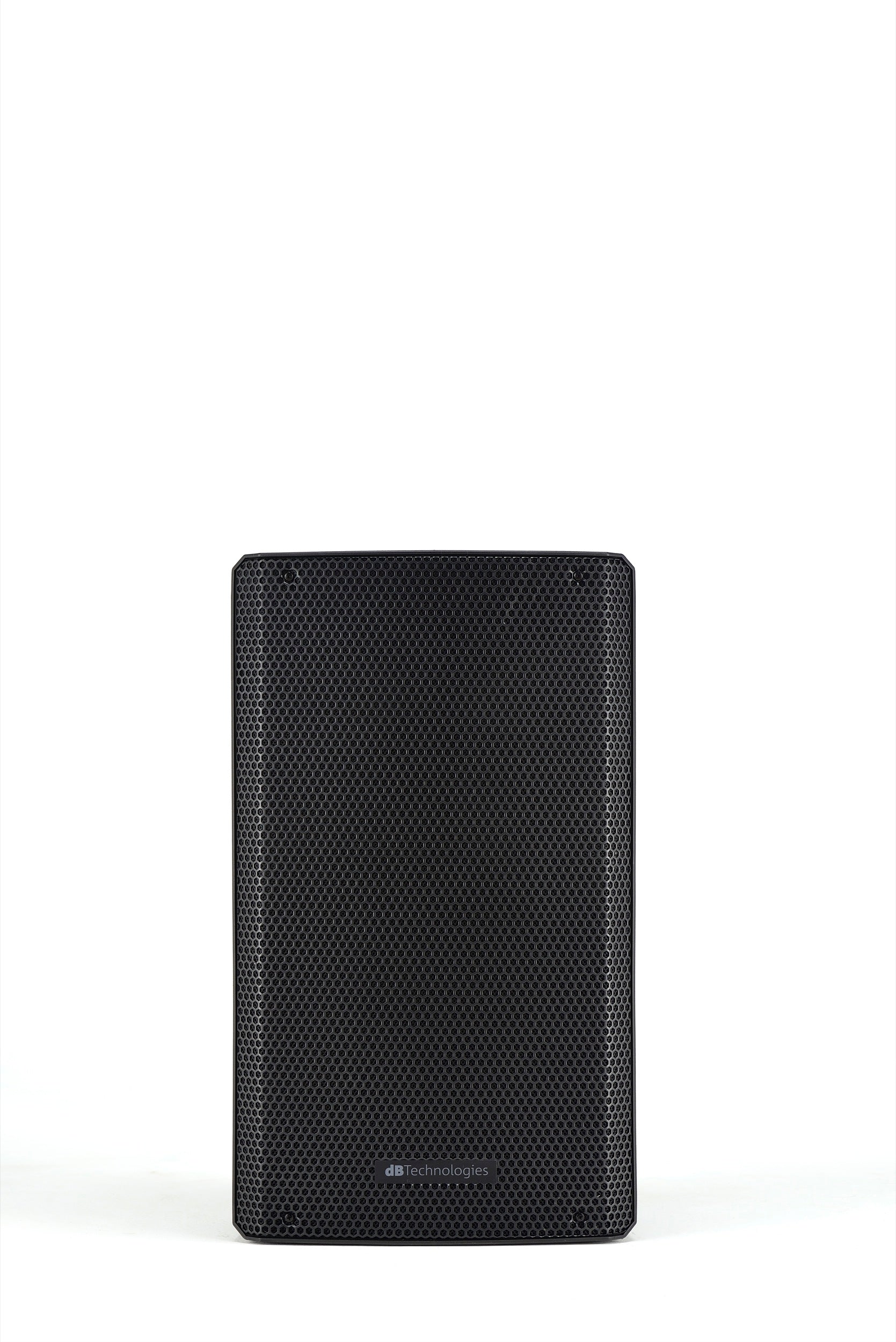

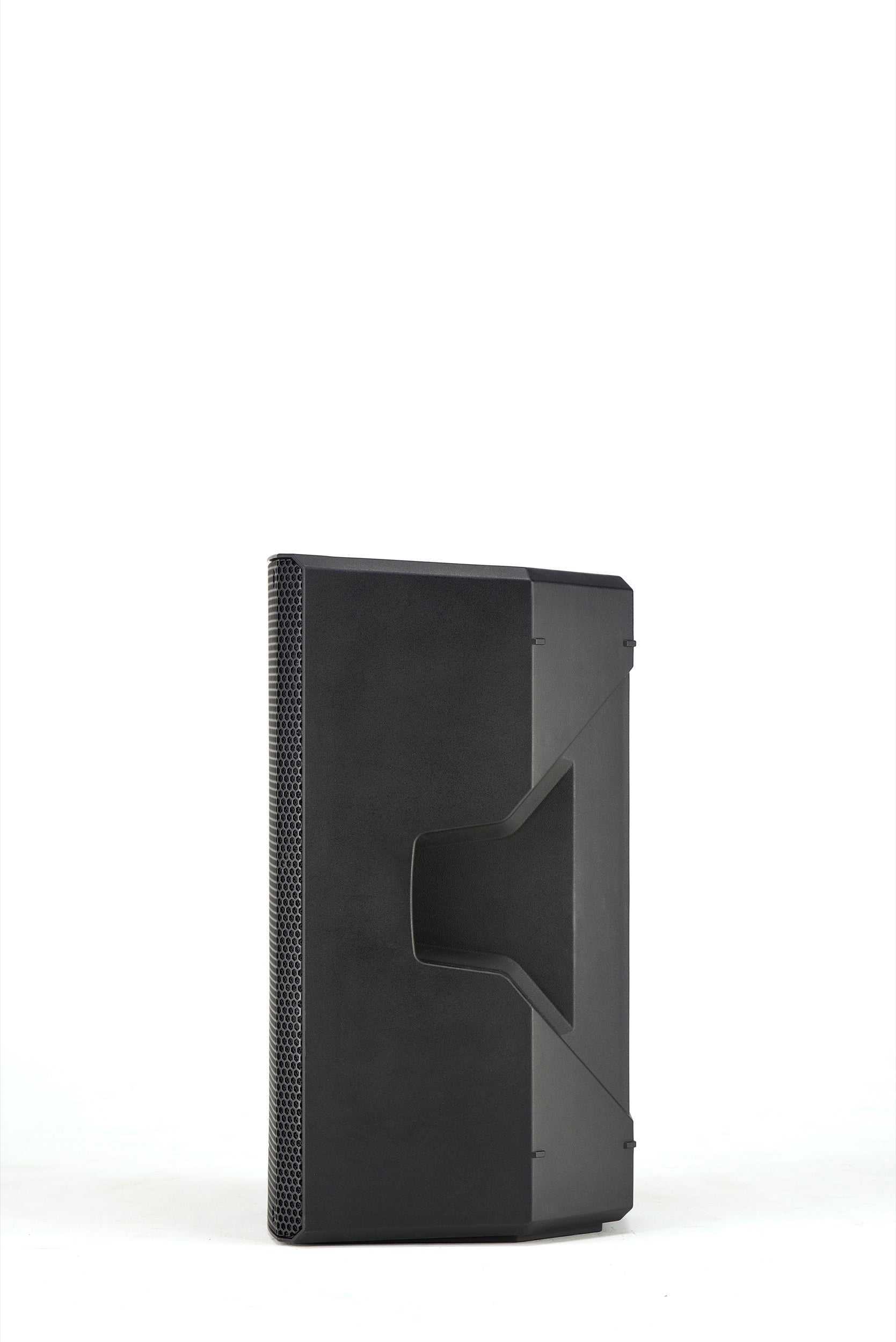

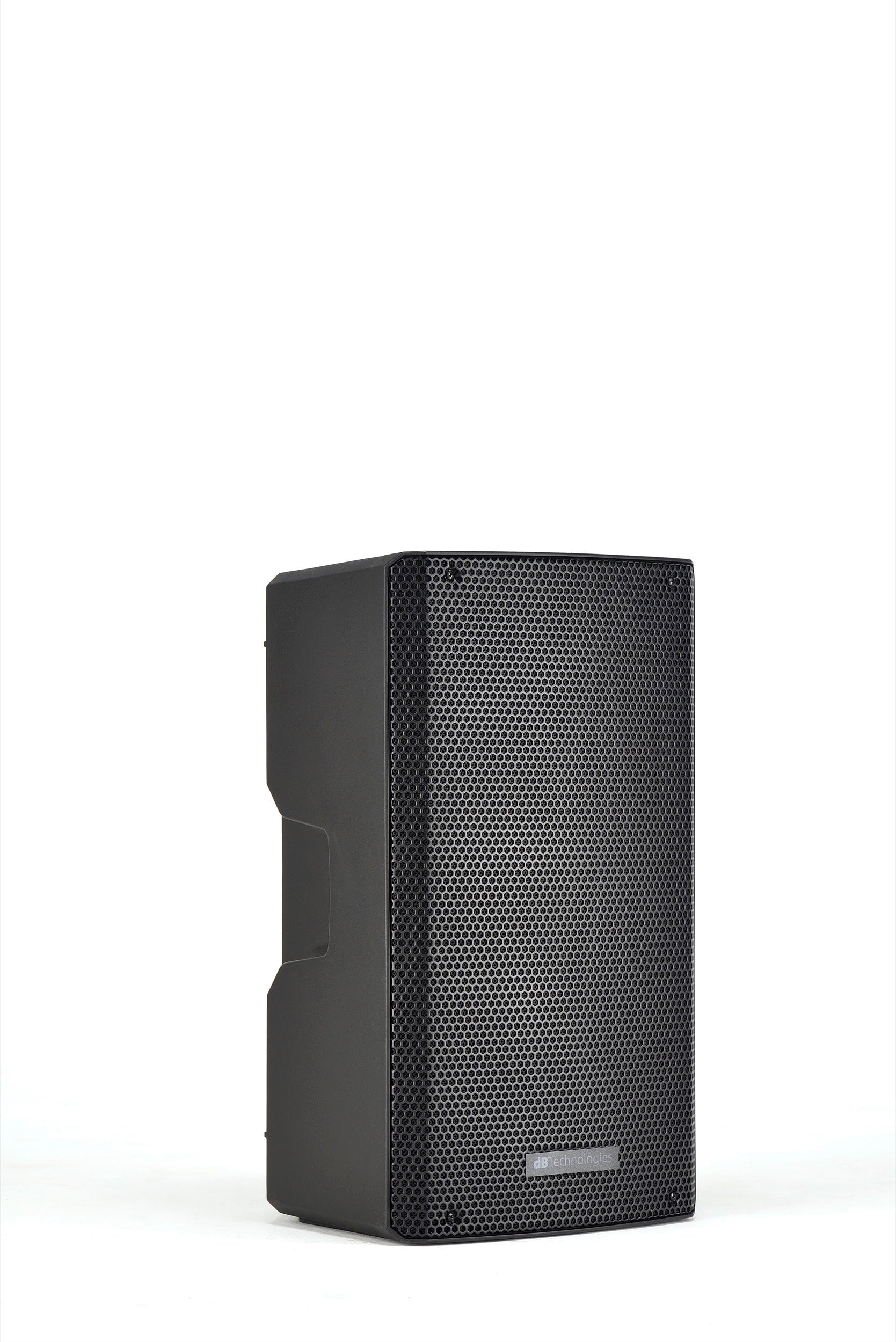

KL 12 is a 2-way active speaker equipped a 12” woofer and one 1” compression driver (1.35 voice coil).
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

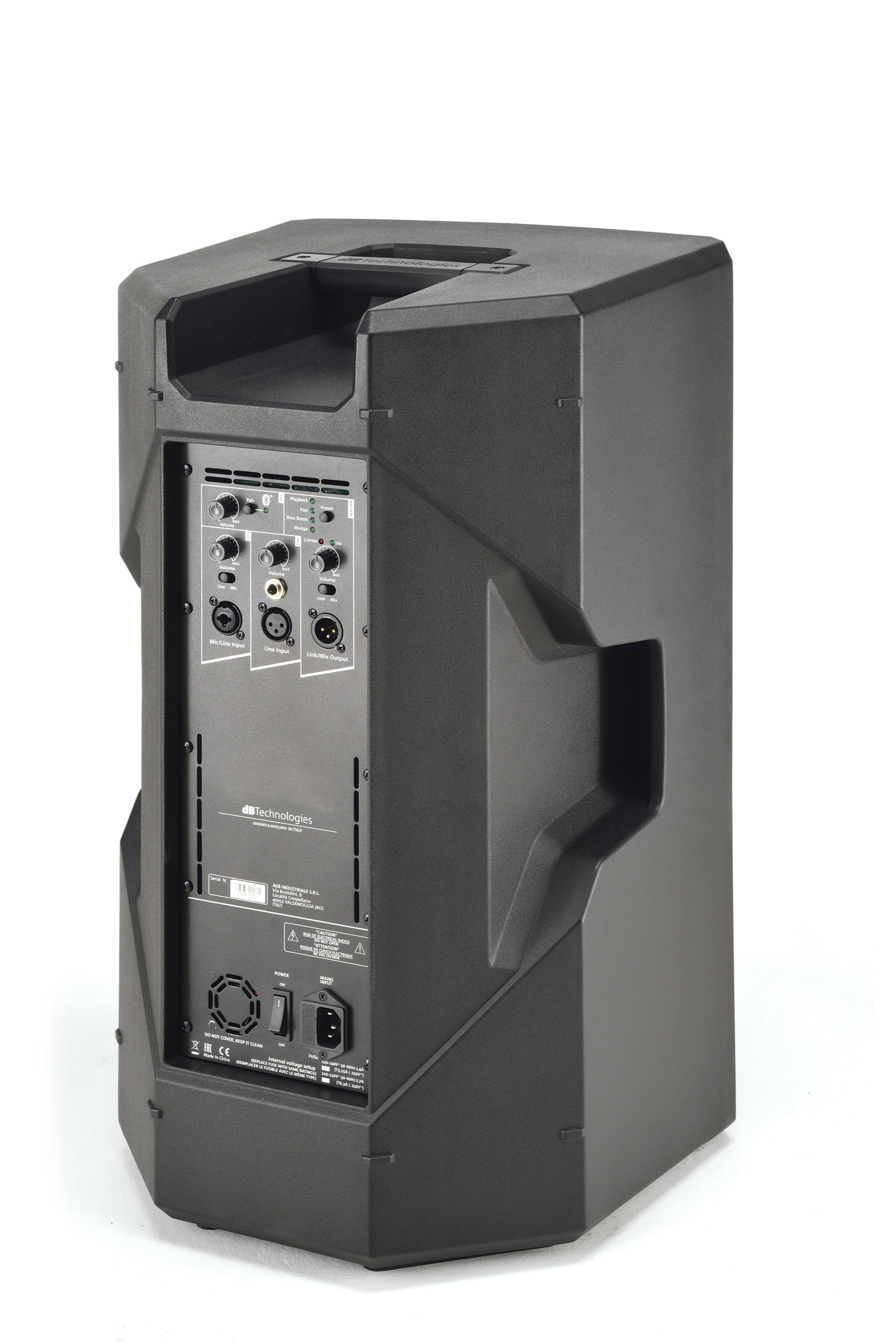

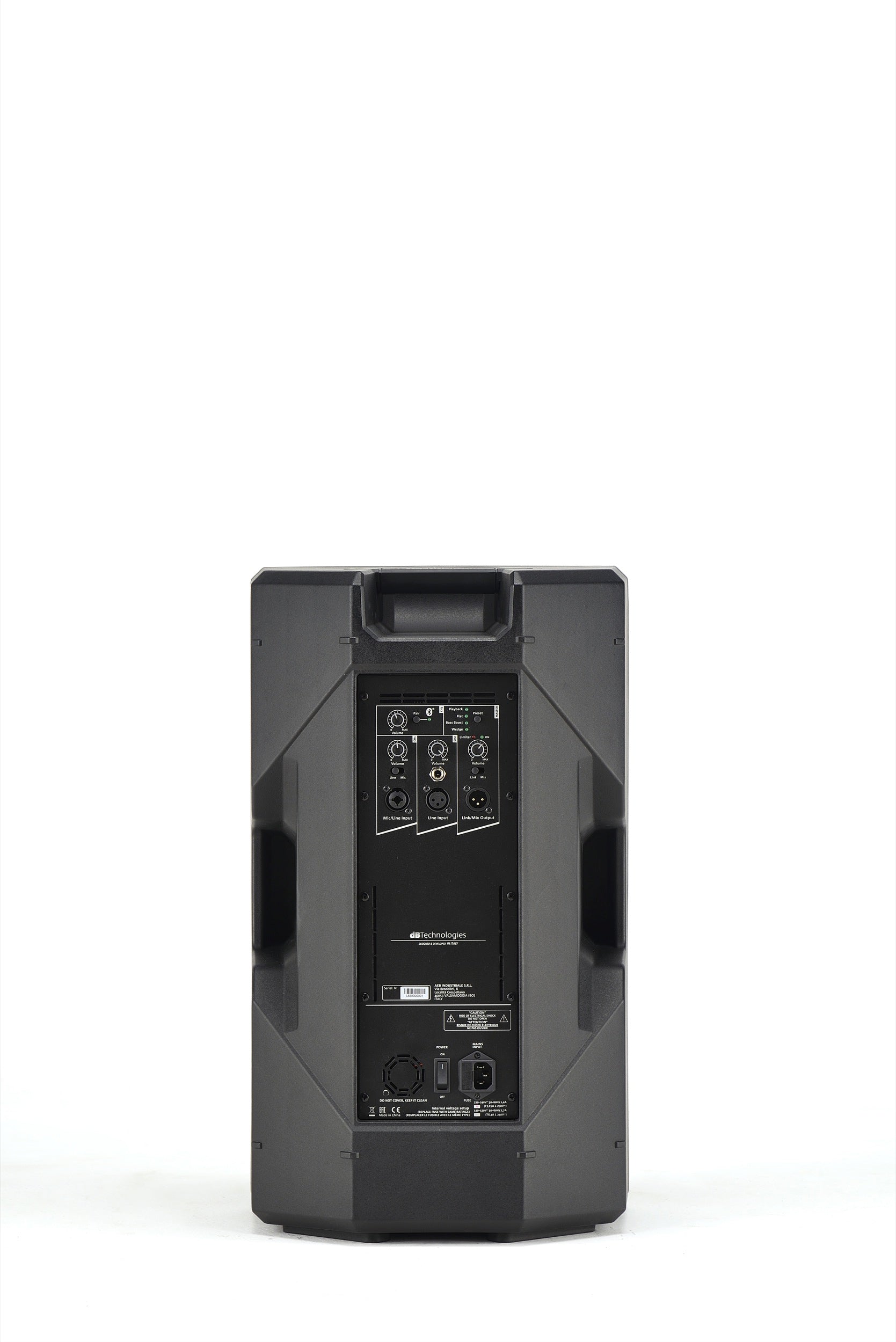

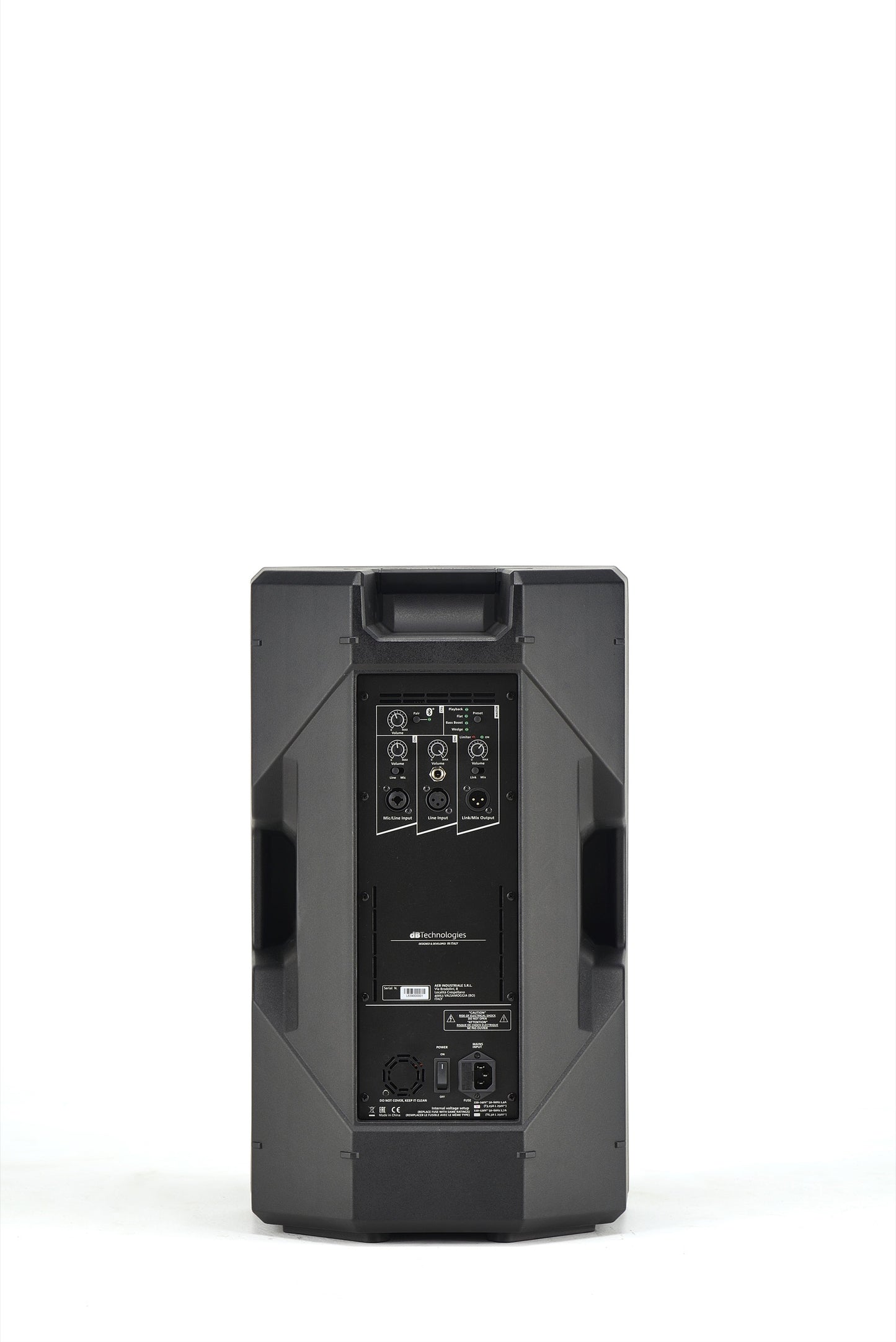

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

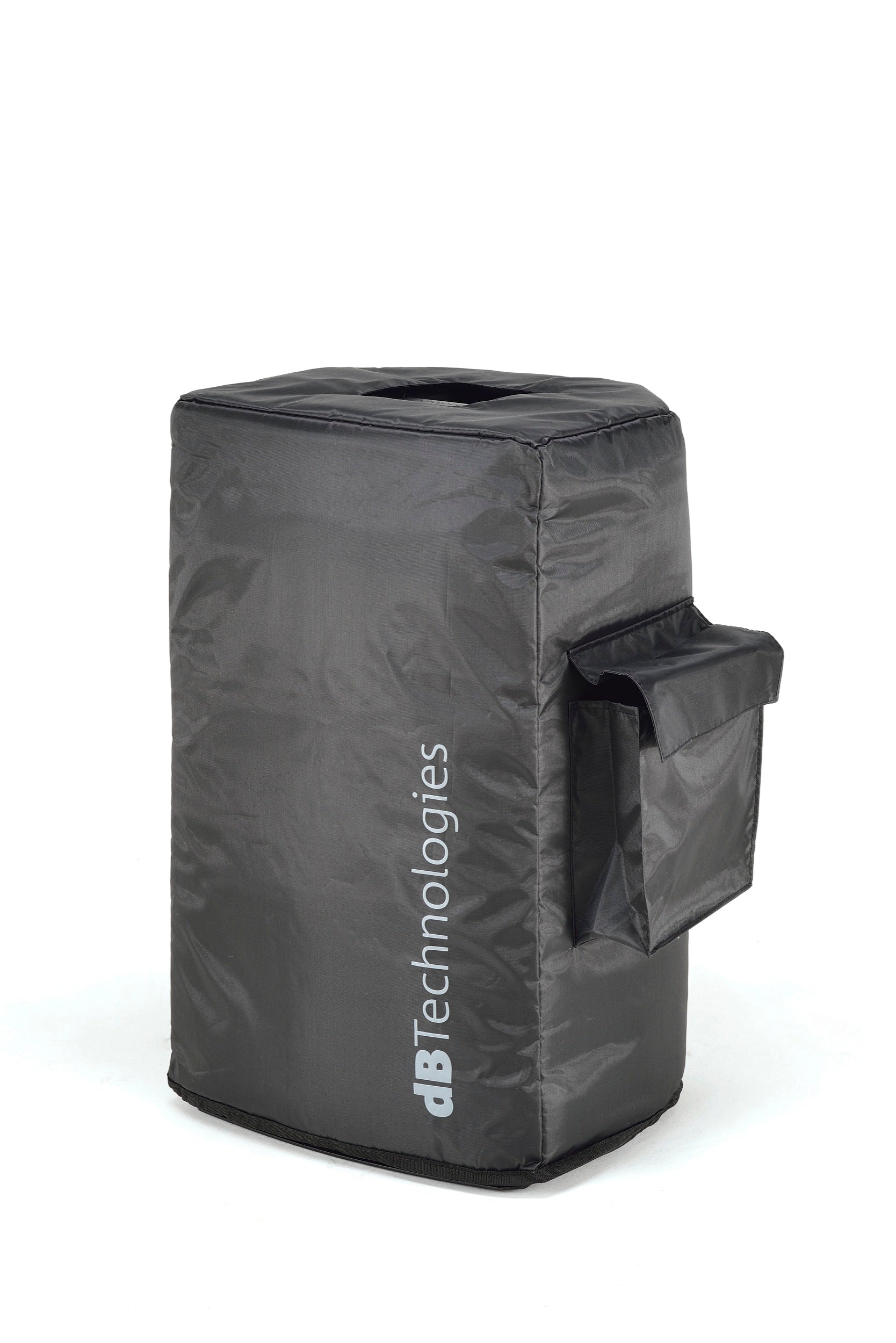

KL comes with its soft cover equipped with a pocket specially designed for cable storage.
View full details

Specifications

Technical Data
Acoustical data: Frequency Response [-10dB]: 52 - 18.000 Hz
Max SPL: 127 dB
HF: 1" CD, 1.35"v.c
LF: 12", 2.5" v.c.
Dispersion: 90°x60°
Crossover Frequency: 1800 Hz (24 dB/oct.)
Amplifier
Amp Technology: Class D(LF)+Class AB (HF)
Power Peak (LF+HF): 800 W
Processor
Controls: 1xVolume, 1xslide switch mic/line
Indicators: power on/signal/limiter LEDs
Controller: DSP 20/56 bit
AD/DA Converter: 24 bit/ 48 Hz
Systems Presets: Playback, Flat, Bass Boost, Wedge
Limiter: Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR Filters
Input
Signal Input: 1x Combo(XLR/Jack), Mic/Line, 1xXLR/TRS
Bluetooth Input:1xBluetooth receiver
SIGNAL Out: 1xXLR Male (LINK/MIX)
Mechanics
Housing: Polypropylene
Handles: 3 (2 on side 1 on top)
Angles Up: Monitor Use 45°
Pole Mount: 36 mm, double positioning
Dimensions (W xH x D)
365 mm (14.37 in) x 622 mm (24.50 in) x 342 mm (13.46 in)
