dbTechnologies LVX P12 Passive Speaker

dbTechnologies LVX P12 Passive Speaker

SoundPro Item: 108053 | Part Number: LVX P12

$661.00
$771.00 $661.00
Your Price Sold out
MSRP: $771.00 | MAP: $661.00

Usually ships in 5-7 business days

  • Speaker Type: 2-Way Passive Speaker
  • Max SPL 127 dB
  • Frequency Response [-10 dB]: 65 - 21.000 Hz
  • HF: 1X 1", 1.35" V.C.
  • LF: 1X 12", 2" V.C.
  • Rotatable Horn
  • Weight: 15.1 Kg (33.2 lbs.)
Log in or register for YOUR best price
VX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P12 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP12H or vertical brackets (VB-LP1215V).
The cabinet features 1 integrated handle per side and a 36 mm pole mount plate
View full details

Specifications

Acoustical data
Peak Power: 800 W
Impedance: 8 Ohms
Frequency Response [- 10 dB]: 65 - 21.000 Hz
Max SPL: 127 dB
HF: 1 “, 1.35" v.c.
Directivity: 90x70°
Horn: Rotatable
LF: 12 “, 2" v.c.
Input
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing: Plywood
Pole Mount: 36 mm

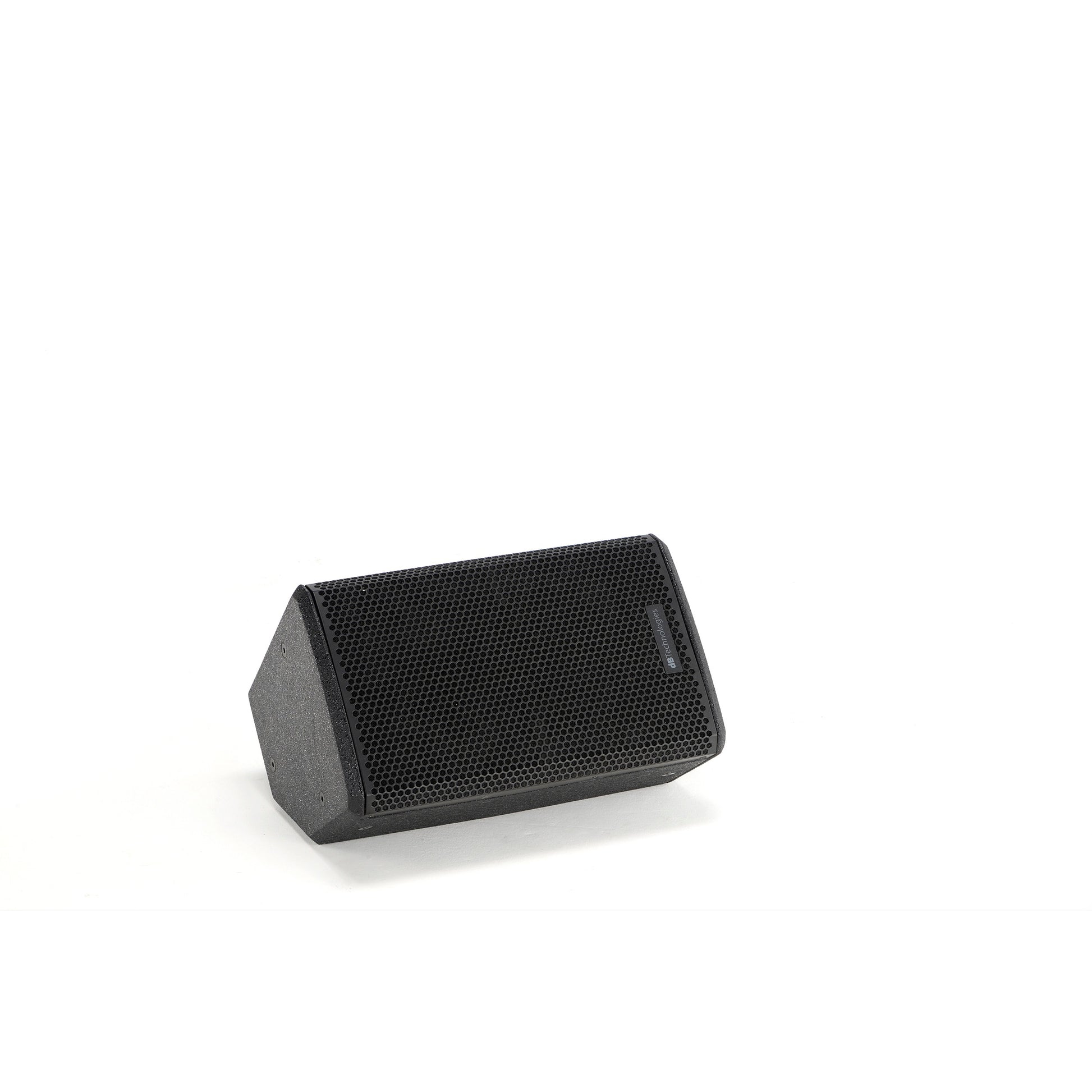

Angle Up: Monitor use 40°
Rigging Points: 12 x M8
Handles: 2(1 x side)
DImensions ( W x H x D)
360 mm (14.17 in) x 610 mm (24 in) x 360 mm (14.17 in)
