Specifications
Dimensions
Width
300 mm (11.81 in)
Height
604 mm (23.78 in)
Depth
324 mm (12.76 in)
Audio
Speaker Type
Quasi 3-Way Active Speaker
Frequency Response [- 6dB]
60 - 19.100 Hz
Max SPL
132.5 dB
CrossOver Frequency
1260 Hz
Connectivity
Signal Input
1x Combo (XLR/Jack 6.3 mm) Line
Signal Output
1x XLR Male (True link)
Construction
Housing
Polyproylene

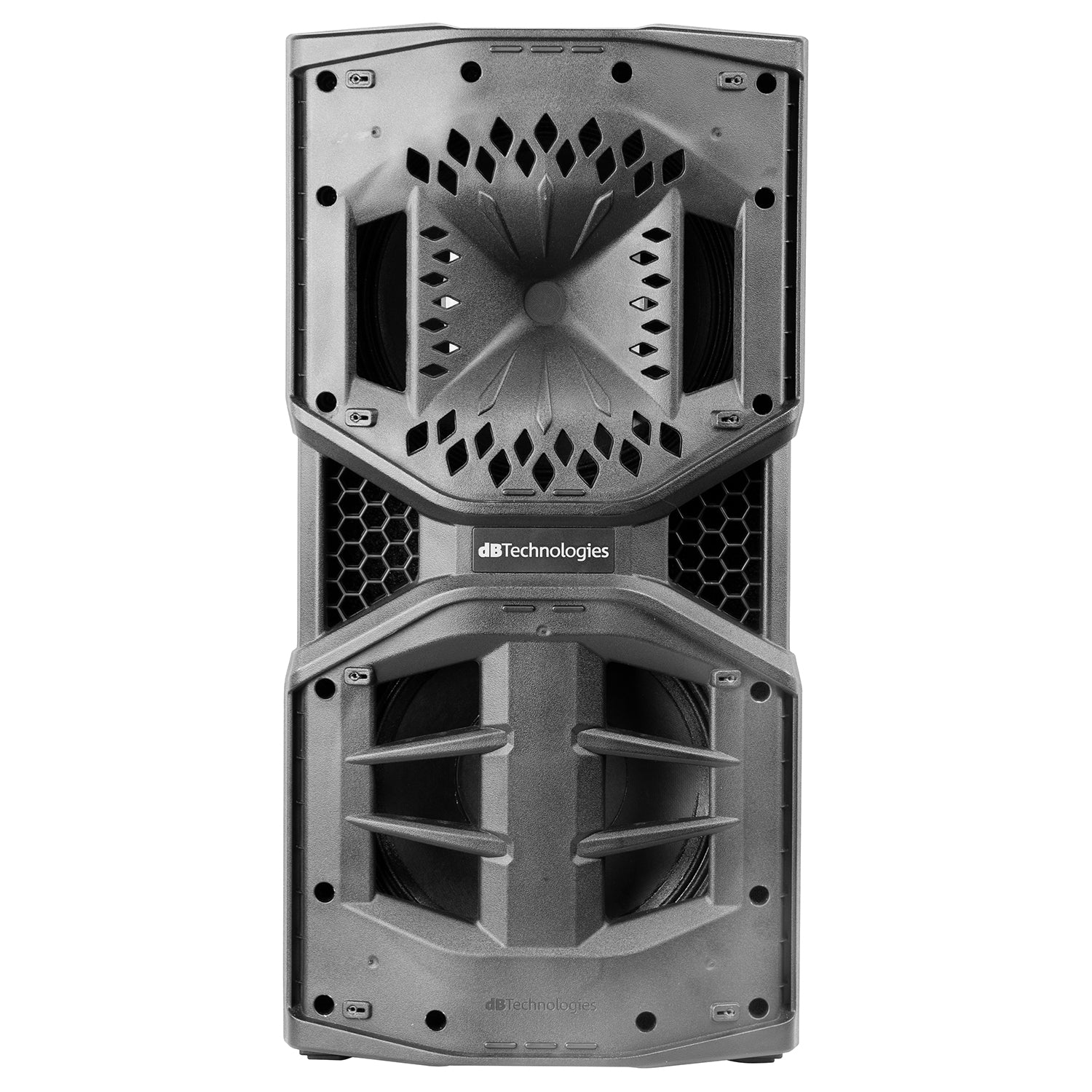

Grille
Full

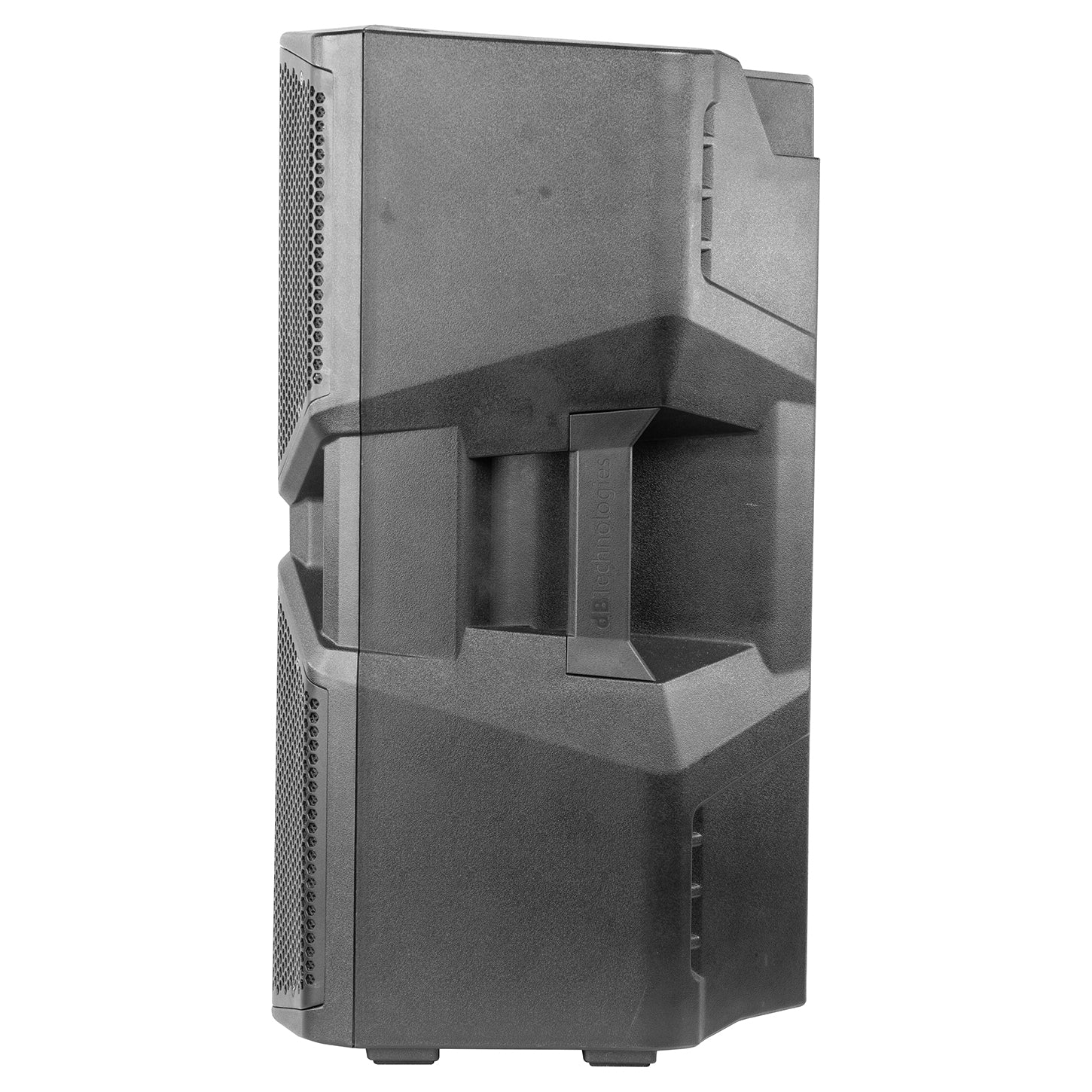

Handles
1 on left Side, 1 on Top

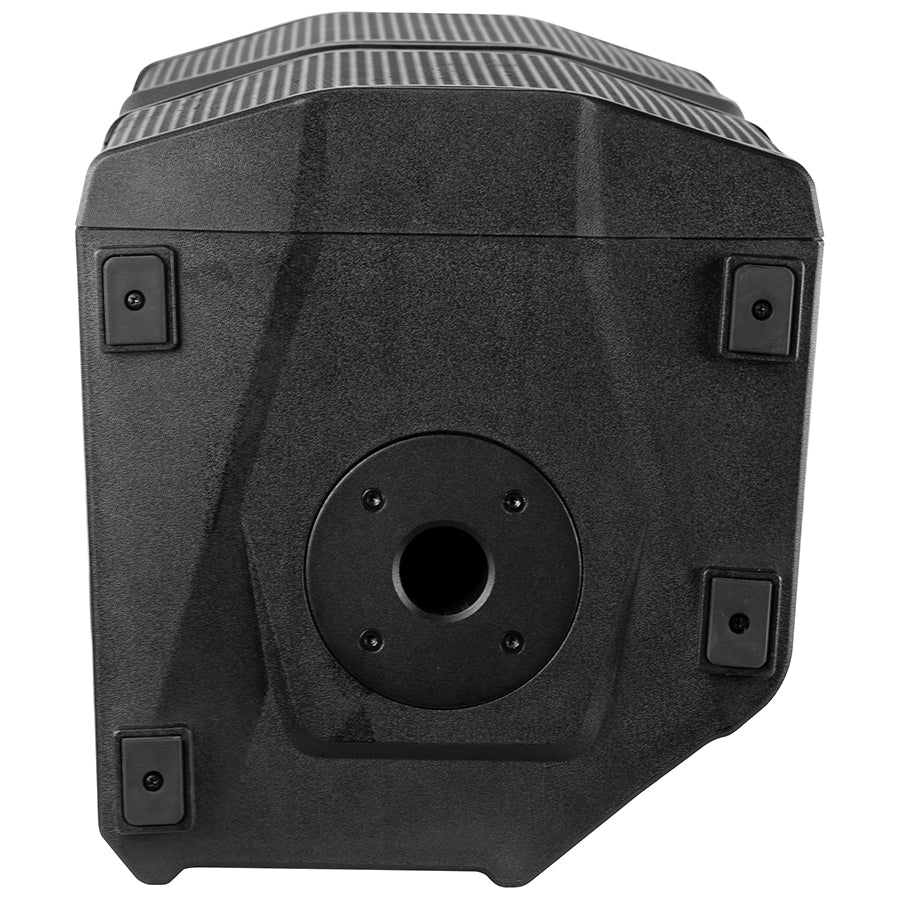

Pole Mount
D36 mm
Shipping
Weight
17.2 kg (37 lbs)
General
Frequency Response [-10dB]
54 - 19.400 Hz
HF
1" Exit CD, 1.75" v.c.
Type HF
Compression driver
Horizontal Directivity
100°
Vertical Directivity
90°
Horn
Asymmetrical Horn
LF
2x 10" Neo, 2.5" v.c.
Amp Technology
Digipro G2 with SMPS
Amp Class
Class D
RMS Power
1050 W (525W + 525W)
Peak Power
2100 W (1050W + 1050W)
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 KHz
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters
Controls
Gain (rotary), Preset (Flat, Playback, Wedge)
Rigging Points
2x M10 on Top + 1x M10 on Back
