• dB Technologies RDNET CONTROL 8 Digital Signal Processor
1 1

dBTechnologies RDNET CONTROL 8 Digital Signal Processor

dBTechnologies RDNET CONTROL 8 Digital Signal Processor

SoundPro Item: 30175 | Part Number: RDNET CONTROL 8

$2,536.00
$2,960.00 $2,536.00
Your Price Sold out
MSRP: $2,960.00 | MAP: $2,536.00

Usually ships in 5-7 business days

  • Hardware interface to connect diffusers or accessory appliances to a PC
  • Use on a stand or installed in standard 19" rack
  • Proprietary serial protocol creates a data network that can remotely manage up to 256 compatible devices
  • Interface managed by PC
  • Control unit performs the main function of data routing between PC and devices
  • Monitor the status of each device
Log in or register for YOUR best price

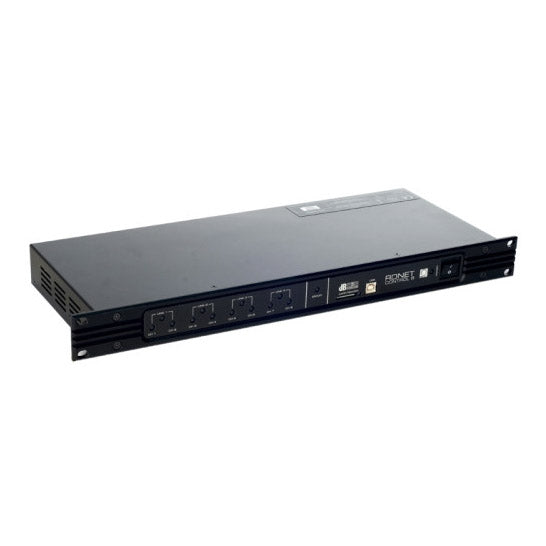

RDNET CONTROL 8 is a hardware interface to connect dB Technologies RDNET compatible devices (DVA T12,T8, DVA S30N,etc.), to a Personal Computer (PC) by means of an USB connection.

This appliance can be used on a stand or installed in a standard 19" rack. The overall dimensions consist of a single unit; fastening is performed by 4 screws to be inserted into slots located on side flaps.

RDNET system uses a proprietary serial protocol especially developed to create a data network which can remotely manage up to 256 compatible devices (ex. dBTechnologies professional diffusers such as DVAT12, DVAS30N, DVAS15N, etc.). The interface is managed by PC through a suitable software running on Microsoft Windows® operating systems. The audio devices are connected to RDNET CONTROL 8 control unit, which performs the main function of data routing between PC and devices themselves. RDNETsystem allows monitoring the status of each devices, i.e. the main values to be taken (VU-meter, temperatures, logistic status, etc.).

View full details

Specifications

Dimensions
Dimensions (WxHxD)
482 x 44 x 182 mm (one 19” rack unit)
Weight
Net Weight
2 kg - 4.4 lbs.
Connectivity
Network
standard EIA RS-485, up to 8 managed subnet, max. 32 devices connected to each subnet
Mains Connector
Powercon™ (blue)
Construction
Chassis Material
pre-galvanized steel and painted
General
RDNet Connections
8x RJ 45 connectors (EtherCon) for CAT 5 cable, 8x XLR socket (as alternative to RJ 45)
Local
USB (B type socket)
Remote
Ethernet (RJ 45), alternative to USB
Power Supply
operating voltage: 100 ÷ 240 V ac (full range), 50 - 60 Hz (automatic selection)
Consumption
< 15 W
