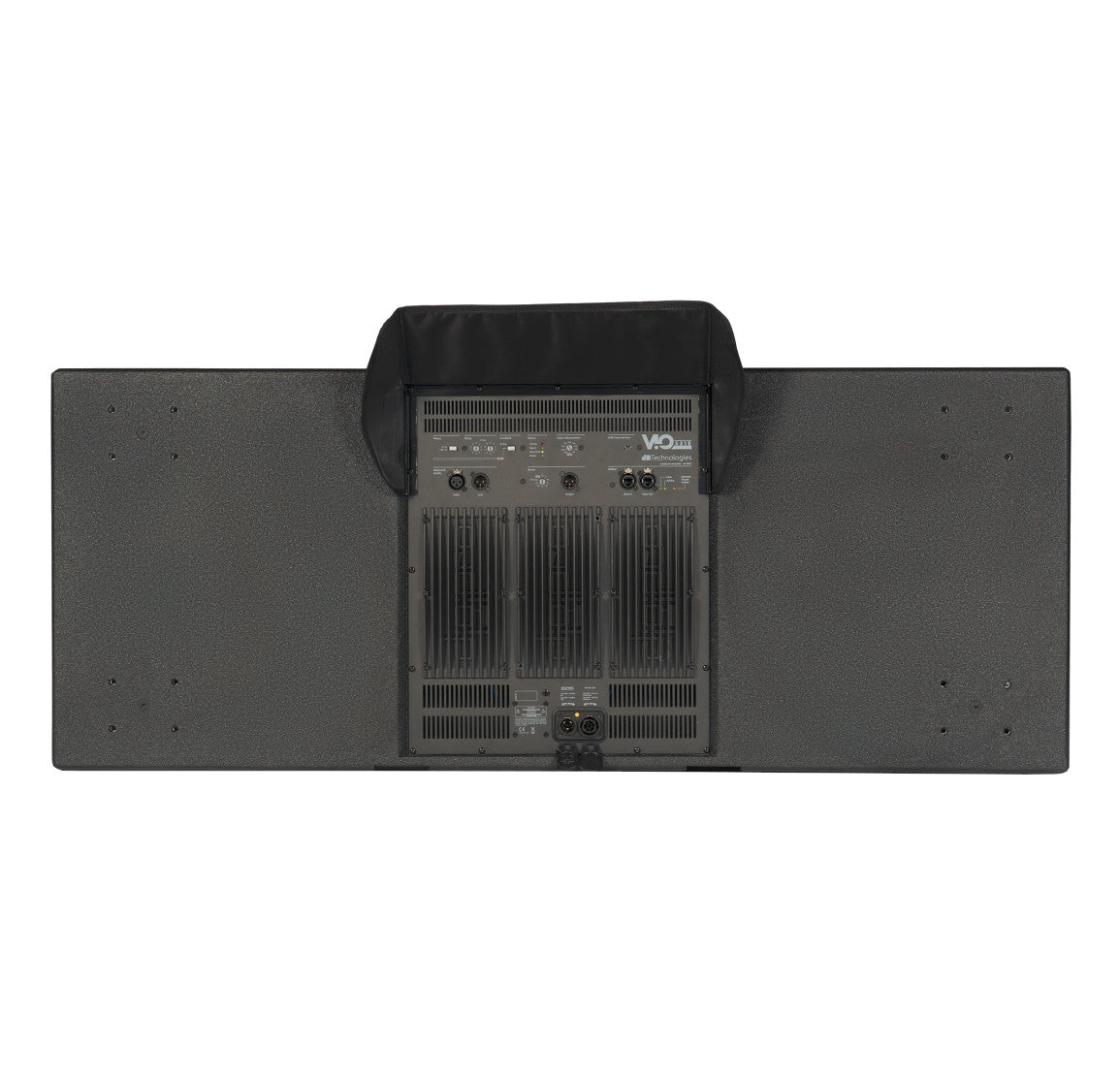

  • dB Technologies VIO S318 back
1 4

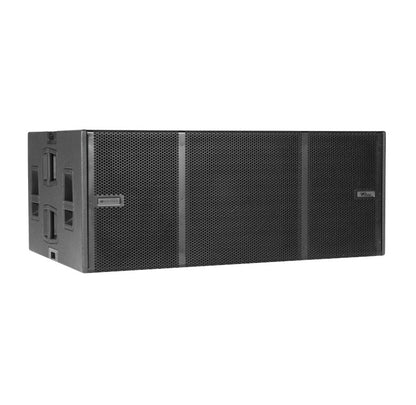

dBTechnologies VIO S318 Powered Subwoofer

dBTechnologies VIO S318 Powered Subwoofer

SoundPro Item: 76216 | Part Number: VIO S318

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Active 3x18" bass reflex semi-horn loaded subwoofer
  • Internal design to maximize in-phase frontal emission
  • On-board delay for perfect time alignment
  • On-board cardioid array configuration preset
  • Frequency range extending down to 35Hz
  • Network ready with an integrated RDNET port
  • Controls for input attenuation rotary switch, rotary encoders, polarity inversion switch, cardioid mode switch, and X-Over Freq switch
  • Multiplex plywood polyurea painted housing
  • 4 handles per side
  • 2 pick points on top to fix DRK-210 rigging frame
Log in or register for YOUR best price

The dBTechnologies VIO S318 Powered Subwoofer is equipped with 3 18” bassreflex half-horn loaded woofers, configured in order to maximize frontal coverage. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response. The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL. The system features an integrated delay module achieving up to 9.9 ms delay with 0,5 ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDnet port for remote control. The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side. The dolly transport DT-318 allows to transport up to 3 subs simoultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
51.18" x 20.47" x 31.5"
Audio
Speaker Type
active bassreflex semi-horn loaded subwoofer
Frequency Response
39Hz to Cut Freq X-Over Dependent (-6dB), 35Hz HPF (-10dB)
Max SPL
143dB
Connectivity
Signal Input
1x XLR balanced, 1x RJ45 LINK (RDNet)
Signal Output
1x XLR balanced, 1x RJ45 LINK (RDNet)
Power Socket
1x PowerCON TRUE1 IN, 1x PowerCON TRUE1 OUT
Shipping
Weight
229.06 pounds (103.9 kg)
General
LF
3x18"
Voice Coil LF
4"
Directivity
omnidirectional
RMS Power
2700W
Peak Power
5400W
Power Supply
2700W SMPS with Auto Range PSU
Controller
DSP 32 bit
AD/DA Converter
24 bit/96kHz
Limiter
RMS, Peak, Thermal
Delay Option
0-9.9 ms internal, steps of 0.1 ms
Crossover Frequency LF-HF
70-105Hz + Full range
LF-Xover Out Slope
24dB/Octave
