dbTechnologies ES 1002 Column Speaker
dbTechnologies ES 1002 Column Speaker
SoundPro Item: 107956 | Part Number: ES 1002
Usually ships in 5-7 business days
- Speaker Type: BI-Amped Mono Column System
- 1800W Peak CLASS-D Digipro G3
- Max SPL 130.7 dB
- Usable Bandwidth [-10 dB]: 43 - 20.000 Hz
- HF/MF: 4X 4”, Neodymium (Each Top)
- LF: 2X 12”
- Weight (Top): 5.8 Kg (12.79 Lbs.)
- Weight (Sub): 29.3 Kg (64.59 Lbs.)

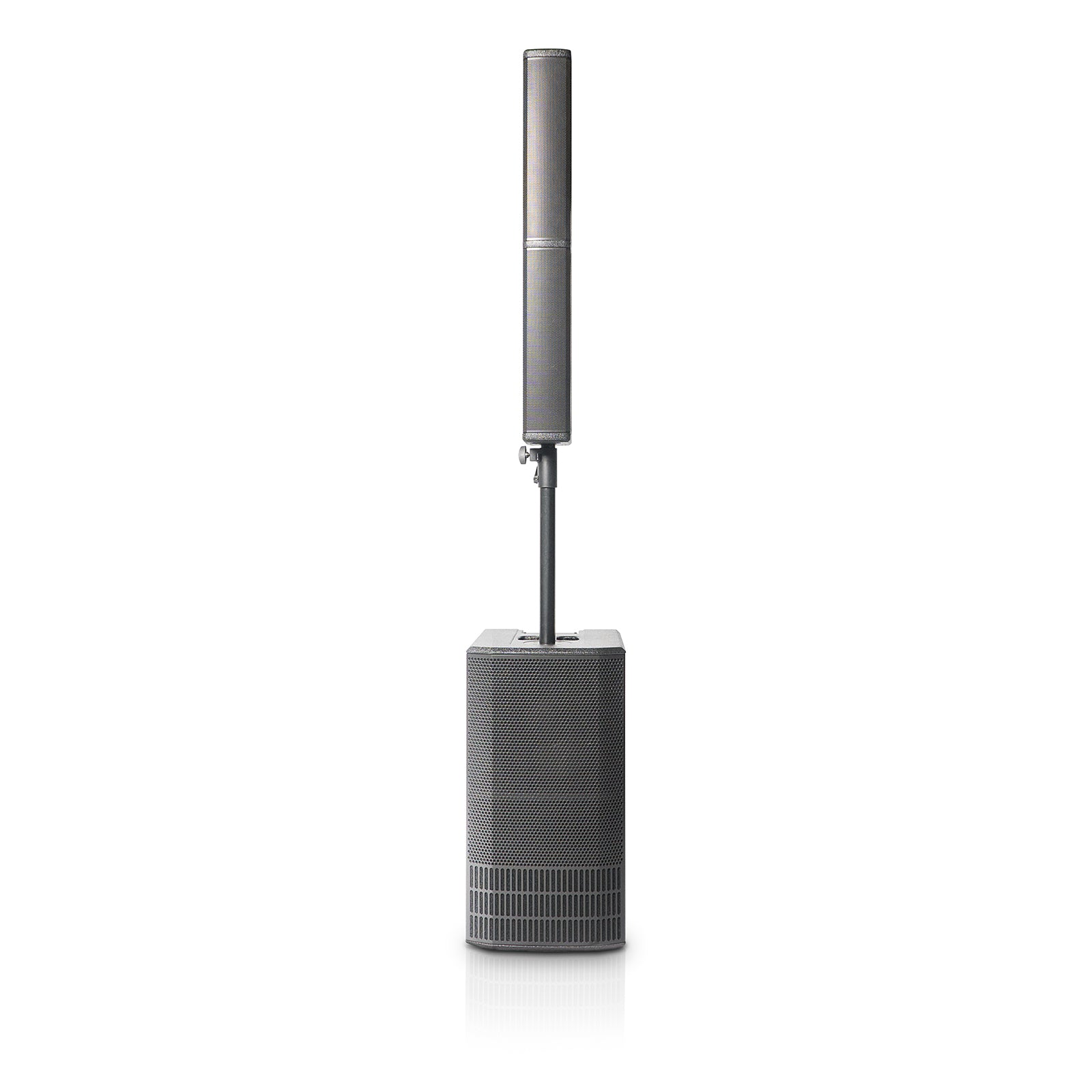

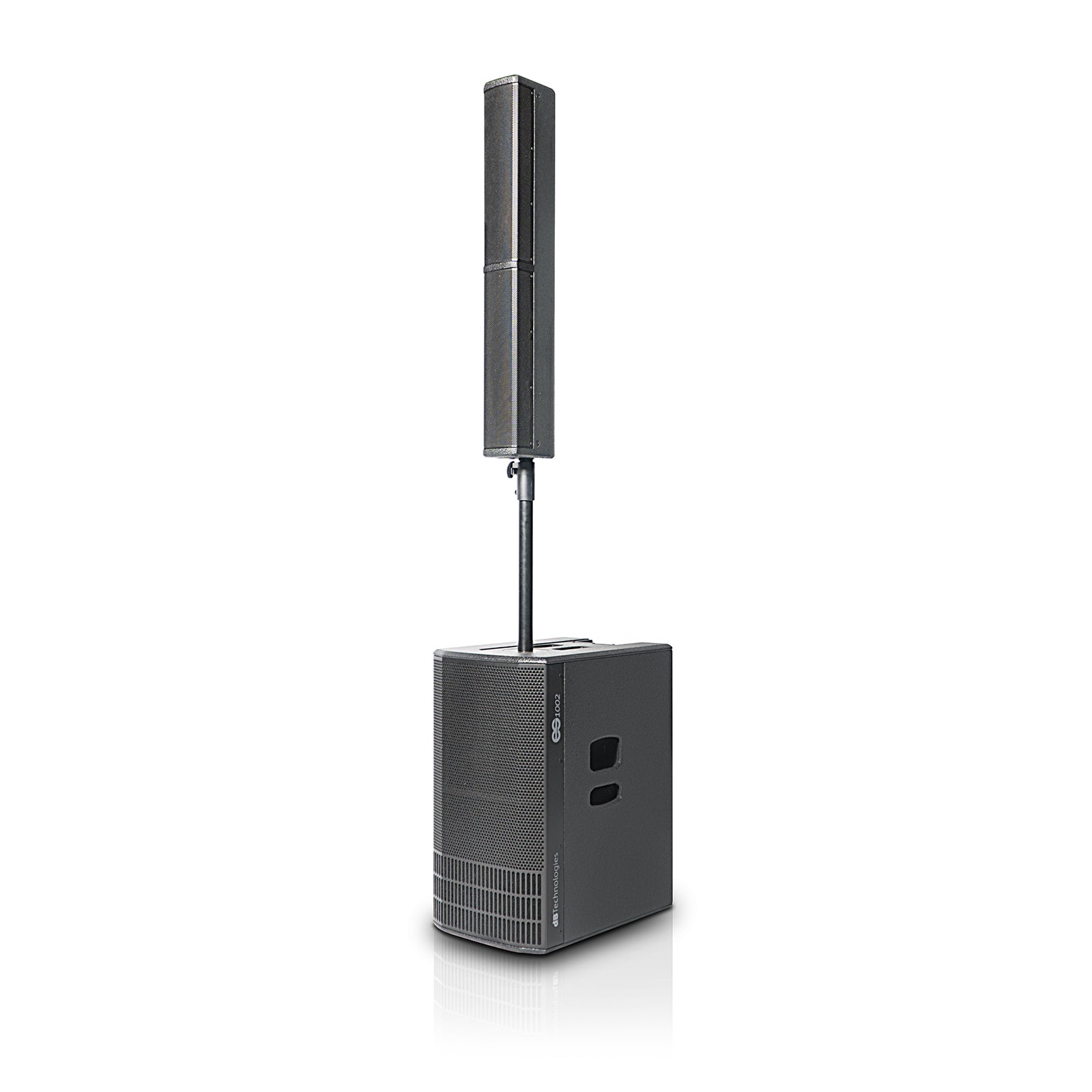

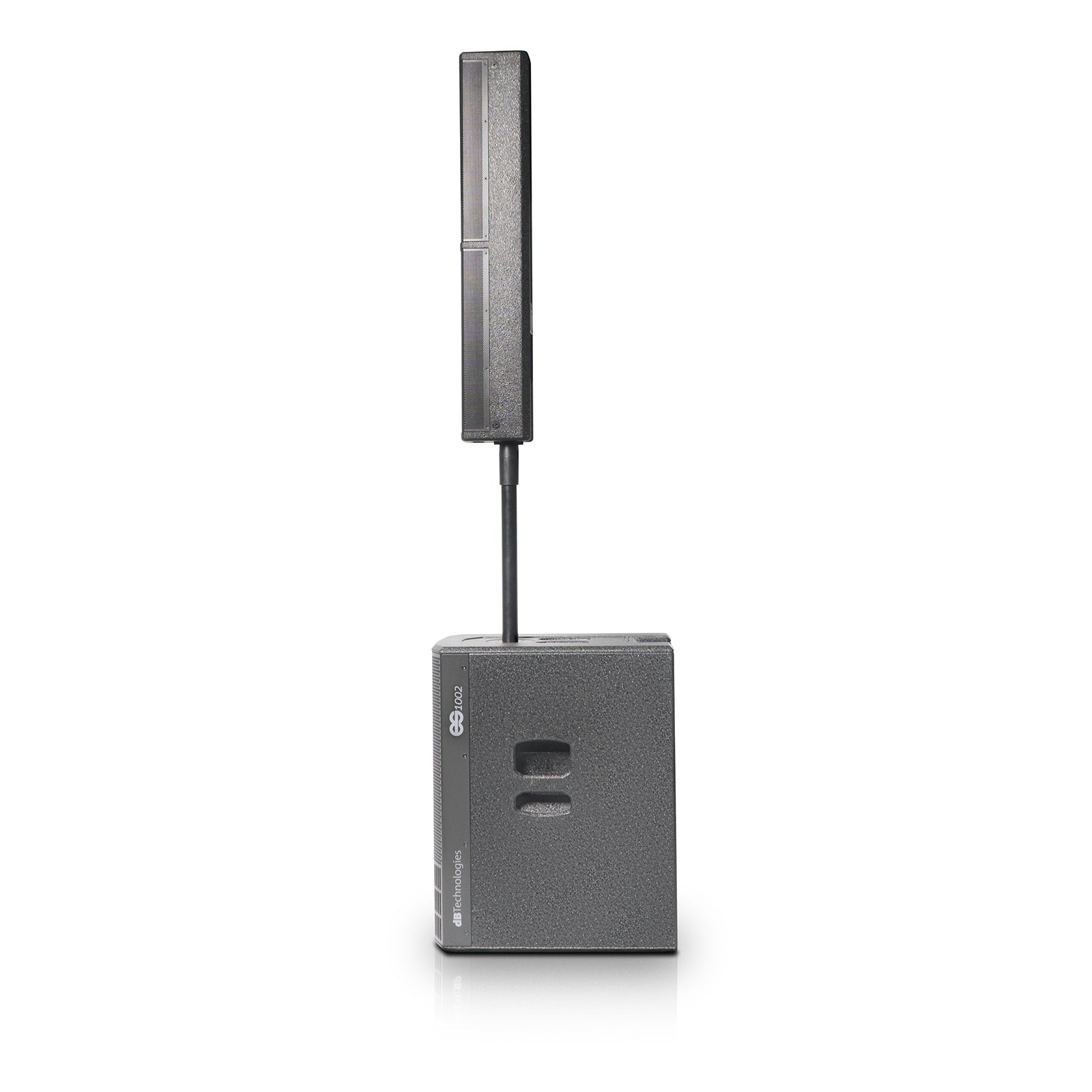

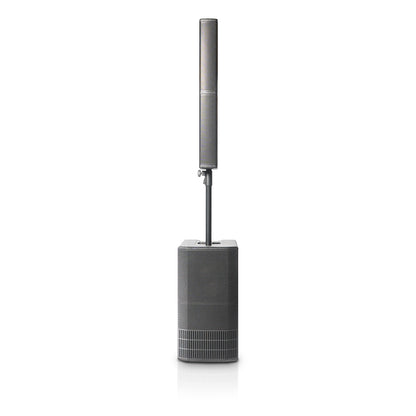

ES1002 comes with 1 subwoofer and 1 column top, both powered by a class D DIGIPRO G3 amplifier delivering 1800 W peak.
The top satellite is equipped with 8x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage, avoiding any useless dispersion of the sound above the audience. Moreover, each mid-range woofer is provided with a newly designed phase-plug able to widen the horizontal coverage while guaranteeing a perfect intelligibility of the vocal range from every listening position.

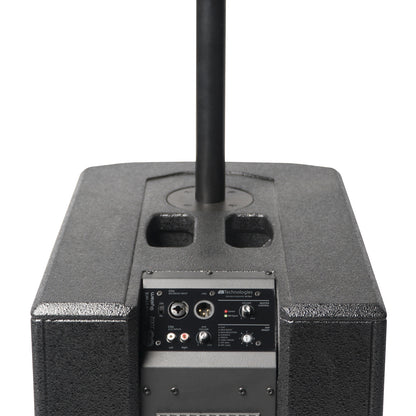

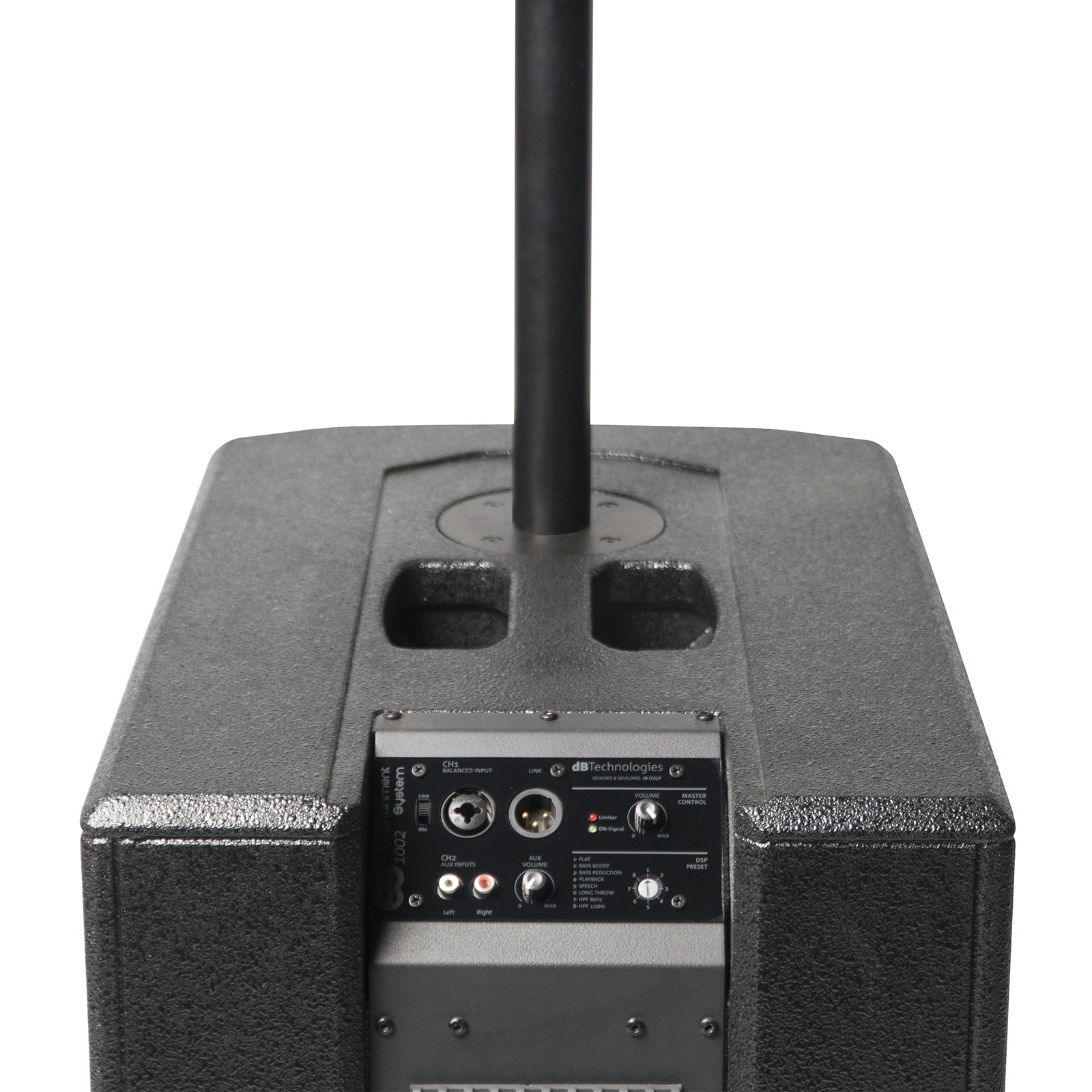

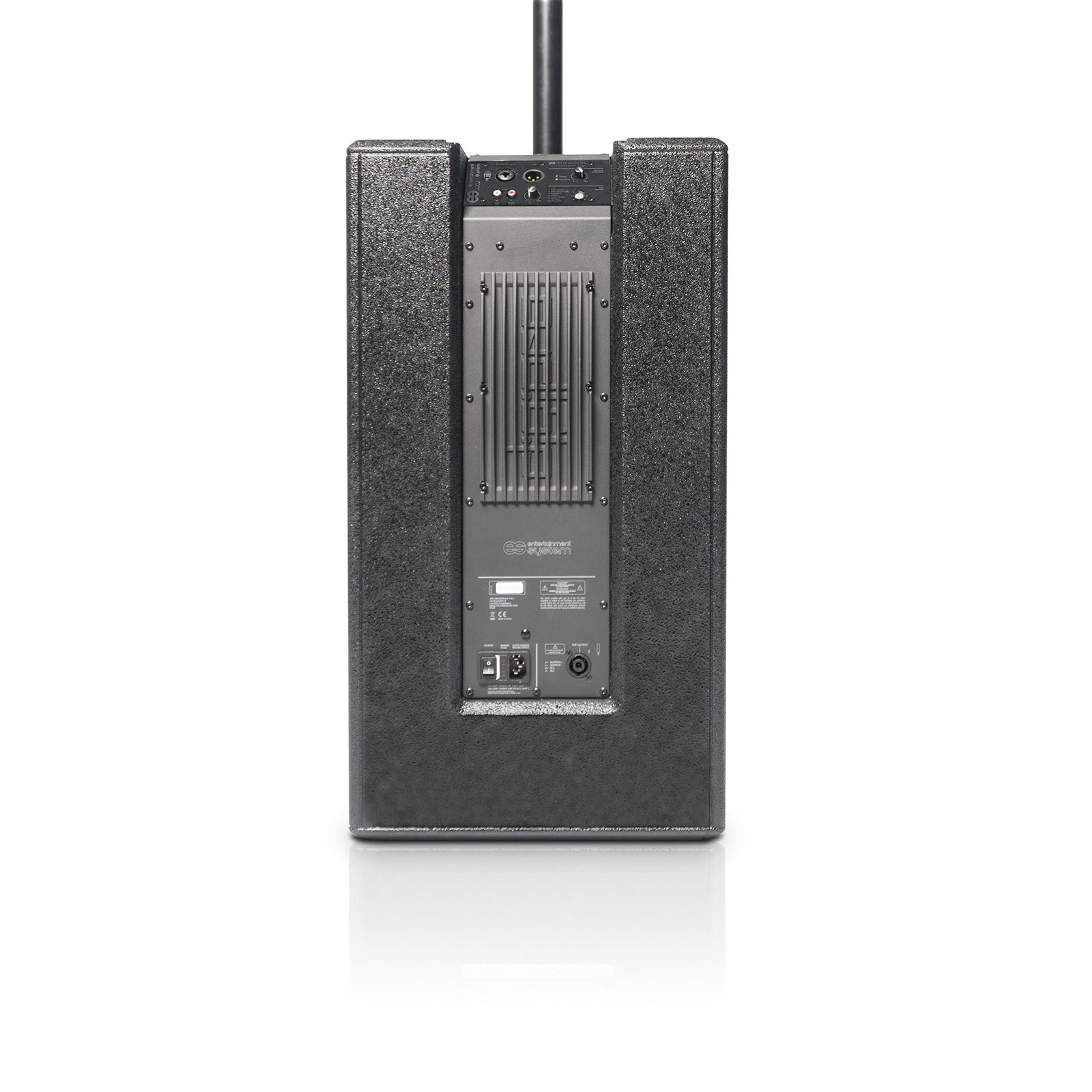

The sub encompasses 2X12” woofers in bass-reflex configuration, the amp module and the control panel, whose inclined design improves usability. I/O section allows to connect up to 2 INPUTS (XLR mono and RCA stereo with independent volume controls) and provides a balanced link out to feed a second system or a stage monitor.
A rotary with 8 preset EQ helps users to perfectly tune the system, adapting it to different environments and uses (playback, live music, speech etc.).
The enclosures of both top and sub are made of plywood, coated with a durable scratch-resistant finish, which makes ES1002 truly road-ready.
Specifications
Max SPL: 130.7 dB
MF - HF: 8x 4"
Type MF - HF: Neodymium
LF: 2x 12"
Directivity (HxV): 97x40°
Amp Class: Class-D
Power Amp Peak: 1800 W
System Presets: Flat - Bass boost - Bass reduction - Playback - Speech - Long throw - HPF 80 Hz - HPF 120 Hz
Limiter: Dual Active, Peak, RMS, Thermal
Controls: DSP rotary encoder, volume controles, MIC/LINE Switch
Crossover Frequency LF-HF: 160Hz
Signal Input: 1x Combo (XLR/Jack) balanced/unbalanced input – Mic/Line, 1x RCA stereo input
Signal Out: 1x XLR balanced output with aux volume + 1x speakon to top
Housing (Tops): Multiplex Plywood
Handles: 3 (1 on top + 1 each side on sub)
Pole Mount: 36 mm (M20 threaded hole)
Subwoofer: 360 mm (14.17 in) x 680 mm (26.77 in) x 545 mm (21.46 in)
