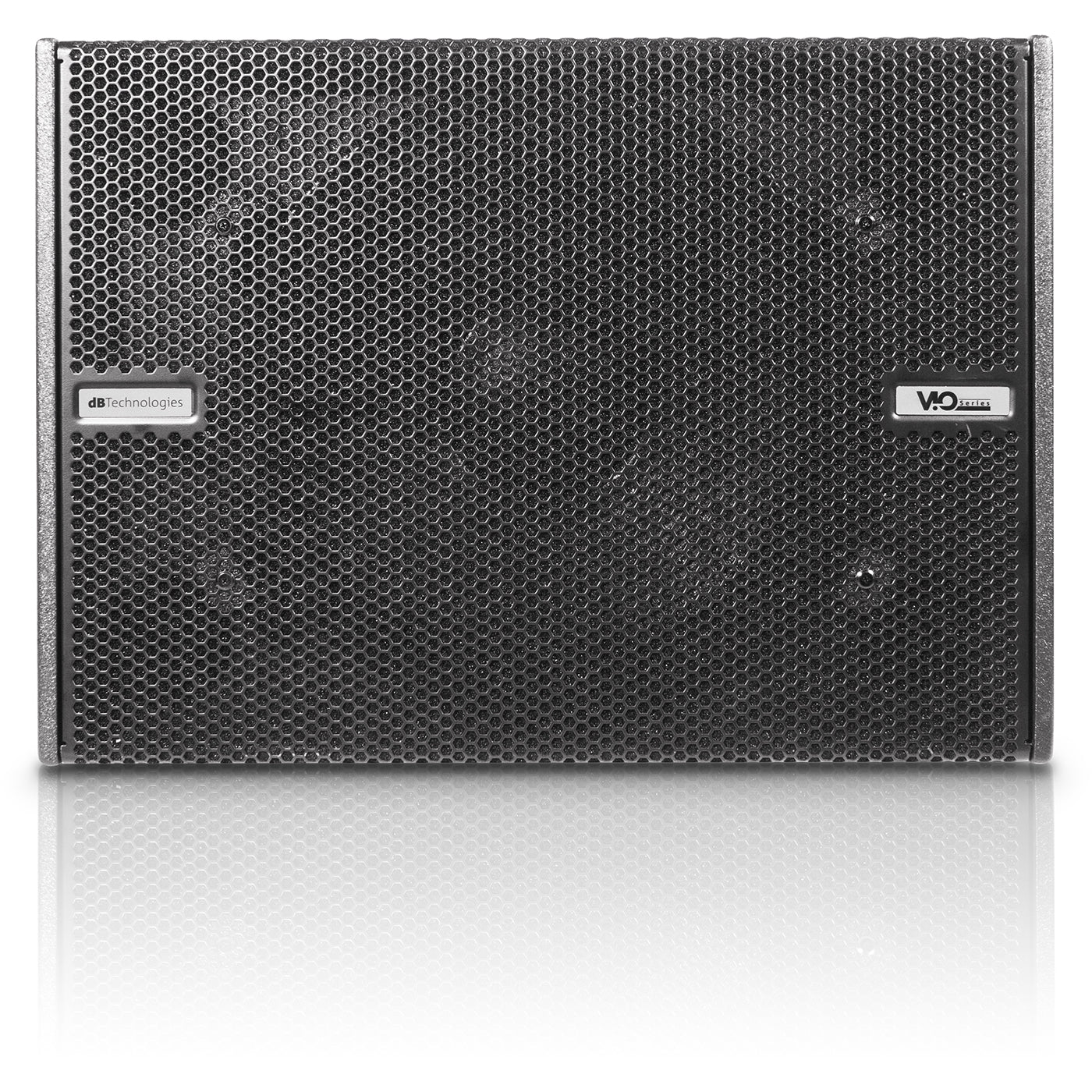

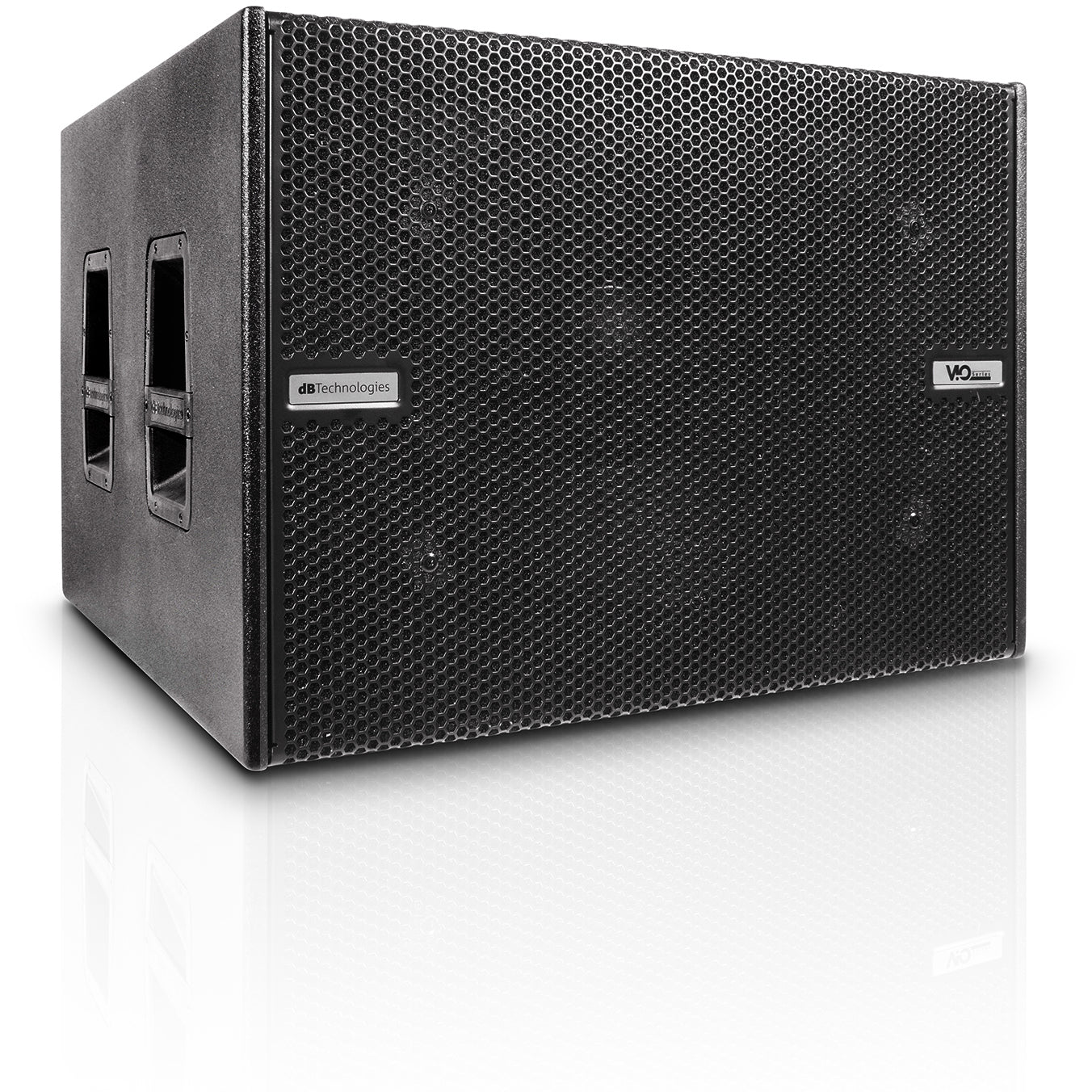

dbTechnologies VIO S118R Subwoofer
dbTechnologies VIO S118R Subwoofer
SoundPro Item: 25576 | Part Number: VIO S118R
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- dbTehcnologies Logo Product code: 1030102780
- Active Bassreflex Subwoofer
- 1600W Rms Digipro G4 Amplifier
- 139 dB Max SPL
- Usable Bandwidth [- 6 Db]: 32 Hz To Cut Frequency
- Dante & A2Net Ready

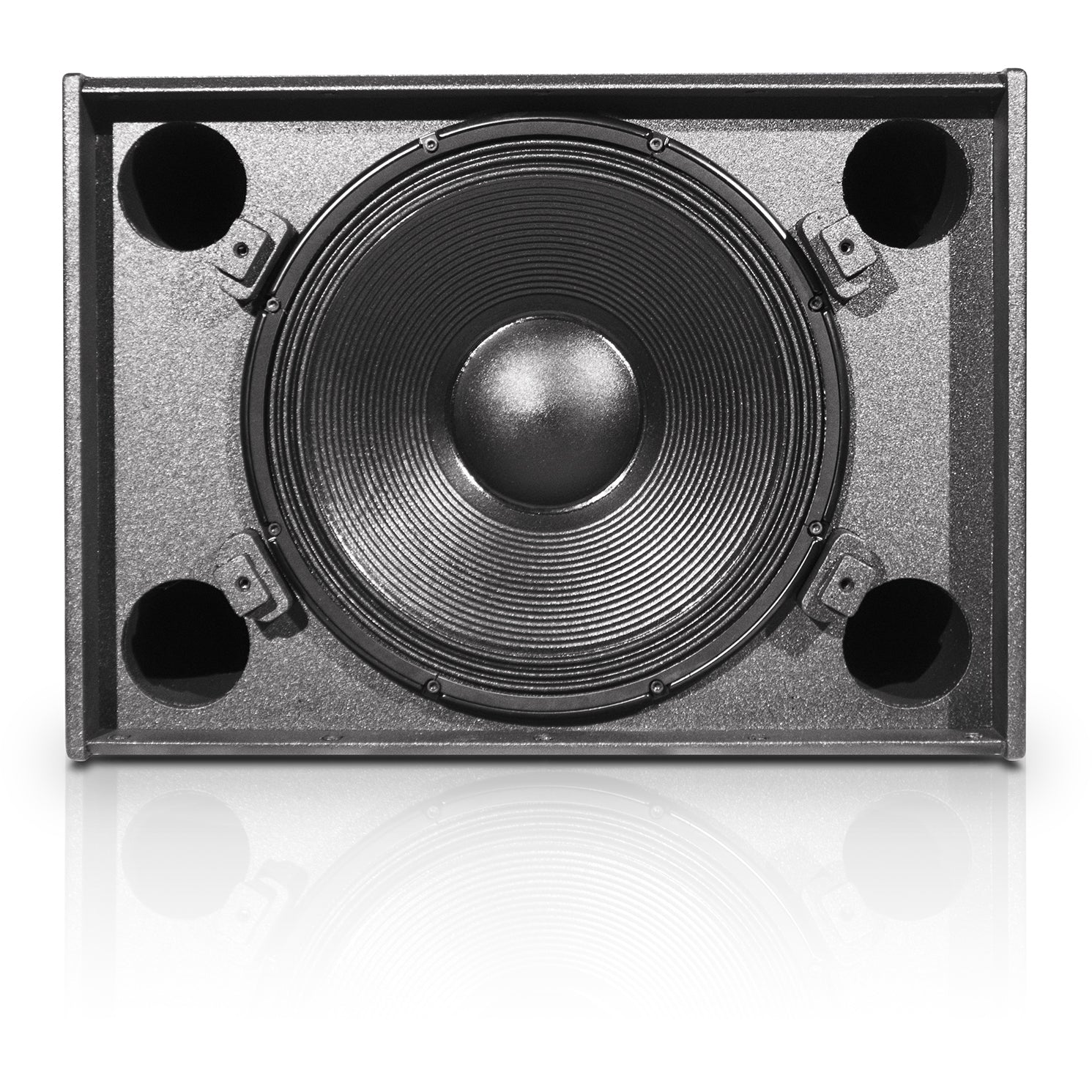

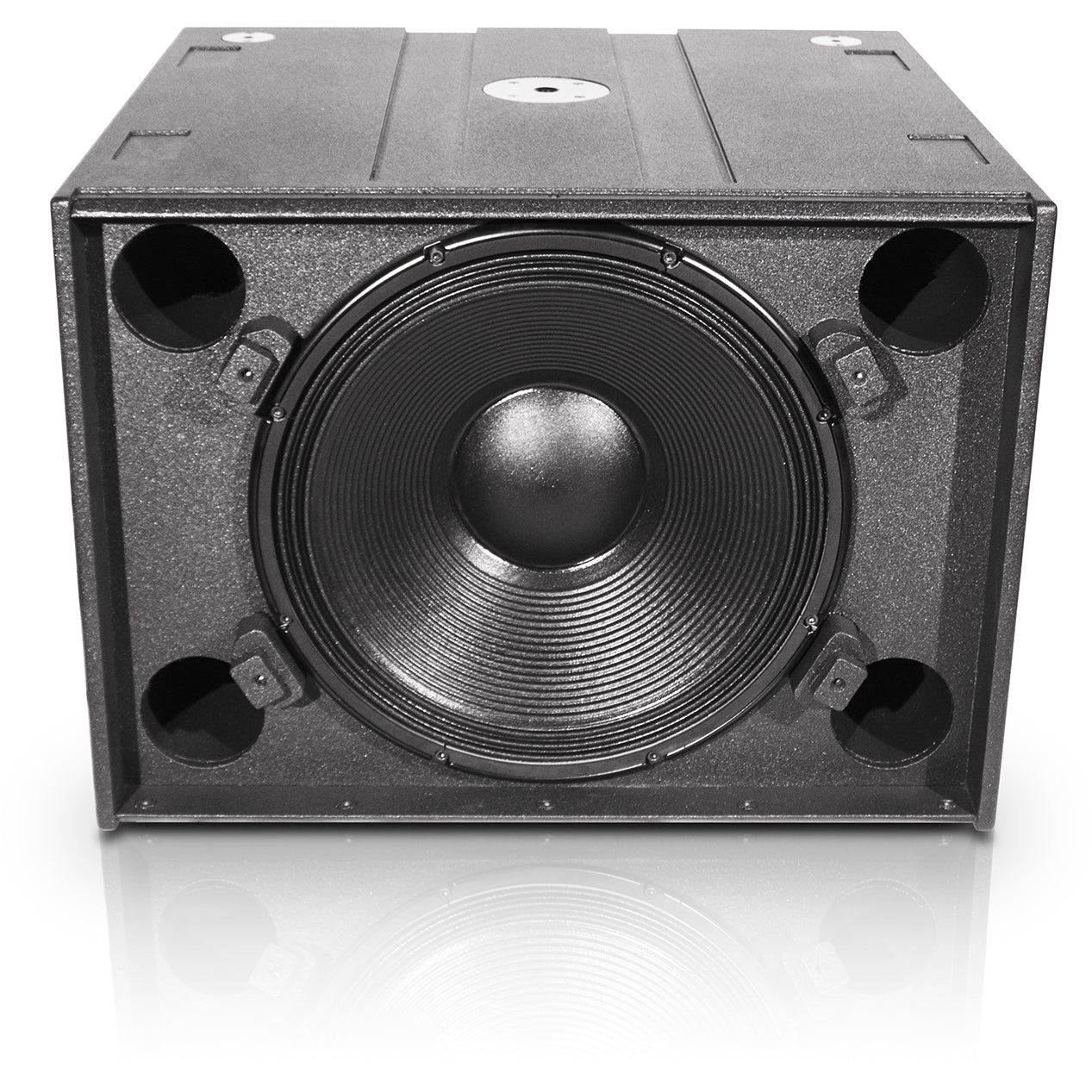

- LF: 1 X 18”, 4” V.C. - Neodymium
- Weight: 47Kg (103.62 Lbs.)
THE VIO COMPLEMENT FOR LOW FREQUENCIES
This active subwoofer’s acoustic engine is driven by a Digipro G4 1600W Class D amplifier, equipped with PFC (Power Factor Correction) and SMPS which make the cabinet highly resistant to line voltage fluctuations.
Digipro G4 preamplifier features a slot module, equipped with a RDNet expansion card as default, allowing system monitoring and control via Aurora Net. Furthermore, the system is ready for Audinate Dante Expansion Card allowing integration in a digital audio network.The amplifier also allows users to run a real-time test on electronics and transducers, both remotely via Aurora Net, or directly on the amplifier module. VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary. The on-board cardioid preset processes the backward sub in inverted stack cardioid configurations, to achieve the best possible cancellation on the rear side automatically.
Specifications
Frequency Response [- 10 dB]: 32 Hz
Max SPL: 139 dB
LF: 1x18"
Voice Coil LF: 4"
Directivity: Omnidirectional
Amp Class: Class D
RMS Power: 1600 W
Peak Power: 3200 W
Cooling: Convection + Internal Fan
Power Supply: Full-range PSU with PFC
AD/DA Converter: 24 bit 96 kHz
Limiter: RMS, Peak, Thermal
Delay Option: 0- 9.9 ms | steps of 0.1 ms [on-board] and 0 - 62 ms [via RDNet]
LF-Xover out slope: 24 dB/Octave

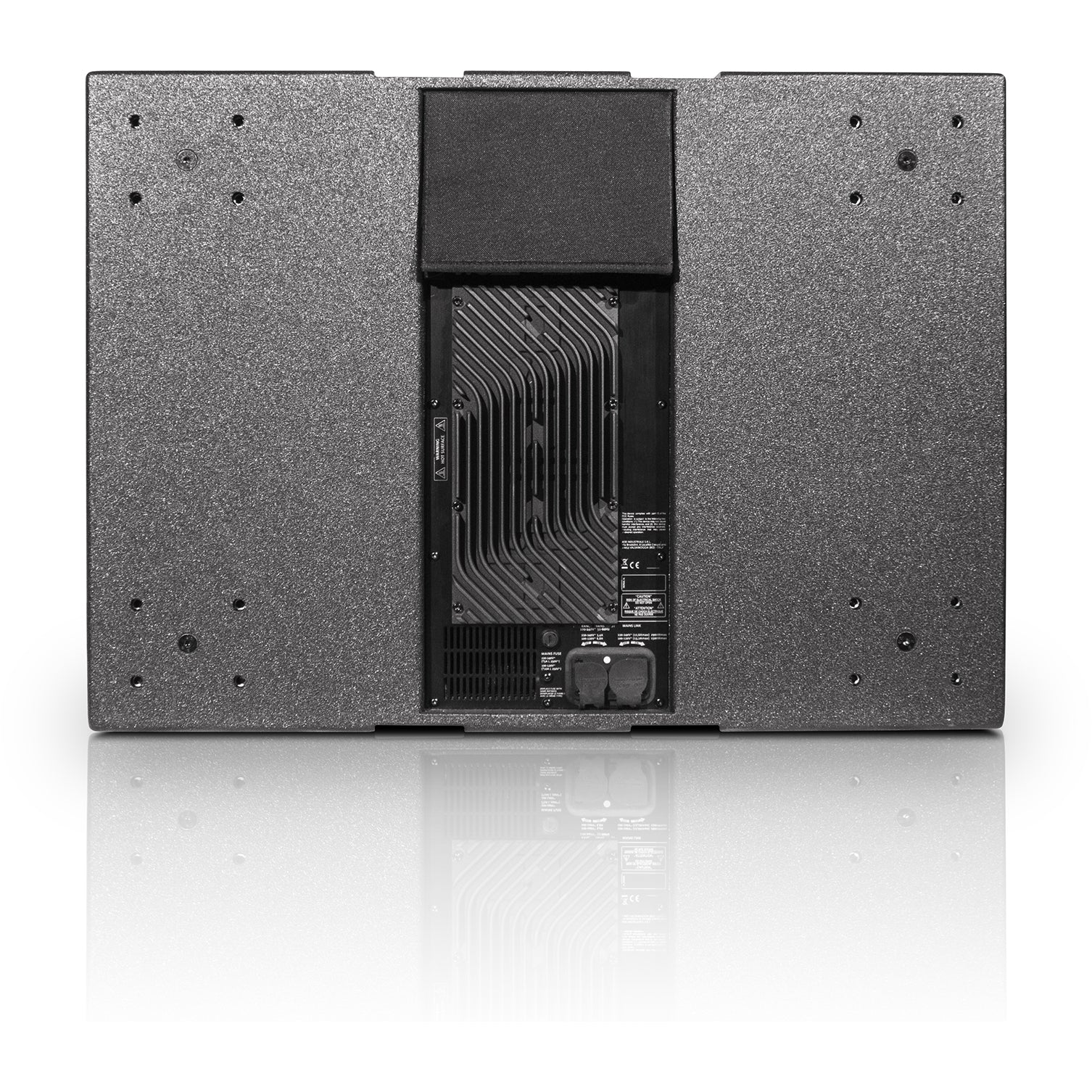

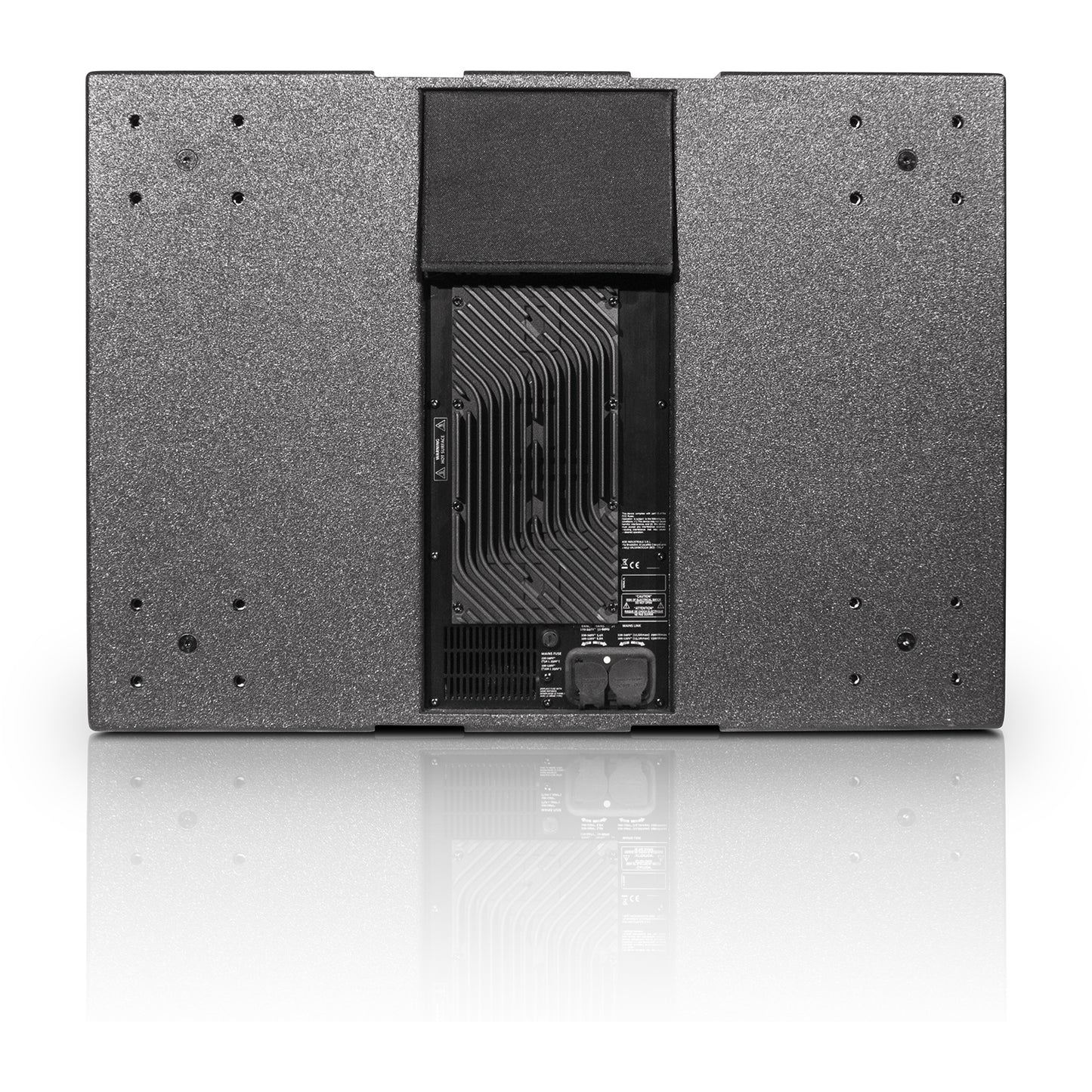

Signal Output: 1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card: RDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
Mains Connections: 1x PowerCON TRUE1 In znd 1x PowerCON TRUE1 Out
1x Rotary Encoder (Delay 9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test

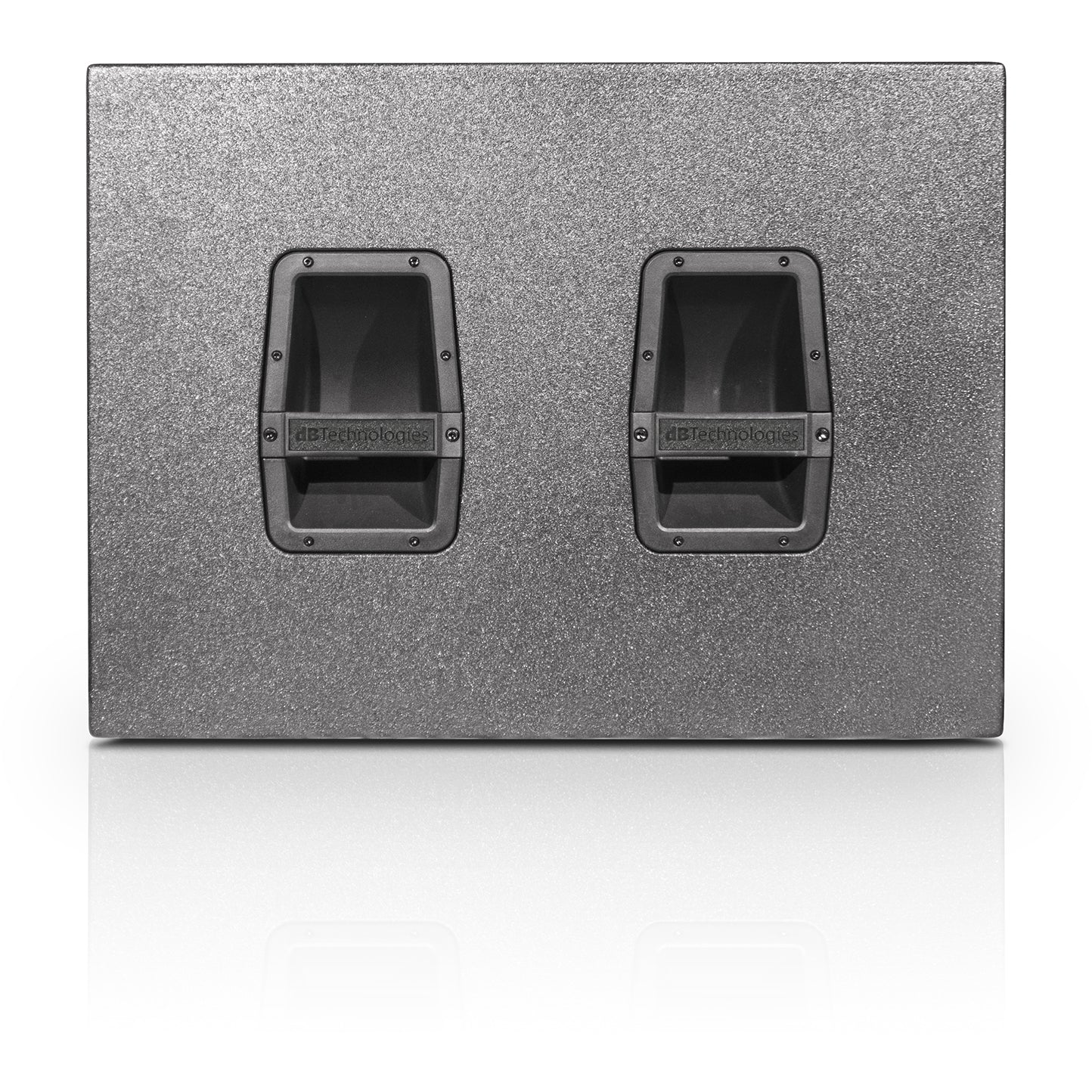

Handles: 2x Per Side and Aluminum
Pole Mount: M20 Thread
Weight: 47 kg (103.62 lbs.)
