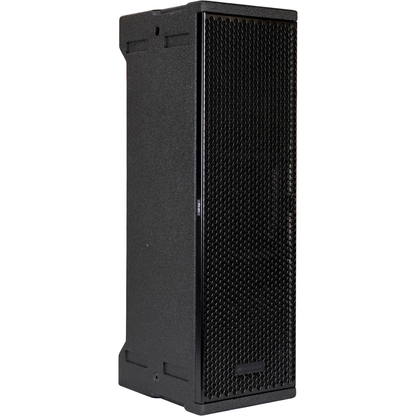

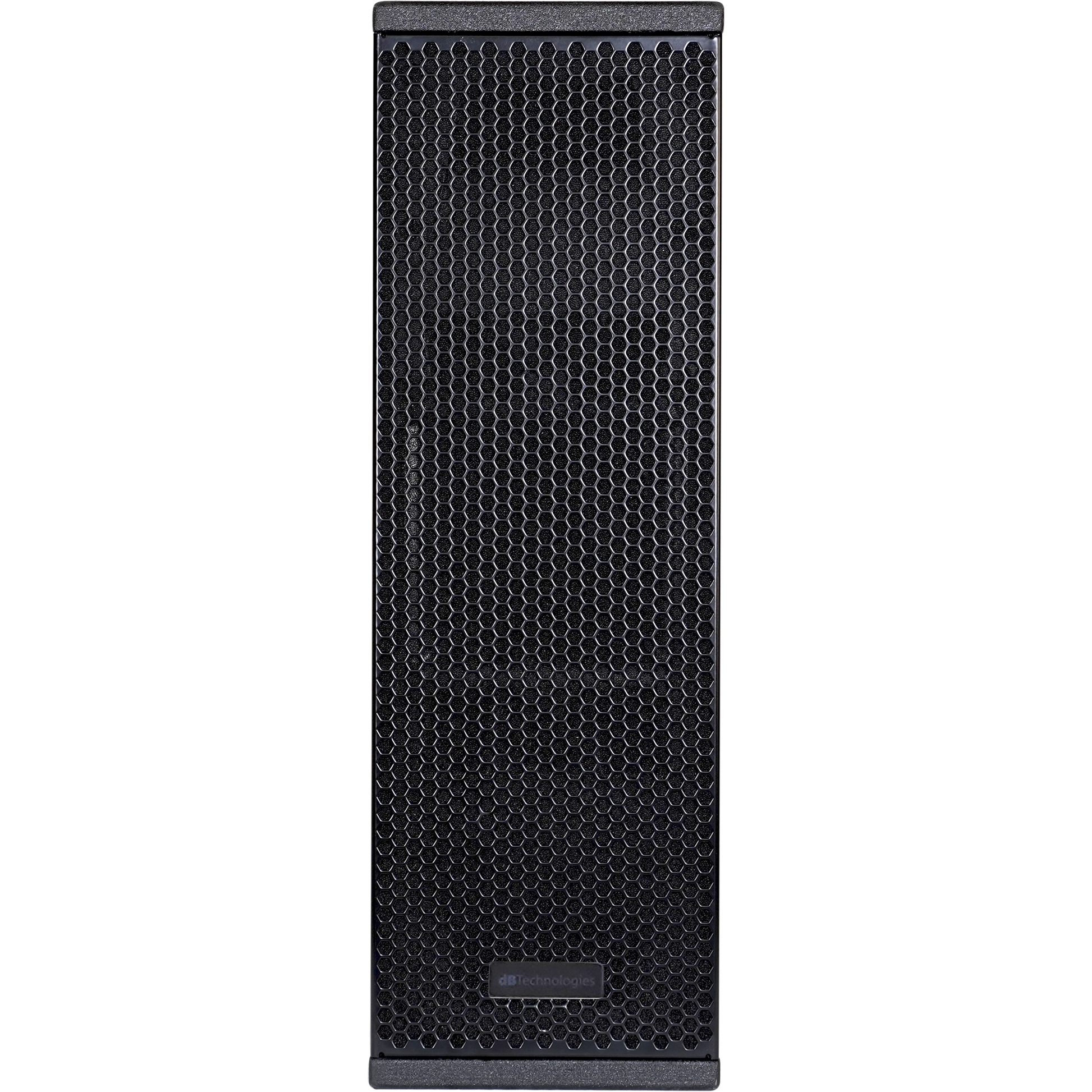

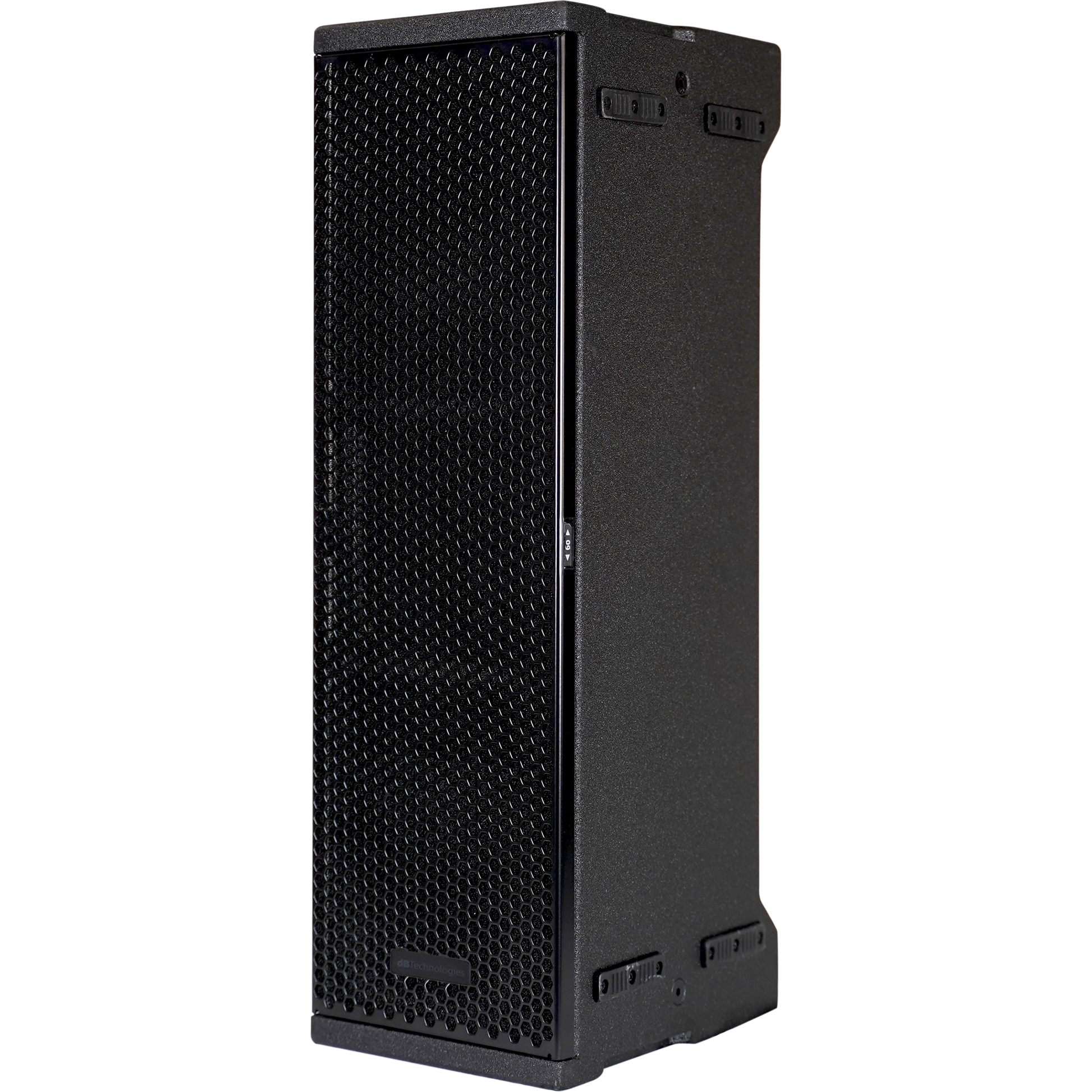

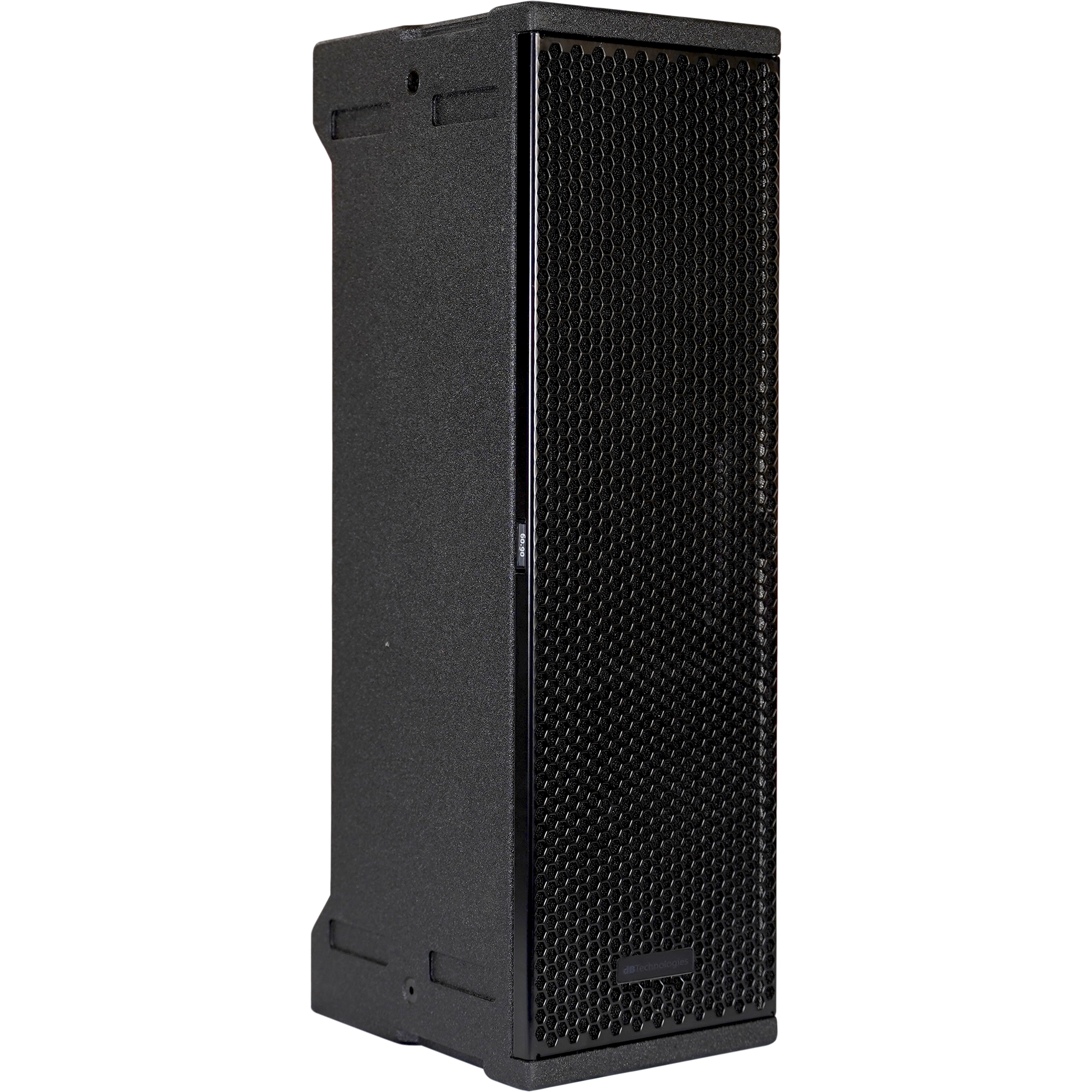

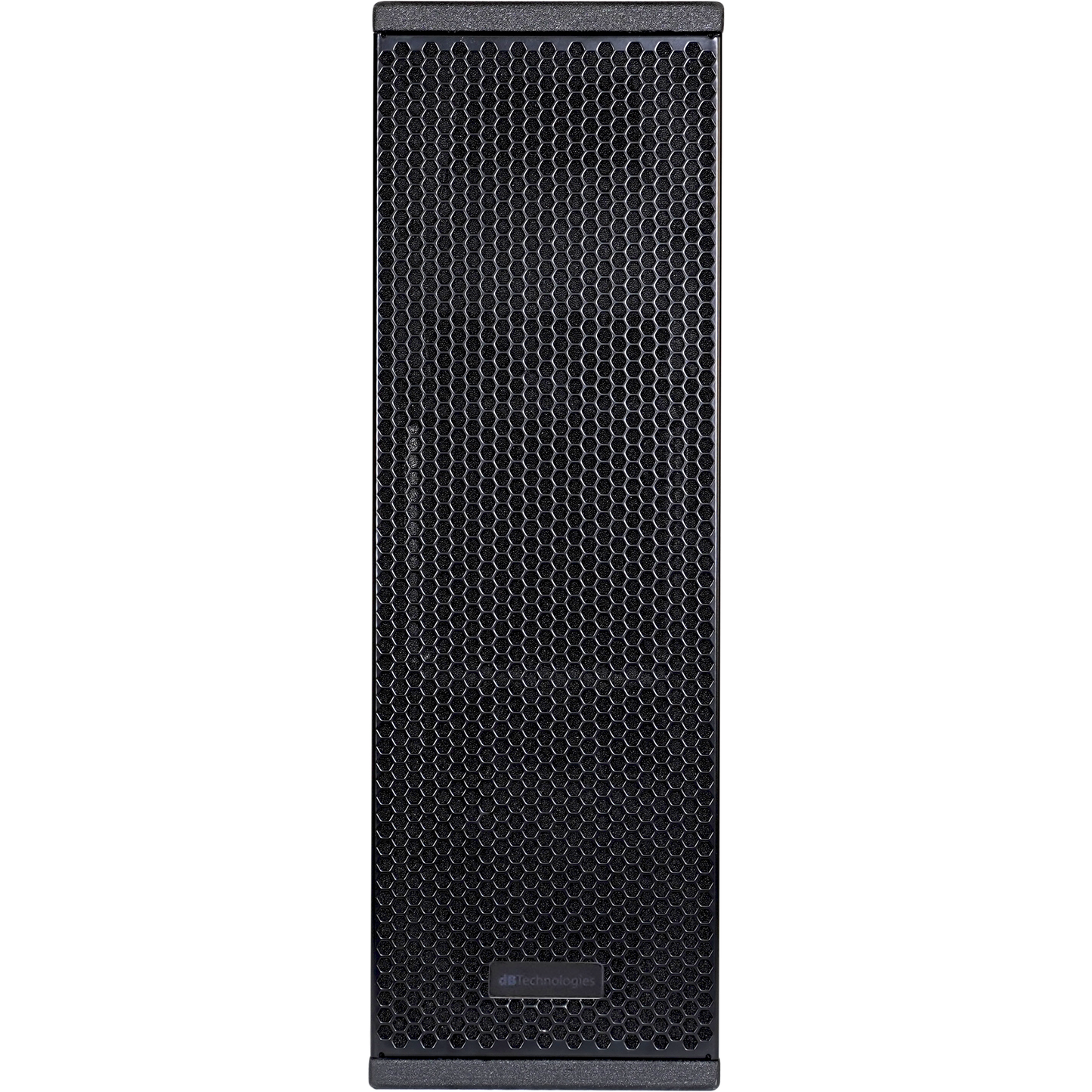

dbTechnologies VIO X206-100 Directivity 100° x 15° [H x V]

dbTechnologies VIO X206-100 Directivity 100° x 15° [H x V]

SoundPro Item: 121638 | Part Number: VIO X206 - 100X15

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Speaker Type: 2 Way Active Loudspeaker2-Way Active Loudspeaker
  • 900 W Rms Class-D Digipro G3 Amplifier
  • Max SPL131 dB
  • Frequency Response [-6dB]: 70 - 17.500/18.000 Hz
  • Aurora Net Ready
  • HF: 1X 1”, 1.75" V.C.
  • LF: 2X 6.5”, 1.75" V.C.
Log in or register for YOUR best price

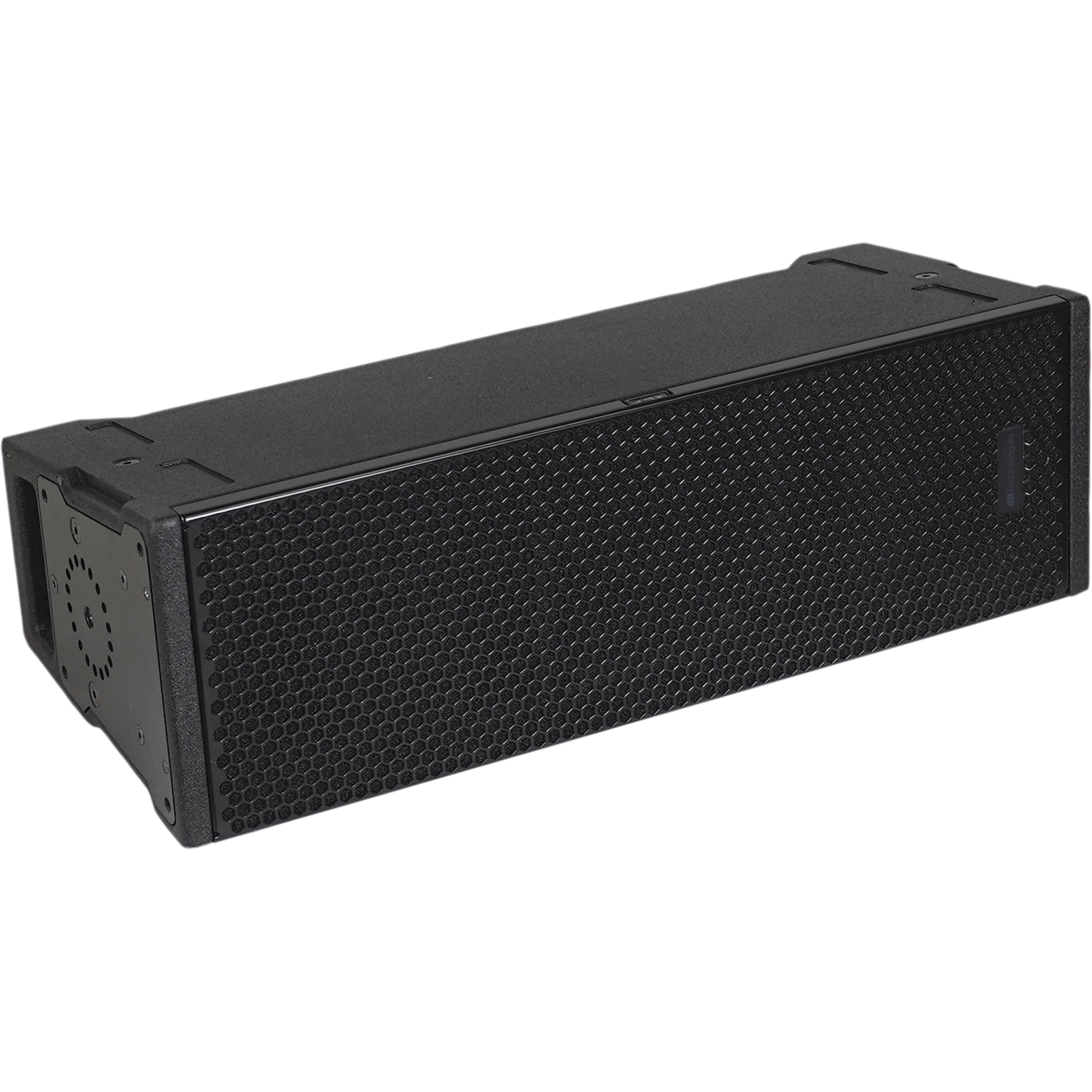

VIO X206 is an ultra-compact professional speaker that delivers sound pressure and linear response to the highest level, just like VIO X205, but in addition to this, you can turn it into a true compact line array system.

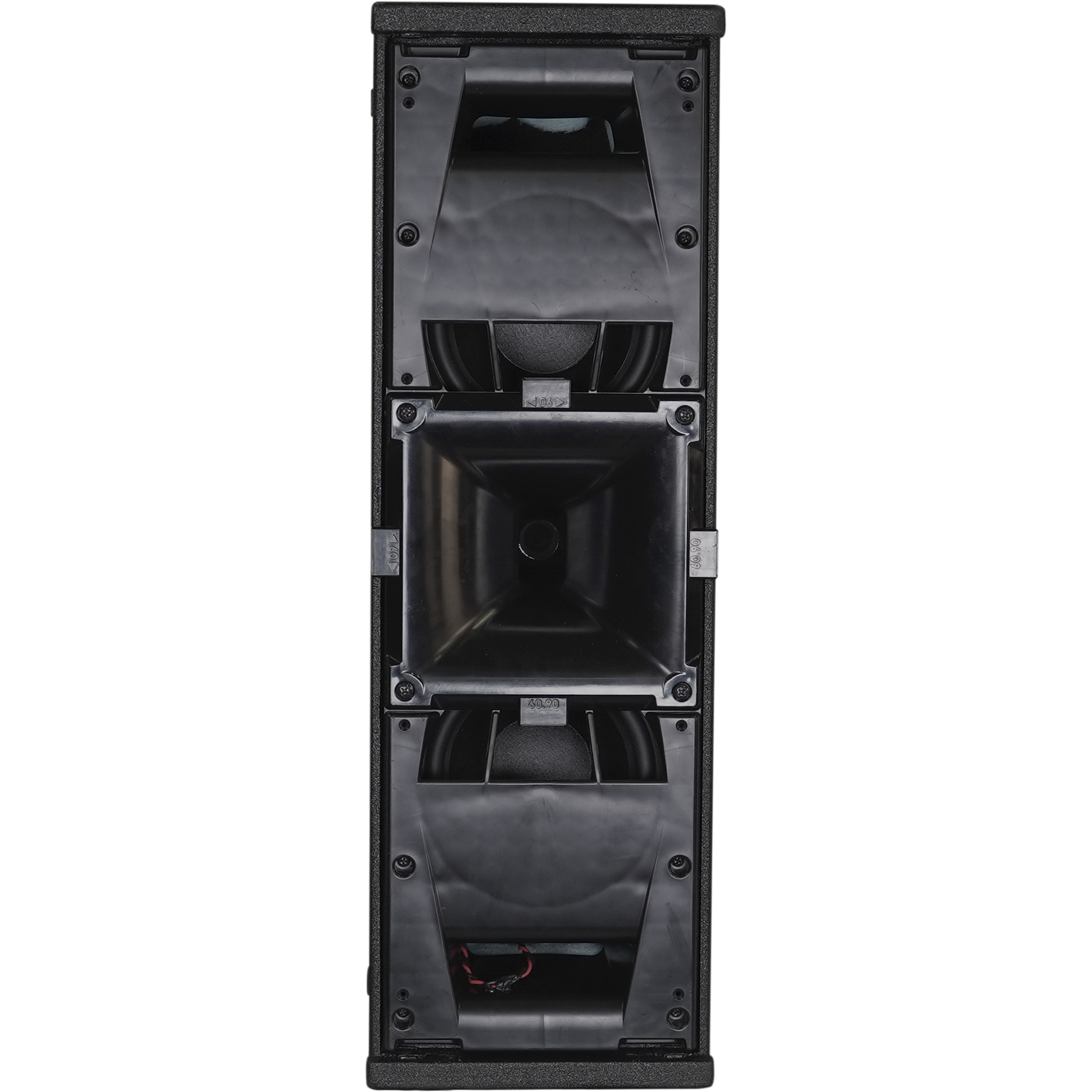

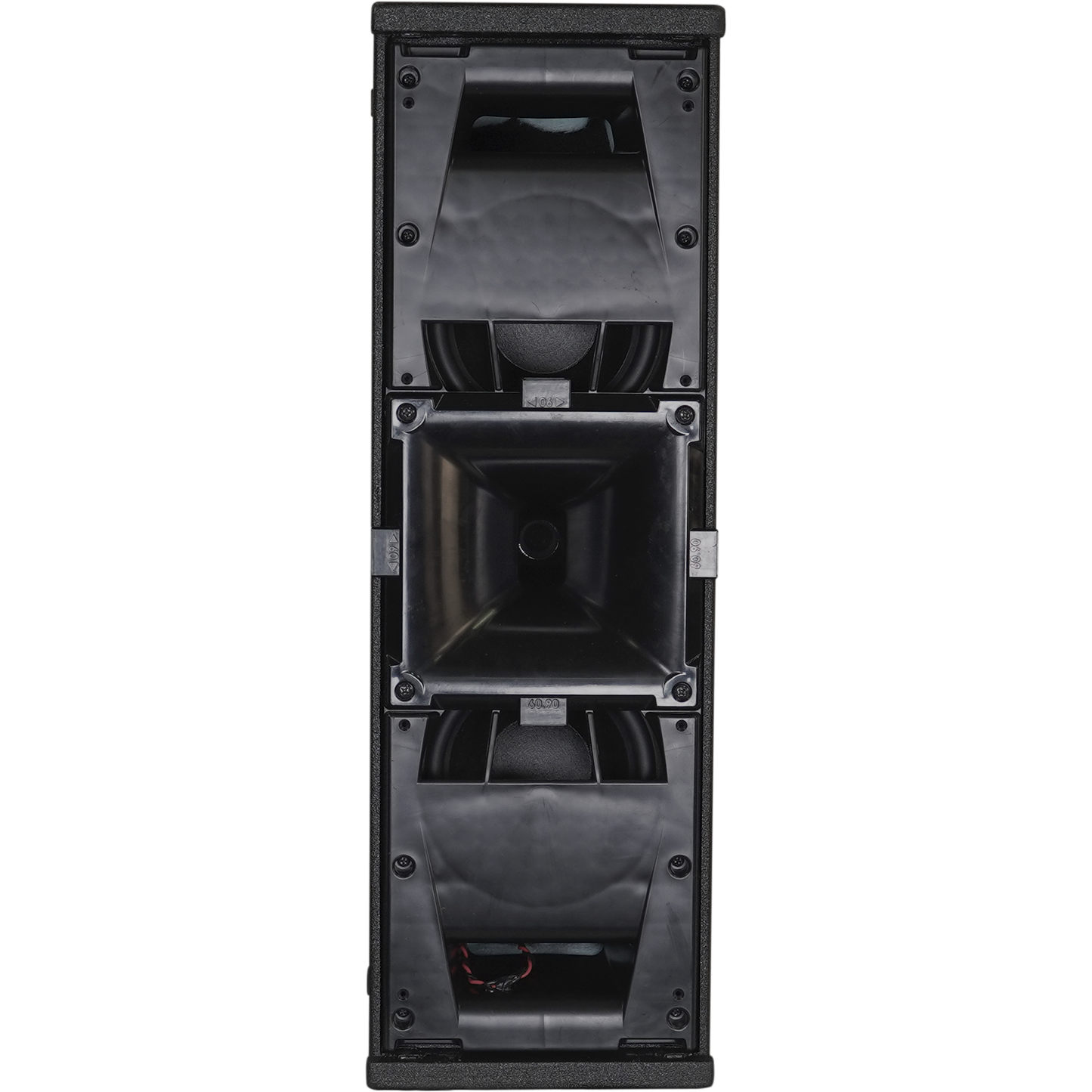

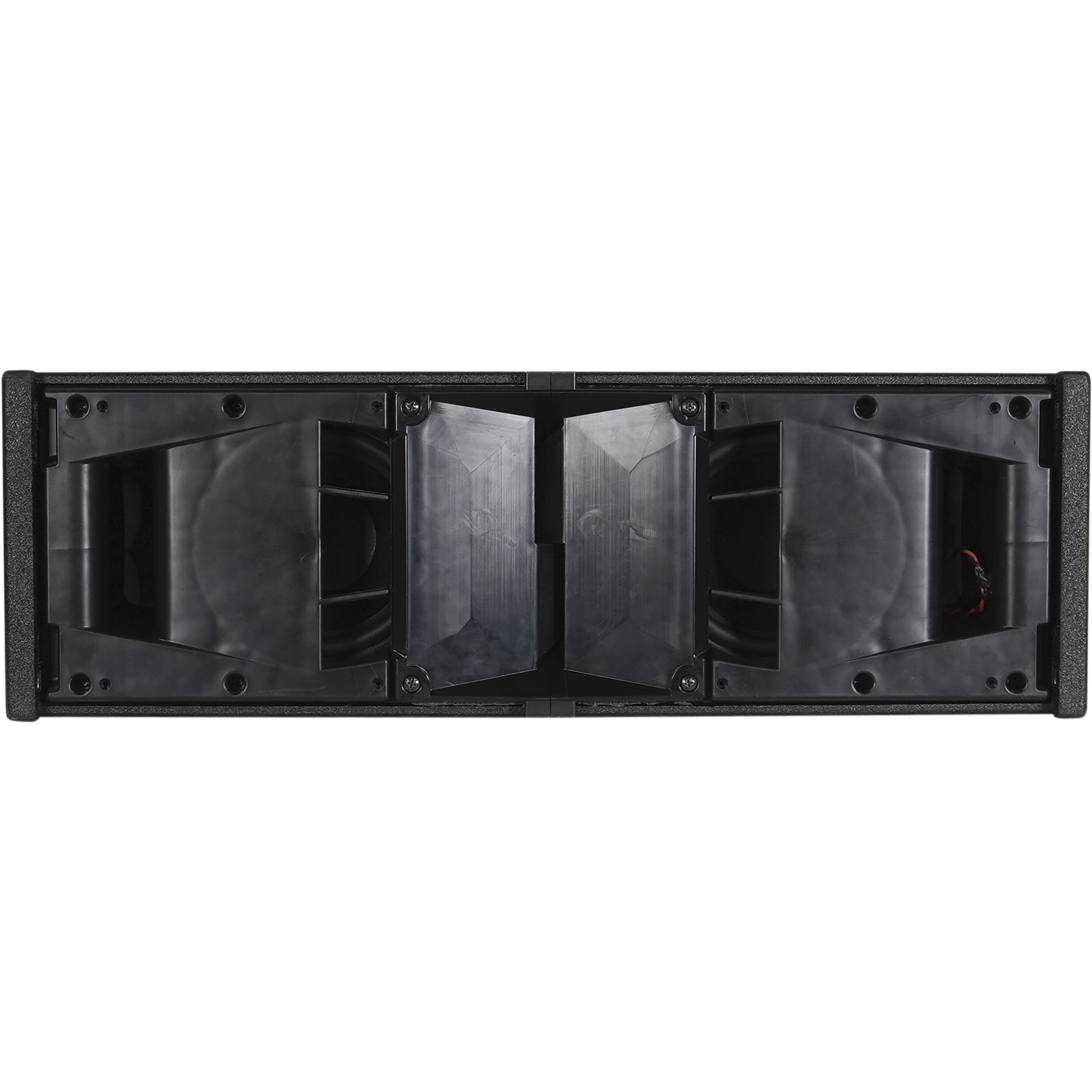

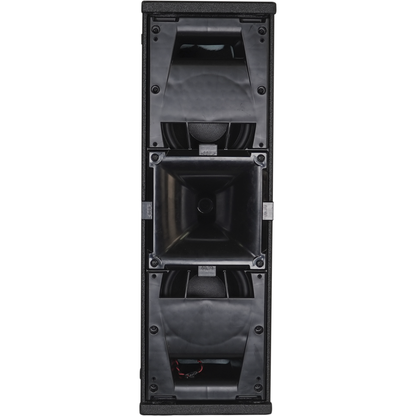

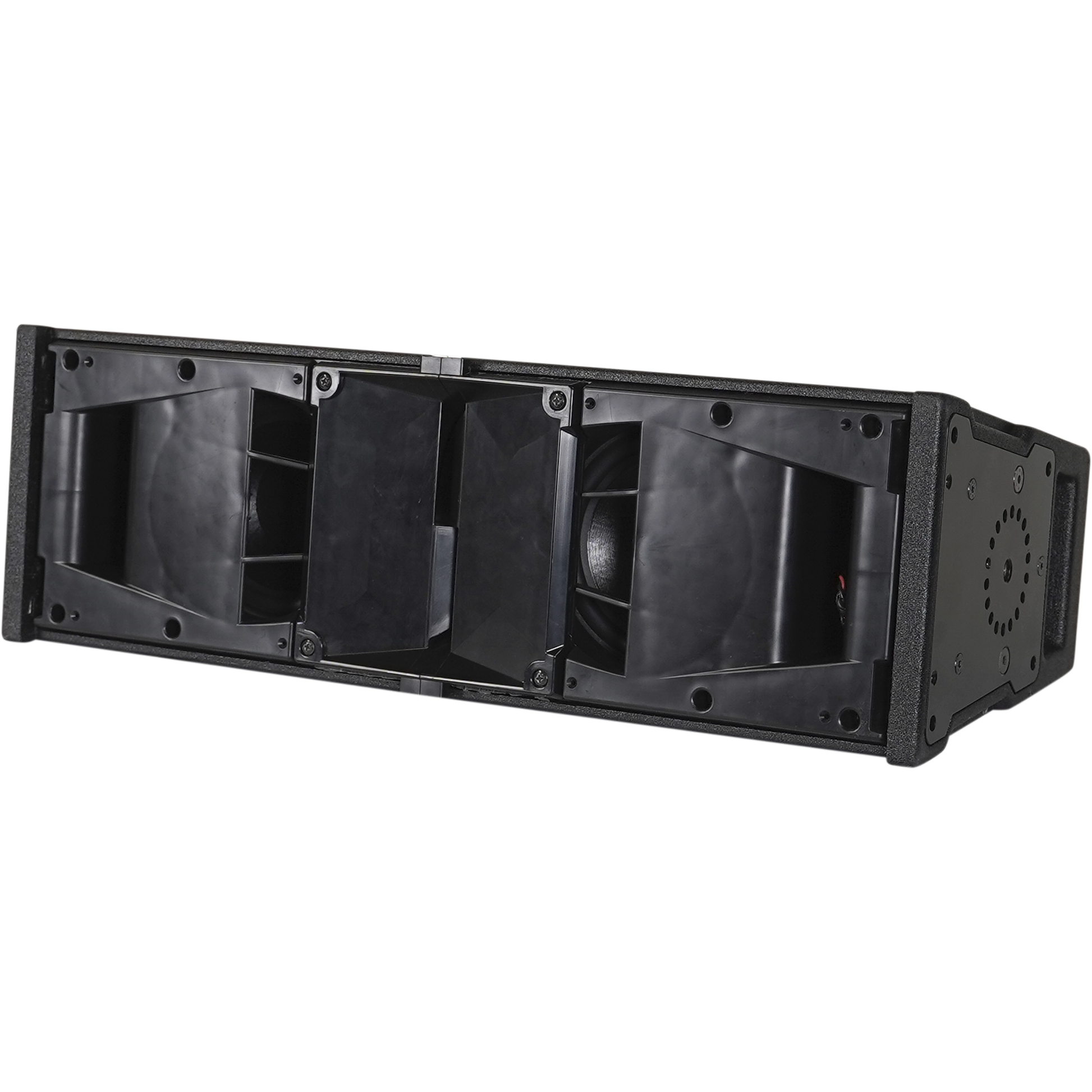

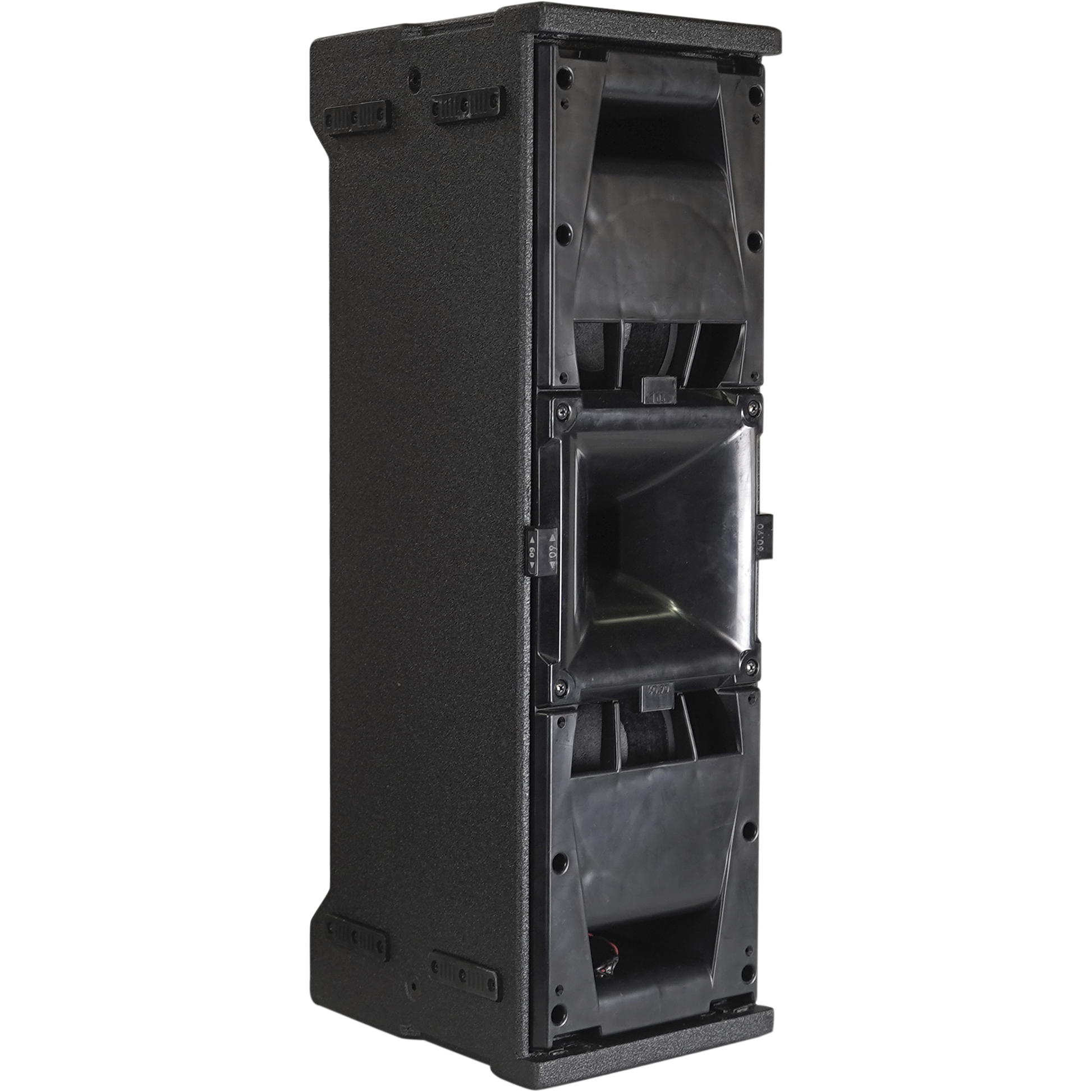

The speaker has been designed in two different versions, one model mounts a 90° by 60° rotatable horn. The other one is equipped with a two-path waveguide conveying a 100° by 15° dispersion, so perfect for line array applications. The real gem here is that users can remove and exchange horns at any time, based on their requirements.
View full details

Specifications

Acoustical data
Usable bandwidth [-10dB]: 66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]
Frequency Response [-6dB]: 70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]
VIO X206-100 Directivity 100° x 15° [H x V]
Amplifier
Amplifier: 900 W RMS Class-D Digipro G3
Cooling: Convection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

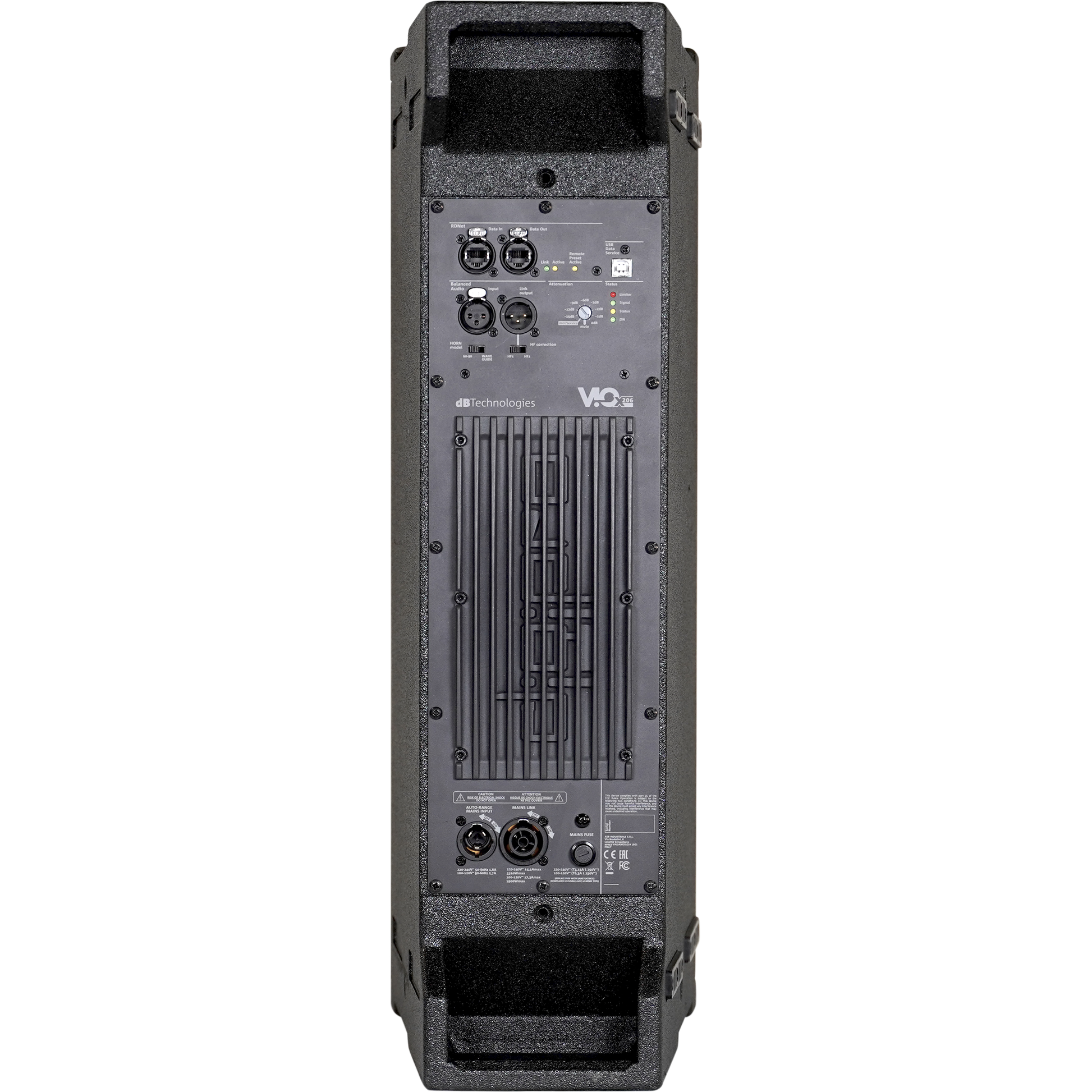

Input
Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In and 1x PowerCON TRUE1 Out
Controls
1x input Sensitivity Rotary Encoder (10x presets)
1x Horn Model Selection Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
3x RDNet Status LED
Mechanics
Housing: Wooden Cabinet, Polyurea painting
Handles: 2 Integrated

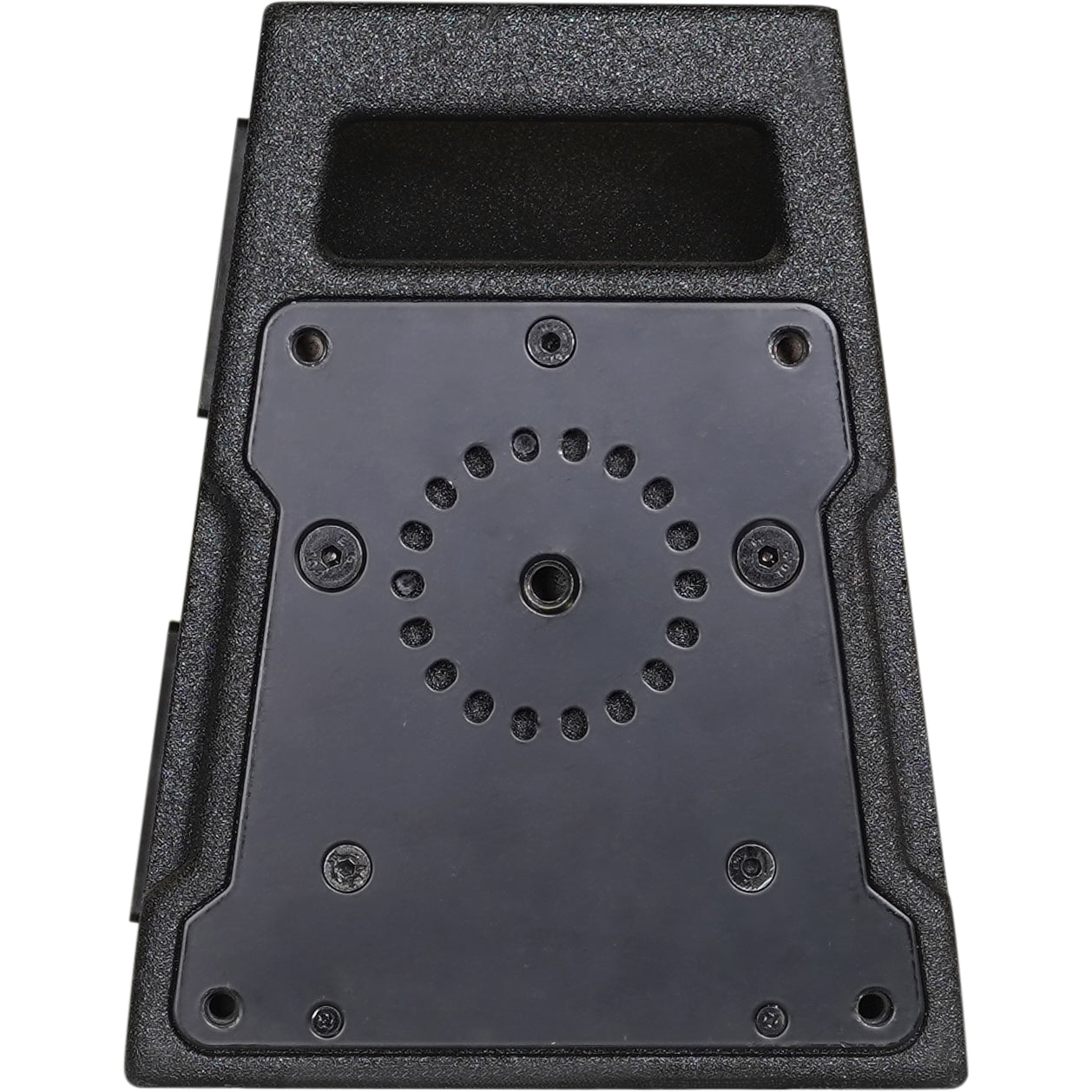

Rigging points: 2x M10 Threaded Nuts (top and bottom)
Dimensions (W x H x D)
210 mm(83 in) x 650 mm (25.6 in) x 270 mm (10.6 in)
Weight: 17.3 kg (38.14 lbs.)
