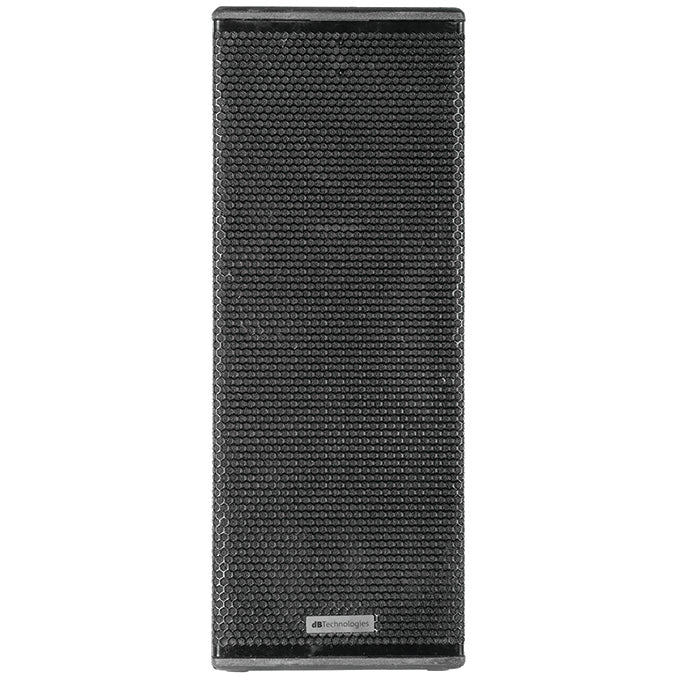

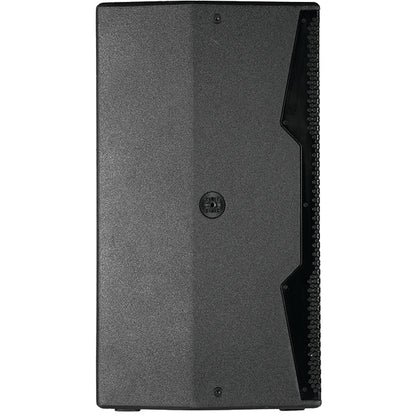

dbTechnologies VIO X310 Loudspeaker

dbTechnologies VIO X310 Loudspeaker

SoundPro Item: 121640 | Part Number: VIO X310

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • dbTehcnologies Logo Product code: 1030104021
  • 3-Way Active Loudspeaker
  • 1400 W Rms Class-D Digipro G4 Amplifier
  • Max Spl138 dB
  • Frequency Response [-6Db]: 57 - 19.200 Hz
  • DANTE & A2NET Ready
  • HF/MF: 1X 1.4”, 4"- 2.5" V.C. Coaxial Neodymium
  • LF: 2X 10”, 2.5" V.C Neodymium
Log in or register for YOUR best price

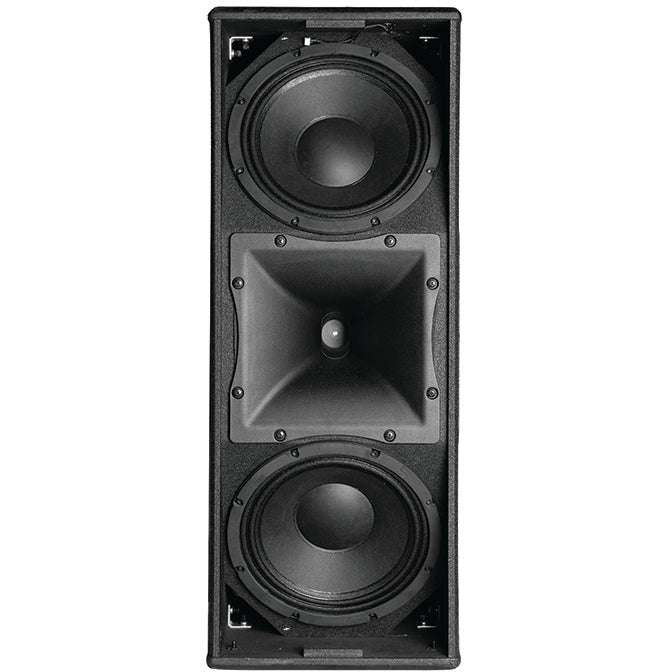

VIO X310 is equipped with 2x 10" neodymium woofers in a dipole configuration, so the speaker benefits from all the advantages of this arrangement such as a very prominent directivity control for low-mids and a precise, fast, and extended response of the bottom end.

The Coaxial mid-high frequency compression driver is mounted behind a 90° by 40° rotatable horn, and all the components are arranged around the center of this point source, resulting in a symmetrical dispersion.

View full details

Specifications

Technical Data
Speaker Type: 3 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]:53 - 19.800 Hz
Frequency Response [-6dB]: 57 - 19.200 Hz
Max SPL: 138 dB
HF/MF: 1x 1.4”, 4"- 2.5" v.c. Coaxial Neo
LF: 2x 10”, 2.5" v.c Neo
Directivity [H x V]: 90° x 40° (Rotatable Horn)
Amplifier
Amplifier: 1400 W RMS Class-D Digipro G4
Cooling: Convection
Power Supply: Full range SMPS with PFC
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

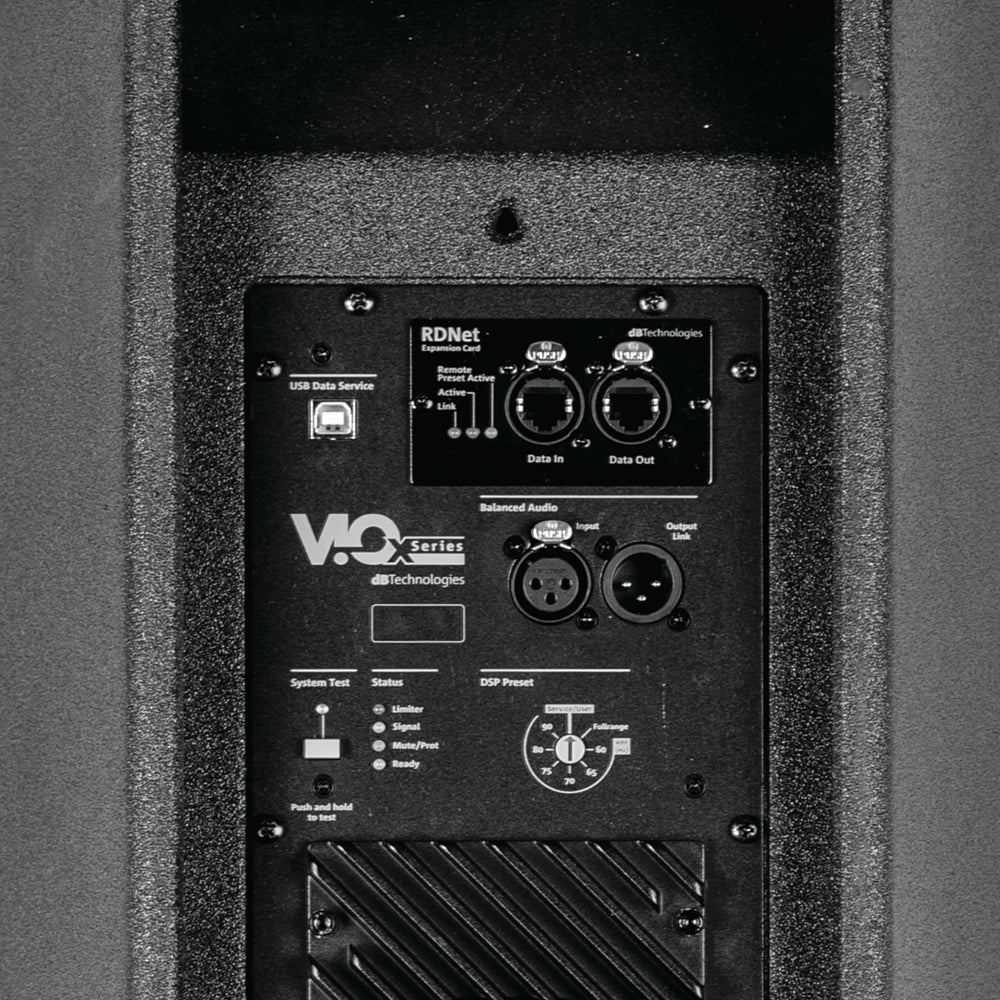

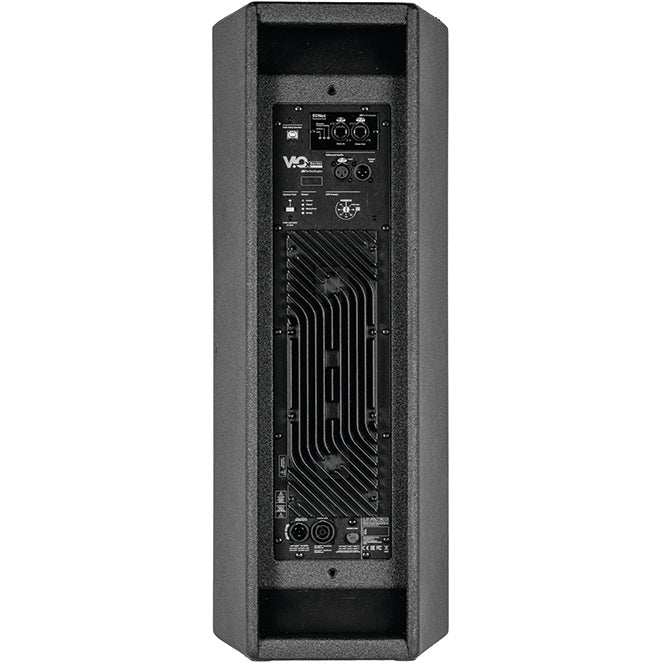

Input
Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In and 1x PowerCON TRUE1 Out
Controls
1x input Rotary Encoder (8x presets)
1x Ready LED
1x Mute/Prot LED
1x Signal LED
1x Limiter LED
1x Frontal LED
1x Button and 1x LED System Test
Mechanics
Housing: Wooden Cabinet
Handles: 1x on top / 1x on bottom
Rigging points: flyable with bracket
Dimensions(W x H x D)
300 mm (11.8 in) x 780 mm (30.7 in) x 780 mm (30.7 in)
Weight: 28 kg (61.5 lbs.)
