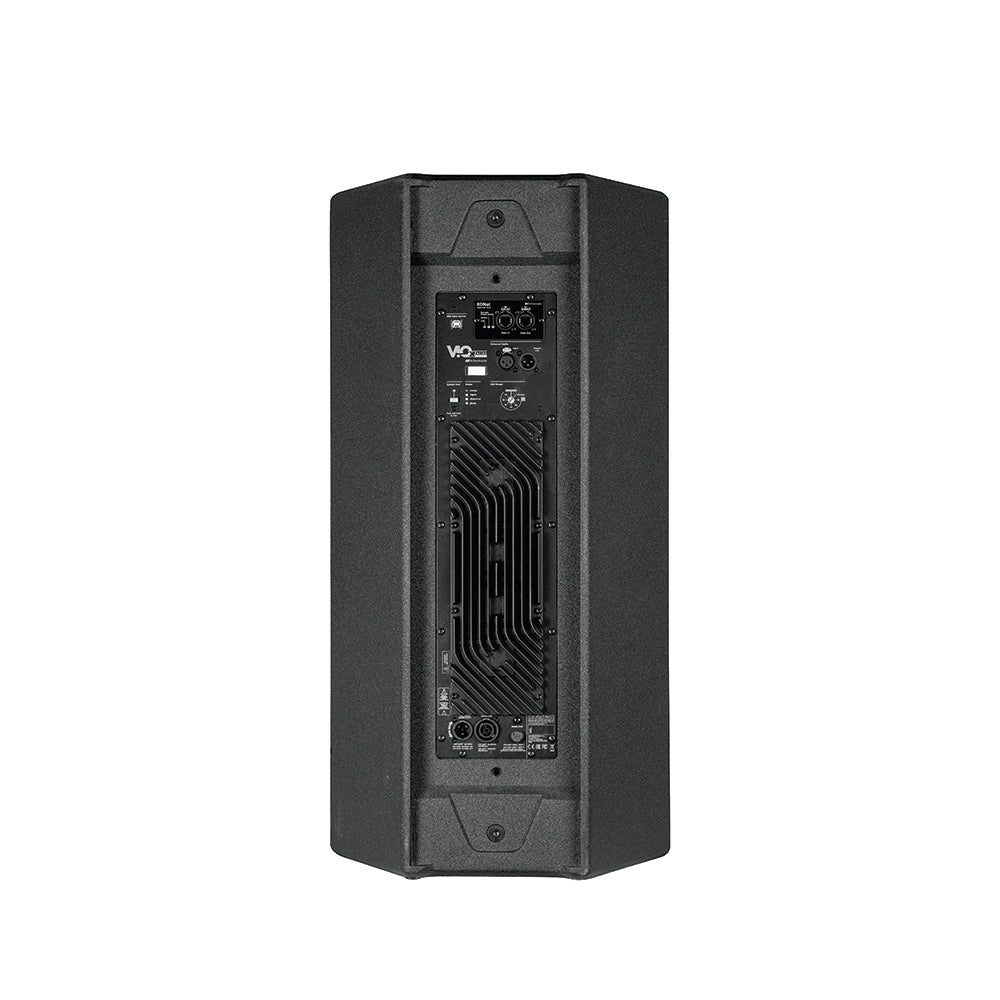

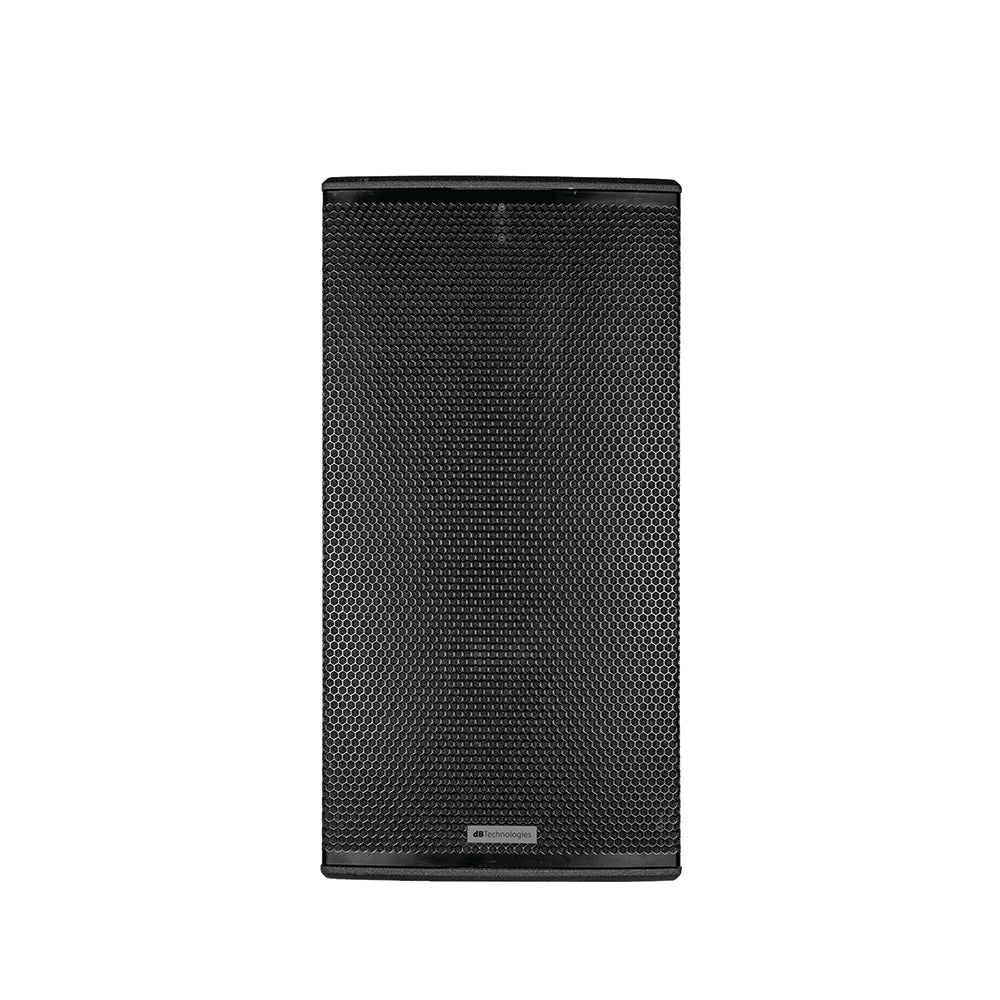

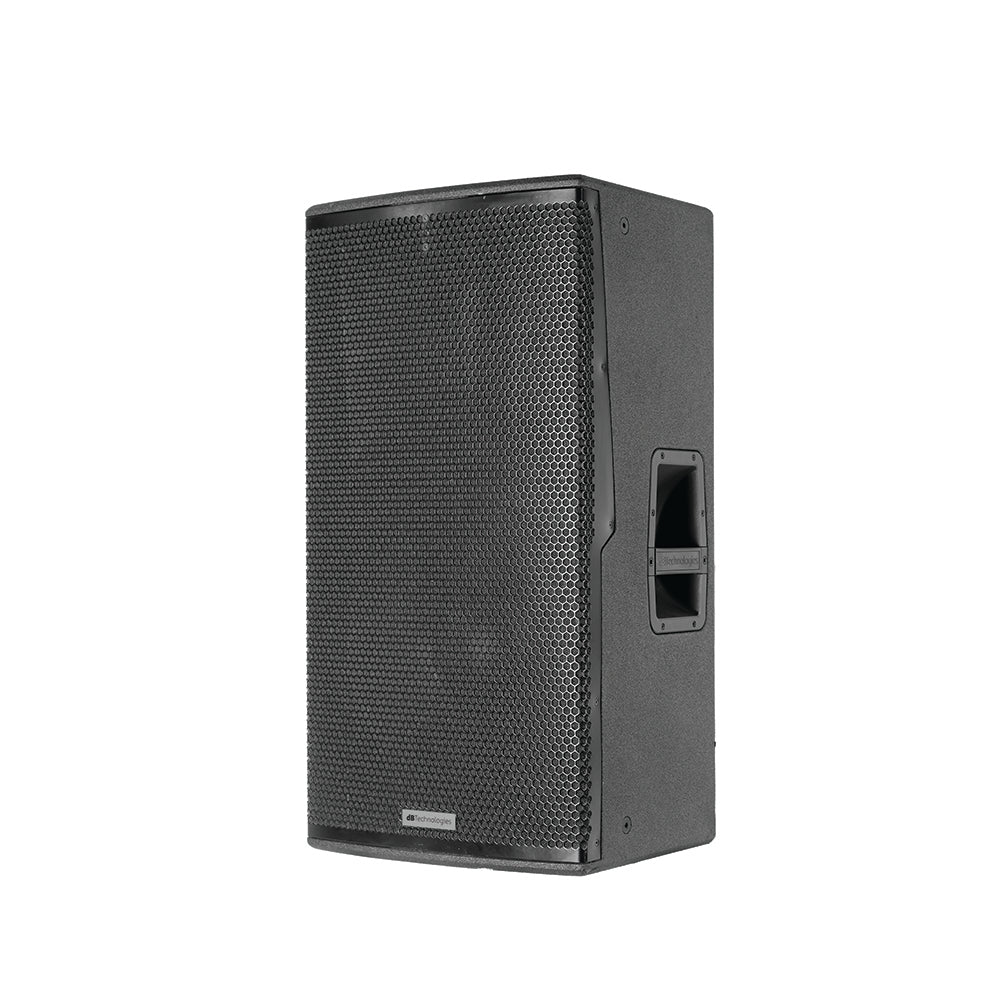

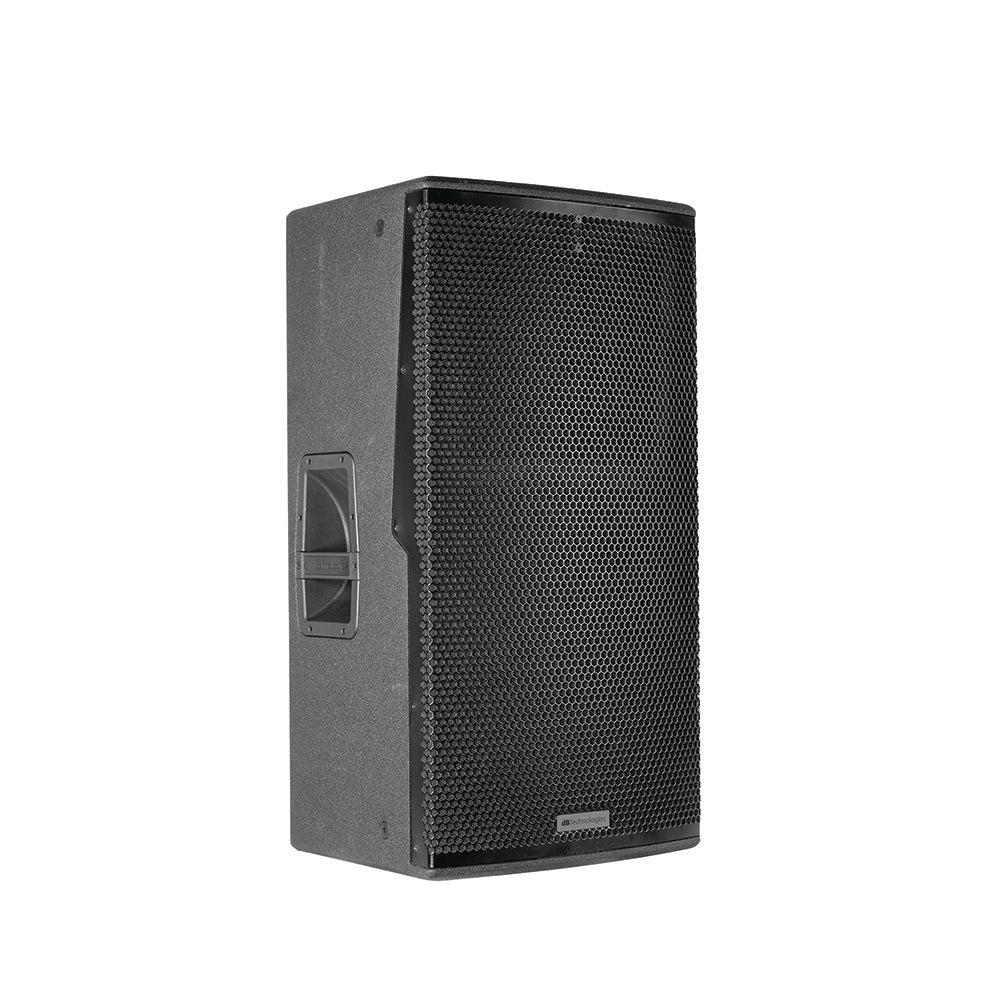

dbTechnologies VIO X315 Loudspeaker
dbTechnologies VIO X315 Loudspeaker
SoundPro Item: 121641 | Part Number: ViO X315
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- dbTehcnologies Logo Product code: 1030104031
VIO X315 is equipped with a single high performance 15" neodymium woofer, capable of providing loud, precise, wide band performances, with no compromises.
The goal was to develop a real full-range PA system, with an astounding wide frequency response, reaching as low as 37Hz.

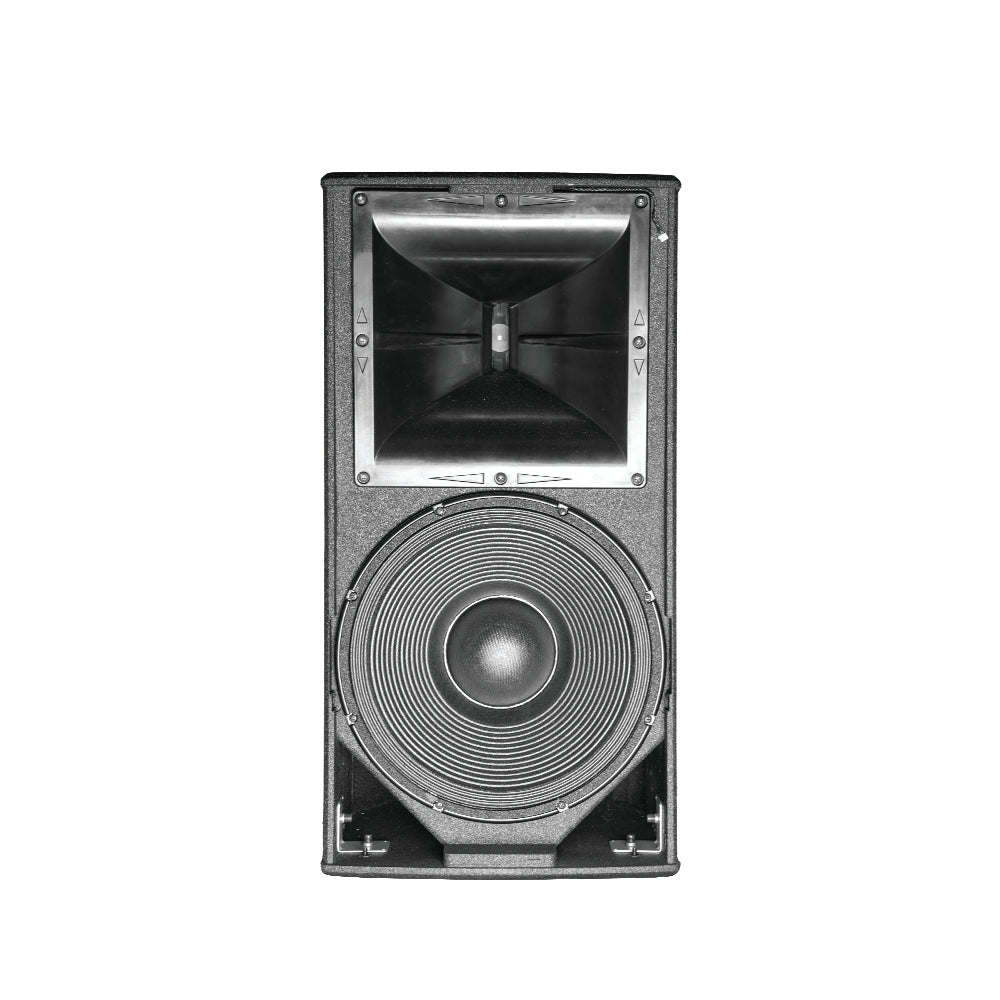

In this model, the mid-hi coaxial transducer is placed behind a 90°x50° horn which has been designed with a slight tilt downwards (around 5°) to optimize the coverage in average venues.
Specifications
Frequency Response [-6dB]: 37 - 18.000 Hz
Max SPL: 137 dB
HF/MF: 1x 1.4”, 4"- 2.5" v.c. Coaxial Neo
LF: 1x 15”, 4" v.c Neo
Directivity [H x V]: 90° x 50° - 5° tilted down [H x V]
Cooling: Convection
Power Supply: Full range SMPS with PFC
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

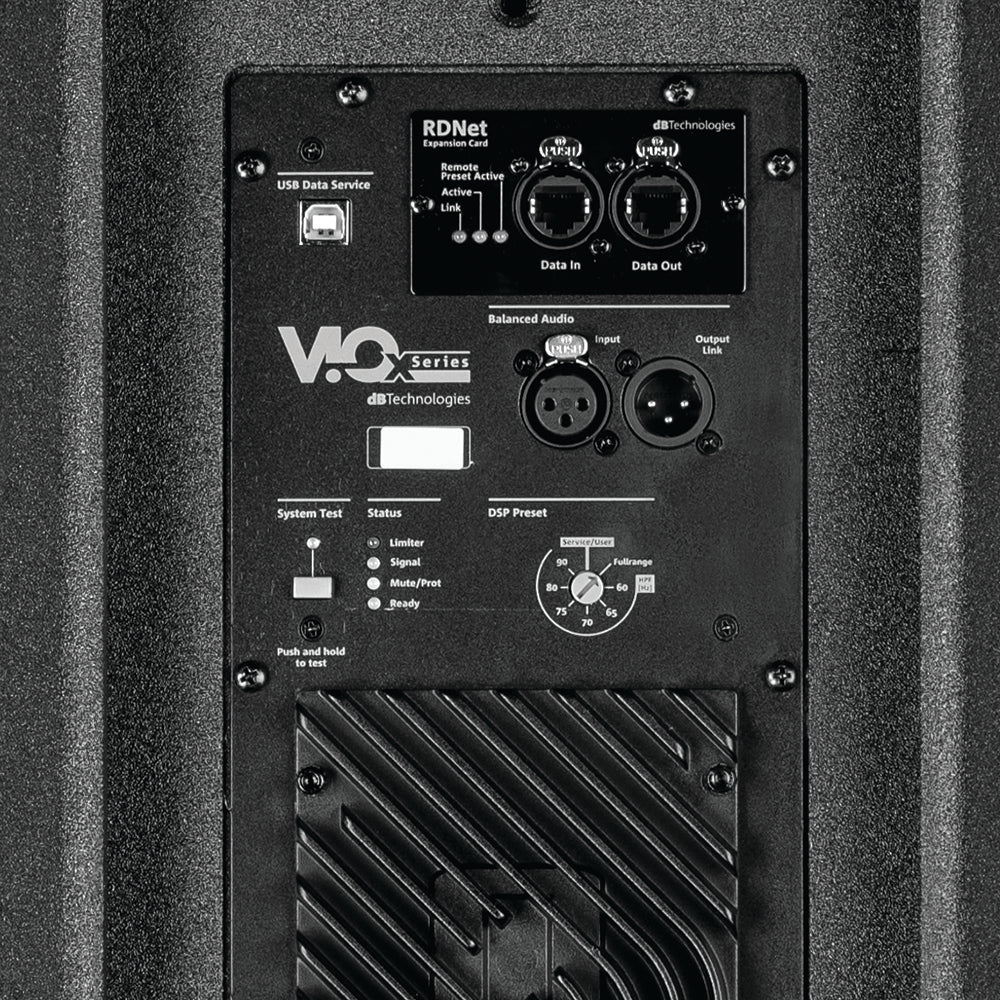

Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket: 1x PowerCON TRUE1 In and 1x PowerCON TRUE1 Out
1x Ready LED
1x Mute/Prot LED
1x Signal LED
1x Limiter LED
1x Frontal LED
1x Button and 1x LED System Test

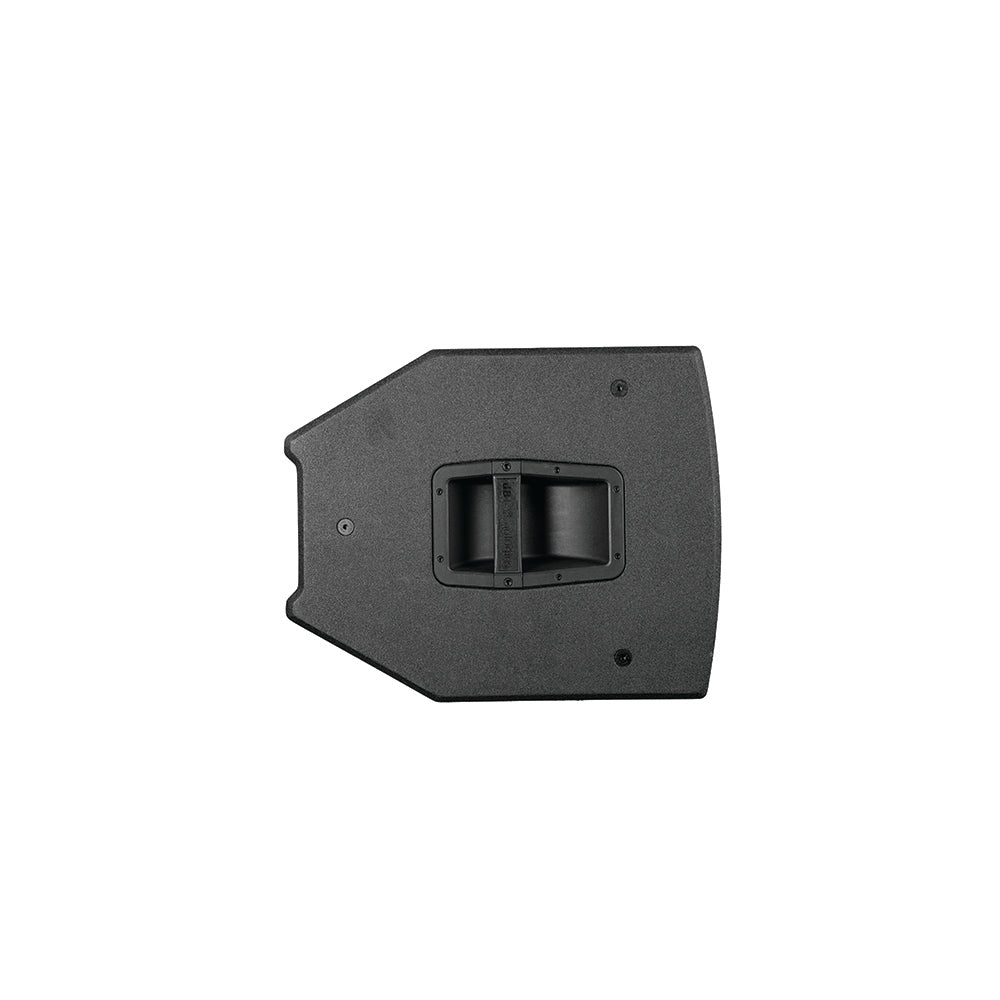

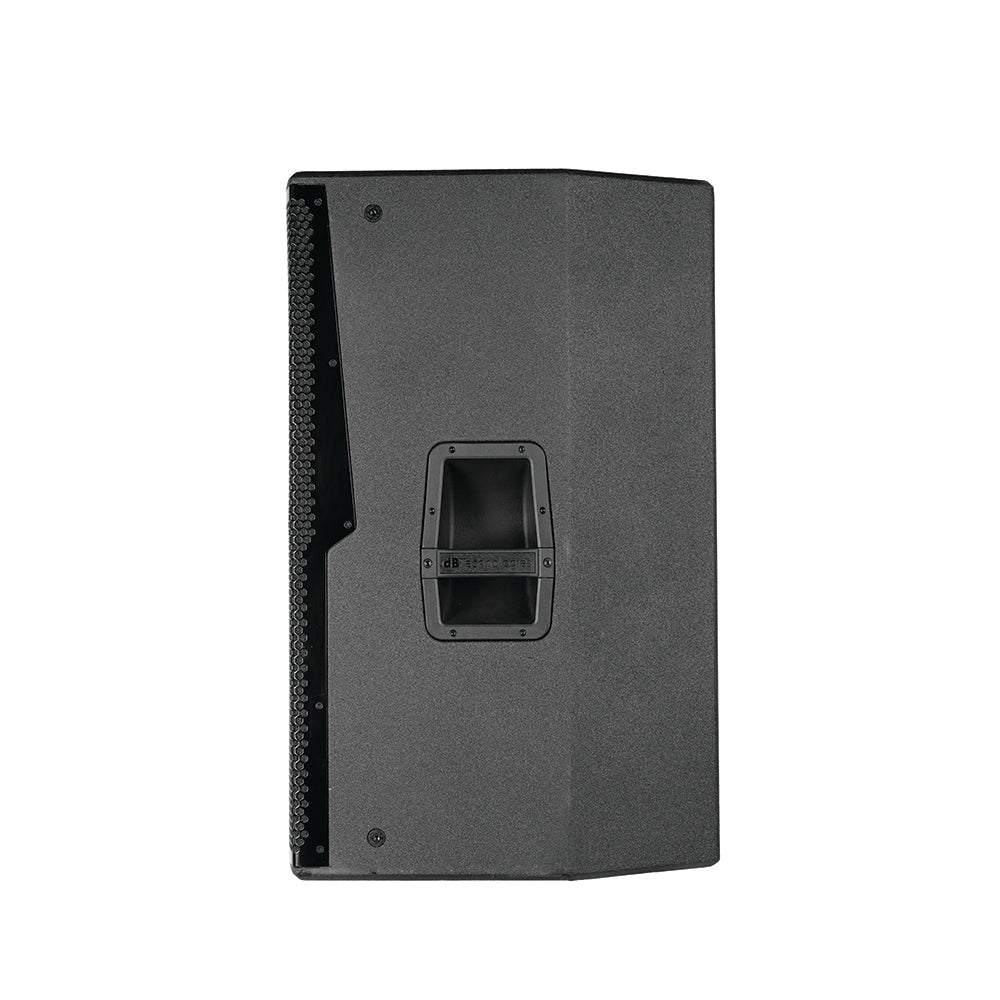

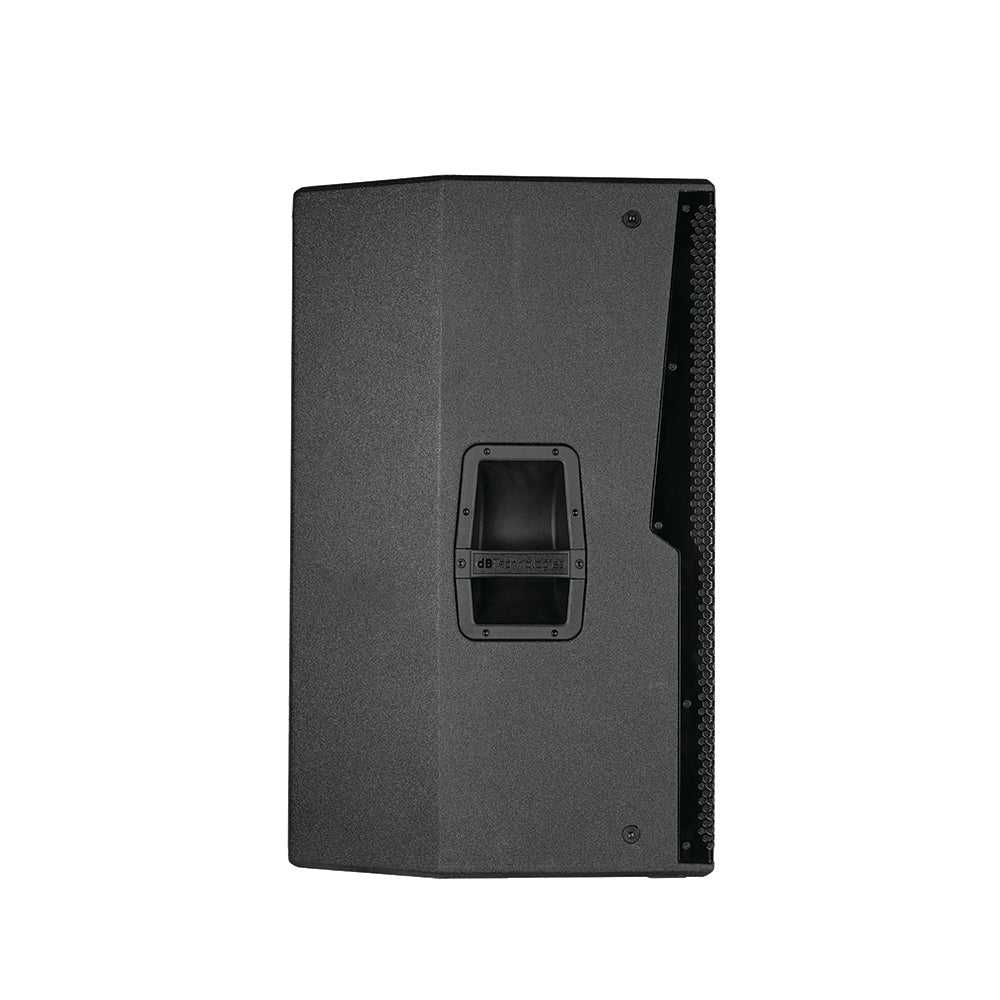

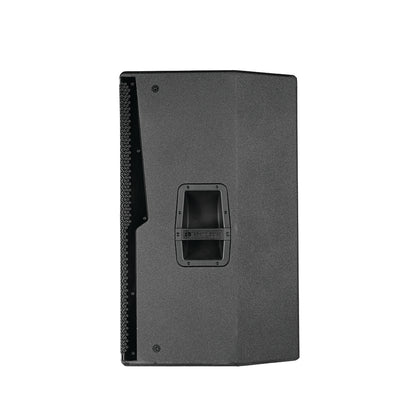

Handles: 3 (1x side, 1 on top)
Rigging points: 12x M10 Thread

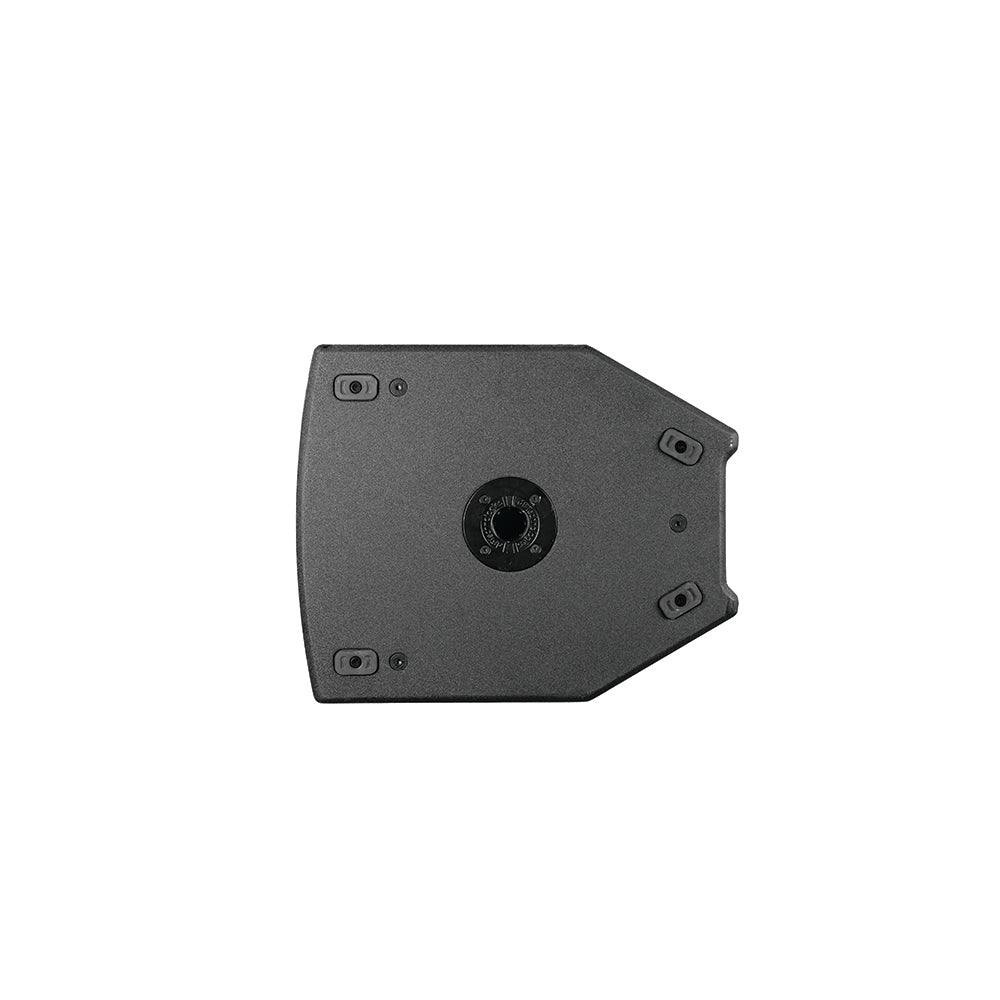

Pole mount: D36mm
Weight: 39.5 kg (87.1 lbs)
