• dbx 260V DriveRack 260 2x6 Speaker Management System
1 1

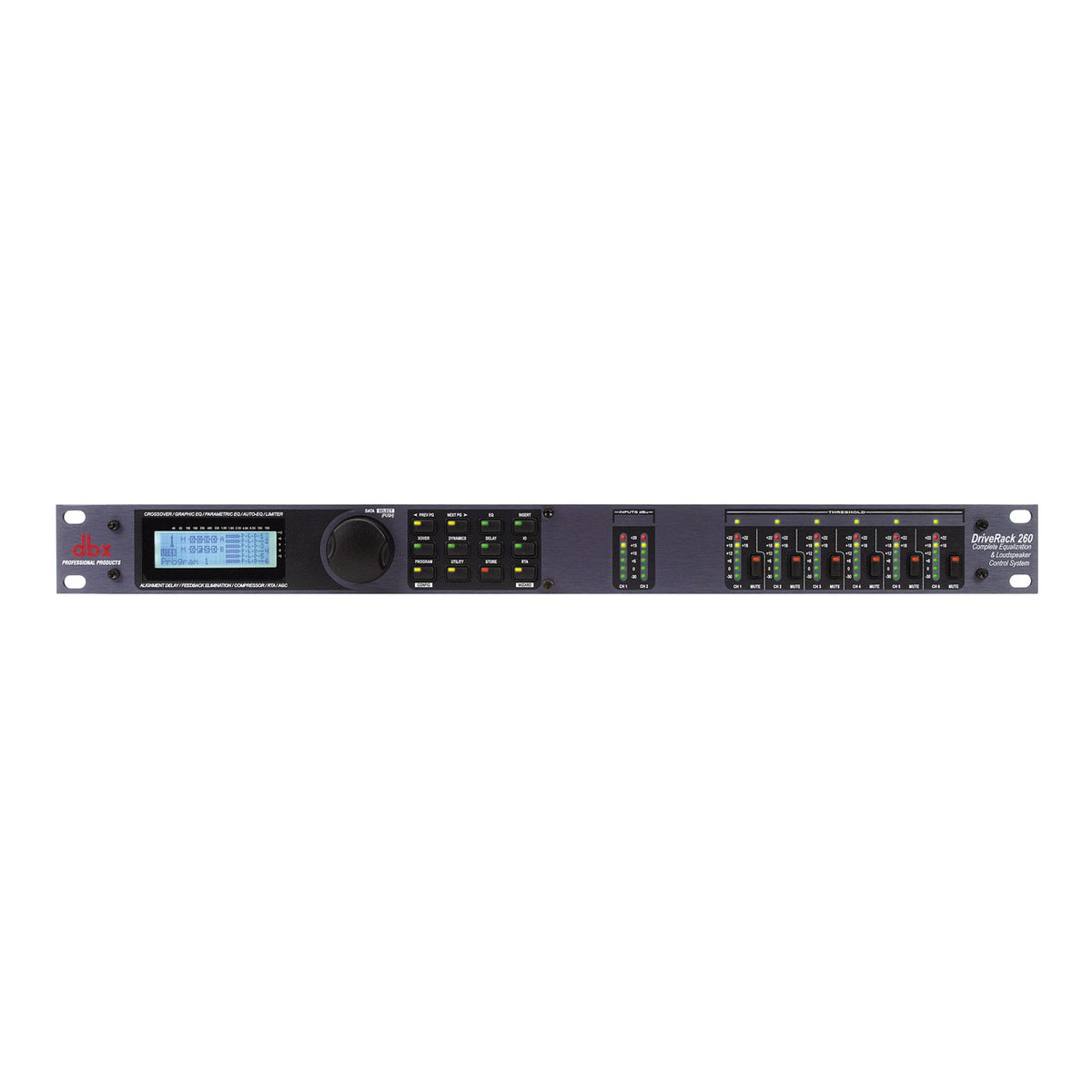

dbx 260V DriveRack 260 2x6 Speaker Management System

dbx 260V DriveRack 260 2x6 Speaker Management System

SoundPro Item: 48863 | Part Number: DBX260V

$945.00
$1,180.00 $945.00
Your Price Sold out
MSRP: $1,180.00 | MAP: $945.00

Usually ships in 5-7 business days

  • Feedback Elimination
  • 2.7 seconds of alignment and zone delay
  • RS-232 PC GUI control
  • Classic dbx compression and limiting
  • Graphic and parametric EQ
  • Auto-EQ function
  • Full bandpass, crossover, and routing configurations
  • Auto gain control
  • Pink noise generator and fulltime RTA
  • Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
  • Security lockout
  • Wall panel control inputs
Log in or register for YOUR best price

There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx DriveRack products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues. The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS).

The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

View full details

Specifications

Electrical
Mic Preamp Phantom Power
+15VDC (RTA)
THD+Noise
0.003% typical at +4dBu, 1kHz, 0dB gain
Audio
Input Impedance
>40k Ω
Output
6 total
Output Connectors
male XLR
Output Impedance
120 Ω
A/D Dynamic Range
(line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range
>119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate
48kHz
D/A Dynamic Range
112 dB A-weighted, 109dB unweighted
Frequency Response
20Hz – 20kHz, +/- 0.5dB
Connectivity
Input
(2) line inputs. (1) RTA Mic input
Input Connections
(2) Female XLR line inputs. XLR RTA Mic input
Input Type
electronically balanced/RF filtered
Max Input
+30dBu with input jumpers in +30 position
Output Type
electronically balanced/RF filtered
Max Output
+22 dBu
General
Mic Preamp EIN
< -110dB, 22Hz-22kHz, 150 ohm (RTA)
A/D Converter
dbx Type IV™ Conversion System
Dynamic Range
>110 dB A-weighted, >107dB unweighted
Interchannel Crosstalk
>110dB, 120dB typical, (input-to-output: >100dB)
Audio Performance
CMRR
> 45dB
