• dbx dB12 Active Direct Box
1 1

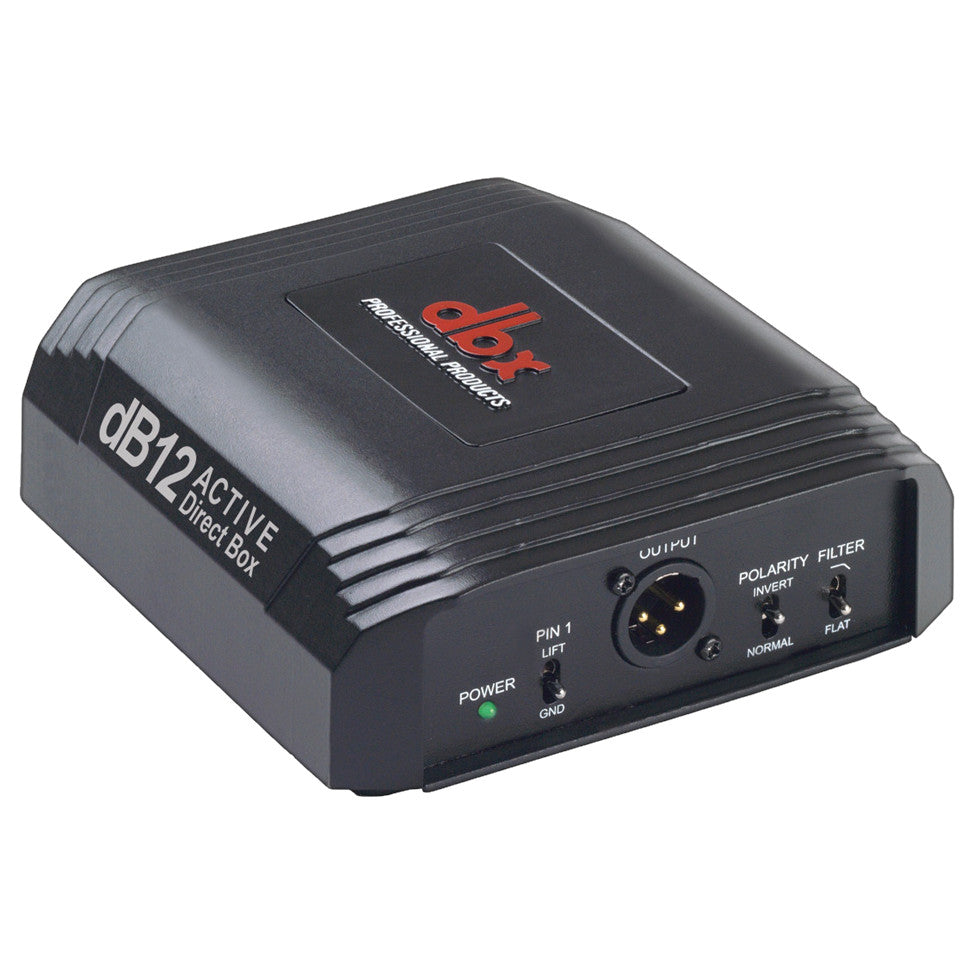

dbx dB12 Active Direct Box

dbx dB12 Active Direct Box

SoundPro Item: 15069 | Part Number: DBXDB12V

$195.00
$240.00 $195.00
Your Price Sold out
MSRP: $240.00 | MAP: $195.00

Usually ships in 5-7 business days

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • Phantom Powered
  • Green LED Phantom Power Indicator
  • +48V Phantom Operation
  • Low-Noise Active Circuitry
Log in or register for YOUR best price

One look at dbx's dB12 Active direct box will tell you that it is clearly different with its bullet-proof construction, and extraordinary audio performance to rival its looks. Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. Also included is a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don’t have time for interference, so a ground lift switch is included to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.

View full details

Specifications

Dimensions
Dimensions (L X W X H)
5.82 x 5.44 x 2.2 inches (148 x 138 x 56mm)
Weight
Unit Weight
1.4 lbs (0.65 kg)
Electrical
Insert Impedance
150k Ohm typical
Audio
Audio Circuit Type
Active
Output
(Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output Connectors
XLR male balanced
Output Impedance
150k Ohm typical
Frequency Response
20Hz to 20kHz, +/-2.5dB
THD
<0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Connectivity
Input
1 instrument/line/speaker level
Input Connectors
1/4" jack
Input Type
Unbalanced, RF filtered
Max Input
+20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Max Output
0dBu
Construction
Transformer
Custom dbx mu-metal-shielded
Included Items
Dbx dB12 Active Direct Box
1x
Four Year Warranty
1x
General
Noise
<-105dB unweighted, 22kHz BW
