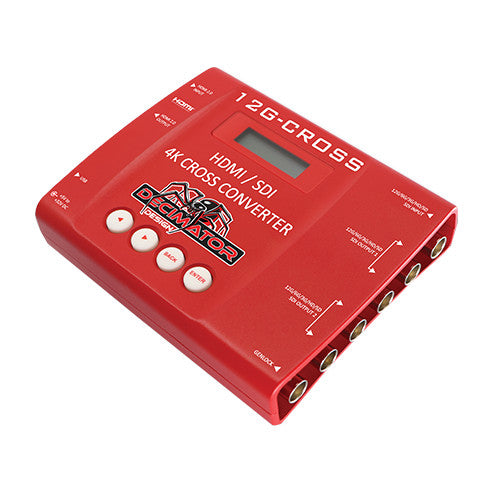

Decimator 12G-CROSS 4K HDMI/SDI Cross Converter
Decimator 12G-CROSS 4K HDMI/SDI Cross Converter
SoundPro Item: 108447 | Part Number: 12G-CROSS
Usually ships in 5-7 business days
- Small, low power portable converter
- Solid robust aluminum case
- 4K scaling engine can be driven by either SDI or HDMI input
- Supports 294 VESA formats via HDMI input
- 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats
- Audio pairs in the SDI and HDMI outputs can be rearranged as required
- 4x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier
- LCD screen and button control system
The Decimator 12G-CROSS is a small low power portable converter encased in a solid robust aluminum case and does not contain a noisy fan. An easy-to-use LCD screen and button control system are incorporated for easy access to the converter's outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting. The 12G-CROSS is built to be used in almost any environment.
The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping, and can be locked to either the SDI, HDMI, or Genlock input.
- 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats
- (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (A or B)
- 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI
- SDI Formats
- 12G:SMPTE 2048-1/2036-1@11.88 and 11.868Gb/s
- (3840 or 4096) x 2160p@60/59.94/50Hz
- 6G: SMPTE 2048-1/2036-1@5.94 and 5.934Gb/s
- (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
- 3G-A or 3G-B: SMPTE 424M@2.97 and 2.967Gb/s
- (1920 or 2048) x 1080p@60/59.94/50Hz
- HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1920 x 1080i@60/59.94/50Hz
- (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
- 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD:SMPTE 259M@270Mb/s
- 720 x 576 (PAL)
- 720 x 480i59.94 (NTSC)
- LCD / Button Menu Options
- SDI output source from HDMI IN, SDI IN or Scaler
- HDMI output type and source from HDMI IN, SDI IN or Scaler
- Scaler source, reference, format and Aspect Controls
- Audio pair routing for HDMI and SDI output
- LCD backlight off time
- Back to Status time
- HDMI Formats
- (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1920 x 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1920 x 1080i@60/59.94/50Hz
- 1280 x 720p@60/59.94/50/30/29.97/25
- 720 x 480p59.94 or 720 x 576p50
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL)
- Inputs
- 1 x HDMI Type A
- 1 x (12G/6G/3G/HD/SD)-SDI
- 1x Genlock
- Outputs
- 1 x HDMI Type A
- 2 x (12G/6G/3G/HD/SD)-SDI Re-clocked Loop-through
- 2 x (12G/6G/3G/HD/SD)-SDI
- Power
- +5V to +32V DC
- Positive Centre Pin
- Dimensions4.2" x 5.1" x 1.2"
