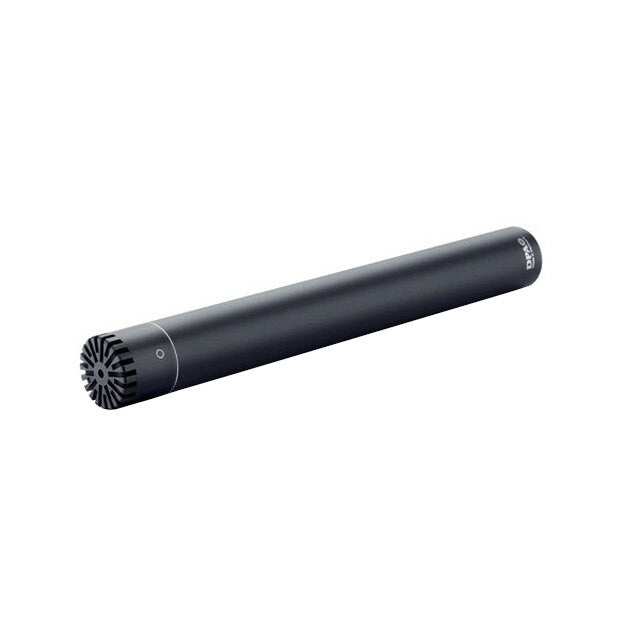

DPA 2006A d:dicate Omni Pencil Condenser Microphone

DPA 2006A d:dicate Omni Pencil Condenser Microphone

SoundPro Item: 43214 | Part Number: 2006A

$1,260.00
$1,260.00 $1,260.00
Your Price Sold out
MSRP: $1,260.00 | MAP: $1,260.00

Usually ships in 5-7 business days

  • Acoustic authenticity
  • Linear throughout a large frequency bandwidth
  • Twin-Diaphragm Capsule Technology
  • Modular flexibility
Log in or register for YOUR best price

DPA's unique Twin Diaphragm Omni Mic Capsule is at the heart of the 2006A d:dicate Omni Pencil Condenser Microphone. This capsule gives the mic a distinctive, well-balanced sound and bridges the gap between the extreme sound quality of their pencil microphones and their well-known lavalier microphones.

Two opposite-facing miniature capsules are custom rebuilt inside this microphone. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to DPA's supreme preamps, which gives the sound more air and precision.

View full details

Specifications

Dimensions
Dimensions
0.75" diameter x 6.5" length
Electrical
Max. Output Voltage, RMS
8 V
Audio
Polar Pattern
Omnidirectional
Frequency Response
20 Hz - 20 kHz
Sensitivity, Nominal, ±2 Db at 1 Khz
40 mV/Pa; -28 dB re. 1 V/Pa
Sensitivity Selection Tolerance (at 1 kHz)
±1.5 dB
Connectivity
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Construction
Color
matte black
Shipping
Weight
5.6 oz
General
Transducer Type
Condenser
Rated Output Impedance
200 ohms
Equivalent Noise Level, A-Weighted
Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 28 dB (max. 30 dB)
Distortion, THD <1%
127 dB SPL RMS, 130 dB SPL peak
Dynamic Range
typ. 114 dB
Max. SPL, THD 10%
146 dB SPL peak
Switchable Attenuator, Filters etc.
0 dB / -20 dB
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Impedance balancing with Active Drive
Power Supply (for Full performance)
P48 (phantom power)
Current Consumption
2.8mA
