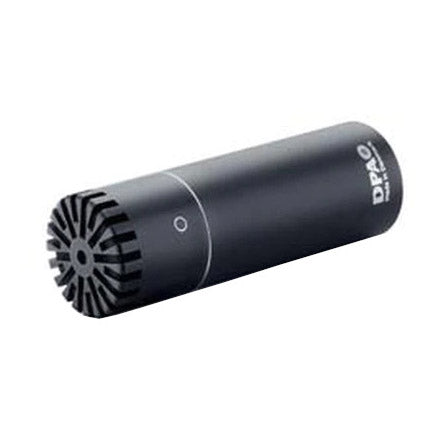

DPA 2006C Twin Diaphragm Omni Microphone

DPA 2006C Twin Diaphragm Omni Microphone

SoundPro Item: 43215 | Part Number: 2006C

$1,070.00
$1,070.00 $1,070.00
Your Price Sold out
MSRP: $1,070.00 | MAP: $1,070.00

Usually ships in 5-7 business days

  • Acoustic authenticity
  • Linear in a large frequency bandwidth
  • Twin-Diaphragm-Capsule technology
  • Modular flexibility
Log in or register for YOUR best price

The d:dicate 2006C Twin Diaphragm Omnidirectional Microphone features a linear omnidirectional mic capsule. The distinctive sound is well balanced. This condenser mic bridges the gap between the extreme sound quality of the d:dicate Microphones series and our well-known Miniature Microphones in the d:screet and d:fine series.

View full details

Specifications

Dimensions
Dimensions
0.75" diameter x 2.3" length
Electrical
Max. Output Voltage, RMS
4.5 V
Audio
Polar Pattern
Omnidirectional
Frequency Response
20 Hz - 20 kHz
Sensitivity, Nominal, ±2 Db at 1 Khz
40 mV/Pa; -28 dB re. 1 V/Pa
Sensitivity Selection Tolerance (at 1 kHz)
±1.5 dB
Connectivity
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Shipping
Weight
2.1 oz
General
Transducer Type
Condenser
Rated Output Impedance
100 ohms
Equivalent Noise Level, A-Weighted
Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 28 dB (max. 30 dB)
Distortion, THD <1%
127 dB SPL RMS, 130 dB SPL peak
Dynamic Range
typ. 114 dB
Max. SPL, THD 10%
146 dB SPL peak
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Impedance balancing with Active Drive
Power Supply (for Full performance)
P48 (phantom power)
Current Consumption
2.8mA
