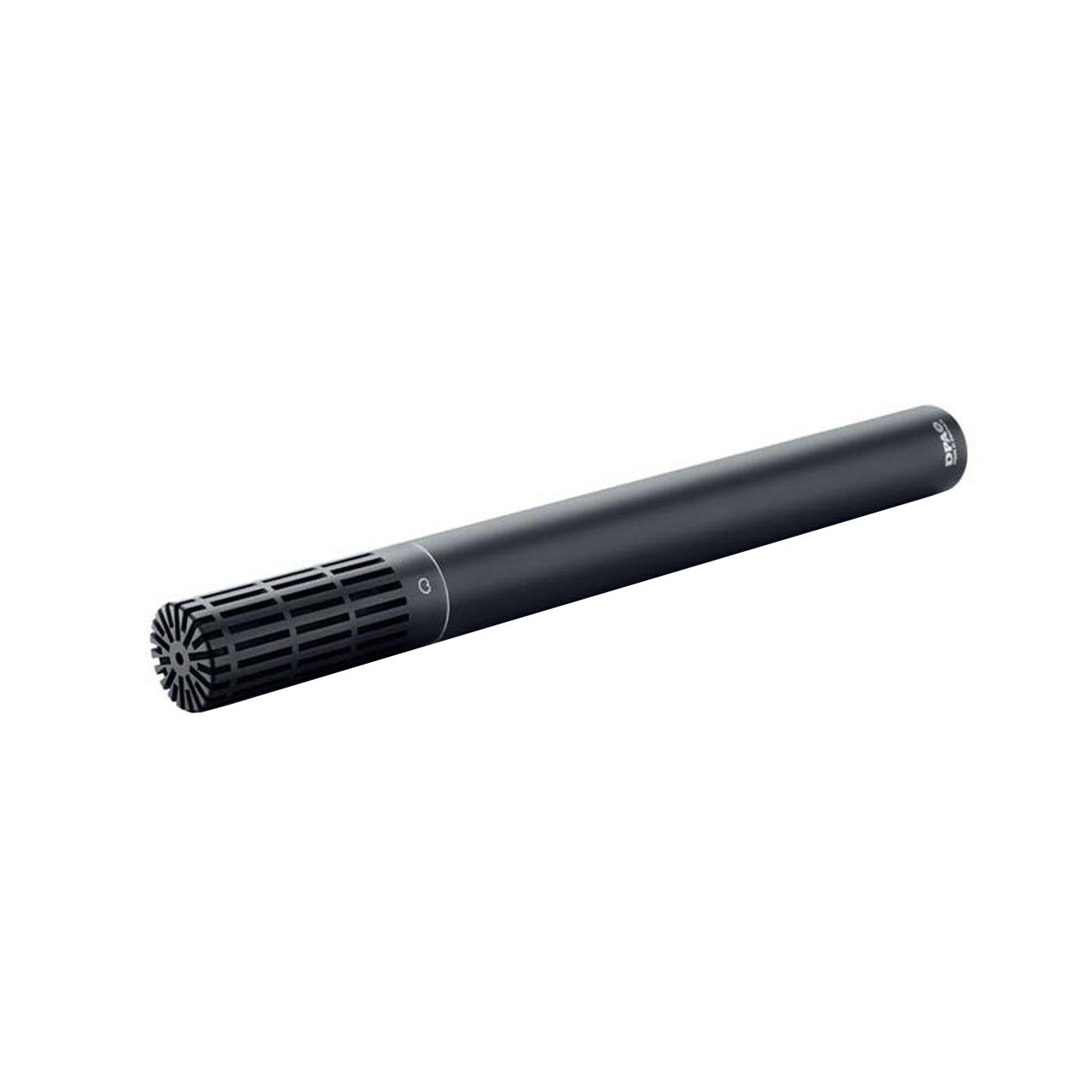

DPA 2011A d:dicate Twin Diaphragm Cardioid Condenser Microphone

DPA 2011A d:dicate Twin Diaphragm Cardioid Condenser Microphone

SoundPro Item: 43218 | Part Number: 2011A

$1,335.00
$1,335.00 $1,335.00
Your Price Sold out
MSRP: $1,335.00 | MAP: $1,335.00

Usually ships in 5-7 business days

  • Blends clarity, richness and dynamics
  • Twin diaphragm capsule and interference tube technologies
  • Superb stage separation and level control
  • Modular flexibility
Log in or register for YOUR best price

The d:dicate 2011A Twin Diaphragm Cardioid Microphone is acclaimed for its close-miking excellence and hi-SPL handling. Optimized for onstage use, it has been used on many stages as well as recording sessions. It exhibits a previously unheard blend of clarity, richness and dynamic range.

The off-axis response is linear but in a smaller frequency bandwidth. This makes stage separation and gain-to-feedback higher. The mic level is easier to control.

View full details

Specifications

Dimensions
Dimensions
0.75" diameter x 7.8" length
Electrical
Max. Output Voltage, RMS
8V
Audio
Polar Pattern
Cardioid
Frequency Response
20 Hz - 20 kHz
Sensitivity, Nominal, ±2 Db at 1kHz
10 mV/Pa; -40 dB re. 1 V/Pa
Sensitivity Selection Tolerance (at 1kHz)
±1.5 dB
Connectivity
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Construction
Color
matte black
Shipping
Weight
5.8 oz
General
Transducer Type
Condenser
Rated Output Impedance
200 ohms
Equivalent Noise Level, A-weighted
Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 33 dB (max. 36 dB)
Distortion, THD < 1%
134 dB SPL RMS, 137 dB SPL peak
Dynamic Range
Typ. 117 dB
Max. SPL, THD 10%
153 dB SPL peak
Switchable Attenuator, Filters etc.
0 dB / -20 dB
Cable Drive Capability
100 m (328 ft)
Output Balance Principle
Impedance balancing with Active Drive
Power Supply (for Full performance)
P48 (Phantom Power)
Current Consumption
2.8mA
