Specifications
Dimensions
Microphone Diameter (HxWxD)
5.5mm (0.22in)
Microphone Length
9.7 mm (0.38 in)
Electrical
Minimum Load Impedance
5Ω
Maximum Output Voltage, RMS
1.6V
Audio
Frequency Response
20 Hz - 20 kHz
Sensitivity, Nominal, ±3 Db at 1 kHz2
6 mV/Pa; -44 dB re. 1 V/Pa
Connectivity
Connector

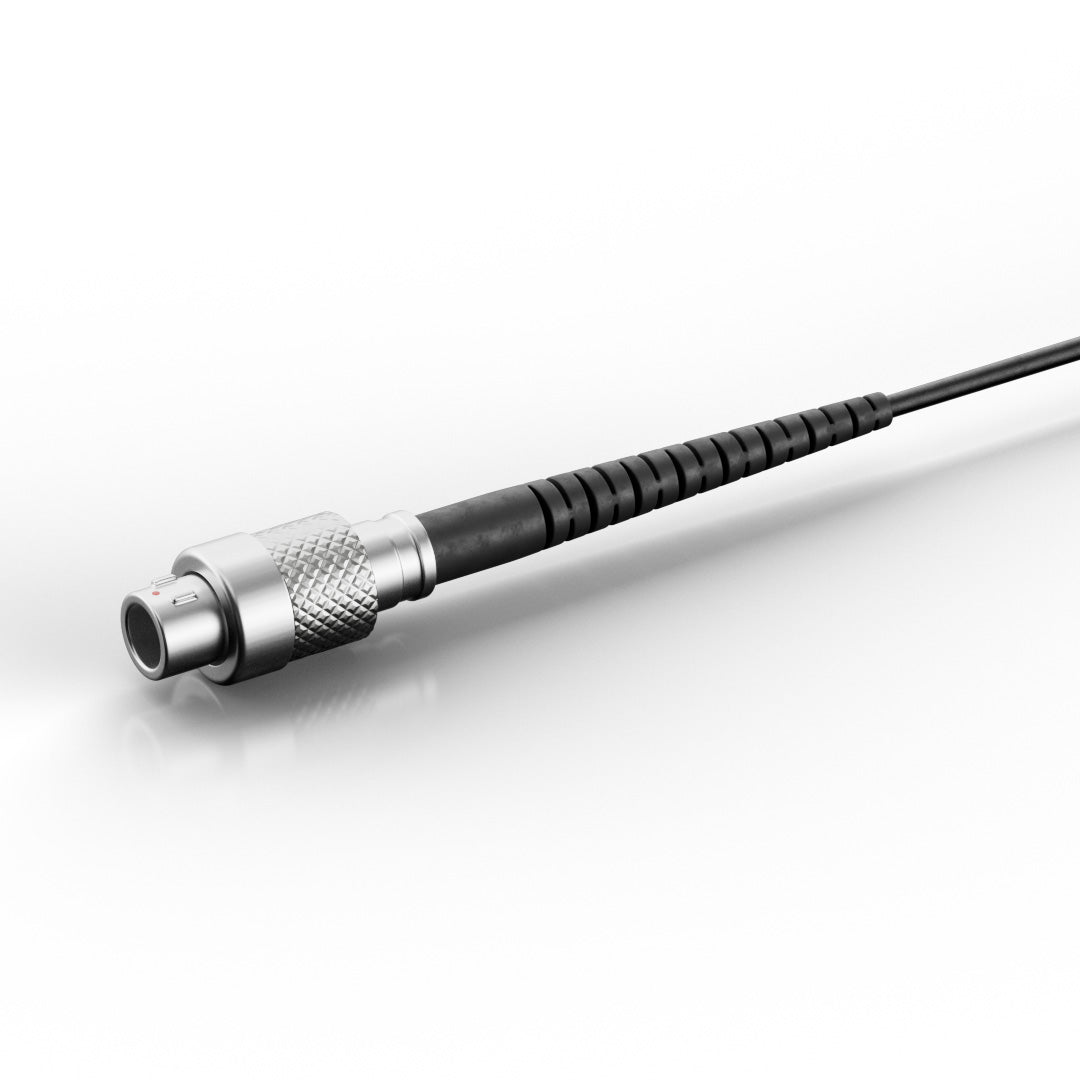

TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Construction
Color
Black, beige, brown or white
Cable Length
1.5 m (4.9 ft)
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Shipping
Weight
10 g (0.35 oz)
General
Directional Pattern
Omnidirectional
Principle of Operation
Pressure
Cartridge Type
Pre-polarized condenser
Effective Frequency Range ±3 Db
50 Hz - 16 kHz , 3 dB soft boost at 8 - 16 kHz
Equivalent Noise Level, A-weighted
Typ. 26 dB(A) re. 20 μPa
Distortion, THD < 1%
125 dB SPL RMS, 128 dB SPL peak
Dynamic Range
Typ. 102 dB
Max. SPL, THD 10%
137 dB SPL peak
Rated Output Impedance
112Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power Supply (for Full performance)
For wireless systems: Min. 5V - max. 10V
Current Consumption
Typ. 0.6 mA
Polarity
+V at output for positive sound pressure
Relative Humidity (RH)
Up to 90%
