• DPA 4098 CORE Supercardioid Gooseneck Microphone with MicroDot black
  • DPA 4098 CORE Supercardioid Gooseneck Microphone with MicroDot 16cm
1 2

DPA 4098 CORE Supercardioid Gooseneck Microphone with MicroDot | Color: White, Length: 16 cm

DPA 4098 CORE Supercardioid Gooseneck Microphone with MicroDot | Color: White, Length: 16 cm

SoundPro Item: 110707 | Part Number: 4098-DC-G-W00-015

$775.00
$775.00 $775.00
Your Price Sold out
MSRP: $775.00 | MAP: $775.00

Usually ships in 5-7 business days

  • Outstanding audio quality
  • Wireless podium mic capability
  • Highly directional – very isolated
  • High rejection of radio frequency interference
  • Sleek Scandinavian design
Log in or register for YOUR best price

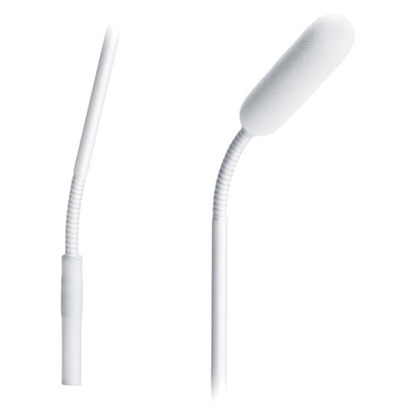

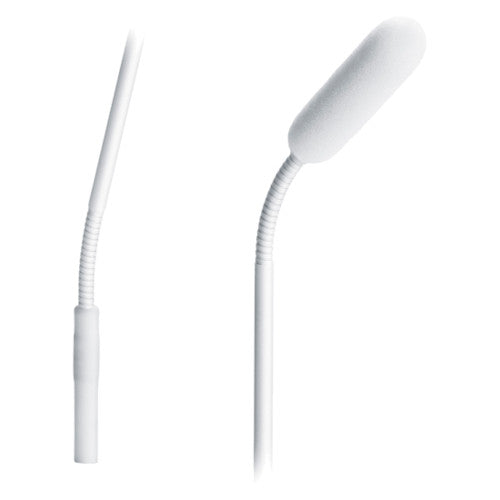

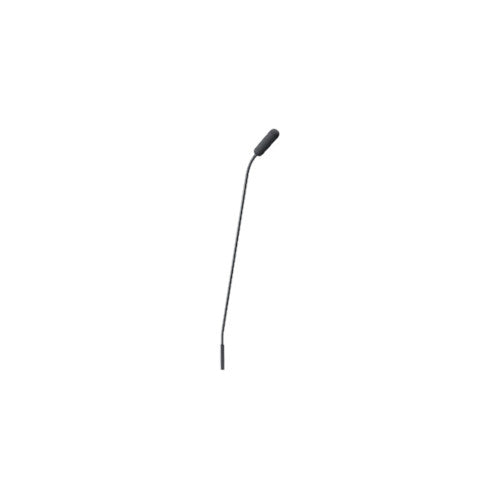

The 4098 from DPA is a supercardioid gooseneck microphone with MicroDot. DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount.

CORE by DPA technology has been added to the 4098 microphone, lifting sound quality even more, just like all of the other products using CORE technology. The 4098s dynamic range has been increased by 8 dB, so that the 1% THD is lifted significantly to 133 dB.

With very low noise and a high sensitivity, 4098 CORE Supercardioid Microphones offer the most clear, transparent, and natural sound available on the miniature mic market. The mics are capable of handling extremely high SPL before clipping, which allows the mic to deliver high speech intelligibility even when the speaker gets excited and starts to speak VERY loudly. With a linear response, low distortion and an extremely large dynamic range, these mics sound great no matter how challenging the environment.

In addition, speaking into the side (off-axis) of the microphone doesn’t make the audio sound worse, it just drops the level of your voice.

View full details

Specifications

Dimensions
Available Lengths
16, 28, and 43 cm
Microphone Diameter
5.7 mm (0.22 in)
Electrical
Distortion, THD < 1% - Legacy
122 dB SPL RMS, 125 dB SPL peak
Distortion, THD < 1% - CORE
130 dB SPL RMS, 133 dB SPL peak
Minimum Load Impedance
2 kΩ
Audio
Frequency Response
20 Hz - 20 kHz
Sensitivity, Nominal, ±3 Db at 1 Khz
16 mV/Pa; -36 dB re. 1 V/Pa
Dynamic Range - Legacy
Typ. 102 dB
Dynamic Range - CORE
Typ. 110 dB
Connectivity
Connector
MicroDot
Construction
Available Colors
Black, white
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
General
Directional Pattern
Supercardioid
Principle of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
Effective Frequency Range ±2 Db, at 20 Cm (7.9 in)
80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
Equivalent Noise Level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 35 dB (max. 38 dB)
Max. SPL, THD 10%
135 dB SPL peak
Rated Output Impedance
From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Output Balance Principle
Signal balanced with XLR connector or DAD6001-BC XLR Adapter
Common Mode Rejection Ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power Supply (for Full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems or P48 (Phantom Power) with DAD6001-BC XLR adapter
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
16 Cm (6 in)
12 g (0.4 oz)
28 Cm (11 in)
20 g (0.7 oz)
43 Cm (17 in)
28 g (1.0 oz)
77 Cm (30 in)
55 g (1.9 oz)
122 Cm (48 in)
67 g (2.4 oz)
Polarity
+V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)
Relative Humidity (RH)
Up to 90%
