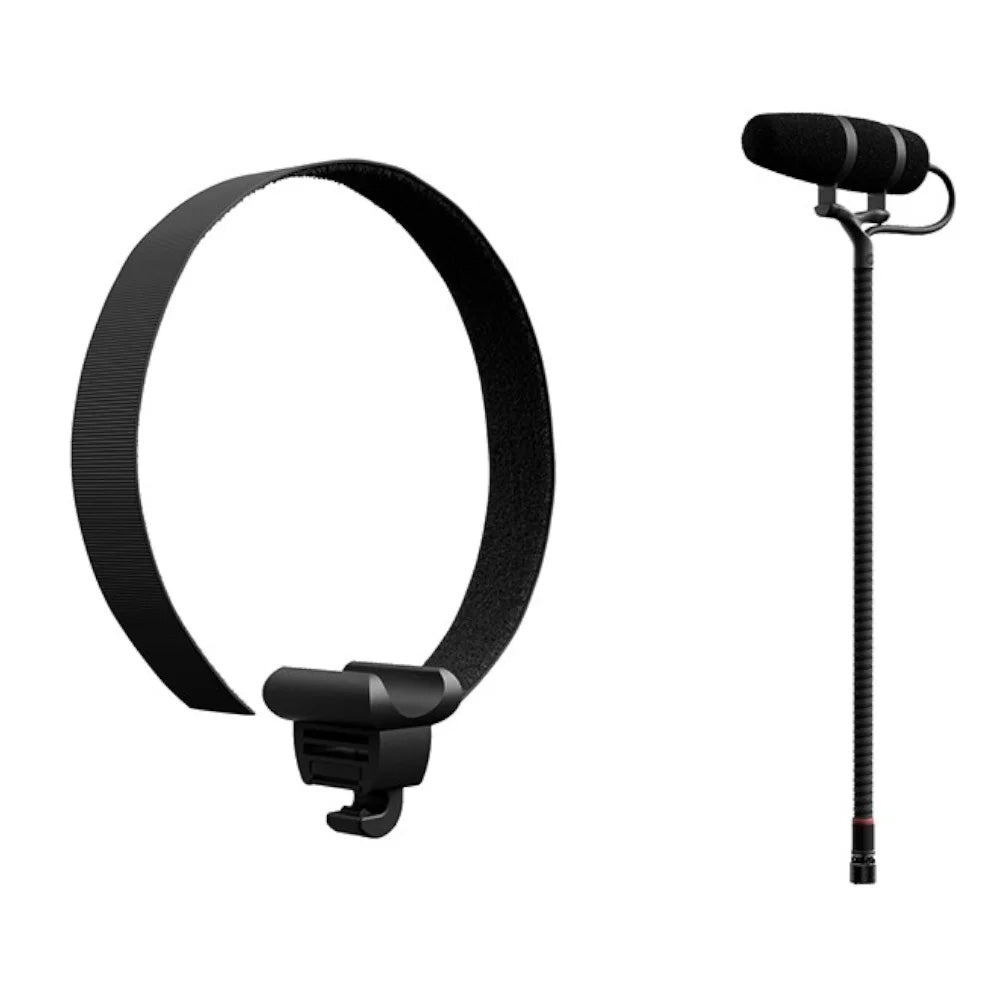

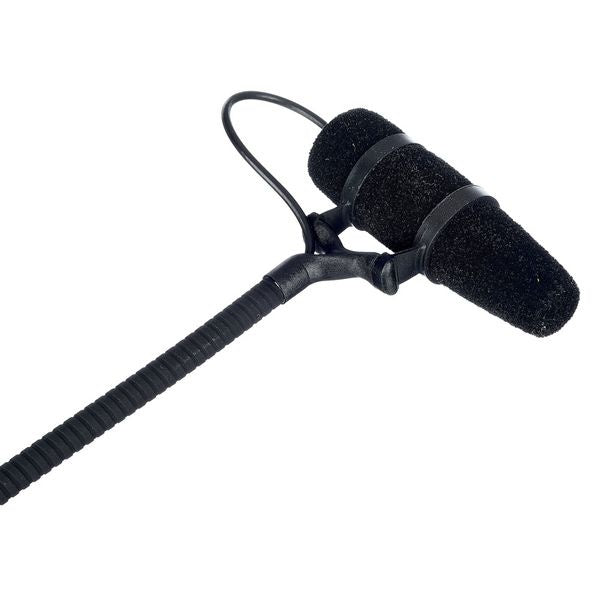

DPA Microphones 4099 Supercardioid Instrument Mic With CORE+ | Universal Clip (U-CLIP)

DPA Microphones 4099 Supercardioid Instrument Mic With CORE+ | Universal Clip (U-CLIP)

SoundPro Item: 200119 | Part Number: 4099-DP-1-101-U

$760.00
$760.00 $760.00
Your Price Sold out
MSRP: $760.00 | MAP: $760.00

Usually ships in 5-7 business days

  • CORE+ Capsule Technology Extends Headroom And Lowers Distortion For Natural Transient Reproduction
  • IP58 Environmental Sealing Protects Against Stage Moisture And Airborne Contaminants
  • Supercardioid Pattern Provides Superior Gain-Before-Feedback In High-Volume Stage Environments
  • MicroLock Connector Enables Direct Integration With Wireless Systems Without Inline Adapters
  • Flexible Gooseneck And Quick-Release Clamp Allow Rapid Repositioning Between Instruments
  • Pre-Polarized Condenser Design Operates From Phantom Power Or Wireless Transmitter Voltage
Log in or register for YOUR best price

The DPA Microphones 4099 CORE+ addresses the dual challenge of high-SPL instrument miking and quick repositioning during live production. Its supercardioid capsule handles up to 145 dB SPL peak while maintaining a 118 dB dynamic range, making it equally suited to amplified brass sections and acoustic string quartets. The IP58-certified capsule withstands stage conditions that sideline conventional condenser microphones, and the MicroLock connector enables adapter-free pairing with wireless transmitters from major manufacturers.

Sound engineers rely on this system for orchestral recording, theater production, and broadcast remotes where consistent off-axis rejection matters more than raw proximity effect. The included clamp mount attaches to bell rims, f-holes, and stand hardware without marring finishes or requiring adhesive, and the gooseneck adjusts to optimal positioning faster than magnetic or elastic alternatives. When paired with the DAD9099 or DAD9001 XLR adapter, the microphone drives balanced signal up to 300 meters without degradation, solving cable-run challenges in large venues and outdoor festivals.

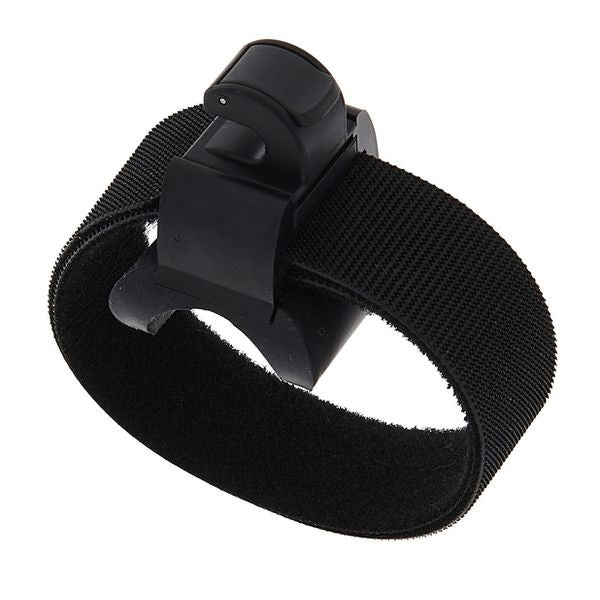

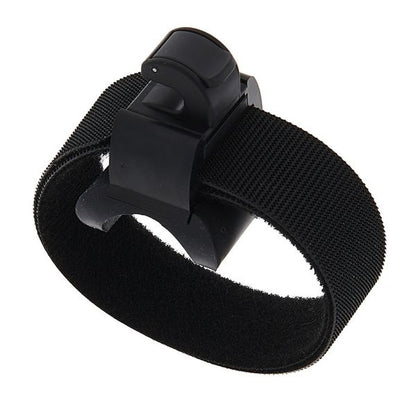

This configuration ships with the U-CLIP mount, utilizing a hook-and-loop fastener strap to fit instruments of varying shapes and sizes such as oboe, bassoon, and flute. The 4099 platform supports instrument-specific clips sold separately, allowing one microphone investment to serve guitar, violin, cello, piano, and drum applications as production needs evolve.

Downloads

View full details

Specifications

Certifications
Capsule IP Rating
IP58
Audio
Directional Pattern
Supercardioid
Principle Of Operation
Pressure gradient
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range (±2 dB at 20 cm)
80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity (Nominal, ±3 dB at 1 kHz)
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level (A-Weighted)
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent Noise Level (ITU-R BS.468-4)
Typ. 35 dB (max. 38 dB)
Distortion (THD < 0.5%)
135 dB SPL RMS, 138 dB SPL peak
Distortion (THD < 1%)
138 dB SPL RMS, 141 dB SPL peak
Dynamic Range
Typ. 118 dB
Max SPL (THD 10%)
145 dB SPL peak
Connectivity
Rated Output Impedance
From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output Balance Principle
Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common Mode Rejection Ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Connector
MicroLock
Polarity
+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Power
Power Supply
For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Dimensions
Microphone Diameter
5.7 mm (0.22 in)
Microphone Length
50 mm (1.97 in)
Gooseneck Length
140 mm (5.5 in)
Cable Length
1.8 m (5.9 ft)
Cable Diameter
1.6 mm (0.06 in)
Weight
Microphone Weight
18 g (0.63 oz)
Universal Microphone Clip (U-CLIP) Weight
15 g (0.53 oz)
Construction
Color
Black
Cable Color
Black
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity (RH)
Up to 90%
