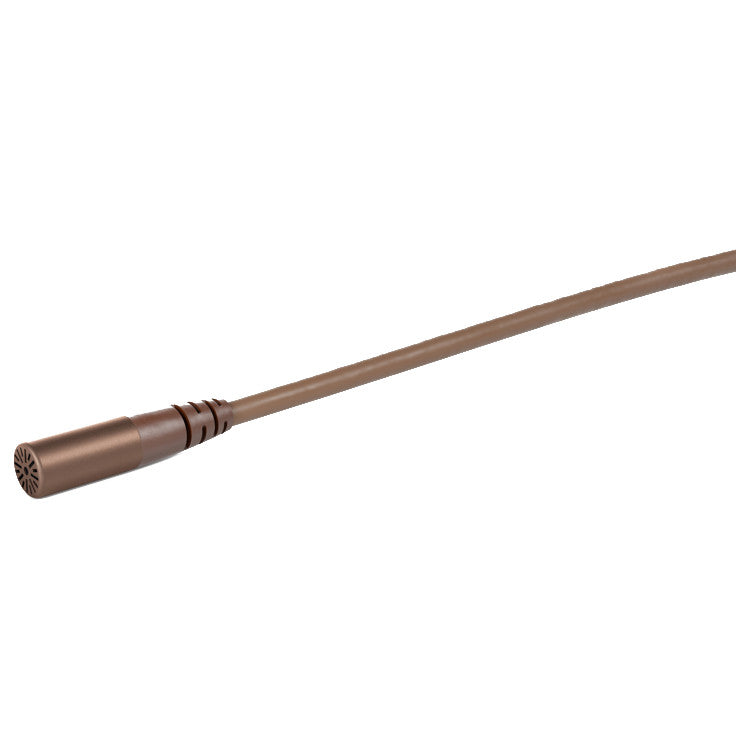

DPA 6060 CORE Omni Subminiature Lavalier Microphone | Color: Brown, Connector: TA4F-XLR
DPA 6060 CORE Omni Subminiature Lavalier Microphone | Color: Brown, Connector: TA4F-XLR
SoundPro Item: 84224 | Part Number: 6060-OC-U-C10
Usually ships in 5-7 business days
- Amazing 3 mm CORE capsule technology
- Renowned DPA sound in a 60% smaller package
- Stainless steel, PVD-coated mic housing
- Modular adapter system fits most professional wireless systems
- IP 58 Certified
6060 CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.
- Directional patternOmnidirectional
- Principle of operationPressure
- Cartridge typePre-polarized condenser
- Frequency response20 Hz - 20 kHz
- Effective frequency range ±2 dB40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
- Sensitivity, nominal, ±2.4 dB at 1 kHz20 mV/Pa; -34 dB re. 1 V/Pa
- Equivalent noise level, A-weightedTyp. 24 dB(A) re. 20 μPa (max. 26 dB(A))
- Distortion, THD < 1%123 dB SPL RMS, 126 dB SPL peak
- Dynamic rangeTyp. 102 dB
- Max. SPL, THD 10%134 dB SPL peak
- Rated output impedance30 - 40Ω
- Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance)
- For wireless systems: Min. 5V - max. 10V through DPA adapter
- With DAD6001-BC: P48 (Phantom Power). Will work from 12V
- Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- ConnectorMicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
- ColorBlack, beige, brown or white
- Weight8 g (0.29 oz) incl. Cable and MicroDot connector
- Microphone head size (HxWxD)3.4 / 14.4 mm (0.13 / 0.57 in)
- Capsule diameter3 mm (0.12 in)
- Cable length1.8 m (5.9 ft)
- PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
- Temperature range-40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)Up to 90%
