• DPA 6066 d:fine CORE Omni Headset Microphone
1 1

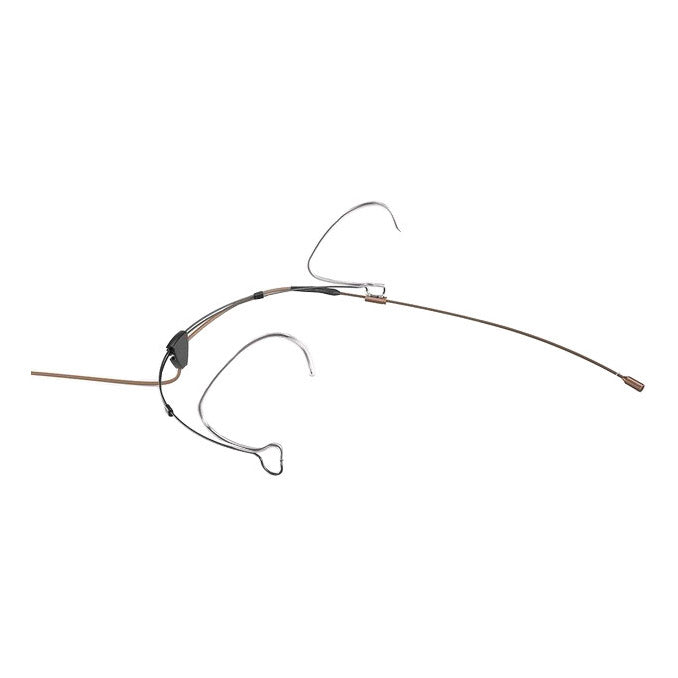

DPA Microphones 6066 CORE Omni Subminiature Headset | TA4F Mini-XLR | Brown

DPA Microphones 6066 CORE Omni Subminiature Headset | TA4F Mini-XLR | Brown

SoundPro Item: 44387 | Part Number: 6066-OC-R-C10

$1,175.00
$1,175.00 $1,175.00
Your Price Sold out
MSRP: $1,175.00 | MAP: $1,175.00

Usually ships in 5-7 business days

  • CORE By DPA Capsule Technology Delivers Studio-Grade Transparency In 3 Millimeter Form Factor
  • 3-Point Ear Gripping System Maintains Consistent Positioning Without Pressure Fatigue
  • 90° Cable Exit Design Reduces Stress At Connector Junction And Extends Service Life
  • IP58 Ingress Protection Ensures Reliable Operation Under Perspiration And Environmental Moisture
  • MicroLock Connector Enables Field-Swappable Adapters For All Professional Wireless Systems
  • Adjustable Non-Reflective Boom With Locking Mechanism Prevents Unwanted Visual Reflection
  • Two-Way Adjustability And One-Size-Fits-All Design Accommodate Diverse Head Geometries
Log in or register for YOUR best price

The 6066 CORE Subminiature Headset delivers full-spectrum DPA audio transparency in a capsule one-third the size of conventional headworn microphones. At just 3 mm in diameter, the omnidirectional element provides consistent frequency response from 20 Hz to 20 kHz with a designed 4 dB soft boost between 8–20 kHz that compensates for proximity losses common in subminiature designs. The result is intelligible speech reproduction that translates reliably across broadcast, installed worship, and theatrical environments.

Engineers specify this headset for demanding installation projects where concealment matters but sonic compromise is unacceptable. The 3-point ear grip distributes pressure above, below, and behind the ear, maintaining capsule position through energetic movement without discomfort during extended wear. The integrated 90° cable exit geometry guides the 1.3 m run along the neck and reduces stress at the connector junction, a common failure point in professional headworn systems. IP58 ingress protection ensures performance under perspiration, dust, and environmental moisture encountered in live production.

TA4F Mini-XLR connectivity enables field-swappable wireless adapters for Shure, Sennheiser, Lectrosonics, and other professional transmitter platforms. With 144 dB peak SPL capability at 10% THD and equivalent self-noise of just 26 dB(A) typical, the capsule accommodates both intimate vocal work and high-output vocal performance without gain-structure compromise or audible noise floor.

View full details

Specifications

Audio
Polar Pattern
Omnidirectional
Sensitivity, Nominal, ±3 Db at 1 Khz
6 mV/Pa; -44 dB re. 1 V/Pa
General
Capsule IP Rating
IP58
Directional Pattern
Omnidirectional
Principle Of Operation
Pressure
Cartridge Type
Pre-polarized Condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range ±2 dB
40 Hz - 20 kHz With 4 dB Soft Boost At 8 - 20 kHz
Sensitivity, Nominal, ±2.4 dB At 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent Noise Level, A-Weighted
Typ. 26 dB(A) re. 20 μPa (Max. 28 dB(A))
Distortion, THD < 0.5%
122 dB SPL RMS, 125 dB SPL Peak
Distortion, THD < 1%
125 dB SPL RMS, 128 dB SPL Peak
Dynamic Range
Typ. 102 dB
Max. SPL, THD 10%
144 dB SPL Peak
Connector
TA4F Mini-XLR
Rated Output Impedance
From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) With DAD9001 XLR Adapter
Output Balance Principle
Signal Balanced With DAD9001 XLR Adapter
Power Supply (For Full Performance)
For Wireless Systems Min. 5 V - Max. 10 V Through DPA Adapter, With DAD9001: P48 (Phantom Power). Will Work From 12 V
Current Consumption
Typ. 1.5 mA (Microphone). 3.5 mA With DAD9001 XLR Adapter
Color
Brown
Polarity
Positively Increasing Sound Pressure Produces Positive Going Voltage On TA4F Mini-XLR Pin
Microphone Head Size (H x W x D)
3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule Diameter
3 mm (0.12 in)
Cable Length
1.3 m (4.3 ft)
Weight
11 g (0.40 oz) Incl. Cable And TA4F Mini-XLR Connector
Temperature Range
-40°C To 45°C (-40°F To 113°F)
Relative Humidity (RH)
Up To 90%
Transducer Type
Condenser
