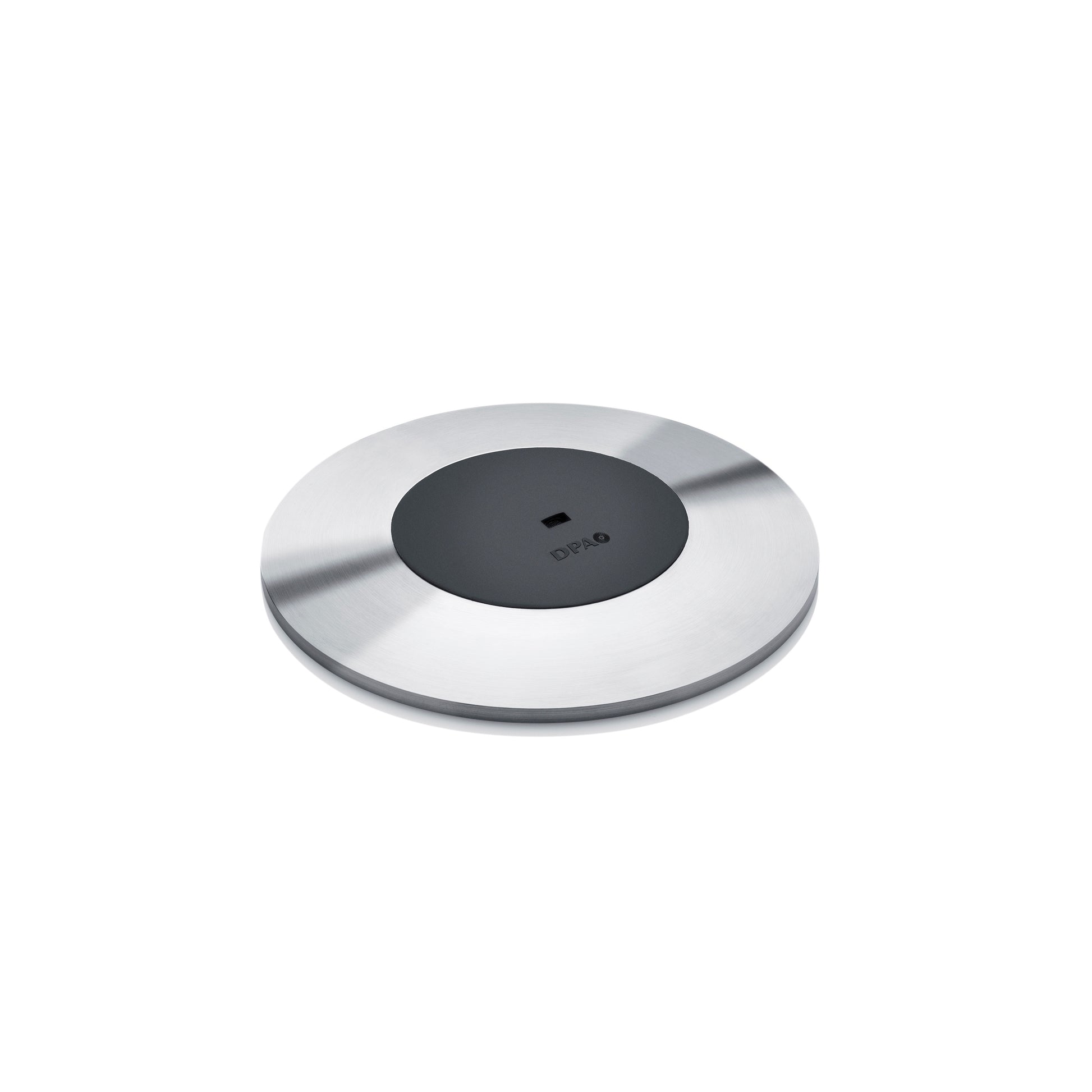

DPA Microphones 4060-OP-D-S01-002 Omni Boundary Layer Mic With XLR

DPA Microphones 4060-OP-D-S01-002 Omni Boundary Layer Mic With XLR

SoundPro Item: 208018 | Part Number: 4060-OP-D-S01-002

$945.00
$945.00 $945.00
Your Price Sold out
MSRP: $945.00 | MAP: $945.00

Usually ships in 5-7 business days

  • CORE By DPA Technology Delivers Precise Transducer Performance In Installed Environments
  • Boundary Layer Design Provides 6 dB Gain Of Direct Sound Over Diffuse Sound
  • M5 Threaded Mounting Holes Allow Permanent Surface Affixing
  • MicroDot Connector Supports Full DPA Wireless Adapter Ecosystem
  • Omnidirectional Hemisphere Pattern Captures All Talkers Around A Conference Table
  • Sleek Scandinavian Profile Stays Visually Unobtrusive On Any Table Surface
Log in or register for YOUR best price

The DPA Microphones 4060-OP-D-S01-002 is a boundary layer microphone engineered specifically for permanent installed audio environments where consistent, transparent speech capture is critical. Conference rooms, boardrooms, courtrooms, and teleconferencing suites are primary use cases. The boundary layer placement physics deliver a 6 dB gain of direct sound and only a 3 dB gain of diffuse sound, which translates directly into cleaner intelligibility and better rejection of room noise compared to overhead or gooseneck alternatives.

Built around CORE by DPA transducer technology, this mic draws on engineering originally developed for precision measurement and hearing aid applications. The pre-polarized omnidirectional condenser capsule handles up to 134 dB SPL peak before clipping, making it equally capable in high-energy acoustic environments. Two M5 threaded holes on the underside of the stainless steel base allow permanent table mounting, and the slim 1.6 mm cable can be routed through or along the table surface for a clean install. The slim rubber disc profile keeps the unit visually unobtrusive on any conference table surface.

The mic ships with a DAD6001 XLR adapter for direct connection to any phantom-powered mic preamp, but the MicroDot cable termination also opens the unit to DPA's full adapter ecosystem, including wireless transmitter adapters from major manufacturers. This flexibility makes the 4060-OP-D-S01-002 a practical choice for integrators who need a single mic solution that can serve both hardwired and wireless signal paths across different room configurations.

Downloads

View full details

Specifications

Audio
Directional Pattern
Omnidirectional, hemisphere
Principle Of Operation
Pressure
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range (±2 dB)
20 Hz - 14 kHz, with 7 dB soft boost at 8 kHz
Sensitivity (nominal, ±3 dB at 1 kHz)
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent Noise Level (A-weighted)
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent Noise Level (ITU-R BS.468-4)
Typ. 35 dB (max. 38 dB)
Distortion THD < 0.5%
128 dB SPL RMS, 131 dB SPL peak
Distortion THD < 1%
129 dB SPL RMS, 132 dB SPL peak
Dynamic Range
Typ. 106 dB
Max SPL (THD 10%)
134 dB SPL peak
Rated Output Impedance
From MicroLock: 30 - 40 Ω. From DAD9001-BC: 100 Ω
Polarity
Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD9001-BC XLR adapter)
Connectivity
Connector
MicroLock or XLR 3-pin
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
Power
Power Supply
For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current Consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
Dimensions
Microphone Diameter
12 mm (0.47")
Microphone Length
100 mm (4")
Cable Length
3 m (10')
Cable Diameter
1.6 mm (0.06")
Weight
Unit Weight
240 g (8.5 oz) excl. cable
Construction
Colors
Black rubber disc mounted in stainless steel base
Environmental
Temperature Range
-40°C to 45°C (-40°F to 113°F)
Relative Humidity
Up to 90%
Included Items
Adapter
DAD6001 XLR Adapter
