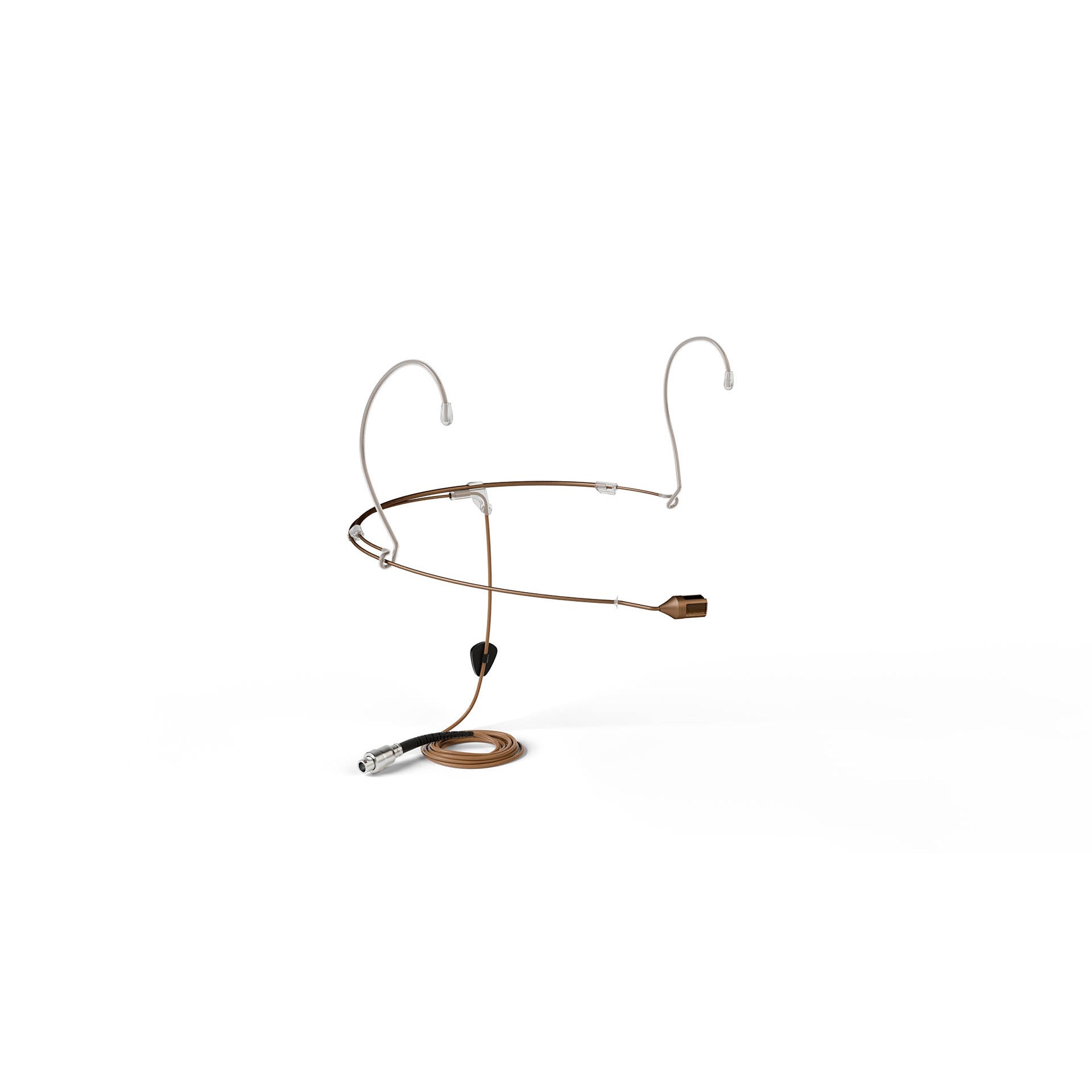

DPA Microphones 6000 Series 6388 CORE+ Directional Headset Microphone | Brown | 3 Pin | Standard

DPA Microphones 6000 Series 6388 CORE+ Directional Headset Microphone | Brown | 3 Pin | Standard

SoundPro Item: 207223 | Part Number: 6388-DP-A-C03-LH

$1,190.00
$1,190.00 $1,190.00
Your Price Sold out
MSRP: $1,190.00 | MAP: $1,190.00

Usually ships in 5-7 business days

  • CORE+ Capsule Technology Delivers Low-Distortion Audio With Exceptional Clarity
  • Supercardioid Polar Pattern Provides Strong Off-Axis Rejection And Gain-Before-Feedback
  • Optimized Voice Capture Maintains Intelligibility Even With Imperfect Placement
  • IP58-Certified Capsule Offers Environmental Protection For Live Production Demands
  • Secure Ergonomic Fit Stays In Position Throughout Extended Wear
  • Fast Mounting And Adjustment System Supports Quick Changeovers
Log in or register for YOUR best price

The DPA Microphones 6388 is engineered for sound engineers, RF coordinators, and production teams who require consistent, broadcast-grade vocal reproduction from a headset microphone in high-stakes environments. Built around DPA's CORE+ capsule technology, it targets applications where speech intelligibility cannot be compromised — theater production, televised events, corporate presentation systems, and touring musical productions where wireless reliability and audio transparency are equally critical.

The supercardioid polar pattern provides focused pickup and strong off-axis rejection, giving engineers meaningful gain-before-feedback headroom in challenging acoustical environments. The design accommodates imperfect capsule placement without sacrificing vocal intelligibility, a practical advantage in live scenarios where precise mic positioning is difficult to maintain across a full run. The ergonomic mounting system enables fast adjustment during quick changeovers, reducing downtime between performances or segments.

Where comparable miniature headset microphones trade environmental durability for sensitivity, the 6388 holds its ground with an IP58 capsule rating while maintaining a wide dynamic range capable of handling both quiet dialogue and high-SPL vocal performance without distortion artifacts. It is compatible with DPA's MicroLock adapter ecosystem as well as the DAD9001 XLR adapter for wired or phantom-powered installations, making it a single-platform solution across wireless and installed audio contexts.

View full details

Specifications

Certifications
Capsule IP Rating
IP58
Audio
Directional Pattern
Supercardioid
Principle Of Operation
Pressure
Cartridge Type
Pre-polarized condenser
Frequency Response
20 Hz - 20 kHz
Effective Frequency Range ±2 dB
100 Hz - 18 kHz with 1 dB soft boost at 14 kHz
Sensitivity, Nominal, ±2.4 dB at 1 kHz
8 mV/Pa; -42 dB re. 1 V/Pa
Equivalent Noise Level, A-weighted
Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Equivalent Noise Level, ITU-R BS.468-4
Typ. 37 dB (max. 38 dB)
Distortion, THD < 0.5%
138 dB SPL, RMS, 141 dB SPL peak
Distortion, THD < 1%
140 dB SPL RMS, 143 dB SPL peak
Dynamic Range
Typ. 117 dB
Max. SPL, THD 10%
144 dB SPL peak
Rated Output Impedance
From MicroLock: 60 - 80 Ω. From DAD9001: 100 Ω
Cable Drive Capability
Up to 300 m (984 ft) with DAD9001 XLR Adapter
Dimensions
Microphone Head Size (H x W x D)
ø6.3 / 13.3 mm (ø0.25 / 0.52 in)
Capsule Diameter
5.1 mm (0.2 in)
Cable Length
1.3 m (4.3 ft)
Weight
Product Weight
17 g (0.6 oz) incl. cable and connector
Connectivity
Connector
3-pin LEMO
Construction
Color
Brown
Polarity
Positively increasing sound pressure produces positive going voltage on MicroLock pin
Electrical
Power Supply (For Full Performance)
For wireless systems Min. 5 V - max. 10 V through DPA adapter; With DAD9001: P48 (Phantom Power). Full performance from 14 V
Current Consumption
Typ. 1.0 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Environmental
Temperature Range
–40°C to 45°C (–40°F to 113°F)
Relative Humidity (RH)
Up to 90%
Shipping
Package Weight
0.49 lbs
Package Length
9.17"
Package Width
5.35"
Package Height
1.69"
