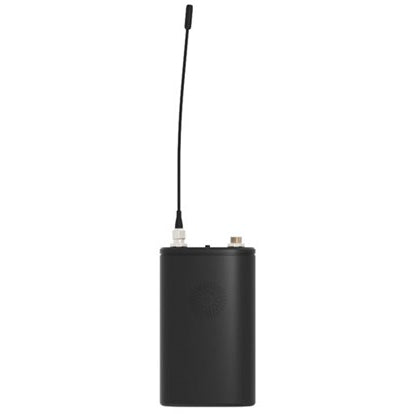

DPA N-BP1-03-A, Bodypack Transmitter

DPA N-BP1-03-A, Bodypack Transmitter

SoundPro Item: 201878 | Part Number: N-BP1-03-B

$695.00
$695.00 $695.00
Your Price Sold out
MSRP: $695.00 | MAP: $695.00

Usually ships in 5-7 business days

  • Wide frequency range: from 470 MHz to 870 MHz
  • Contoured shape that fits the body comfortably
  • 8+ hours of operation with standard AA batteries
  • DPA Rechargeable Battery Pack (optional)
  • Easy battery loading
Log in or register for YOUR best price

N-Series Bodypack Transmitter, 3-pin LEMO

N-Series uniquely designed bodypack transmitters are lightweight and formed to match the contours of the human body for comfortable long-term use.

View full details

Specifications

Frequency Response
20 - 20 kHz (±1 dB)
RF Frequency Range
470 - 870 MHz (Varies by region)
RF Tuning Steps
25 kHz
Battery Runtime at 10 mW
>8 hours
Audio Input Impedance
MicroLock, LEMO 3-pin, N-BP1-03 - 5 kΩ
RF Sensitivity
-96 dBm at 10^-5 BER
Audio Polarity
Positively increasing sound pressure produces positive going voltage on relevant audio outputs
Radio Frequency Power
1 mW, 5 mW, 10 mW, 20 mW, 50 mW (follows region)
Working Range
100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
Audio Dynamic Range (system) Analog and Digital
126 dB
Audio Frequency Response
20 - 20 kHz (±1 dB)
Audio Bias Voltage
5 Volts DC
Latency
<2.9 ms
Radio Frequency Bandwidth
470 - 870 MHz (follows region)
Max Input Level < 1% THD @ 1 kHz
1,8 Vrms
Housing Type
Zink alloy
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-20°C to 50°C (4°F to 122°F) Without batteries installed
Digital Audio Trim
-20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
Audio Input Connector
LEMO 3-pin, N-BP1-03 - 2 and 3-wire input
Antenna Connector Type
SMA
Antenna Type
1/4 wave
Occupied Bandwidth
< 200 kHz
Battery Type
LR6 AA batteries
Dimension (H x W x D)
87 mm (3.4 in) x 53 mm (2.1 in) x 24 mm (0,9 in)
Weight
153 g (5.4 oz)
