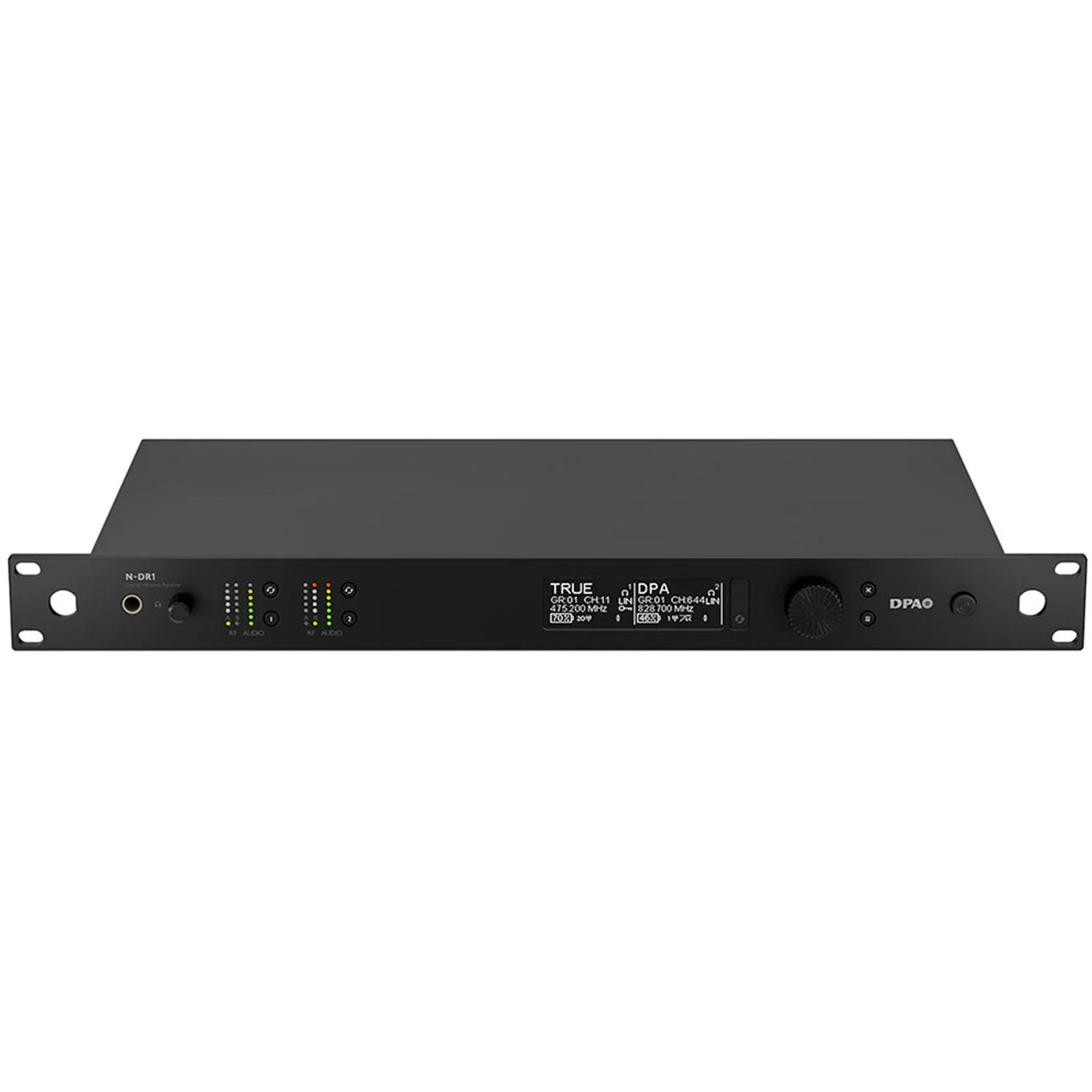

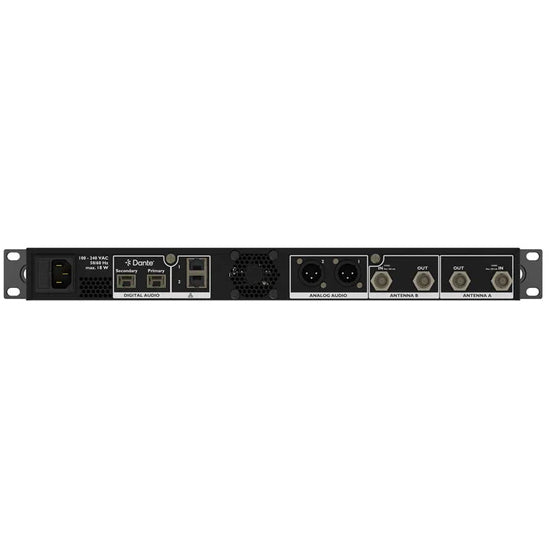

DPA N-DR1 Dual Channel Digital Wireless Receiver (Dante Output)

DPA N-DR1 Dual Channel Digital Wireless Receiver (Dante Output)

SoundPro Item: 201875 | Part Number: N-DR1

$3,465.00
$3,465.00 $3,465.00
Your Price Sold out
MSRP: $3,465.00 | MAP: $3,465.00

Usually ships in 5-7 business days

  • Wideband – 470 - 870 MHz bandwidth in each unit
  • Sleek front panel design offers an easy overview of features
  • LAN control with built-in switch for loop through
  • Dante Switched and Redundancy modes
  • Antenna inputs with power for active antennas and active loop through
  • 126 dB true dynamic range
Log in or register for YOUR best price

N-DR1 - N-Series Dual Channel Digital Wireless Receiver w. DANTE Output, 870 MHz, designed with ease-of-use in mind and packed with high-end functionality.

View full details

Specifications

RF Frequency Range
470 - 870 MHz (Varies by region)
RF Input Impedance
50 Ω
RF Tuning Steps
25 kHz
RF Sensitivity
-96 dBm at 10^-5 BER
Audio Polarity
Positively increasing sound pressure produces positive going voltage on relevant audio outputs
Working Range
100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
Audio Dynamic Range (system) analog
126 dB
Audio Dynamic Range (system) Digital
126 dB
Audio Frequency Response
20 - 20 kHz (±1 dB)
Latency
<2.9 ms
Dante Interface
Primary / Secondary on separate connectors from Control Network
Housing Type
Steel and Aluminium
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Storage Temperature
-20°C to 50°C (4°F to 122°F) Without batteries installed
Digital Audio Trim
-20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
Dimension (H x W x D)
44 mm (1.7 in) x 482 mm (19.0 in) x 246 mm (9.7 in)
Weight
3,6kg (7.9 lb)
RF Input Bias Voltage
12 volts, max 250 mA per antenna
RF Input Connector type
BNC
Dante Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Network Interface
Switched (dual port) Ethernet, max 100 Mbps
Network Addressing
DHCP or Manual IP
Analog Output Impedance
66 Ω (Only applicable for Receivers with Analog Outputs)
Analog Output Signal Level
Switchable Line or Mic (-30 dB pad) (Only applicable for Receivers with Analog Outputs)
Analog Audio Reference
0 dBu to 20 dBu for full scale output, selectable in increments of 1 dB (Only applicable for Receivers with Analog Outputs)
Supply Voltage, Autosensing
100VAC - 240VAC
Power, Max
28 W
